Tips and Experiences on Quickly Adjusting Parameters of a Four-Roll Plate Roller

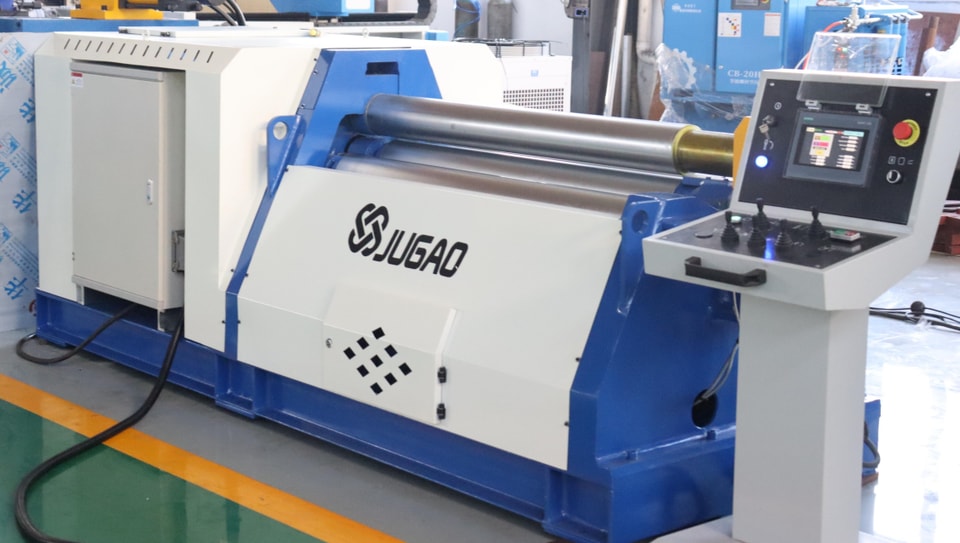

A four-roll plate roller is a common piece of equipment in the metal processing industry, used for bending and rolling metal sheets. Accurately adjusting the parameters of the four-roll plate roller is crucial for ensuring product quality and production efficiency.

This article will introduce some tips and experiences on quickly adjusting the parameters of a four-roll plate roller to help readers better operate and optimize this equipment.

1. Determining the Appropriate Upper and Lower Roller Pressures

The upper and lower roller pressures directly affect the bending effect of the metal sheet. Generally, the range of upper and lower roller pressures needs to be determined based on different materials and their thicknesses. Initial values ​​can be selected through test piece testing or by referring to relevant manuals, and then fine-tuned according to actual conditions.

2. Adjusting the Positions of the Two Sets of Sub-Shafts

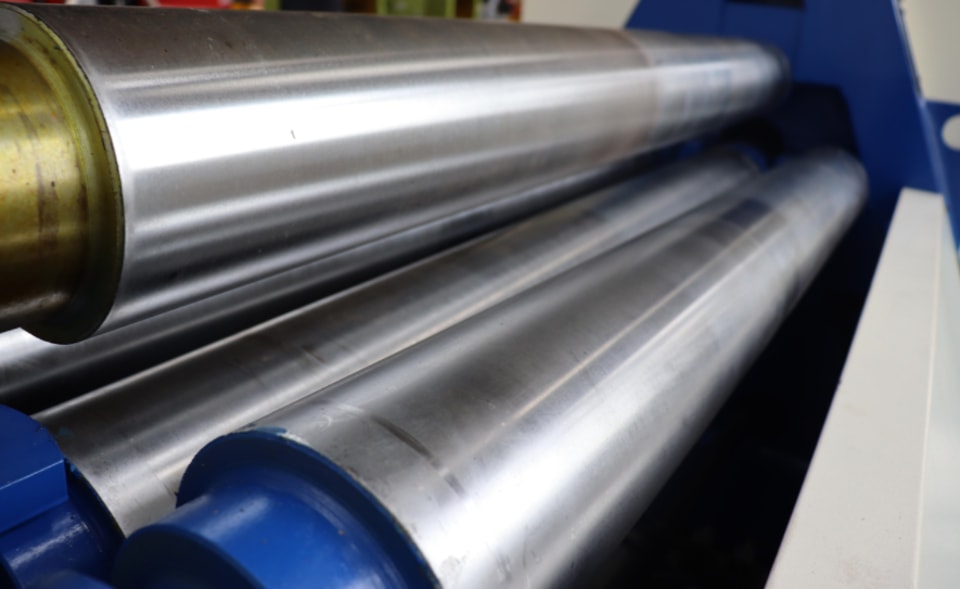

A four-roll plate roller consists of two working shafts and two support shafts. Before operation, it is necessary to ensure that the positions of the two sets of sub-shafts are balanced and correctly aligned. This can be judged by observing whether the gap between the end faces of the working shafts is uniform, and appropriate measures such as adjusting screws can be taken to achieve alignment.

3. Controlling the Rolling Speed

Rolling speed refers to the speed at which the metal sheet moves through the four-roll plate bending machine. Different thicknesses and hardnesses of metal require appropriate rolling speeds; speeds that are too fast or too slow can lead to product quality problems. The appropriate rolling speed can be selected based on practical experience and experimentation to achieve the desired effect.

4. Adjusting the Upper Roller Inclination Angle

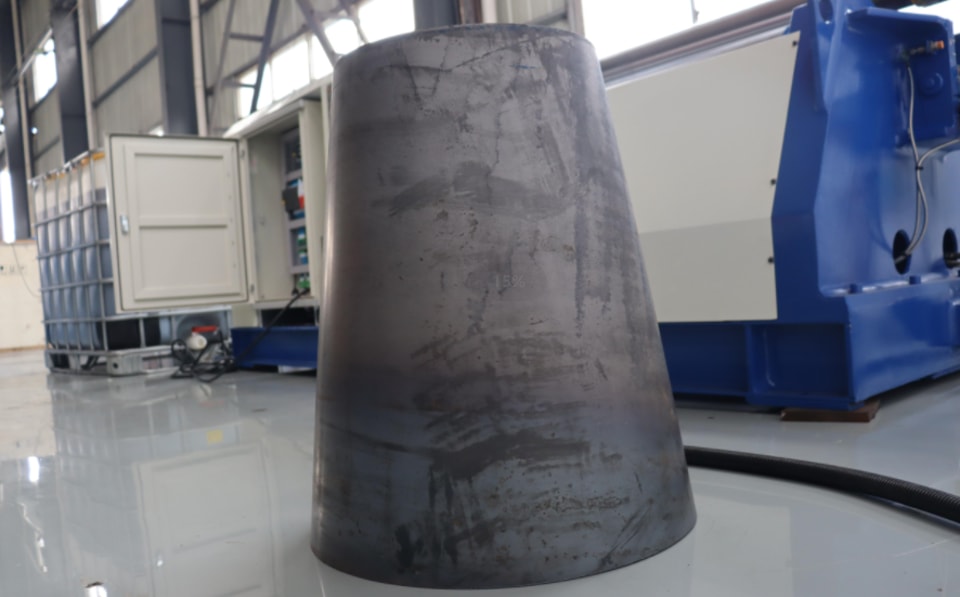

The upper roller inclination angle directly affects the arc shape of the bent part. Generally, a larger inclination angle produces a smaller arc. The upper roller inclination angle can be controlled by adjusting relevant screws or the hydraulic system, and fine-tuned as needed.

5. Determining the Appropriate Feed Position

The feed position determines the distance between the metal sheet and the axis when it enters the working area of ​​the four-roll plate bending machine. Correctly setting the feed position can avoid problems such as deviation and deformation. The appropriate feed position must be carefully measured and determined before operation based on the actual situation and processing requirements.

6. Safety Precautions

When adjusting the parameters of the four-roll plate bending machine, safety precautions must be taken. Ensure the equipment is stopped and powered off before making adjustments to avoid accidental injury. Simultaneously, familiarize yourself with the equipment's operation manual and safety procedures, and follow relevant guidelines.

7. Record Parameter Settings

To improve work efficiency and ensure consistent product quality, it is recommended to record the values ​​and results of each parameter adjustment. This allows for reference in future operations, enabling quick identification of parameter combinations and improving work efficiency.

Quickly adjusting the parameters of a four-roll plate bending machine requires certain skills and experience. By properly determining key factors such as upper and lower roll pressure, auxiliary shaft position, and plate bending speed, and by paying attention to safety precautions and recording adjustment results, processing efficiency can be improved, product quality optimized, and losses caused by operational errors reduced. Continuously accumulating experience and sharing with peers is also an effective way to improve adjustment skills.
