Factory acceptance test
Nine points,
or it doesn't ship.
After warm-up, the press brake bends three 90° test parts in Q235 cold-rolled steel (2 or 3 mm, V = 8t). Each part is measured at the left, center and right with a calibrated digital protractor (0.01° resolution). All nine readings must fall inside the limit before the release is signed.
- Standard machines
- 90° ±0.5° · straightness ≤0.3 mm/m
- Precision machines
- 90° ±0.3° · straightness ≤0.2 mm/m
- Filed as
- RPT-[S/N]-FAT · VID-[S/N]-FAT
Scroll to bend · drawing, not to scale
Product range · six process families
Judge a machine
by the part it makes.
Each machine draws itself, then makes one part. The orange line is the part, and the part is what we measure before a machine ships.

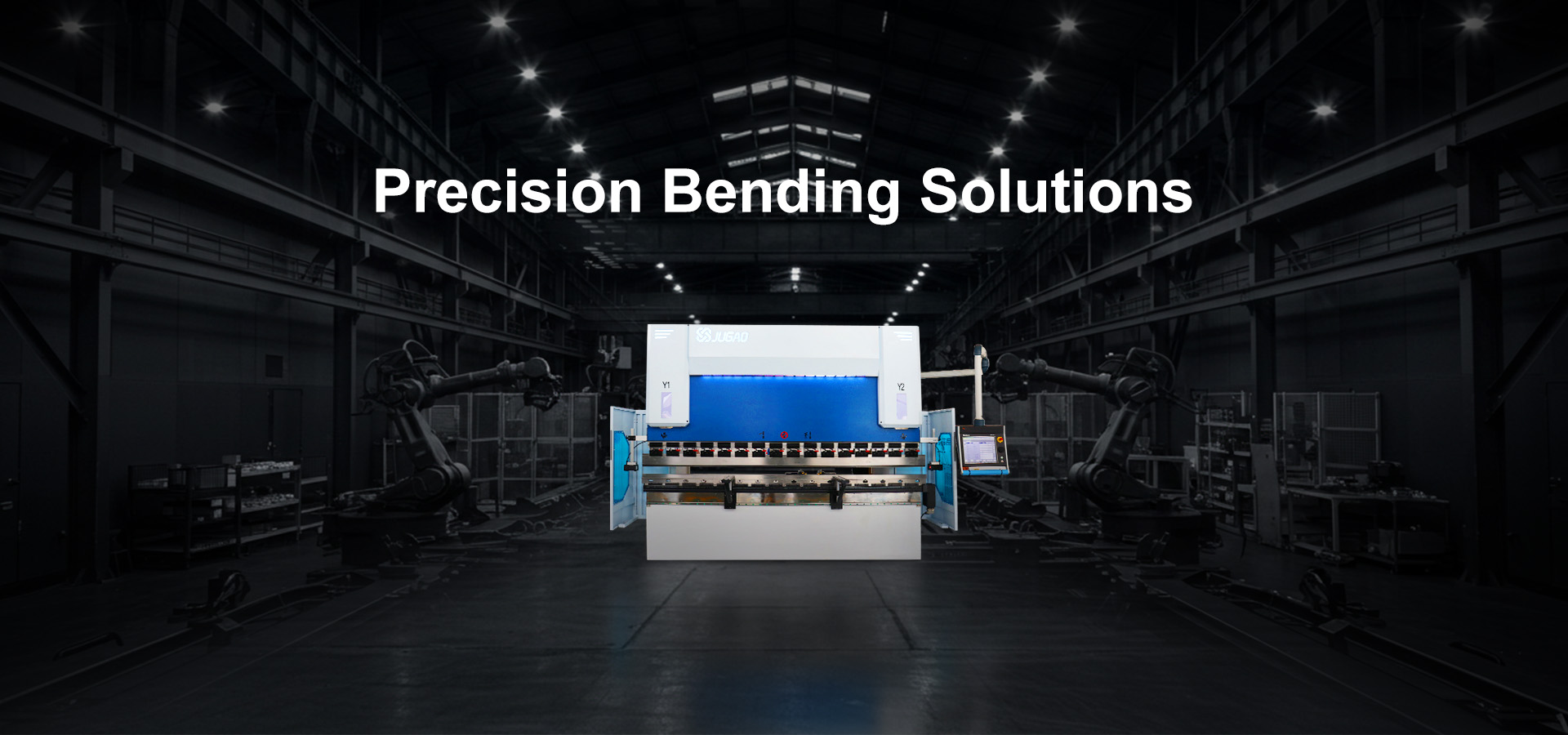

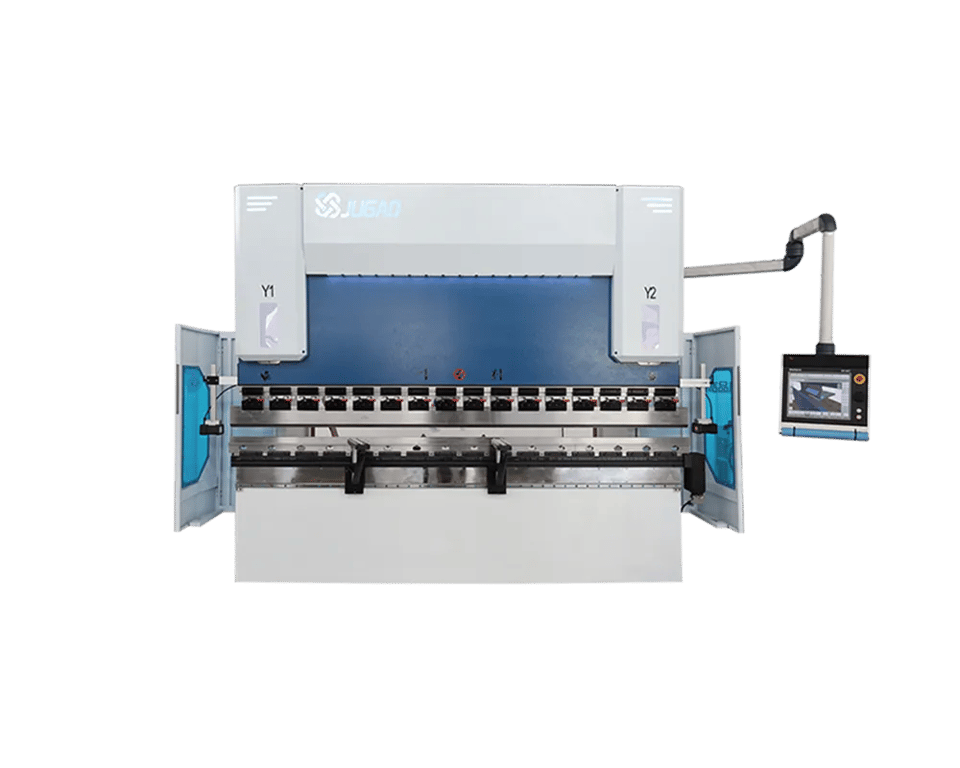

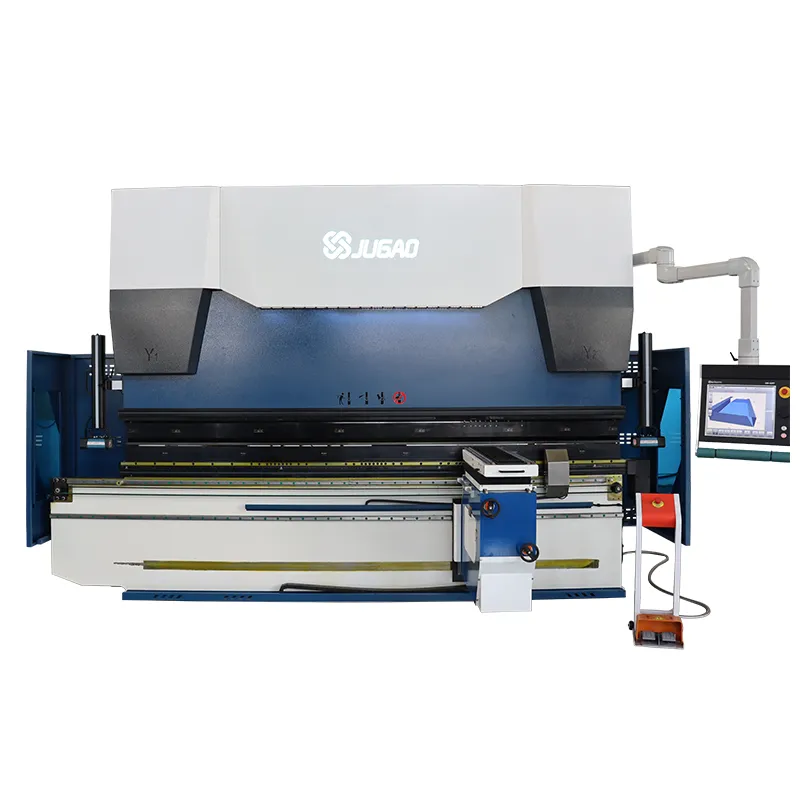

Press brakes
Hydraulic and electric CNC press brakes for 10 ft parts and longer.
- WC67K
- WC67Y
- 60-1700 Electric
- E300
- Panel bending center
- Tonnage
- 80–250 t
- Bed length
- 3200 / 4000 mm
- Controllers
- E21 · DELEM
- Release test
- 3 parts × L/C/R · 90° ±0.5°

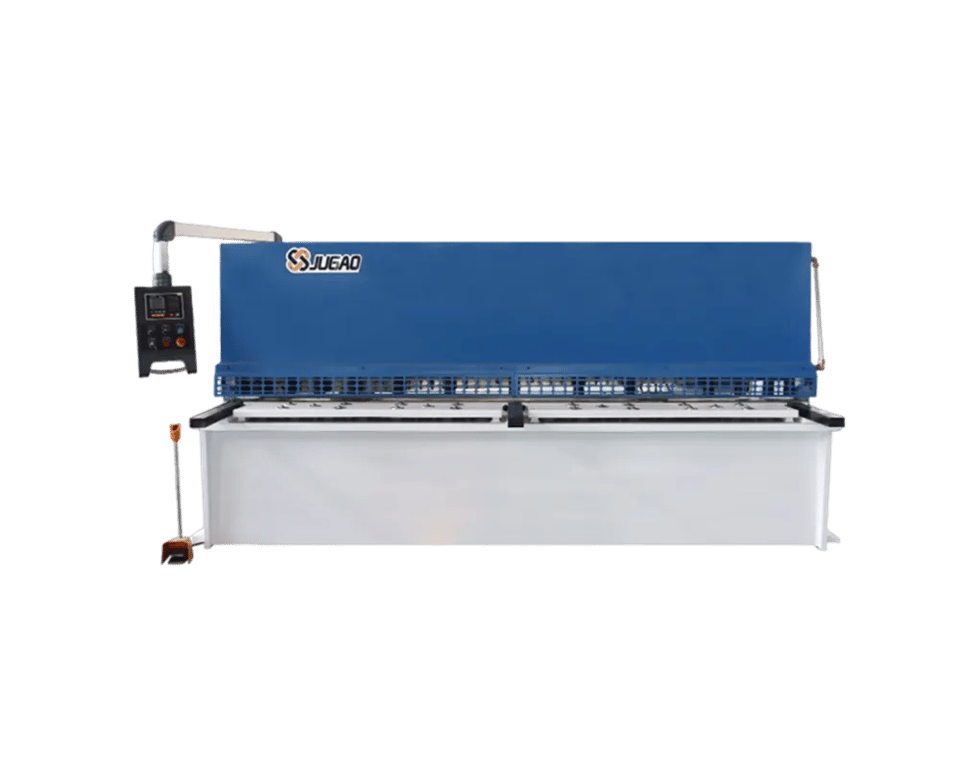

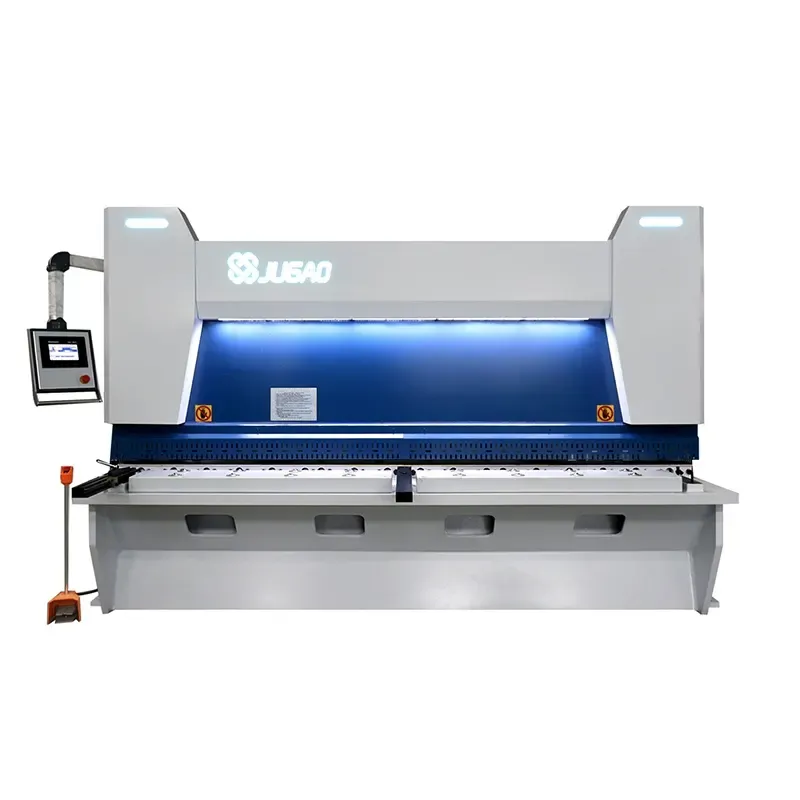

Shears
Hydraulic swing-beam and guillotine shears with CNC back gauge.
- QC12Y
- QC12K
- QC11K
- Listed size
- 6 × 3200 mm (QC12K)
- Controller
- E21

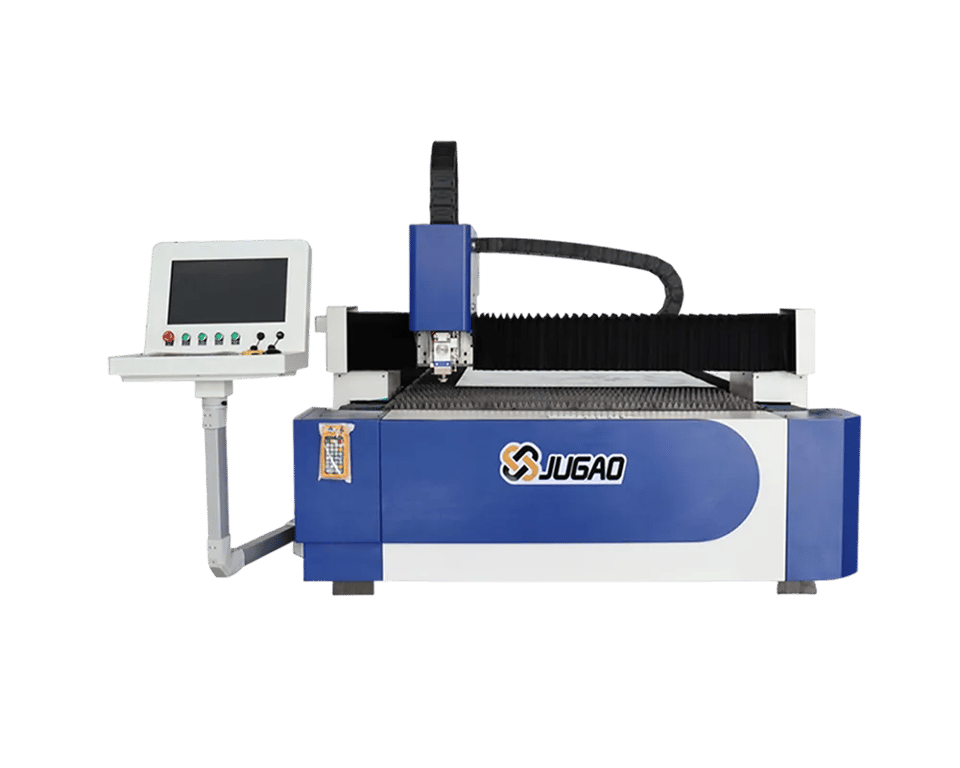

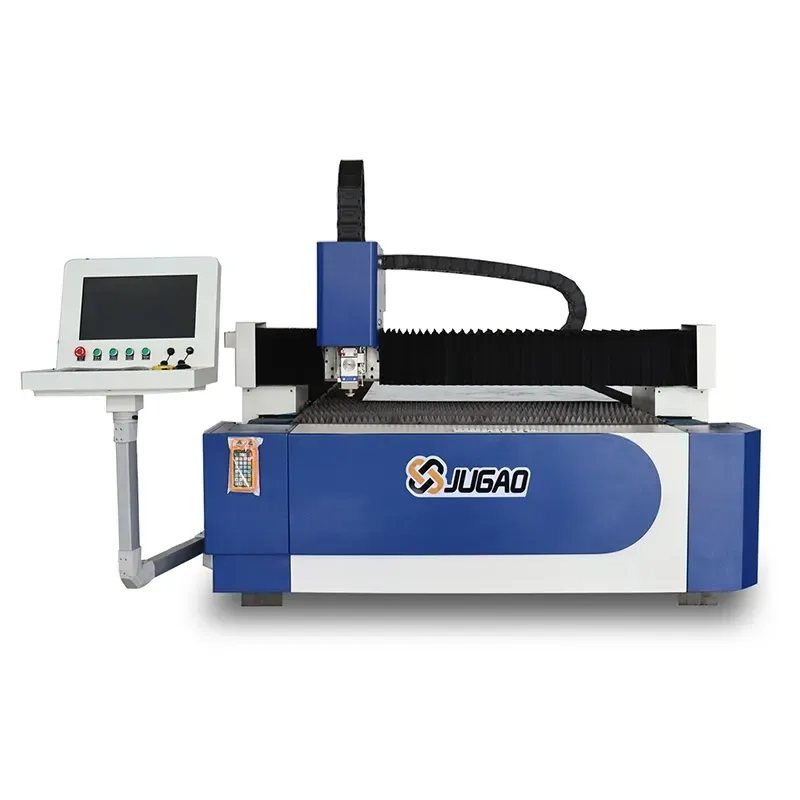

Fiber lasers
Open-table fiber laser cutters, plus laser welding and marking.
- Fiber cutter
- 5-in-1 laser welder
- Robotic laser welding
- Large-format marking
- Listed size
- 2000 W · 1500 × 3000 mm table

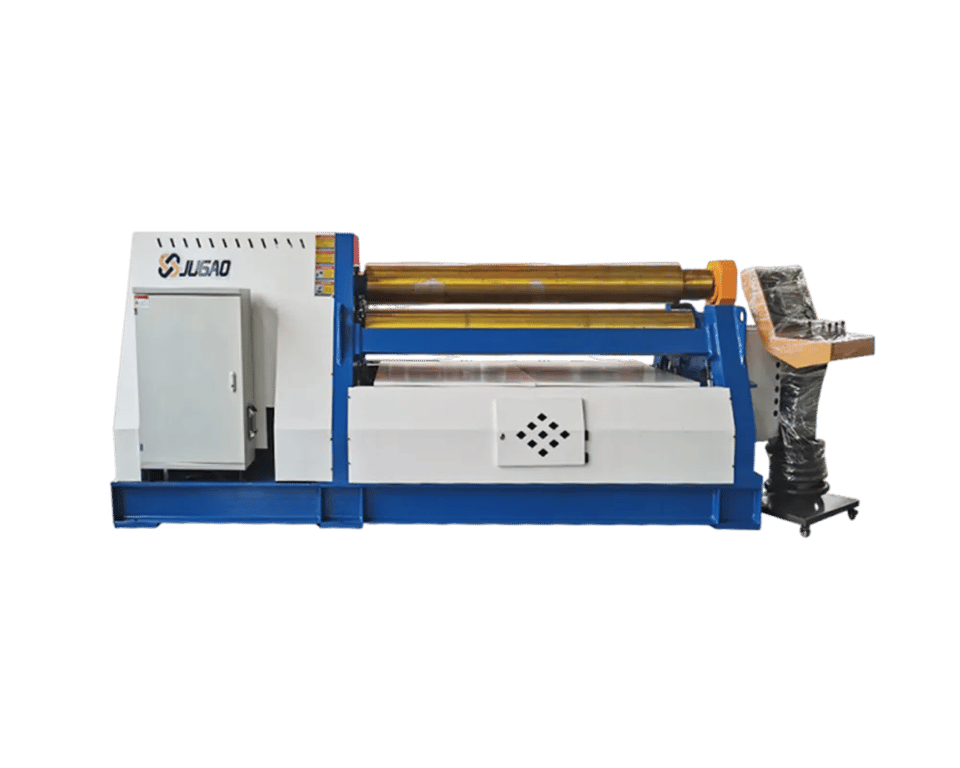

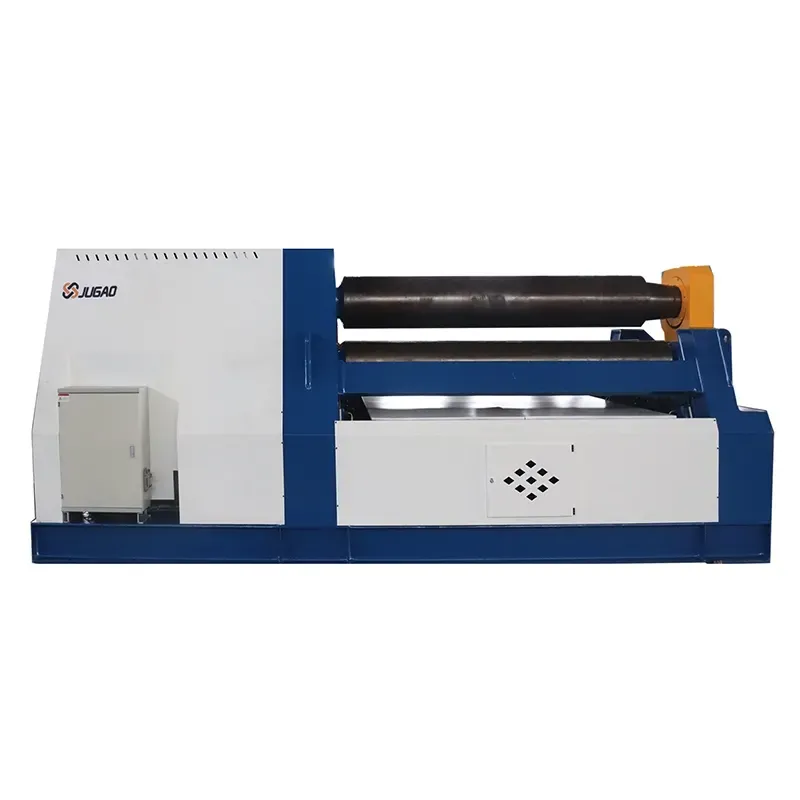

Plate rolls
Three- and four-roll plate rolling machines, including cone rolling.
- W11S
- W12
- W11
- W11F
- Listed sizes
- 6 × 3200 · 6 × 1500 mm

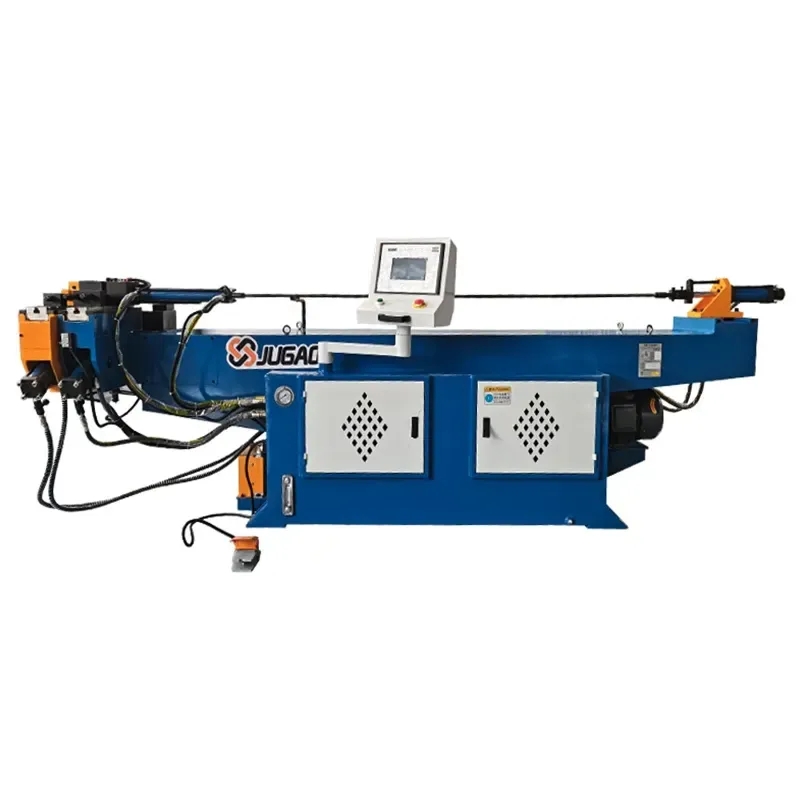

Pipe benders
NC and CNC hydraulic pipe and tube benders, single and double head.
- ER-63 CNC
- ER-63 NC
- Double-head
- Listed model
- ER-63

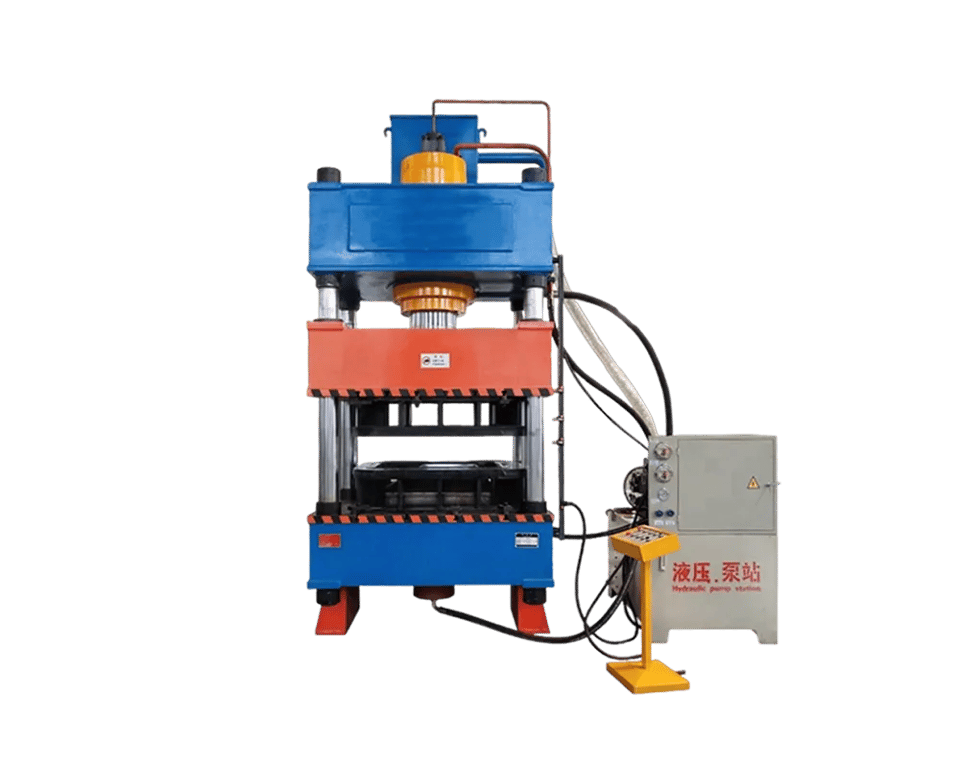

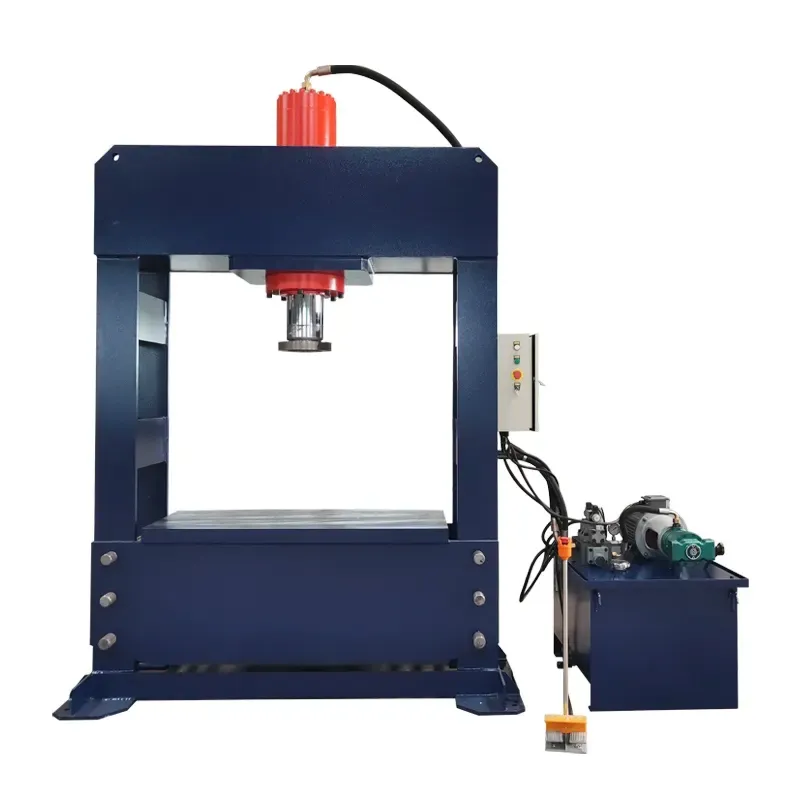

Hydraulic presses
Four-column, H-frame and C-frame hydraulic presses, and JH21 power presses.
- YJG32
- H-frame gantry
- C-frame
- JH21
- Listed sizes
- 100 t YJG32 · 160 t H-frame
Line drawing, not to scale · orange = workpiece
Evidence pack · per serial number
Every machine
leaves a record.
Before shipping you receive photos, a test video and the signed release report, filed as IMG, VID and RPT under the machine's serial number.

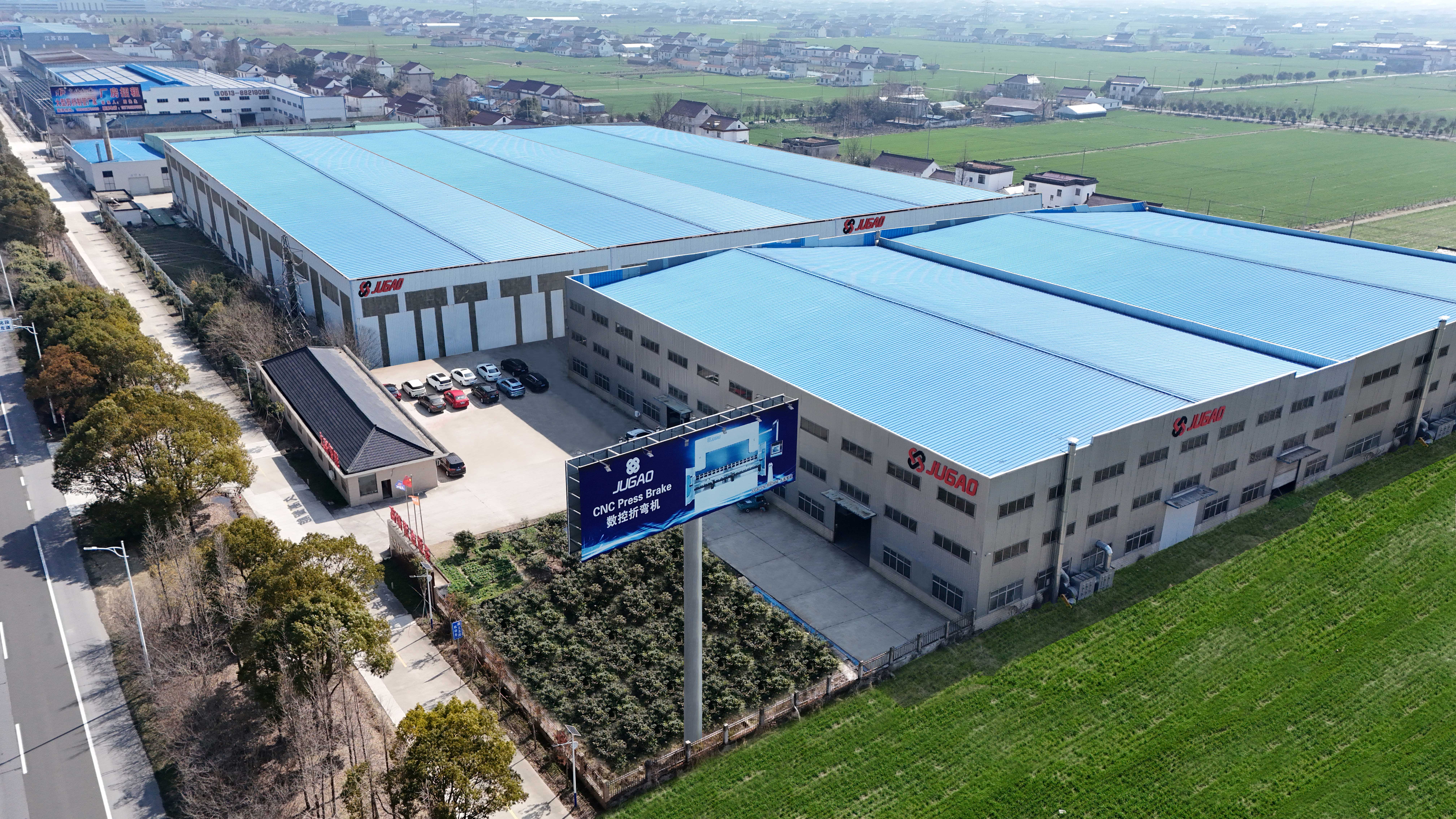

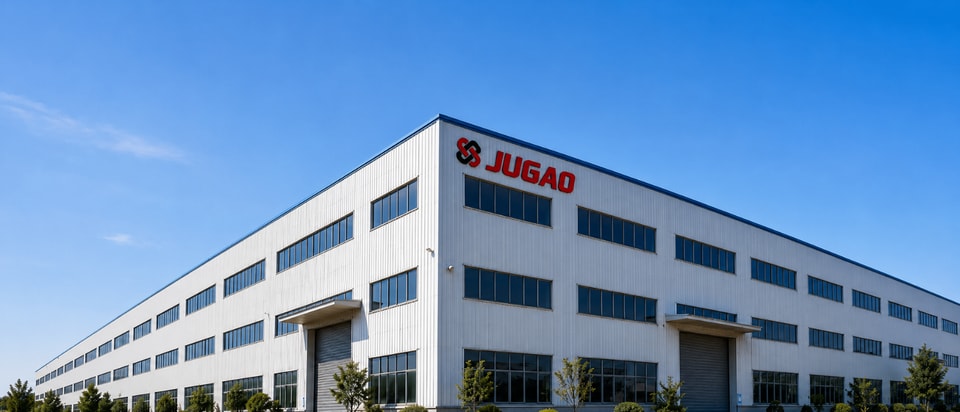

PlantHaian, Nantong

Press brakeAssembly floor

Fiber laserOpen table

Plate rollFour-roll

ShearHydraulic

Pipe benderHydraulic

WeldingRobotic cells

Customer visitNantong
Engineering review
Send a drawing.
Get an engineer.
Standard selections answered within 4 hours. Parts outside the rules get a written process review within 24 hours.
- Part drawing: DXF, DWG, STEP or PDF
- Material and thickness
- Longest bend or cut length
- Yearly volume
Write to info@ntjugao.com or message the factory on WhatsApp +86 132 2211 1178.
Drawings (DXF, DWG, STEP, PDF): attach them to an email to info@ntjugao.com, quoting your name.
