What are the functions of the various accessories of a four-roll plate rolling machine?
Customers often ask about the functions of the accessories when purchasing a four-roll plate rolling machine. Below, I will explain the functions of the accessories.

Functions of the accessories of a four-roll plate rolling machine

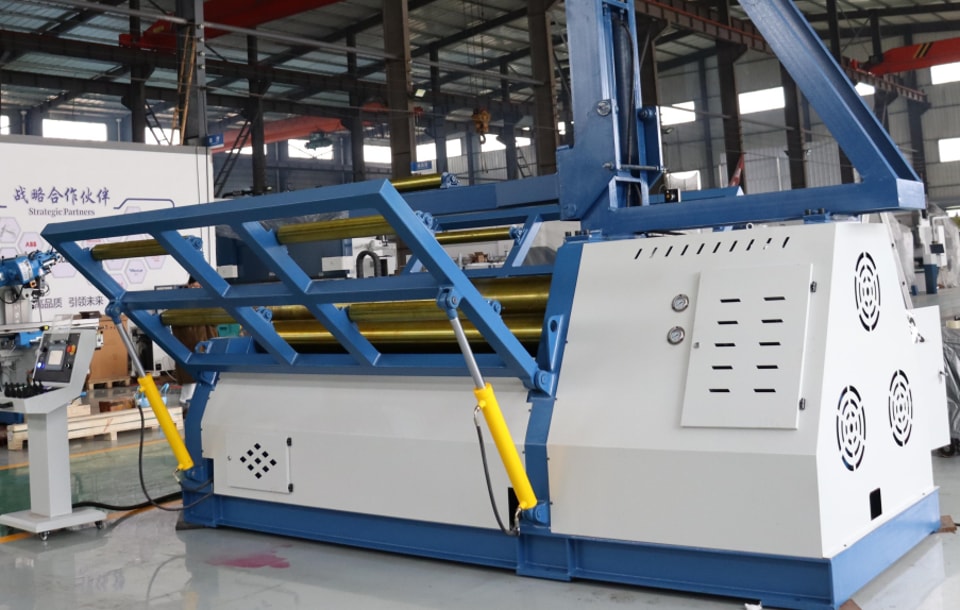

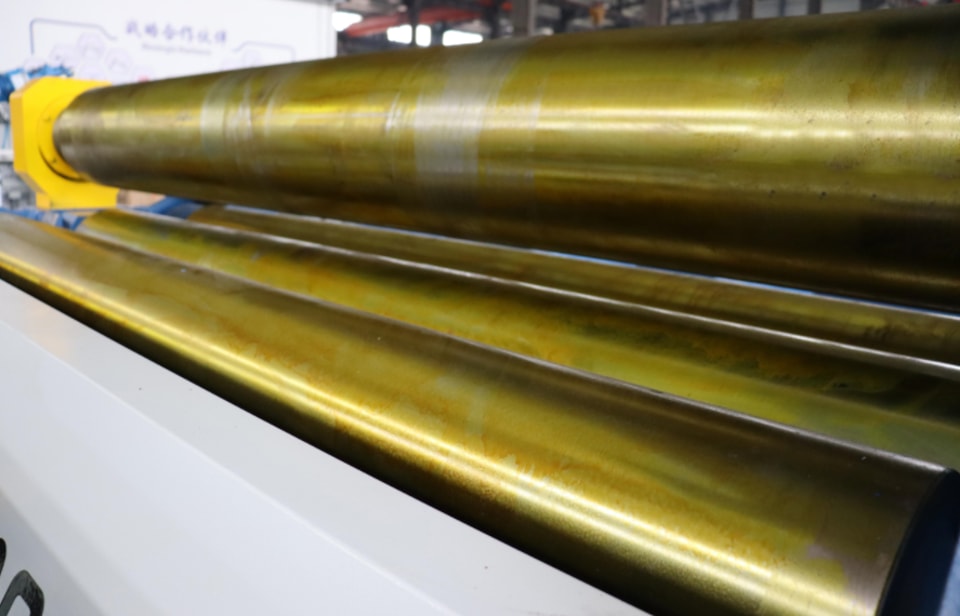

(1) Upper and lower rollers of the four-roll plate rolling machine: These are important components of the rolling machine. They are made of precision forgings, rough-machined with machining allowance, heat-treated, and then precision-machined, with the roller surface finally quenched.

(2) Four-roll plate rolling machine frame: There are two frames, one on the left and one on the right. These are welded steel plate structures, treated to remove welding stress. The frame has a lower roller bearing. Inside the frame is a square threaded screw, the upper end of which is hinged to the bearing seats at both ends of the upper roller. A worm gear pair and a helical pair are installed at the bottom. The upper roller is raised or lowered by rotating the nut in the worm gear.

(3) Support roller device: Used to support the middle of the lower roller, improving the rigidity of the lower roller and thus improving the forming accuracy of the workpiece. (4) Reducer: Both the main and auxiliary reducers are cylindrical gear reducers. They are installed on the working base along with the shims.
(5) Plate Roller Unloading Balancing Device: Installed on one side of the reducer to balance the upper roller during unloading.

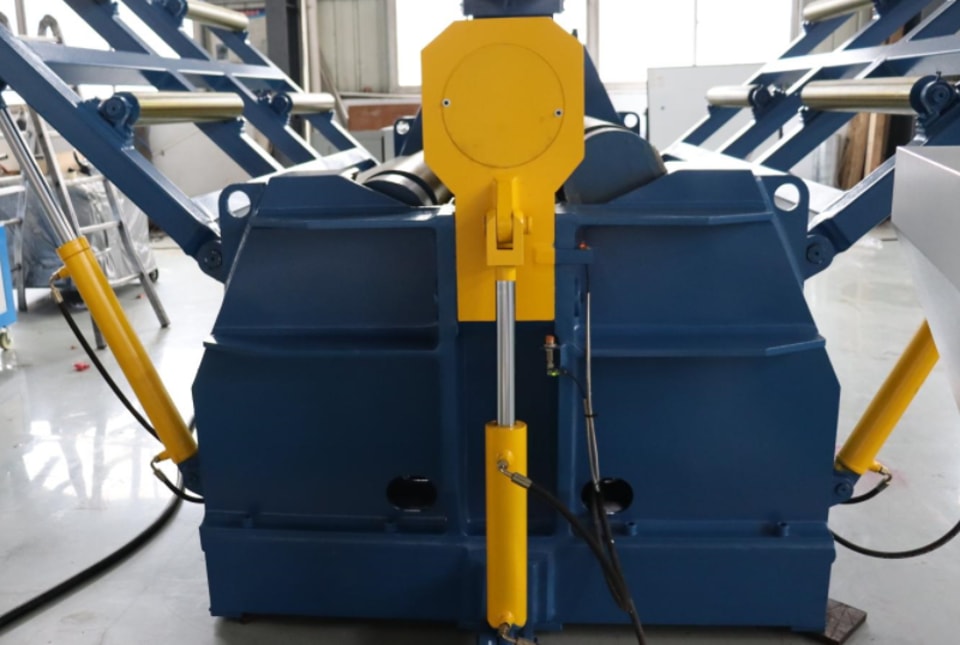

(6) Tilting Mechanism: Installed on the tilting side for tilting and restoring the tilted section.

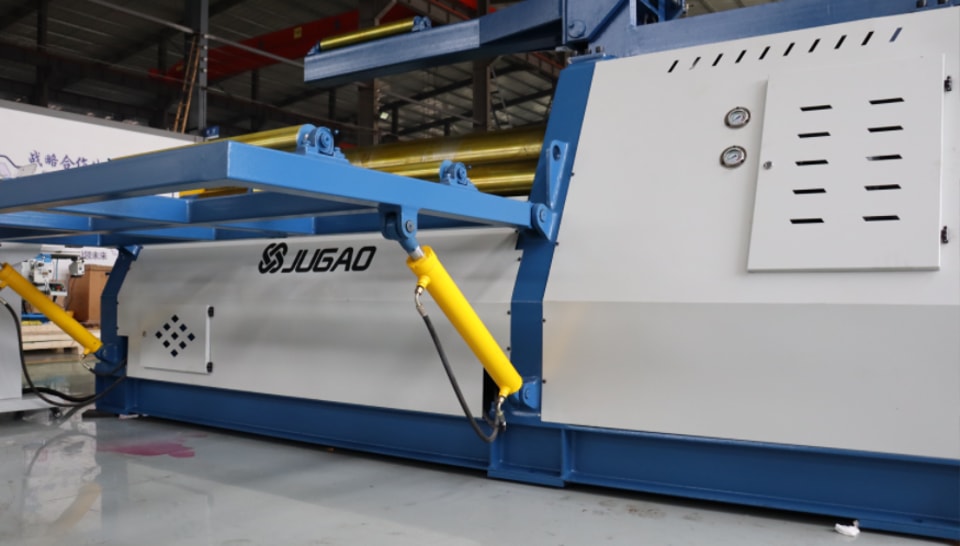

(7) Base: A complete base for easy installation and lifting. It is welded from structural steel and steel plates and has undergone stress-relief treatment. The frame, reducer, motor, etc., are all installed on it, forming a complete unit.

(8) Electrical Components of the Four-Roll Plate Roller: A three-phase 380V/50Hz AC power supply is used. One main motor drives the lower roller to rotate, and one auxiliary motor drives the upper roller to lift. All electrical control components are installed in the control box and have short-circuit and overheat protection. The electrical cabinet can be arranged according to operational needs for convenient operation.
