Understanding the Precautions for Using a Flange Forming Machine

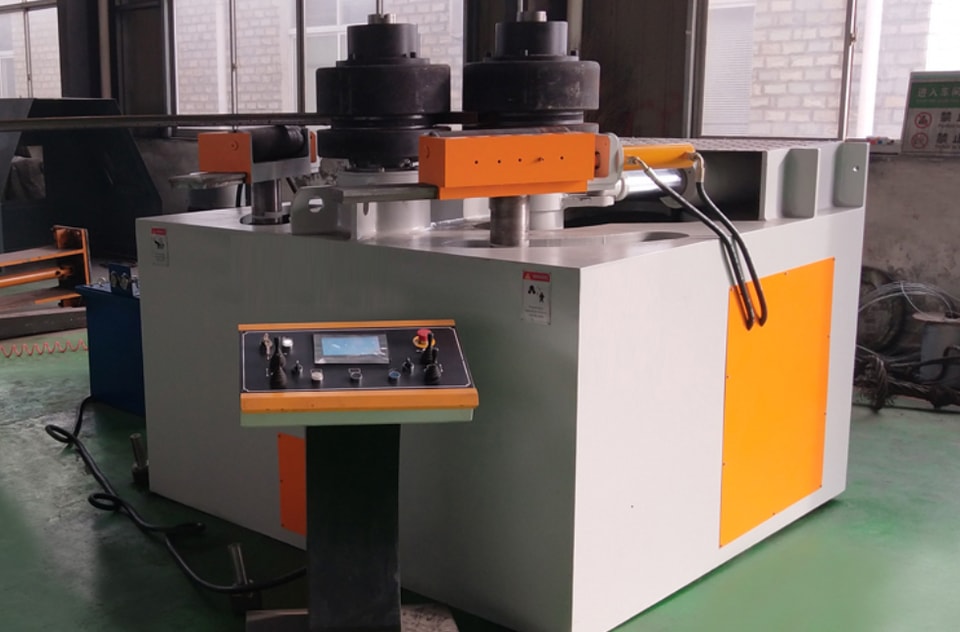

A flange forming machine is a high-efficiency rolling device that rolls carbon steel, stainless steel, and non-ferrous metal profiles into rings and flanges with diameters ranging from 320 to 6000 mm. It features a compact structure, small size, low energy consumption, high efficiency, no noise, convenient installation and use, simple operation, strong load-bearing capacity, long service life, fast rolling speed, and reliable product quality. The flange forming machine replaces the complex processes of steel plate blanking, butt jointing, straightening, and lathe machining, saving oxygen, acetylene, labor, and raw materials, making it an ideal equipment for flange manufacturing.

The precautions for using a flange forming machine are as follows:

1. The equipment must be installed on a solid foundation and aligned so that the feed guide rail is horizontal.

2. Strictly adhere to regulations and safe operating procedures.

3. Operators should understand and master the structure, working principle, and maintenance checkpoints of the equipment.

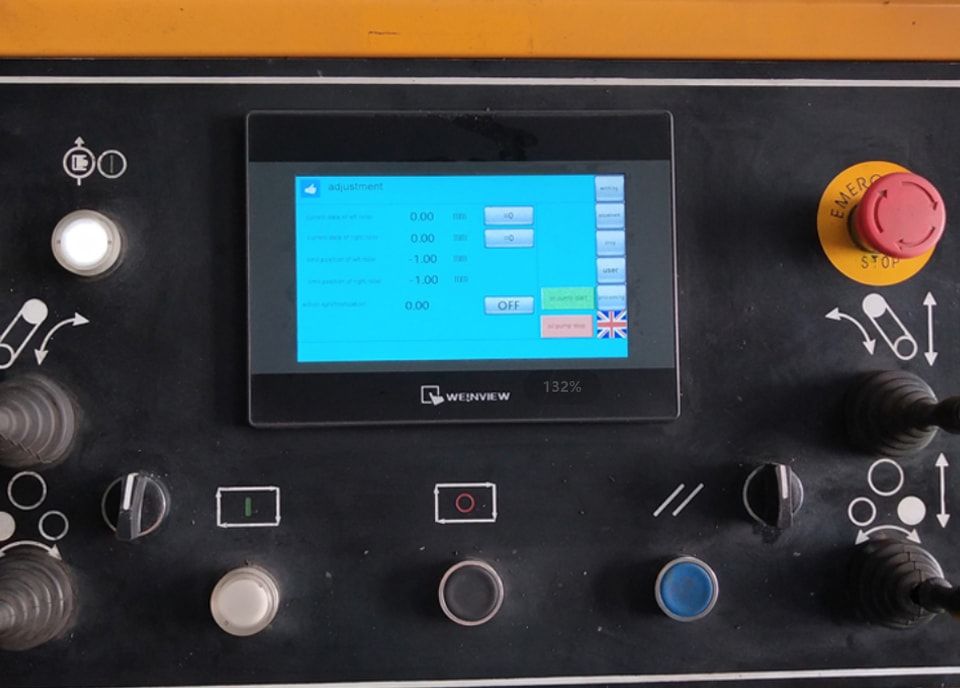

4. Master the methods and sequence for starting and stopping the machine (operate according to the instruction manual for the electromagnetic speed-regulating motor). 5. If the equipment needs to be reversed while running, the speed control switch should be reset first, and the machine should be stopped for 1 minute before restarting.

6. When feeding the moving pressure roller, the fastening bolts should be loosened first. After feeding to the set point, the bolts on both sides of the driven roller should be tightened.

7. During use, the impurities in the pressure roller groove and on the surface of the worktable should be cleaned regularly.
