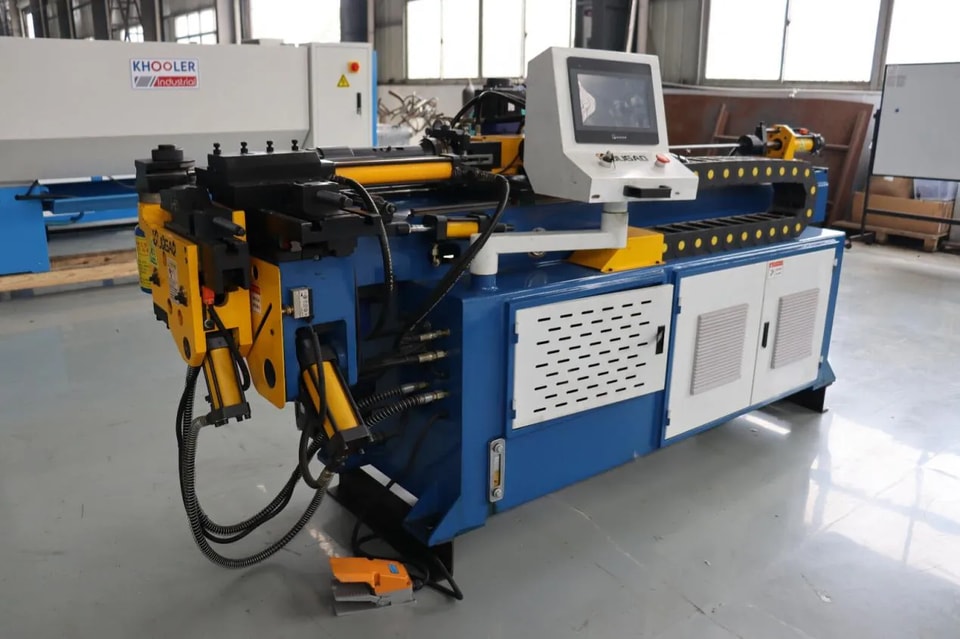

Why is the finished product from the pipe bending machine different from the expected result?

In pipe bending, discrepancies between the finished product and the design drawings or expected results are a frequent problem encountered by on-site technicians. These deviations may manifest as inaccurate angles, cross-sectional distortion, wrinkling, excessive springback, or even incorrect spatial orientation. The root cause is often not a single factor, but rather a result of an imbalance between the materials, molds, equipment, and processes.

1. Bending Angle Deviation

Symptoms: The actual bending angle is greater than or less than the set value, or the angles of products in the same batch are inconsistent.

Possible Causes:

Insufficient Springback Estimate: Materials undergo elastic recovery after bending, especially high-strength steel and stainless steel. If no springback compensation value is reserved in the program, the finished angle will be significantly smaller.

Improper Over-Bending Compensation Settings: Hydraulic or electric pipe bending machines typically have an "over-bending angle" setting to counteract springback. Excessive or insufficient over-bending will lead to angle deviations.

Mold Wear: After the working surface of the bending mold wears down, the fit between the pipe and the mold decreases, changing the actual bending radius and indirectly affecting the angle.

1. Insufficient clamping force: Insufficient clamping die pressure causes the pipe to slip during bending, leading to uncontrolled angle.

2. Pipe cross-section distortion (elliptical, flattened, internal collapse)

Symptoms: The cross-section at the bend is elliptical, or there is obvious internal collapse and wrinkling; in severe cases, cracks appear.

Possible causes:

Insufficient bending radius: The R/D value (the ratio of the bending radius to the pipe diameter) is less than the minimum allowable value for the material, which is the primary cause of cross-section distortion.

Mandrel not used or improperly positioned: For thin-walled pipes or small-radius bends, the mandrel is not used, or the mandrel extension is insufficient, or the mandrel ball head is misaligned, resulting in a lack of effective support on the inner side.

Anti-wrinkle die not installed or improperly adjusted: The gap between the anti-wrinkle die and the bending die is too large or too small, failing to effectively suppress internal wrinkling.

Thin pipe wall thickness or soft material: Under the same bending conditions, the thinner the wall thickness, the worse the cross-sectional stability.

3. Spatial Orientation Error (Multi-Bend Products)

Symptom: Complex pipe fittings with multiple bends have a correct first bend, but the final spatial position does not match the drawing, making assembly impossible.

Possible Causes:

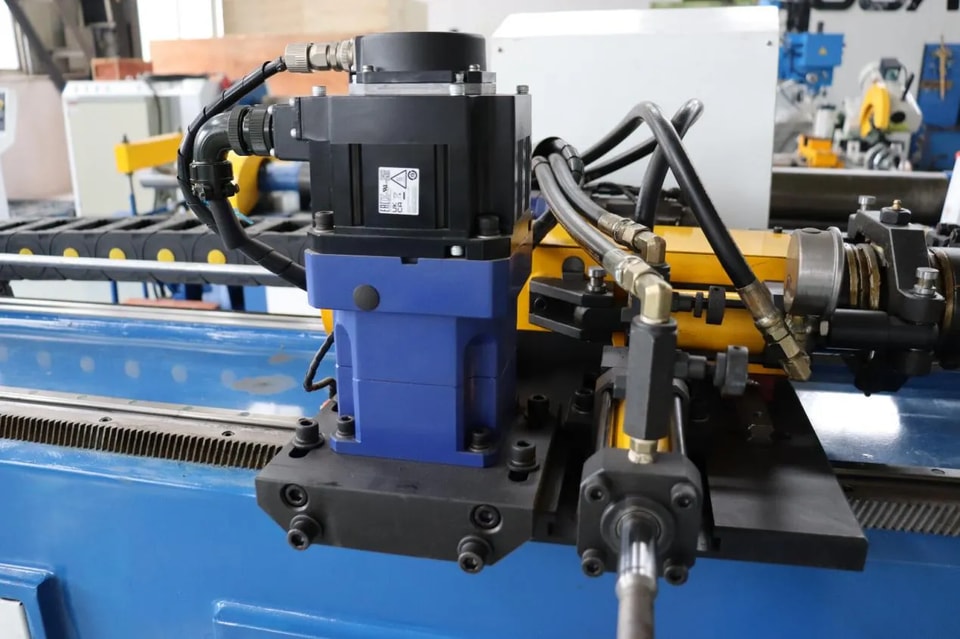

* **Rotation Axis (B-axis) Accuracy Issues:** Encoder deviation or mechanical backlash between bends leads to cumulative spatial orientation errors.

* **Inaccurate Feed Length (Y-axis) Positioning:** Deviation in straight-line feed dimensions causes the starting position of subsequent bends to shift.

* **Incorrect Reference Point Setting:** Improper selection of the reference point during programming, or failure to consider pipe end allowance, results in overall dimensional deviation.

* **Inappropriate Bending Sequence:** Improperly designed bending sequence; deformation of later bends affects the shape of earlier bends, especially common in small-pitch bends.

4. Wrinkling and Surface Scratches

Symptom:** Wavy wrinkles appear on the inside of the bends, or there are obvious indentations or scratches on the pipe surface.

Possible Causes:

Excessive Clearance Between Anti-wrinkle Die and Bending Die: An excessively large clearance can cause the inner material to become unstable and wrinkle; a too-small clearance increases friction and may scratch the surface.

Insufficient Die Surface Smoothness: Rough working surfaces of the bending die and clamping die, or rust and debris after long-term use, will leave marks on the pipe surface.

Poor Lubrication: Insufficient lubrication or lack of dedicated pipe bending oil leads to dry friction between the pipe and the die.

Defects on the Pipe Surface: Scratches and pits on the pipe blank itself will expand into obvious defects during bending.

5. Poor Springback Consistency with Batch

Phenomenon: Pipes from the same batch and processed under the same procedure show inconsistent bending angles or shapes between different parts.

Possible Causes:

Material Batch Differences: Fluctuations in yield strength, elongation, and wall thickness tolerances between different batches of pipe result in varying springback amounts.

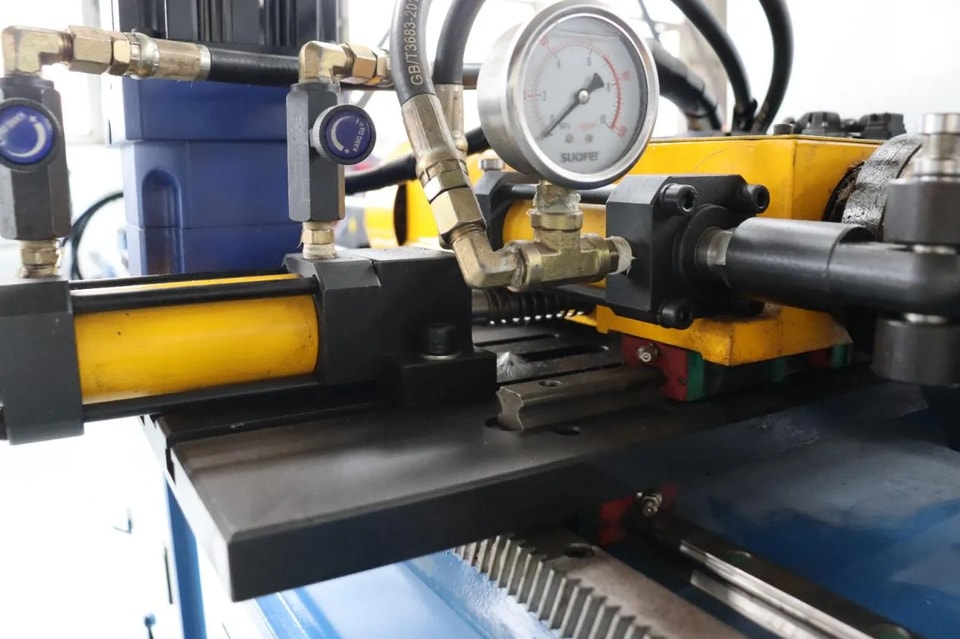

Hydraulic Oil Temperature Changes: During continuous operation, the hydraulic oil temperature of the pipe bending machine increases, causing changes in system pressure and response speed, affecting bending accuracy.

Mold Loosening: The mold fixing bolts loosened after long-term vibration, causing slight movement in the mold position during each bending.

Troubleshooting and Improvement Strategies

Material Confirmation: Verify that the pipe grade, wall thickness, and weld location are consistent with the process requirements. For high-resilience materials, re-measure the springback compensation value.

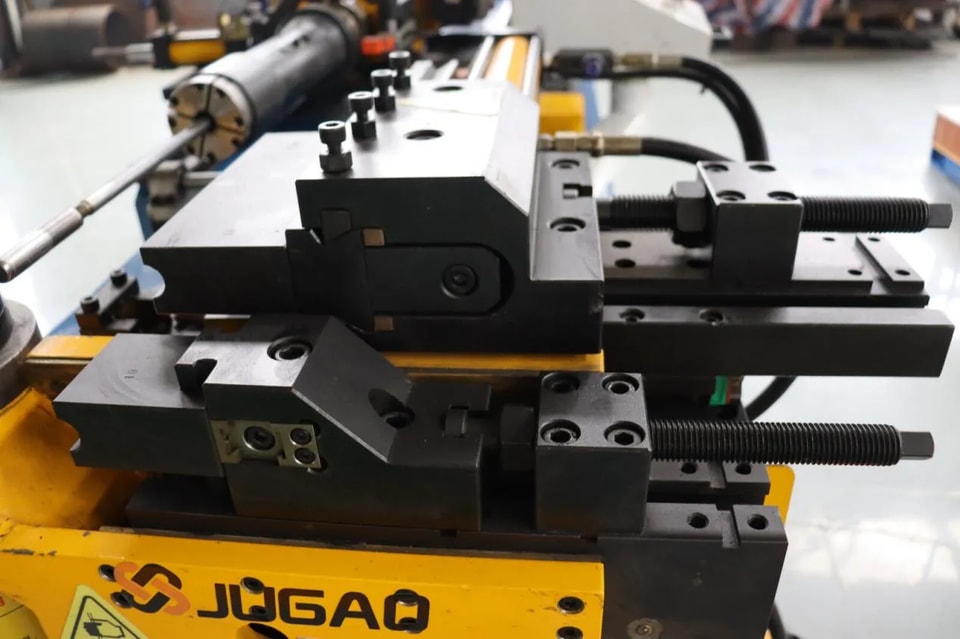

Mold Inspection: Confirm that the models of the bending mold, clamping mold, anti-wrinkle mold, and mandrel match the current pipe diameter and bending radius. Check for wear and installation tightness.

Equipment Calibration: Regularly calibrate the actual values ​​of bending angle, feed length, and rotation angle to ensure consistency with the displayed values. Check the encoder and proximity switches for proper functioning.

Program Verification: Check that all parameters in the program (bending speed, clamping force, mandrel position, bending angle) match the actual working conditions.

First Article Verification: After each change in pipe diameter, wall thickness, or mold, a first article trial bend and full-dimensional inspection must be performed. Mass production can only begin after the first article passes inspection.

Process Records: Establish a process parameter record sheet to archive successful parameters for different materials and specifications, reducing repeated debugging time.

The discrepancy between the finished bent pipe and expectations is essentially a signal of an imbalance in the process system. From materials to molds, from programming to equipment status, every link can be a source of deviation. Only by adopting a systematic approach to troubleshooting, verifying each item one by one, and establishing a standardized first-piece confirmation and process record system can the quality of bent pipes be controlled within a stable and reliable range.
