Why does temperature issues in pipe bending machines lead to bending defects?

Temperature is an easily overlooked variable in pipe bending. Whether it's the temperature of the pipe itself, or the operating temperature of the hydraulic system and mold, any deviation from the normal range will directly cause bending defects. The following are the main mechanisms and typical problems of how temperature affects pipe bending quality.

1. Low Pipe Temperature → External Cracks

When the ambient temperature is low (especially in winter), the plasticity of materials such as carbon steel and stainless steel decreases significantly, and their elongation decreases. If bent directly without preheating, the tensile zone on the outside of the pipe is prone to exceeding the deformation limit, resulting in micro-cracks or even through-cracks. This is one of the most common defects in low-temperature seasons.

Typical manifestation: Small and densely distributed cracks appear on the outside of the bend; in severe cases, the pipe wall separates.

2. Abnormal Hydraulic Oil Temperature → Unstable Angle, Wrinkling

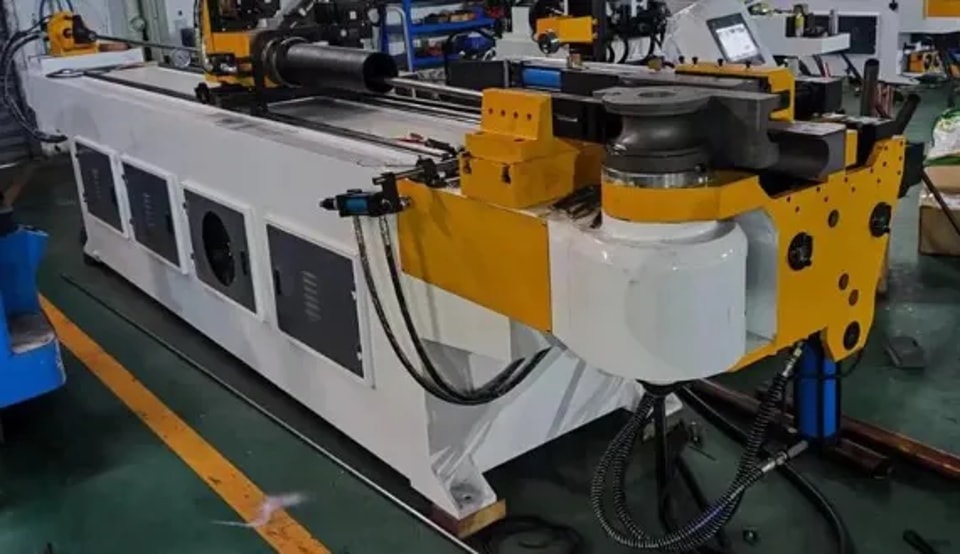

The hydraulic system is the power source of the pipe bending machine, and the oil temperature directly affects the system response and output force:

Low oil temperature (<15℃): The hydraulic oil viscosity is too high, resulting in high flow resistance, sluggish bending arm movement, and creeping. The bending speed fluctuates, leading to uneven material deformation, and wavy wrinkles easily form on the inside.

High oil temperature (>55℃): The oil becomes thinner, increasing internal leakage in the system and reducing the actual bending force. Simultaneously, the seals age faster, and pressure fluctuations become more pronounced. The result is poor consistency in bending angles and difficulty in controlling springback.

Typical manifestations: Large angle deviations within the same batch of pipes, and irregular wrinkling on the inner side of the bend.

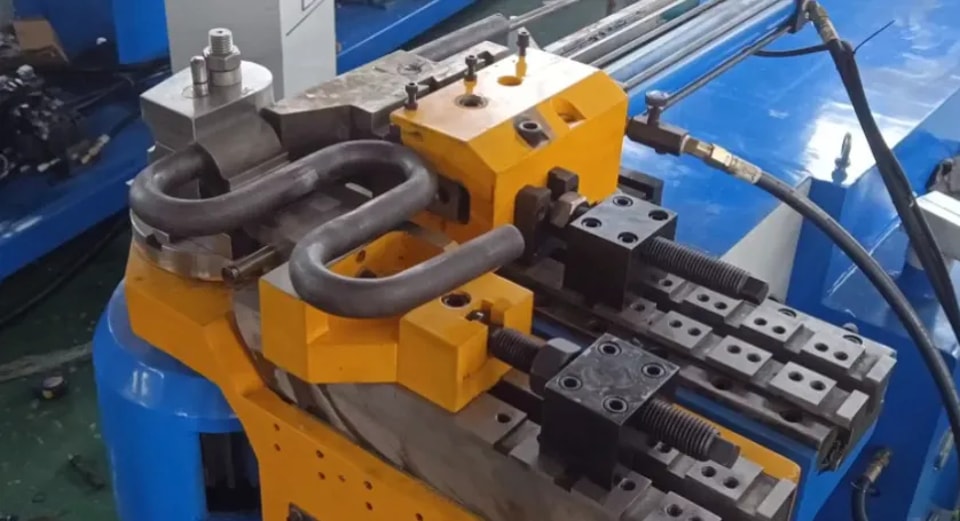

3. Overheating due to friction between the die and the pipe → Surface scratches and material adhesion

During continuous high-speed pipe bending, the sliding friction between the pipe and the die generates a large amount of heat. If lubrication is insufficient or cooling is inadequate, the contact surface temperature can rise above 100℃, leading to:

Rupture of the oil film in the bend, direct metal-to-metal contact, and scratches on the pipe surface.

Local softening of the die surface, causing the pipe material to "stick" to the die cavity, forming built-up edge, further scratching subsequent pipes.

Typical manifestations: Wide axial scratches appear on the outer or inner side of the bend, and metal accumulation on the die working surface.

4. Localized overheating of the pipe (e.g., induction heating bending) → Wall thinning and wrinkling

Some processes use localized heating to assist bending. If the heating temperature is too high (exceeding the material's recrystallization temperature) or the heating band is too wide, the pressure side of the pipe will soften excessively, leading to instability and wrinkling even under relatively small compressive stress. Simultaneously, the wall thickness reduction on the tension side will intensify.

Typical manifestations: Dense, large wrinkles appear on the inner side of the bend, while the outer wall thickness becomes significantly thinner or even cracks.

Temperature Control Recommendations

Pipe Preheating: Before processing in winter, store the pipes in the workshop for 24 hours to allow them to warm up, or preheat them to above 15℃ using a heating device (especially for high-strength steel and stainless steel).

Oil Temperature Management: After starting the machine, run it unloaded for 5-10 minutes to preheat the hydraulic oil; during continuous heavy-load processing, turn on the oil cooler to control the oil temperature between 35-50℃.

Lubrication and Cooling: Use a special high-temperature resistant pipe bending oil to ensure a continuous oil film on the mold surface; for high-speed continuous pipe bending, a micro-cooling device (air cooling or oil mist cooling) can be installed.

Monitoring Tools: Install an infrared thermometer or thermocouple to monitor the surface temperature of the mold and pipes in real time. If the temperature exceeds the set threshold (e.g., mold > 80℃), reduce the speed or stop the machine to dissipate heat.

Temperature is not a secondary factor in the pipe bending process, but a crucial factor determining success or failure. Proper temperature control can significantly reduce defects such as cracks, wrinkles, and scratches.
