When slow pressure buildup occurs in a press brake during production, my first step is to check the hydraulic system and operating conditions. This issue will lower bending efficiency, lead to unstable forming outcomes, and even trigger machine alarms in some cases. In most situations, it is not caused by a single component failure, but a combination of hydraulic, mechanical, and control factors. In this guide, I will elaborate on the most frequent reasons for slow pressure buildup in press brakes, as well as my practical diagnosis and solutions for real workshop scenarios.

How Hydraulic Pressure Works in a Press Brake

Before troubleshooting slow pressure buildup in a press brake, it is necessary to understand the normal operation of the pressure system. In a hydraulic press brake, the pump pushes hydraulic oil into the cylinder through valves and pipelines, and the pressure generated by the system drives the ram downward to complete bending work.

If any part of the system is blocked, leaking, contaminated, or has control delays, the pressure will rise slowly instead of reaching the required tonnage rapidly. Pinpointing the faulty component is the key to solving the problem efficiently.

Common Causes of Slow Pressure Buildup in Press Brakes

Multiple mechanical and hydraulic abnormalities can result in slow pressure buildup. I usually focus on the following aspects during diagnosis.

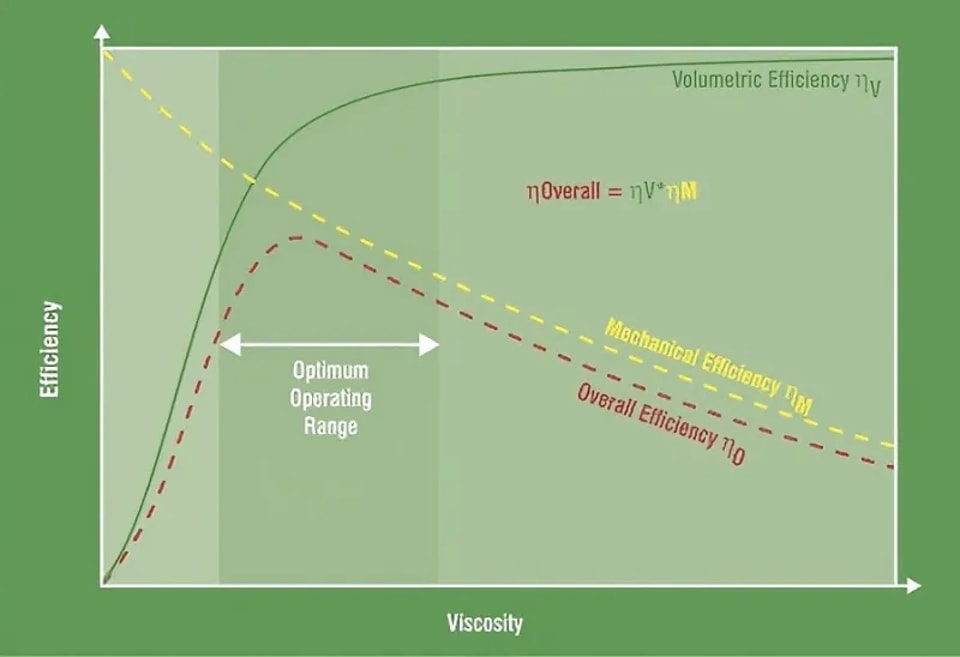

Unsuitable Hydraulic Oil Viscosity

Hydraulic oil quality directly affects pressure response speed. Incorrect oil viscosity will prevent the hydraulic pump from building pressure efficiently.

Typical situations include:

• Over-thick oil in low-temperature environments

• Oil deterioration caused by overheating

• Use of non-standard hydraulic oil that does not meet manufacturer requirements

Under these circumstances, the pump needs to consume more energy to deliver oil, leading to delayed pressure buildup. The problem can usually be fixed by replacing the oil with the correct grade and maintaining a proper operating temperature.

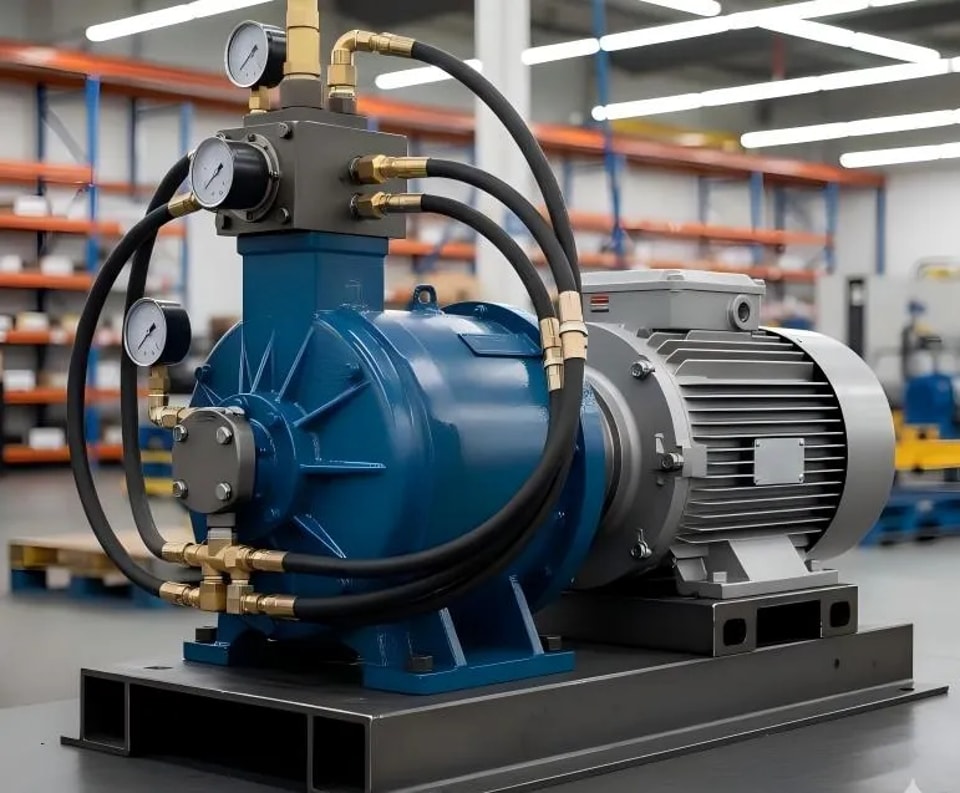

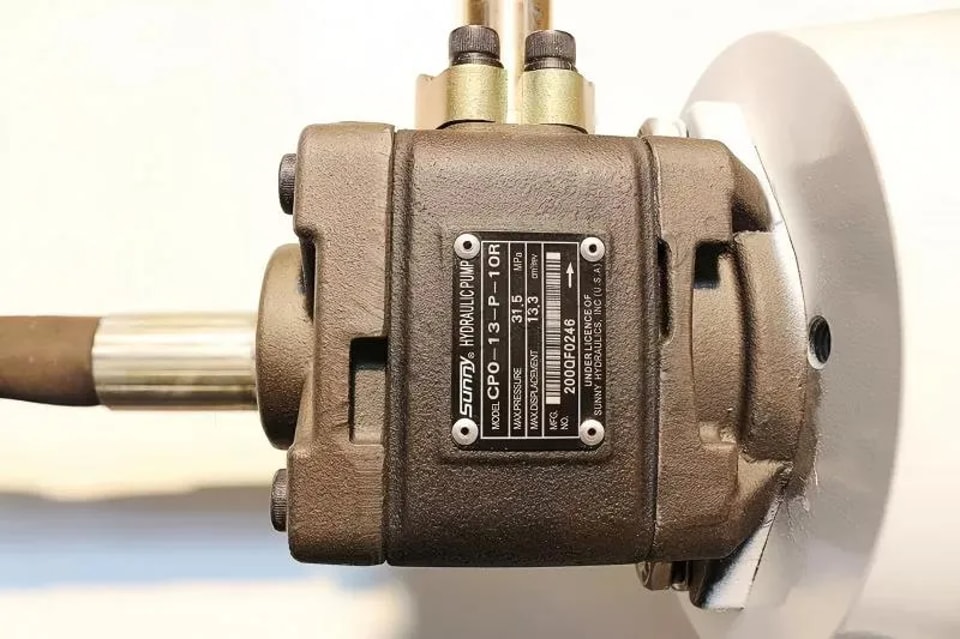

Worn or Low-Efficiency Hydraulic Pumps

A worn hydraulic pump is another major cause of slow pressure buildup in press brakes. As time goes by, internal parts like gears and vanes will lose working efficiency.

Typical symptoms are:

• Slow pressure response during bending

• Decreased maximum tonnage

• Abnormal noise from the pump

If I suspect pump wear, I will test the system pressure and flow rate. If the pump fails to reach the rated performance, replacement or refurbishment is required.

Internal Leakage in Hydraulic Cylinders

Hydraulic cylinders provide the bending force, but worn internal seals will cause oil to leak between cylinder chambers.

This will lead to:

• Pressure loss during operation

• Slower pressure buildup

• Unstable bending force

To check internal leakage, I usually monitor pressure stability and inspect seals. Replacing worn seals can generally restore normal operation.

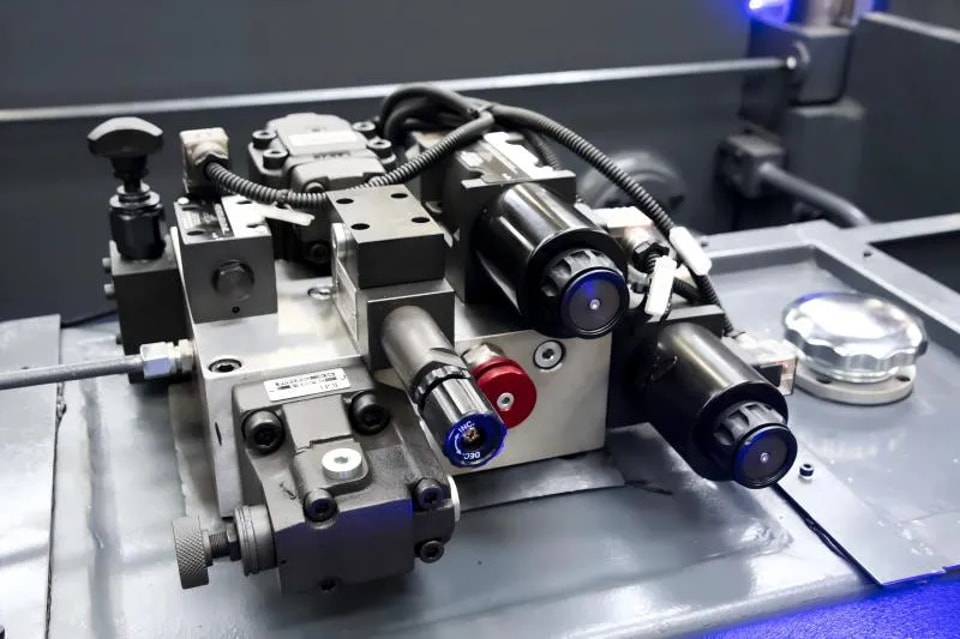

Hydraulic Valve Faults Causing Slow Pressure Response

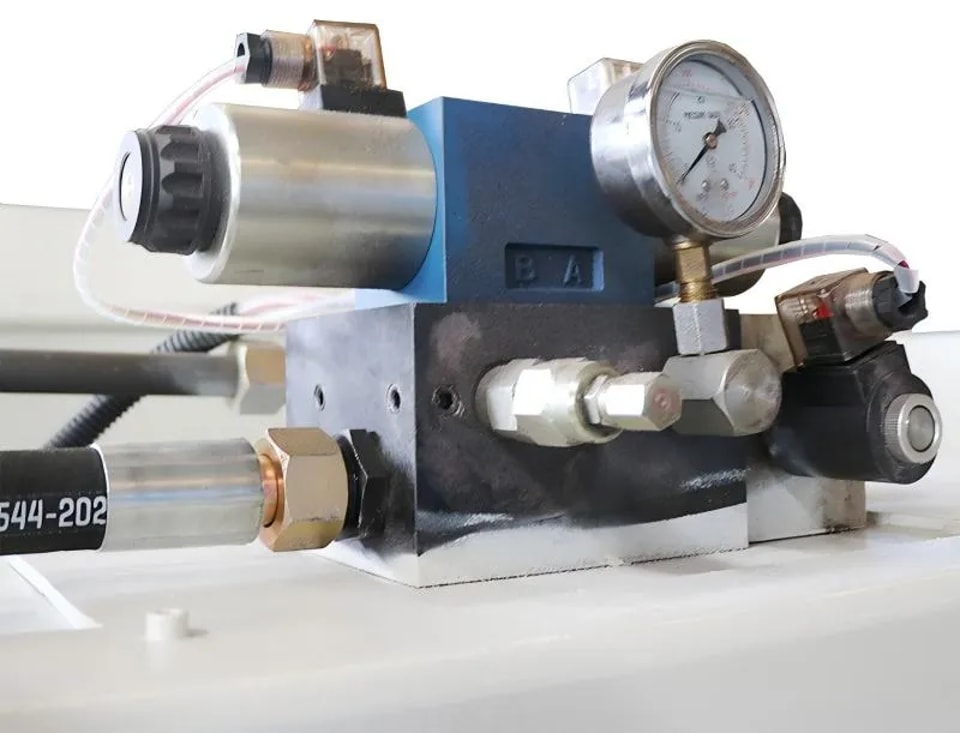

Hydraulic control valves regulate oil flow and pressure, and their malfunctions will slow down pressure buildup.

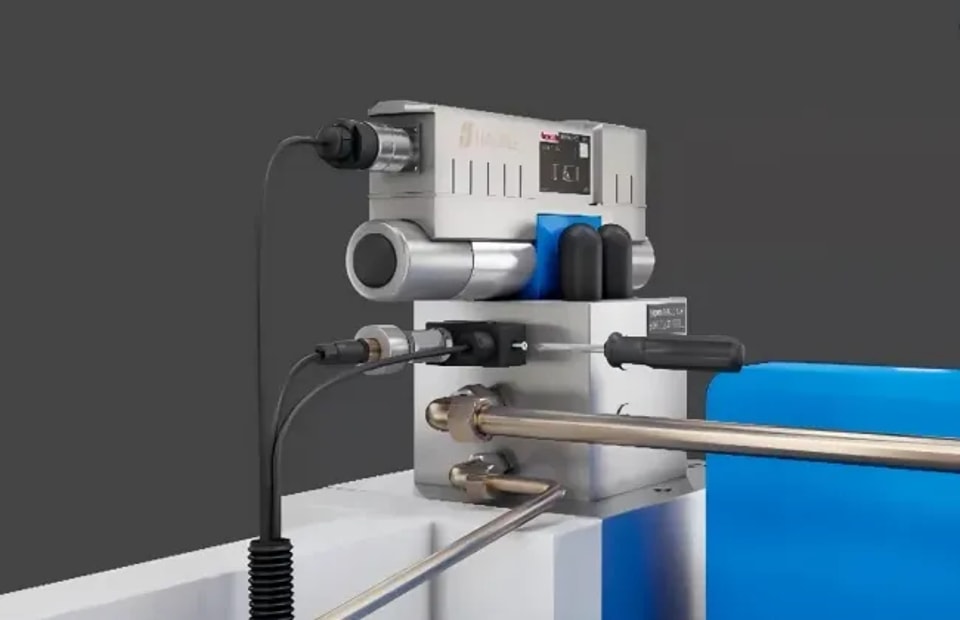

Malfunction of Proportional Valves or Pressure Valves

Modern CNC press brakes depend on proportional valves for precise pressure control. Contamination or partial blockage of the valve will restrict oil flow.

This may cause:

• Slow ram movement

• Delayed pressure buildup

• Inconsistent bending force

Cleaning or recalibrating the valve can usually solve the problem.

Clogged Hydraulic Filters

A blocked hydraulic filter limits oil circulation in the system, resulting in slow pressure buildup.

Signs of filter clogging include:

• High oil temperature

• Reduced system efficiency

• Increased pump load

Regular replacement of hydraulic filters is a key part of press brake maintenance.

Electrical and Control System Issues Impacting Pressure

In modern CNC press brakes, pressure control is closely connected with electronic systems.

Incorrect Pressure Parameter Settings

Sometimes slow pressure buildup is not a mechanical fault, but a parameter configuration error.

Common cases include:

• Wrong pressure ramp settings in the CNC controller

• Incorrect parameters in bending programs

• Improper tuning of proportional valves

Adjusting these parameters via the control system can fix the problem without mechanical repairs.

Failure of Sensors or Pressure Transducers

Pressure sensors feed back signals to the controller. Inaccurate or damaged sensors will cause abnormal system response.

Possible symptoms are:

• Delayed pressure response

• Pressure fluctuations

• Incorrect tonnage readings

Replacing or recalibrating the pressure transducer can generally resolve this issue.

Step-by-Step Troubleshooting for Slow Pressure Buildup

I follow a systematic inspection process when dealing with slow pressure buildup in press brakes.

Step 1: Check Hydraulic Oil Status

First, I verify the oil level, viscosity, and contamination degree. If the oil is dark, foamy, or degraded, replacement is the optimal solution.

Step 2: Inspect Hydraulic Pumps and Filters

Next, I check pump noise, flow rate, and filter condition. Replacing clogged filters and ensuring normal pump operation are essential.

Step 3: Examine Valves and Pressure Control Parts

After confirming the pump works properly, I inspect proportional valves and pressure control valves for contamination or calibration errors.

Step 4: Confirm CNC Control Parameters

Finally, I review the pressure ramp settings and machine parameters in the CNC controller. Wrong settings may restrict the speed of pressure buildup.

Following these steps helps me quickly locate the root cause and minimize production downtime.

Frequently Asked Questions

What is the most common cause of slow pressure buildup in press brakes?

In most cases, contaminated hydraulic oil or clogged filters are the culprits, as they restrict oil flow and reduce system efficiency.

Can a worn hydraulic pump lead to slow pressure buildup in a press brake?

Yes. A worn hydraulic pump cannot supply the required flow rate, resulting in slow pressure rise during bending.

How to prevent slow pressure buildup in press brakes in advance?

Regular preventive maintenance, including oil replacement, filter changes, and valve inspections, helps keep hydraulic performance stable.

Do CNC parameter settings affect the speed of press brake pressure buildup?

Definitely. Incorrect pressure ramp or tonnage settings in the controller can delay pressure response even if the hydraulic system is in good condition.

Conclusion

When a press brake has slow pressure buildup, the root cause is usually related to the hydraulic system, control valves, pump efficiency, or CNC parameter settings. Based on my press brake operation experience, systematic troubleshooting is the most effective way to identify problems quickly. Most pressure buildup issues can be solved efficiently by checking oil quality, inspecting pumps and filters, verifying valves, and reviewing control parameters.

Keeping the hydraulic system clean and conducting regular preventive maintenance will greatly reduce the risk of slow pressure response. If you need further help with diagnosing press brake hydraulic faults or improving machine performance, our technical team is always available to assist you.
