What Leads to Press Brake Ram Synchronization Malfunction?

Table of Contents

1. Grasping the Working Principle of Press Brake Ram Synchronization

￮ Y1 and Y2 Axis Control in CNC Press Brakes

2. Hydraulic Factors Triggering Press Brake Ram Synchronization Malfunction

￮ Unbalanced Hydraulic Pressure Across Cylinders

￮ Contaminated Hydraulic Fluid

3. Malfunctions of Linear Encoders and Feedback Systems

￮ Misalignment or Damage to Linear Scales

￮ Electrical Interference in Feedback Signals

4. Issues with Mechanical Structure and Frame Deformation

￮ Frame Deformation Under High Loads

￮ Wear of Guide Rails and Ram

5. Problems with CNC Parameters and Calibration

￮ Incorrect Calibration of Y1/Y2 Axes

￮ Parameter Misconfiguration Post-Maintenance

6. Step-by-Step Troubleshooting for Press Brake Ram Synchronization

￮ Step 1: Verify Hydraulic Pressure Balance

￮ Step 2: Inspect Linear Encoders and Wiring Harnesses

￮ Step 3: Check Mechanical Alignment Status

￮ Step 4: Recalibrate the CNC Control System

7. Frequently Asked Questions (FAQs)

￮ What is the primary cause of Press Brake Ram Synchronization malfunction?

￮ Can inadequate maintenance lead to Press Brake Ram Synchronization problems?

￮ How to distinguish between mechanical and hydraulic causes of synchronization issues?

￮ Can recalibration resolve all synchronization errors?

8. Conclusion

Synchronization issues with JUGAO press brake rams typically manifest as irregular bending angles, inconsistent movement of the Y1 and Y2 axes, or persistent alarm prompts on the CNC controller. Such problems can arise in both new and long-operated machines, and neglecting them will directly impact bending accuracy, tool service life, and the overall stability of production. This article will elaborate on the main causes of JUGAO press brake ram synchronization failure, guide you through a step-by-step process to diagnose the root causes, and present practical solutions to restore the machine's smooth and precise operation.

Grasping the Working Principle of Press Brake Ram Synchronization

Before conducting any troubleshooting, it is essential to ensure that the machine operator fully understands the synchronization mechanism of a modern CNC press brake.

Y1 and Y2 Axis Control in CNC Press Brakes

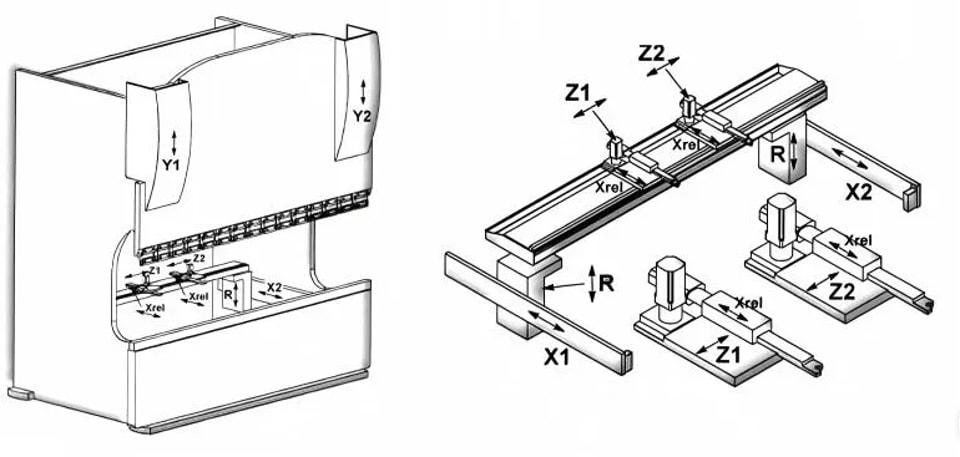

In the majority of hydraulic CNC press brakes, the ram is driven and controlled by two independent hydraulic cylinders, the left (Y1) and right (Y2) ones. The CNC controller constantly receives position feedback data from linear encoders and dynamically adjusts the proportional valves to ensure the ram maintains a perfectly parallel movement trajectory during operation.

A failure of the synchronization system will cause the ram to tilt slightly during the bending process, which in turn leads to the following problems:

• Deviations in bending angles

• Uneven wear of the tooling

• Concentration of stress on the machine frame

A clear understanding of this control system enables accurate diagnosis of JUGAO press brake ram synchronization issues, avoiding blind guesswork in the troubleshooting process.

Hydraulic Factors Triggering Press Brake Ram Synchronization Malfunction

Hydraulic system instability is one of the most prevalent causes of synchronization problems in practical applications.

Unbalanced Hydraulic Pressure Across Cylinders

If the hydraulic pressure supplied to one cylinder is slightly lower than that to the other, the ram will be unable to maintain a parallel state during movement. This pressure imbalance is commonly caused by the following factors:

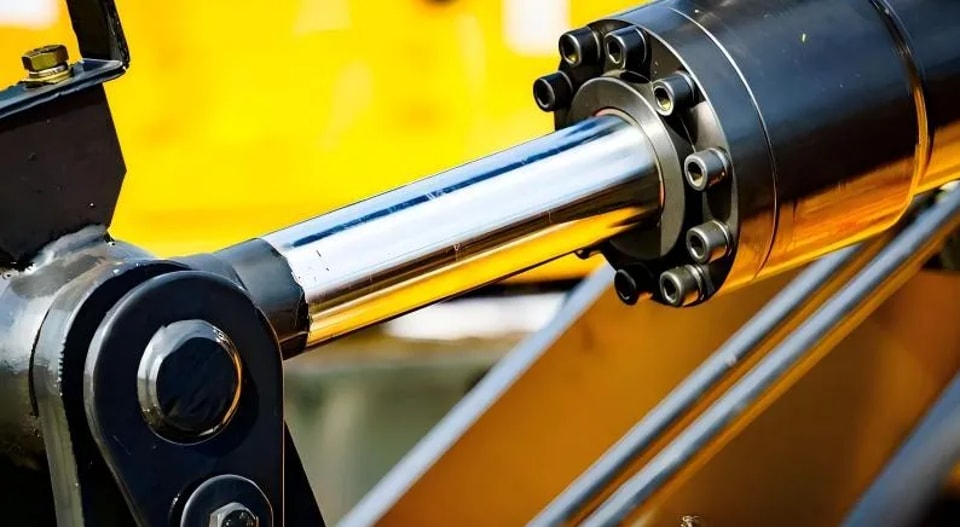

• Worn hydraulic seals

• Internal oil leakage in the hydraulic system

• Clogged hydraulic control valves

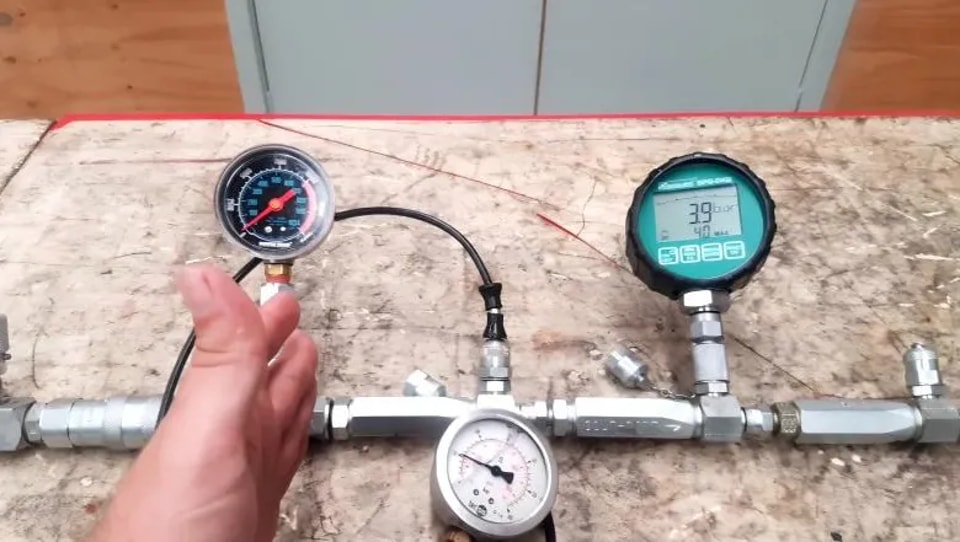

To diagnose this issue, it is recommended to use calibrated pressure gauges to measure the system pressure on both the Y1 and Y2 cylinder sides. Once a pressure imbalance is detected, immediate inspection of the hydraulic seals and proportional valves is required.

Contaminated Hydraulic Fluid

Contaminated hydraulic fluid severely impairs the precision of proportional valves. Even tiny solid particles in the fluid can disrupt the response speed of the valves, resulting in delayed corrective adjustments between the Y1 and Y2 axes.

Regular hydraulic fluid filtration and scheduled replacement are indispensable preventive measures to avoid JUGAO press brake ram synchronization malfunctions caused by hydraulic system contamination.

Malfunctions of Linear Encoders and Feedback Systems

Accurate real-time feedback of the ram's position is the core guarantee for the normal operation of the synchronization system.

Misalignment or Damage to Linear Scales

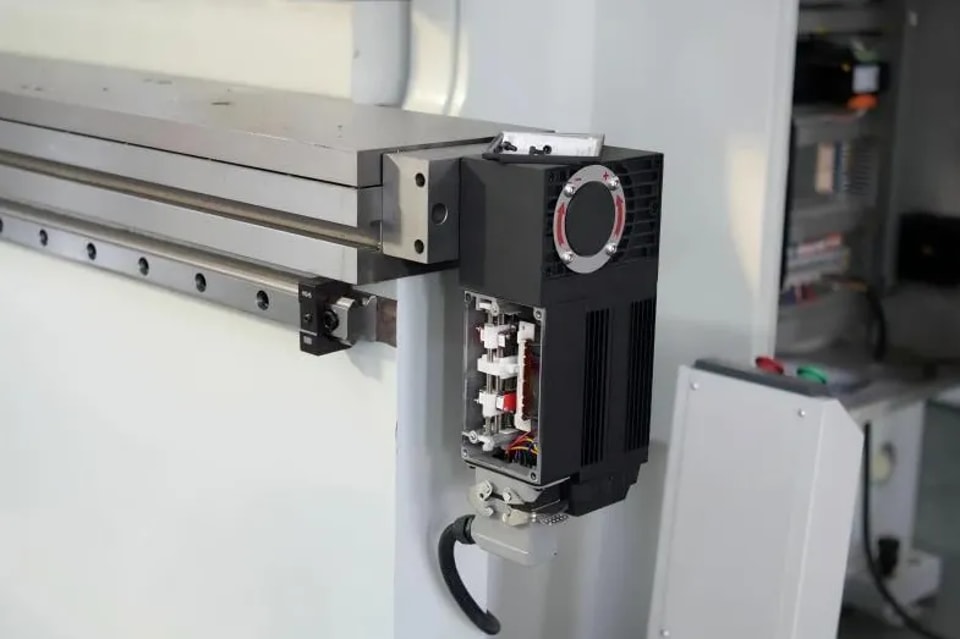

If a linear encoder becomes loose, misaligned, or its surface is contaminated with dust and debris, it will transmit inaccurate position signals to the CNC control system. This incorrect feedback causes the controller to either overcorrect or undercorrect the ram's position, leading to synchronization errors.

When troubleshooting this aspect, the following steps should be strictly followed:

1. Inspect the tightness and integrity of the encoder mounting brackets

2. Meticulously clean the surface of the linear scale to remove contaminants

3. Check for physical damage such as scratches or dents on the encoder and scale

Replacing damaged encoders often resolves JUGAO press brake ram synchronization errors immediately.

Electrical Interference in Feedback Signals

Poor grounding of the electrical system or damaged signal cables can lead to unstable transmission of feedback signals. This interference results in the following abnormal phenomena:

• Sudden jolting of the ram during movement

• Activation of synchronization-related alarm codes on the CNC controller

• Gradual drift of the ram's actual position from the set position

The use of shielded signal cables and the implementation of standard grounding measures are critical for ensuring the stable operation of high-precision CNC press brake systems.

Issues with Mechanical Structure and Frame Deformation

In some cases, synchronization malfunctions are not caused by hydraulic or electrical faults but by problems with the machine's mechanical structure.

Frame Deformation Under High Loads

If a press brake is frequently used for bending work close to its maximum tonnage without proper crowning adjustment, permanent deformation of the machine frame may occur over time. This deformation directly affects the parallelism of the ram's movement and ultimately leads to obvious synchronization issues with the JUGAO press brake ram.

Using high-precision measuring tools to check the frame's alignment status is an effective way to determine whether structural stress is the root cause of the synchronization problem.

Wear of Guide Rails and Ram

Excessive wear on the guide rails creates uneven mechanical resistance on either side of the ram. This unbalanced friction disrupts the smooth movement of the ram, resulting in instability in the synchronization system.

Routine lubrication of the guide rails and regular inspection of the sliding contact surfaces between the ram and guide rails are necessary to prevent such mechanical imbalances.

Problems with CNC Parameters and Calibration

In certain instances, synchronization failure is not due to hardware damage but to incorrect configuration of the CNC system's parameters.

Incorrect Calibration of Y1/Y2 Axes

If components of the press brake have recently been replaced or the CNC controller has been updated, a full recalibration of the system is usually required. The key calibration steps include:

• Executing the reference point return procedure for the Y1 and Y2 axes

• Conducting the ram parallelism calibration

• Setting up the crowning compensation parameters

Mastering the correct method of calibrating a CNC press brake can eliminate a large number of synchronization-related alarm prompts in daily operation.

Parameter Misconfiguration Post-Maintenance

Improper modification of the CNC system's parameters during maintenance can alter the response speed or tolerance range of the synchronization control system, leading to abnormal ram movement.

It is a fundamental operational norm to back up all original parameters before making any adjustments to the CNC system and to strictly follow the manufacturer's operational guidelines during the parameter modification process.

Step-by-Step Troubleshooting for Press Brake Ram Synchronization

When addressing JUGAO press brake ram synchronization problems, a structured and systematic troubleshooting process is essential to improve efficiency and accuracy:

Step 1: Verify Hydraulic Pressure Balance

Measure the hydraulic pressure of both the Y1 and Y2 cylinders during the actual bending process and compare the two sets of data. At the same time, carefully check for signs of internal oil leakage in the hydraulic system, such as abnormal oil temperature rise or pressure drops.

Step 2: Inspect Linear Encoders and Wiring Harnesses

Verify the cleanliness of the linear encoders and linear scales, check the integrity of the signal cables for breaks or wear, and confirm the quality of the system's grounding connection to eliminate electrical interference factors.

Step 3: Check Mechanical Alignment Status

Inspect the lubrication condition of the guide rails, check for abnormal friction or wear on the sliding surfaces, and use precision measuring tools to detect any deformation of the machine frame or misalignment of the ram.

Step 4: Recalibrate the CNC Control System

Perform a full calibration of the Y1 and Y2 axes, and verify the parallel movement of the ram at multiple stroke positions to ensure that the synchronization performance meets the production requirements.

Adhering to this step-by-step troubleshooting process can avoid unnecessary replacement of machine parts and minimize production downtime caused by equipment malfunctions.

Frequently Asked Questions (FAQs)

What is the primary cause of Press Brake Ram Synchronization malfunction?

Based on practical on-site experience, unbalanced hydraulic pressure between the two cylinders and misalignment of linear encoders are the two most common causes of JUGAO press brake ram synchronization failure.

Can inadequate maintenance lead to Press Brake Ram Synchronization problems?

Absolutely. Poor maintenance practices such as using contaminated hydraulic fluid, loose wiring harnesses of the feedback system, and lack of regular lubrication of mechanical parts significantly increase the risk of synchronization malfunctions in press brakes.

How to distinguish between mechanical and hydraulic causes of synchronization issues?

Start the diagnosis by measuring the hydraulic pressure of the Y1 and Y2 cylinders. If the pressure values on both sides are stable and balanced, the next step is to inspect for mechanical wear (such as guide rail wear) and abnormal feedback signals from the encoders.

Can recalibration resolve all synchronization errors?

In many practical cases, yes. Proper calibration of the Y1 and Y2 axes and precise adjustment of the CNC system's synchronization parameters can effectively restore the stable parallel movement of the ram. However, if the problem is caused by severe hardware damage (such as frame deformation or broken encoder components), recalibration alone cannot solve the issue.

Conclusion

Synchronization failure of JUGAO press brake rams is rarely caused by a single factor; it is often the result of a combination of issues such as hydraulic pressure imbalance, encoder malfunctions, mechanical wear and tear, or improper CNC system calibration. From practical engineering experience, early detection of abnormal signs and a structured, step-by-step troubleshooting process are the key to quickly restoring the bending precision of the press brake.

By maintaining the cleanliness of the hydraulic system, protecting the integrity and accuracy of feedback components such as linear encoders, ensuring regular lubrication of mechanical moving parts, and performing scheduled calibration of the CNC system, the risk of ram synchronization malfunctions can be significantly reduced, and the service life of the press brake can be extended.

If you encounter persistent and unresolved synchronization problems with your press brake, it is recommended to contact a professional technical service team for a comprehensive on-site inspection and precise calibration. Timely and proper maintenance of the equipment today can avoid costly production downtime in the future.
