What are the main components of a pipe bending machine?

Pipe bending machines are key equipment for achieving precise pipe bending. Whether hydraulic, electric, or CNC type, their core structure revolves around three main functions: stable clamping, precise rotation, and effective support. Understanding the function of each component helps in the correct operation and maintenance of the equipment.

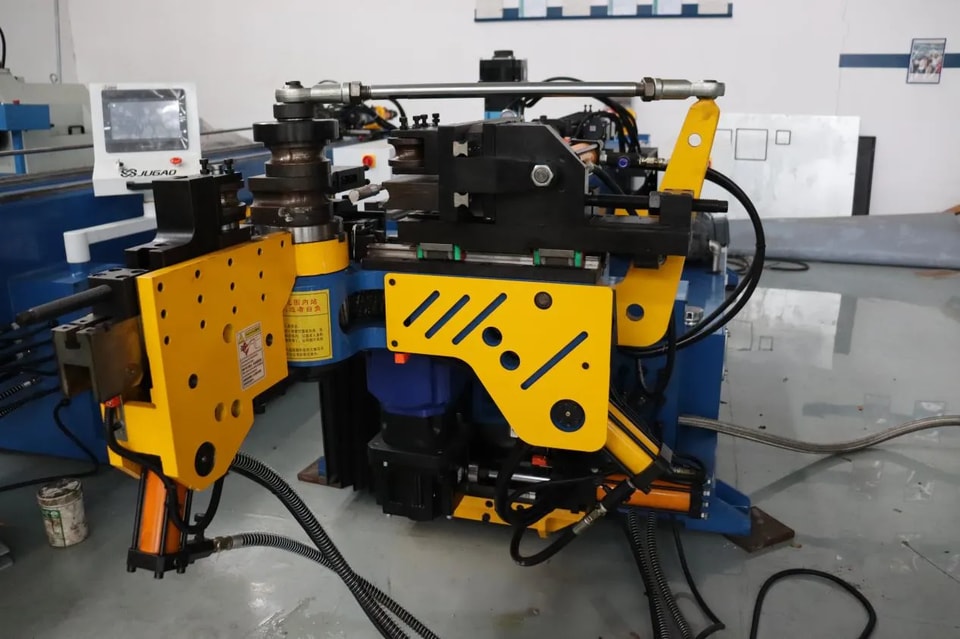

1. Bending Rotation Mechanism (Bending Arm)

This consists of a bending die (main die), a bending arm, and a transmission system. The bending die is fixed to a rotating shaft, and the bending arm drives the tube to rotate around the die, achieving control of the bending angle. The transmission method is typically a hydraulic motor, a servo motor, or a rack and pinion mechanism, which determines the bending torque and accuracy.

2. Clamping Mechanism

This includes a clamping die and a clamping cylinder (or pneumatic cylinder). Its function is to firmly fix the tube to the bending die, preventing the tube from sliding or shifting during bending. The clamping force must be sufficiently large and uniform; otherwise, wrinkling or cross-sectional distortion may occur.

3. Mandrel and Mandrel Drive Mechanism

For thin-walled tubes or small-radius bending, the mandrel is the core component preventing the inner side of the tube from collapsing and wrinkling. The mandrel is usually ball-end type or rigid type, connected by a mandrel rod, and its forward and backward positions are controlled by a cylinder or servo motor. The accuracy of the mandrel positioning directly affects the bending quality.

4. Anti-wrinkle die (anti-wrinkle plate)

Installed behind the bending die, it presses down on the inner side of the pipe during bending, preventing wrinkles from forming on the inner arc. Its shape precisely matches the curvature of the bending die, making it an indispensable auxiliary die for high-quality pipe bending.

5. Power system

Hydraulic pipe bending machines use a hydraulic pump station, cylinders, and solenoid valves as their core, providing high-tonnage clamping and bending power; electric pipe bending machines use servo motors, reducers, and ball screws to achieve high-precision control. The stability of the power system directly affects the equipment's output and lifespan.

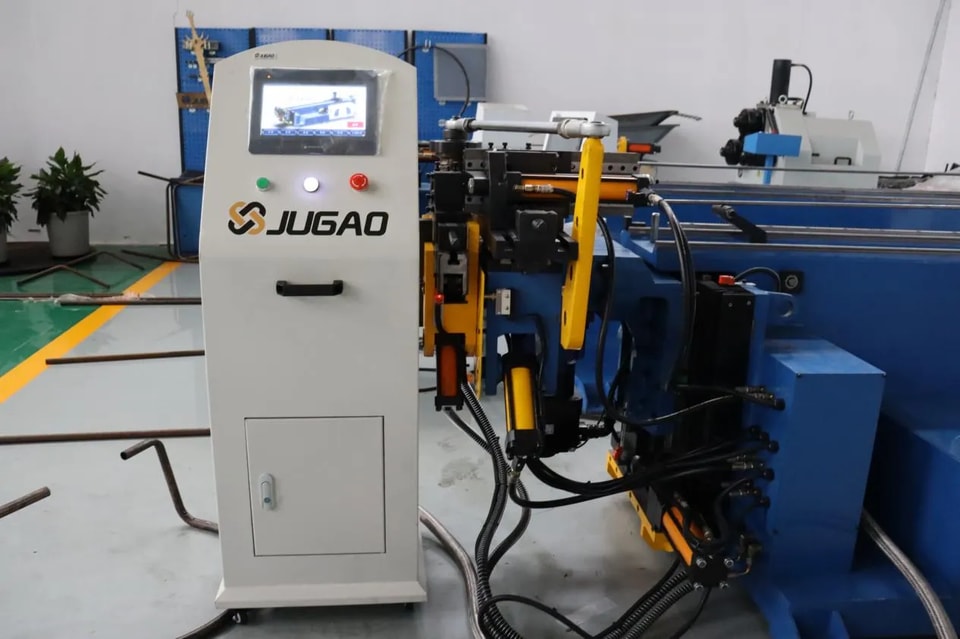

6. Control system

Modern pipe bending machines generally use PLC or CNC numerical control systems, equipped with a human-machine interface (touch screen). Programmable control allows for the automatic processing of complex three-dimensional pipe shapes, including bending angle, spatial rotation angle of multiple bends, and feeding distance.

7. Feeding and rotation mechanism (multi-axis models)

Used to achieve continuous processing of multiple bends. The feeding trolley (Y-axis) controls the linear feed of the pipe, while the rotary axis (B-axis) controls the spatial rotation angle of the pipe during bending. It is typically driven by a servo motor, coupled with high-precision guide rails and a rack and pinion system.

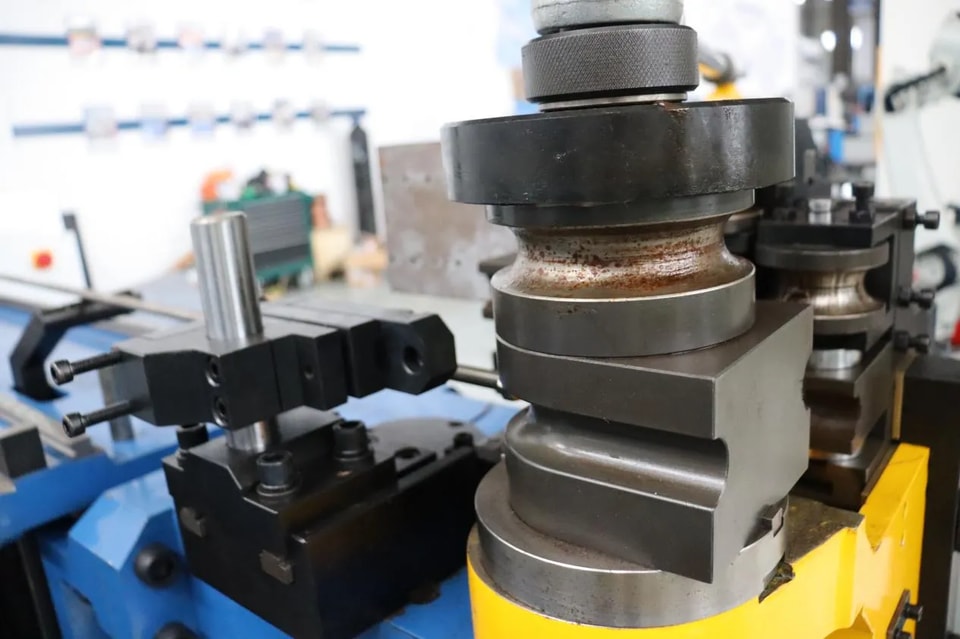

8. Die System

This includes bending dies, clamping dies, anti-wrinkle dies, mandrels, and guide dies, individually designed according to different pipe diameters and bending radii. Die materials are usually Cr12MoV or alloy tool steel, heat-treated to improve wear resistance. Die precision directly determines the quality of the bent pipe.

9. Bed and Guide Rails

As the basic structure of the entire machine, the bed must have sufficient rigidity to withstand the huge bending moment during bending. Heavy-duty pipe bending machines often use integral casting or high-thickness steel plate welded structures. The guide rails are used to ensure the motion accuracy of the feeding and rotating mechanisms.

10. Cooling and Lubrication System

The hydraulic oil radiator, lubricating oil pump, and distributor constitute the cooling and lubrication system, ensuring stable oil temperature and minimizing wear on moving parts during continuous operation.

A pipe bending machine is a precision device that highly integrates mechanical, hydraulic, electrical, and mold technologies. From clamping to bending, from mandrel support to multi-axis linkage, each component plays a crucial role. Only when all systems are coordinated can efficient, stable, and high-quality pipe bending production be achieved.
