What are the key points of the electrical connection of a pipe bending machine?

Many pipe bending machines malfunction—constant alarms, intermittent problems, or even failing to start after assembly—in my years of experience, I've found that the real cause is often not a mechanical issue, but rather incorrect electrical wiring. If you're looking to understand how to properly connect and manage the electrical system of a pipe bending machine, you've come to the right place. In this article, I'll break down the key steps of electrical connections, explaining why each step is crucial and how to avoid common mistakes that can lead to hidden problems, ensuring the machine's safety, accuracy, and durability.

Learn the basics of electrical connections for pipe bending machines

The core of electrical connections for pipe bending machines lies in ensuring voltage and current matching, grounding system setup, control wiring installation, and protection device configuration according to equipment requirements. Correctly completing these tasks is a fundamental prerequisite for smooth servo motion, precise bending angles, and reliable CNC systems.

Matching power supply voltage and frequency

Before connecting cables, always ensure that the workshop power supply voltage and frequency match the machine's rating. Pipe bending machines are typically compatible with specific specifications such as 380V/50Hz or 460V/60Hz. Consequences of voltage mismatch include inverter failure, servo alarms, and overheating of electrical components.

Choose the appropriate cable size and capacity.

Cable selection is a critical aspect of the electrical connections for pipe bending machines. Undersized cables can lead to voltage drops, unstable operation, or frequent tripping during high-load bending operations. I recommend selecting the power cord based on the machine's rated current and allowing for a safety margin to handle peak loads.

Grounding and grounding requirements of pipe bending machine

Proper grounding is one of the most easily overlooked aspects of electrical connections in a pipe bending machine, but it is one of the most important aspects for ensuring safety and control stability.

Why is grounding crucial for CNC pipe bending machines?

The reliability of the grounding system is crucial to personnel safety and equipment stability. Good grounding can prevent electric shock accidents and effectively suppress electrical noise that interferes with CNC controllers and servo drives; poor grounding can easily lead to abnormalities such as random alarms, communication errors, and unstable axis positioning.

How to implement effective grounding

When grounding, two points must be observed: First, the machine's grounding terminal should be directly connected to a dedicated grounding point with low resistance; second, avoid sharing grounding with high-power equipment such as welding machines to prevent interference with the pipe bending machine's electrical system.

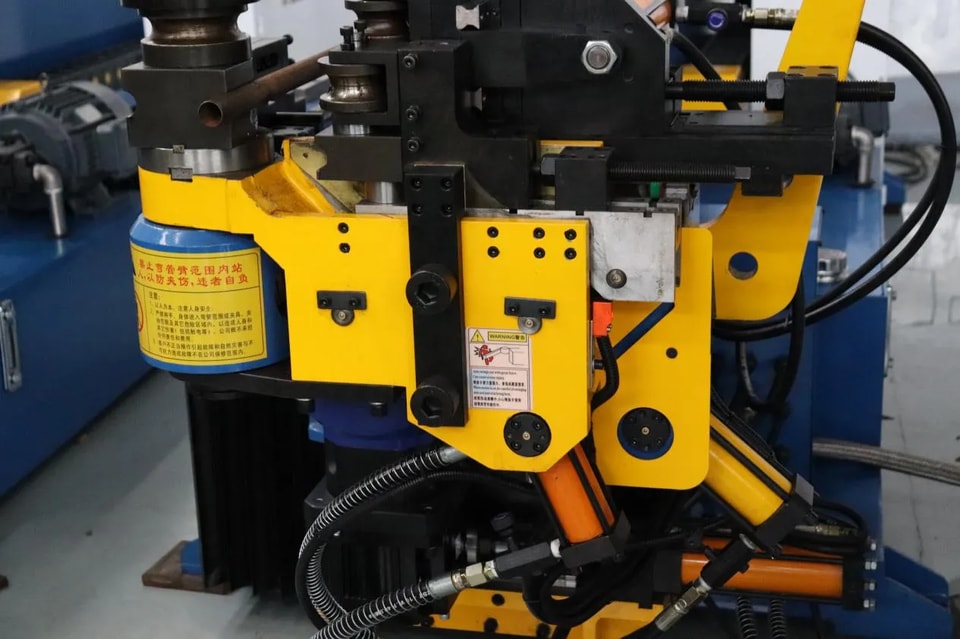

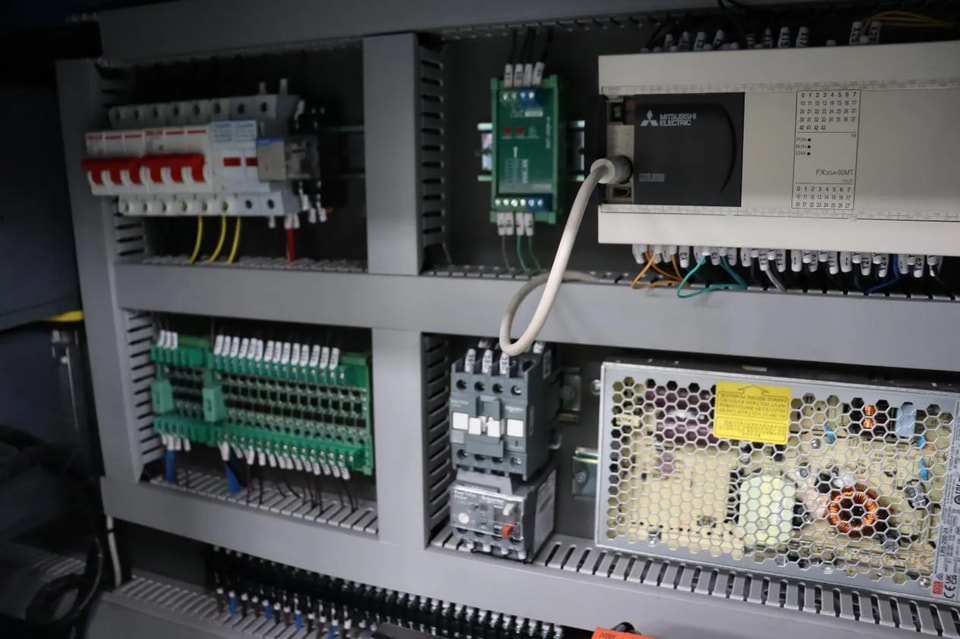

Control cabinet wiring and signal connection

In addition to the main power supply, the Tube Bender Electrical Connection also includes the control circuitry within the electrical cabinet.

Separation of power cord and control cord

My wiring principle is that power lines and signal lines must be strictly separated. Electromagnetic interference carried by power lines can interfere with encoder signals and CNC communication; separating the lines ensures system stability and bending accuracy.

Check the terminal tightness and labels.

Electrical faults often originate from loose terminals. During installation, always check that each terminal is tightened and that labels are clear. This improves reliability and facilitates quick and safe troubleshooting later.

Protective devices and electrical safety measures

A complete electrical connection for a pipe bending machine must include appropriate protective devices to ensure the safety of the machine and operators.

Circuit breakers and overload protection

Circuit breakers and thermal overload relays are used to protect against short circuits and overcurrent risks. During installation, ensure that their ratings match the electrical specifications of the pipe bending machine and complete testing before commissioning.

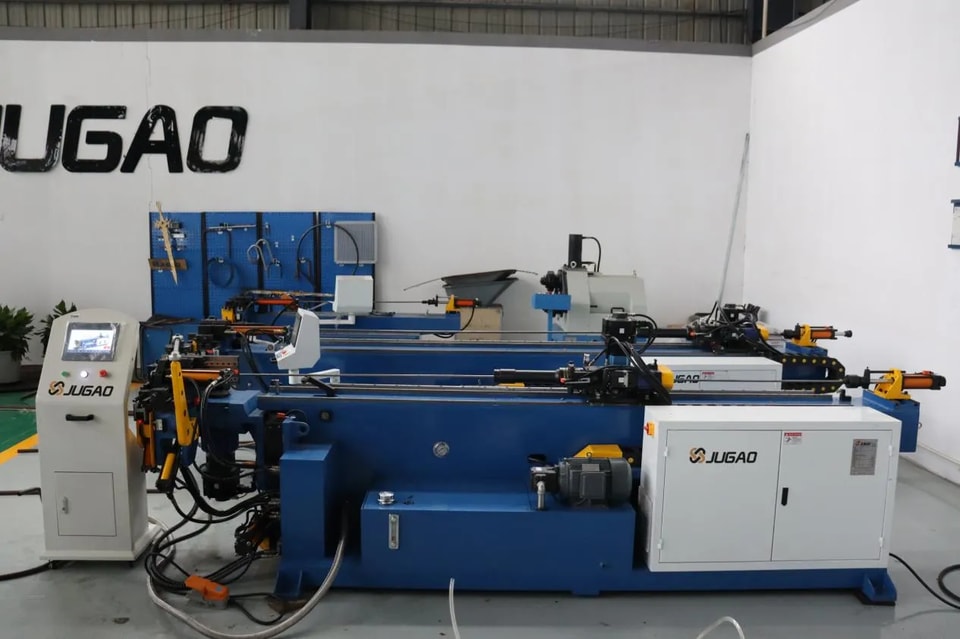

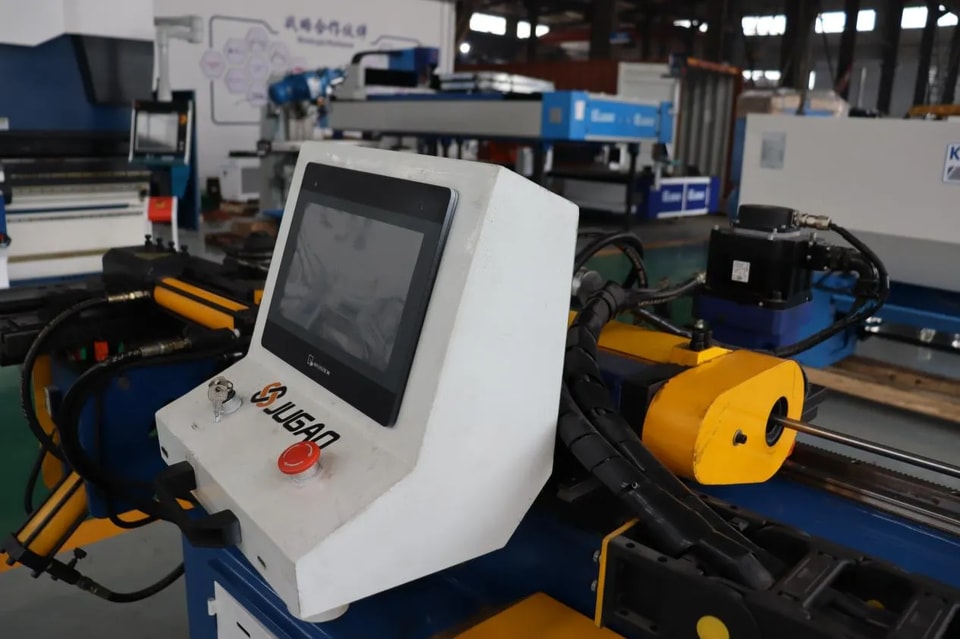

Emergency stop and safety circuit

The emergency stop circuit must be wired correctly and tested during the electrical connection phase. A reliable safety circuit can ensure the machine stops instantly in the event of an abnormality or emergency.

Electrical checklist before startup

Before starting a newly installed pipe bending machine, I always perform an electrical check of the system.

Verify phase sequence and rotation direction

Incorrect phase sequence can cause the motor and hydraulic pump to rotate in opposite directions. This simple check can prevent serious damage during the initial startup phase.

Insulation and electrical stability tests

Insulation resistance testing is an important method to verify the good condition of cables and electrical components. Under no-load conditions, if the voltage reading remains stable, it indicates that the electrical connections of the pipe bending machine are ready for commissioning.

Avoid common electrical connection errors

Over the years, I have discovered some recurring errors in the electrical connections of pipe bending machines.

Using shared power

Sharing a power supply with heavy equipment can easily lead to voltage fluctuations and unstable operation. A dedicated power supply is a safer choice.

Ignore the manufacturer's electrical guidelines

Each pipe bending machine has its specific electrical requirements. Ignoring these specifications often leads to repeated alarms, shortened component lifespan, and unnecessary downtime.
