What are the advantages of pipe bending machines in the manufacturing industry?

In numerous fields such as aerospace, automotive manufacturing, shipbuilding, and furniture manufacturing, pipe bending machines have become indispensable core equipment for pipe processing. Compared with traditional manual pipe bending or simple mold bending, modern pipe bending machines demonstrate significant advantages in efficiency, precision, consistency, and complex forming capabilities.

1. High Precision and Repeatability

Modern pipe bending machines generally employ servo motor drives and CNC numerical control systems, achieving bending angle accuracy of ±0.1° and extremely high repeatability in feeding length and rotation angle positioning. The consistency of forming within the same batch of pipes is unattainable through manual operation or traditional equipment. This is particularly crucial for mass production scenarios such as automotive brake pipes, air conditioning pipes, and seat frames.

2. One-Stop Forming of Complex 3D Tube Shapes

Multi-axis CNC pipe bending machines (typically YBC three-axis or higher) can simultaneously control feeding, rotation, and bending axes, easily achieving automated processing of complex tube shapes such as planar bends, spatial three-dimensional bends, and continuous multi-bends. This eliminates the need for multiple manual clamping operations, significantly shortening the process flow and reducing cumulative errors.

3. Thin-walled and Small-radius Bending Capability

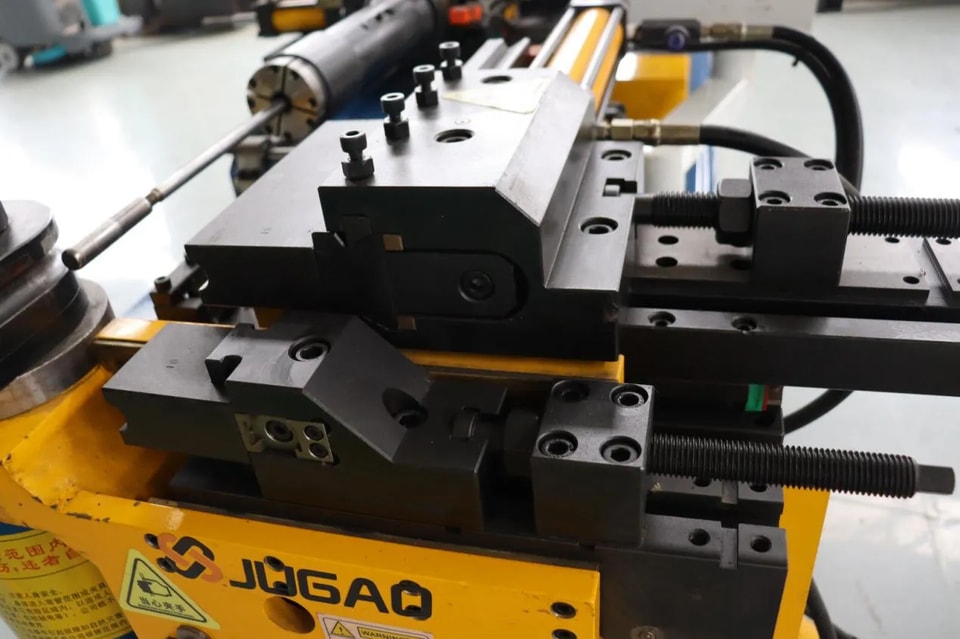

Equipped with ball mandrels, anti-wrinkle dies, and booster mechanisms, pipe bending machines can achieve bending of thin-walled pipes with an R/D (bending radius to outer diameter ratio) ≤2 or even smaller, effectively controlling defects such as wrinkling, collapse, and excessive thinning of the outer wall thickness. This capability is crucial for industries such as aerospace conduits and lightweight automotive structural components.

4. Significantly Improved Production Efficiency

Fully automatic pipe bending machines can achieve continuous feeding, automatic bending, and automatic rotation, with cycle times far lower than manual operation. Combined with automatic loading and unloading robots or pipe loading racks, they can form unmanned flexible processing units, enabling 24-hour continuous production and significantly improving overall equipment efficiency.

5. High Material Utilization

Precise feeding control and programmed allowance management can minimize the process allowance at the pipe ends, reducing material waste. For expensive pipes such as stainless steel, titanium alloys, and copper-nickel alloys, this advantage directly translates into significant cost savings.

6. Wide Material Adaptability

Modern pipe bending machines are suitable for carbon steel, stainless steel, copper, aluminum, titanium alloys, and even high-strength steel pipes, covering diameters from a few millimeters to hundreds of millimeters. By changing molds and adjusting process parameters, the same equipment can handle the processing needs of various materials and specifications.

7. Process Monitoring and Quality Traceability

High-end CNC pipe bending machines are equipped with intelligent functions such as real-time bending angle feedback, load monitoring, and mold life management. All processing data can be uploaded to the Manufacturing Execution System (MES), enabling full-process traceability of product quality and meeting the stringent compliance requirements of industries such as aerospace and medical devices.

8. Reduced Dependence on Operator Skills

Traditional manual pipe bending heavily relies on the experience of technicians, and personnel turnover directly affects the stability of product quality. CNC pipe bending machines have process parameters fixed in the program; operators only need to complete loading and unloading and program calls, significantly lowering the skill threshold and ensuring consistent and stable product output.

9. Reduced Subsequent Processes

High-quality pipe bending can directly reduce or eliminate subsequent straightening and shaping processes. Some equipment also integrates composite functions such as end forming, punching, and cutting, realizing "multi-process integration" and further reducing the production cycle.
