When CNC JUGAO press brake operators encounter servo system malfunctions, production grinds to an immediate halt, and many struggle to determine where to begin troubleshooting. Based on extensive hands-on experience with CNC press brakes, the vast majority of servo system alarms stem from straightforward issues—such as encoder faults, wiring glitches, incorrect servo parameters, or excessive mechanical resistance. This guide outlines a systematic, step-by-step approach to diagnosing and resolving press brake servo system malfunctions, enabling operators to swiftly restore machine functionality while preserving precise positioning and servo motor stability.

Identifying Common Press Brake Servo System Malfunctions

Before attempting any repairs, the first critical step is to pinpoint the specific type of servo malfunction indicated on the CNC controller. Modern press brakes predominantly utilize servo motors for two core functions: powering the backgauge system and enabling hydraulic synchronization control.

Typical Servo Alarm Modes in CNC Press Brakes

The most common servo alarms associated with press brake system malfunctions include:

• Servo overload alarms

• Encoder communication malfunctions

• Position deviation alarms

• Servo drive overheating

• Servo motor overcurrent protection

Each alarm type points to a distinct underlying cause. Interpreting the alarm codes displayed on mainstream controllers (including Delem, ESA, and Cybelec systems) is key to streamlining the troubleshooting process and avoiding unnecessary checks.

Step-by-Step Diagnostic Process for Press Brake Servo System Malfunctions

Troubleshooting servo system issues requires a structured methodology to prevent unnecessary component replacement and minimize downtime. The following step-by-step process ensures a logical and efficient diagnosis.

2.1 Review Servo Drive Alarm Codes

The initial step is to check the alarm messages displayed on both the servo drive panel and the CNC controller. Most servo drives are equipped with detailed diagnostic codes that provide critical clues about the fault. It is essential to document three key pieces of information:

• The specific alarm code number

• The machine’s operating state when the alarm was triggered (e.g., idle, bending, backgauge adjustment)

• The affected axis (e.g., X-axis backgauge, R-axis height adjustment)

This documentation immediately narrows down whether the fault originates from electrical issues, mechanical problems, or incorrect parameter configurations.

2.2 Examine Servo Motor Wiring and Connection Interfaces

Loose or damaged cabling is one of the most frequent culprits behind press brake servo system malfunctions. A thorough inspection should focus on:

• Servo motor power cables

• Encoder feedback cables

• Terminal blocks within the electrical control cabinet

Continuous machine vibration during long-term operation can gradually loosen connectors and terminals. Simply tightening loose connections and replacing frayed or damaged cables often resolves intermittent servo faults that are otherwise difficult to trace.

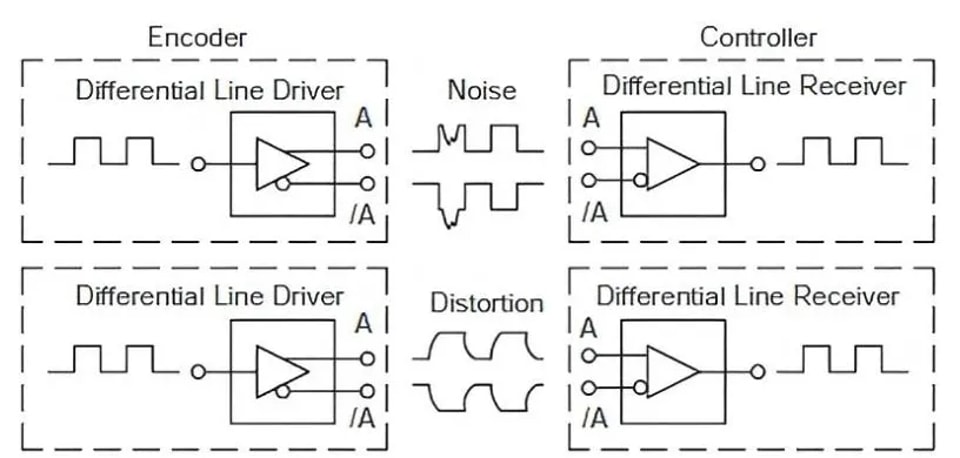

2.3 Verify Encoder Feedback Signals

Servo motors depend on accurate encoder feedback to maintain the high-precision positioning required for press brake operations. Unstable encoder signals will trigger a range of malfunctions, including:

• Position deviation alarms

• Axis synchronization errors

• Sudden, unplanned servo motor shutdowns

To diagnose encoder issues, inspect all encoder connections for tightness and check cables for oil contamination, abrasions, or other mechanical damage. If visual inspection yields no clues, use the servo drive’s built-in diagnostic menu to run a signal test and verify the encoder’s functionality.

Mechanical Triggers of Press Brake Servo System Malfunctions

Not all servo system malfunctions are electrical in nature—excessive mechanical resistance is a common and often overlooked trigger for servo alarms. Addressing mechanical issues is critical to restoring normal servo operation and preventing recurring faults.

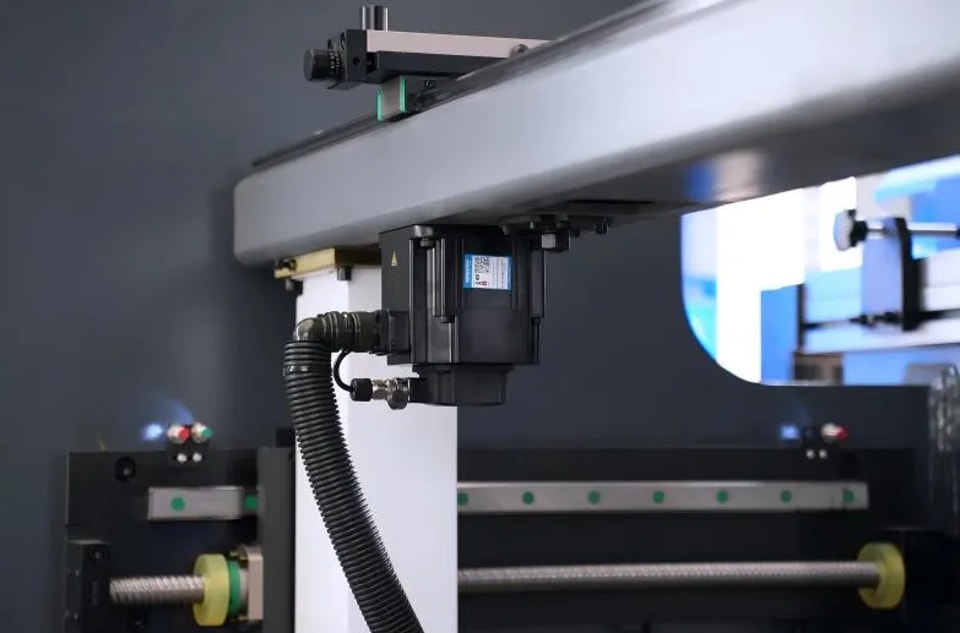

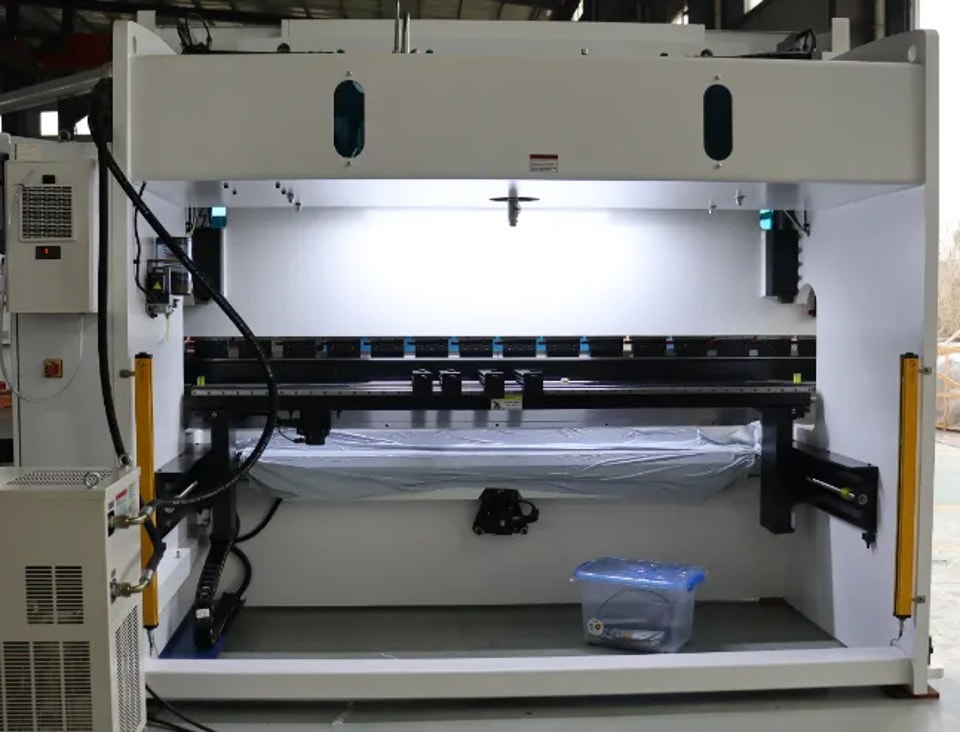

3.1 Frictional Resistance in Backgauge Linear Guide Rails

The backgauge’s linear guide rails are prone to accumulating dust, metal shavings, and debris during daily operation; insufficient lubrication exacerbates this issue. When resistance builds up, the servo motor must exert extra force to move the backgauge axis, which frequently triggers:

• Servo overload alarms

• Abnormal servo motor overheating

• Sluggish backgauge positioning speed

Thoroughly cleaning the guide rails to remove all debris and applying the manufacturer-recommended lubricant to ball screws and guide rail components drastically reduces frictional resistance and restores the servo system’s normal operating state.

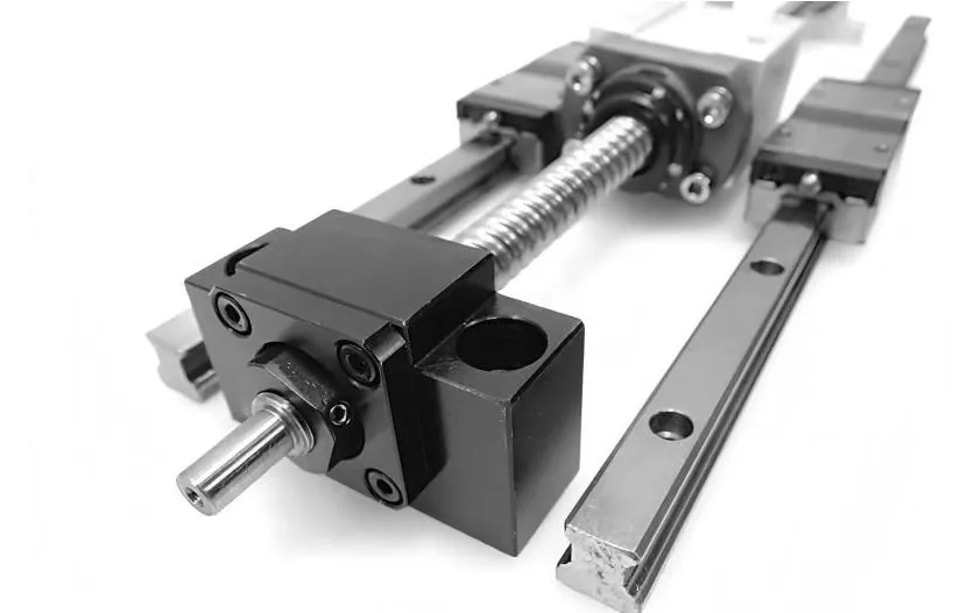

3.2 Misalignment of Ball Screws

Improper installation during machine setup or wear and tear from prolonged use can cause ball screw misalignment—another major source of mechanical resistance. To diagnose this issue, inspect the following key components:

• The straightness of the ball screw itself

• The alignment of the coupling connecting the servo motor to the ball screw

• Wear levels of the bearings at both ends of the ball screw

Correcting ball screw misalignment and replacing worn bearings eliminates excessive load on the servo motor, preventing overload alarms and extending the motor’s service life.

Servo Parameter Errors and Calibration Defects

Incorrect servo parameter configurations are a leading cause of press brake servo system malfunctions, particularly in the aftermath of machine maintenance, component replacement, or CNC software updates. Even minor deviations from the recommended parameters can disrupt the entire servo system.

4.1 Servo Parameter Setup Issues

Misconfigured parameters related to acceleration, speed limits, or position tolerance will immediately trigger servo alarms and impede machine operation. Key parameters to verify and recalibrate include:

• Servo gain parameters

• Acceleration and deceleration settings

• Position deviation tolerance thresholds

All parameters must be set to the exact values recommended by the press brake manufacturer to ensure seamless servo system operation.

4.2 Backgauge Position Calibration Deviations

If the backgauge’s position reference point becomes inaccurate due to mechanical movement or electrical glitches, the CNC controller will detect abnormal position deviation and trigger an alarm. To resolve this, perform a full calibration process that includes:

• Axis homing calibration to reset the zero point

• A complete reset of the backgauge position reference

• Verification of position accuracy using precision measurement tools

Proper calibration ensures the servo system operates within the manufacturer’s specified tolerance range, eliminating false position deviation alarms.

Preventive Strategies to Mitigate Servo System Malfunctions

Preventing press brake servo system malfunctions is far more efficient and cost-effective than repairing them during unplanned production downtime. Implementing a proactive preventive maintenance program is the best way to ensure long-term servo system stability.

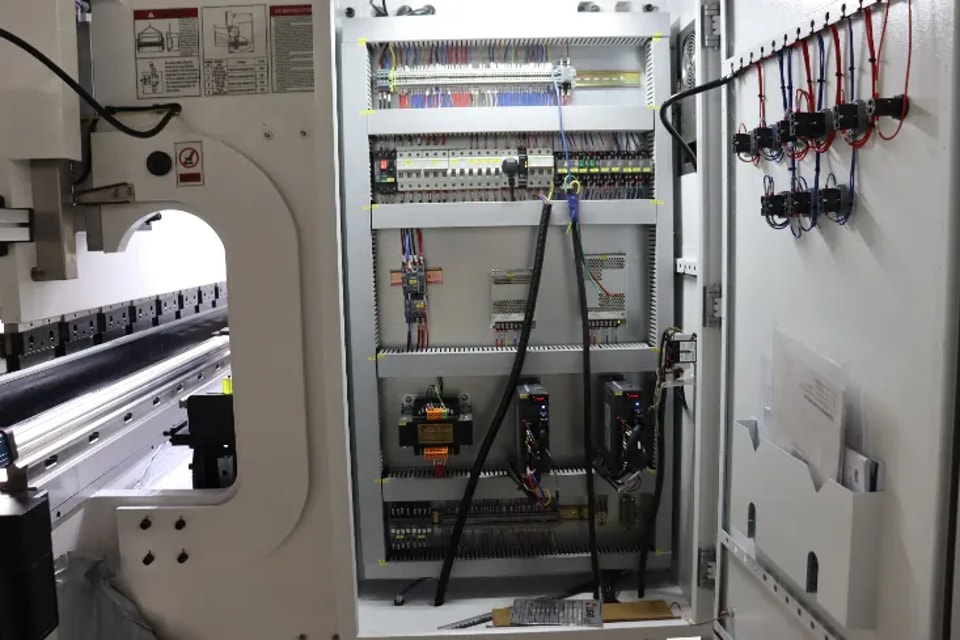

5.1 Scheduled Electrical Inspections

Regular inspections of the electrical control cabinet and servo system electrical components are essential. Focus on ensuring:

• Unobstructed and effective cooling of the servo drive

• Clean ventilation filters to prevent dust buildup

• Secure, tight connections for all electrical terminals and cables

Dust accumulation in the control cabinet can cause overheating and communication instability, leading to intermittent or persistent servo malfunctions. Weekly visual inspections and monthly deep cleanings are recommended.

5.2 Lubrication and Mechanical Upkeep

Proper lubrication of all moving mechanical components significantly reduces the load on the servo motor and prevents excessive wear. Core maintenance tasks include:

• Regular cleaning of ball screws to remove debris

• Scheduled lubrication of linear guide rails with the correct lubricant

• Prompt removal of metal shavings and debris from all moving parts of the backgauge and bending system

This routine upkeep eliminates unnecessary mechanical strain on the servo system and reduces the risk of overload and overheating alarms.

5.3 Real-Time Monitoring of Servo Temperature and Load

Nearly all modern CNC press brake controllers offer real-time monitoring functionality for servo motor temperature and load levels. Operators and maintenance teams should regularly check these metrics; any abnormal, sudden increase in temperature or load indicates an underlying issue (e.g., mechanical resistance, wiring faults).

Investigating and resolving these warning signs immediately prevents minor issues from escalating into major servo system malfunctions and unplanned production downtime.

Frequently Asked Questions

6.1 What are the most prevalent causes of Press Brake Servo System Malfunctions?

Based on hands-on industry experience, the three most common causes are loose encoder feedback cables, insufficient lubrication of backgauge mechanical components, and incorrect servo parameter configurations. These three issues account for the vast majority of servo alarms in daily operation.

6.2 Can mechanical resistance activate servo alarms?

Yes, mechanical resistance is a major trigger for servo alarms. When ball screws, linear guide rails, or other moving components become dirty, misaligned, or worn, the servo motor is forced to work under excessive load. This extra load directly triggers servo overload alarms and can also cause secondary issues like motor overheating.

6.3 What’s the fastest way to diagnose a servo system malfunction?

Start by recording and interpreting the servo drive’s alarm code—this is the single most important step to narrow down the fault cause. Next, inspect all wiring and encoder connections for looseness or damage, then check for excessive mechanical resistance in the affected axis. Only adjust servo parameters after ruling out electrical and mechanical issues to avoid unnecessary parameter changes.

6.4 How often should the press brake servo system be inspected?

For regular production environments, a basic visual inspection of the servo system (including wiring, connections, and mechanical component cleanliness) is recommended on a weekly basis. A more comprehensive preventive maintenance check—including lubrication, encoder signal testing, parameter verification, and temperature/load sensor calibration—should be performed monthly.

Conclusion

Press brake servo system malfunctions can disrupt production schedules and compromise the precision of metal bending operations, but the vast majority of these issues can be resolved quickly and effectively with a structured, step-by-step troubleshooting approach. By first interpreting servo alarm codes, then inspecting wiring and encoder feedback signals, eliminating excessive mechanical resistance, and verifying servo parameter configurations, operators and maintenance teams can accurately identify and fix most faults with minimal downtime.

Proactive, regular preventive maintenance is the cornerstone of long-term servo system stability and reliability. By adhering to scheduled electrical inspections, consistent mechanical lubrication and upkeep, and real-time monitoring of servo temperature and load, businesses can drastically reduce the frequency of servo malfunctions and keep their JUGAO press brake operations running smoothly. For persistent or complex servo system issues that cannot be resolved with basic troubleshooting, consulting a professional technical support team is recommended to ensure accurate diagnosis and effective resolution, minimizing production losses and protecting the machine’s long-term performance.
