For those looking to optimize the operational performance of full electric servo bending machines, mastering the ET Series I/O Signal Configuration is a fundamental requirement. This article delves into the multiple advantages brought by this configuration method, demonstrating how it optimizes operational workflows and elevates the working efficiency of numerical control systems. Whether your goal is to improve the machining precision of the equipment or simplify its commissioning process, this guide will provide you with professional insights, helping you make science-based decisions and tap into the full performance potential of your full electric servo bending machine.

Step-by-Step Configuration of ET Series I/O Signal Nodes

Correct commissioning of the ET Series I/O signal nodes is the key to ensuring the optimal operation of full electric servo bending machines. The system adopts a standard I24 O16 configuration mode, and the detailed operation steps are as follows, guiding you to complete the entire configuration process in an orderly manner.

1.1 Accessing the I/O Information Interface

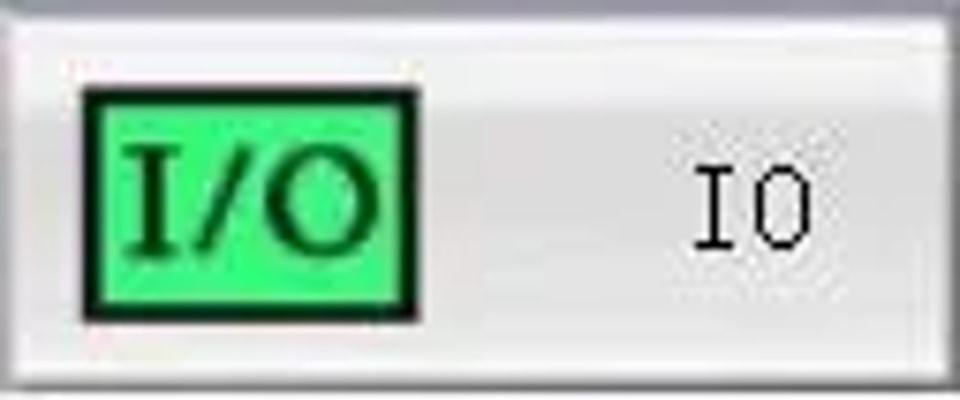

Press the I/O information function key to enter the dedicated I/O setting interface, which is the core operation panel for managing all I/O information and setting working states. Effective access to this interface is a prerequisite for the rational configuration of all I/O signal nodes.

In the I/O display interface, after users complete the decryption operation (the decryption password is the exclusive customer code), they can configure the pin corresponding to each I/O node and the normally open or normally closed working state of the input (I) node. The standard configuration of the whole system is fixed as I24 O16, providing a stable hardware foundation for signal transmission and processing.

1.2 Selecting the Target Input or Output Node

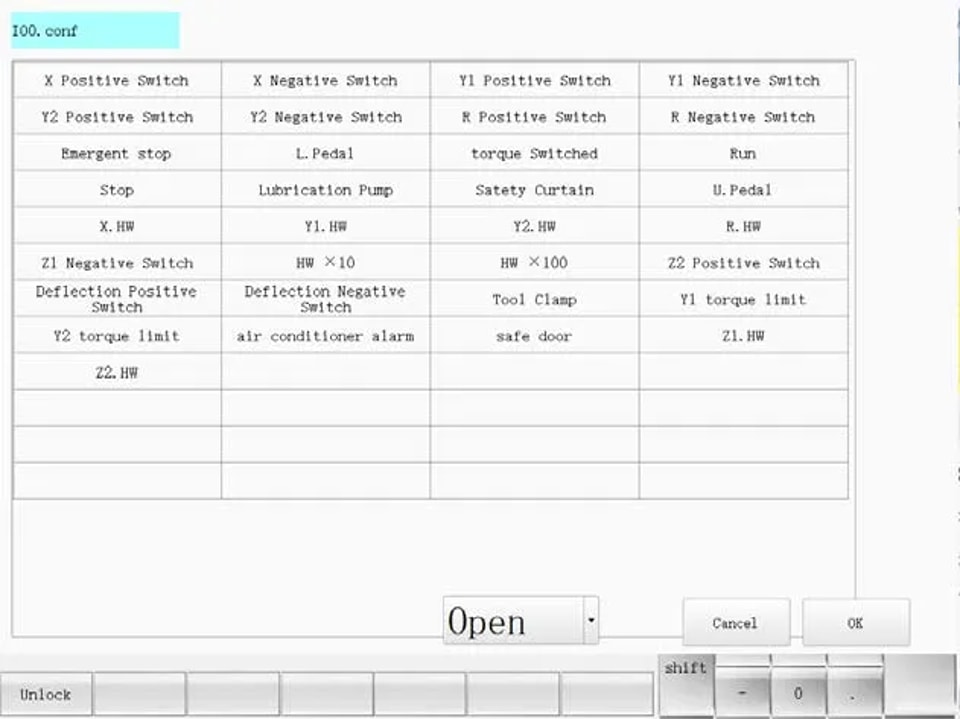

After successfully entering the I/O setting interface, the first operation step is to select the specific input or output node that needs to be configured. It is essential to accurately select the corresponding node, as this directly determines whether the full electric servo bending machine can realize accurate and efficient operation in the subsequent working process.

1.3 Configuring the Working State of I/O Nodes

After determining the target I/O node, the next step is to set its working state to either normally open or normally closed according to the actual production needs. This setting directly affects how the machine identifies and responds to the signal transmitted by the node, laying a solid foundation for the flexible and precise execution of various machining operations of the equipment.

1.4 Confirming and Completing the Whole Configuration Process

Before formally saving the configuration settings, users need to decrypt the user setting permission with the customer code—this step is crucial for enabling personalized configuration of the system to adapt to different production scenarios. After successful decryption, click the confirmation button to save all the set parameters, and the entire ET Series I/O signal configuration process is then completed.

Key Benefits of Standardized ET Series I/O Signal Configuration

A thorough understanding and accurate configuration of ET Series I/O signals can significantly upgrade the operational performance of full electric servo bending machines. This optimized configuration mode can bring a wealth of operational benefits to the production process, making it an indispensable and important link in the daily management and maintenance of the equipment.

Enhanced Machining Precision of Equipment

Standardized ET Series I/O signal configuration can markedly improve the precision of bending machining operations. Each input and output signal is accurately mapped and matched, ensuring that the machine executes every bending operation in strict accordance with the preset technical specifications. This precise alignment of I/O signals is the core guarantee for maintaining high-quality production results, reducing the occurrence of machining errors, and ensuring that each bending process fully meets the stringent technical requirements of actual production applications.

Simplified Equipment Commissioning Process

One of the most prominent advantages of a standardized ET Series I/O signal configuration is that it greatly simplifies the commissioning process of the machine for different operational tasks and part replacement scenarios. By clearly defining the transmission path of each signal, the complexity of the traditional bending machine configuration process is effectively reduced. This optimization not only saves a lot of valuable production preparation time but also lowers the probability of human errors in the commissioning process, ensuring a smooth transition when the machine switches production tasks or adjusts operational setups.

Improved Overall Operational Efficiency

The operational efficiency of full electric servo bending machines can be greatly improved with a well-executed ET Series I/O signal configuration. A reasonable configuration mode promotes smooth and unimpeded information communication between the numerical control system and the physical components of the machine. The optimized signal recognition and processing capability enables better coordination and collaboration between all components of the system, thereby comprehensively improving the execution efficiency and processing speed of bending operations. Correct signal configuration makes the machine more flexible and responsive, enabling it to easily handle the complex and diverse production requirements in actual manufacturing.

Frequently Asked Questions (FAQ)

3.1 How does standardized I/O signal configuration boost the machining precision of equipment?

Accurate configuration of ET Series I/O signals ensures that every machining operation and bending process of the equipment is executed in full compliance with the preset precise specifications. This high-precision signal alignment effectively reduces the occurrence of machining errors, improves the overall quality of production products, and ensures consistent and high-precision machining results in mass production.

3.2 What exactly is ET Series I/O Signal Configuration?

ET Series I/O Signal Configuration is a professional commissioning process for full electric servo bending machines, which is used to set and adjust the input and output signal parameters of the equipment. Through this configuration, the machine can accurately identify and process various working signals, ensuring the optimal operation state of the equipment, and ultimately achieving the dual improvement of machining precision and operational efficiency.

3.3 Why is enhanced operational efficiency critical for full electric servo bending machines?

Improved operational efficiency ensures seamless information interaction between the bending machine, its numerical control system and all functional components, effectively enhancing the real-time responsiveness and overall production throughput of the equipment. This high efficiency is directly reflected in shorter production cycle times and enables the equipment to easily complete complex and sophisticated bending machining tasks, which is crucial for adapting to the high-efficiency and high-precision requirements of modern manufacturing production.

Conclusion

In summary, the ET Series I/O Signal Configuration is a core and pivotal component in optimizing the operational performance and functional efficiency of full electric servo bending machines. Accurate and standardized configuration of these I/O signals can effectively improve the machining precision of the equipment, simplify the production commissioning process, and greatly enhance the overall operational efficiency of the machine. These improvements work together to ensure that the entire production operation is both efficient and high-quality, fully aligning with the actual production goals and development needs of enterprises.

To fully exploit and leverage the various benefits brought by the ET Series I/O Signal Configuration, it is essential to strictly and meticulously follow the operation steps outlined in this guide for configuration. If you want to further deepen your understanding of this configuration technology or need personalized professional advice combined with your actual production operations, you are welcome to contact the professional technical team of HARSLE at any time. Our team is ready to provide you with detailed and professional technical support and answer all your questions about the configuration and use of the equipment. In addition, you can also browse other relevant professional documents and technical resources on our official website to obtain more comprehensive and in-depth professional insights.
