Technical Analysis of Multi-Function Foot Pedal Switches for CNC Press Brakes
Core Feature Overview
1. Integrated operation control

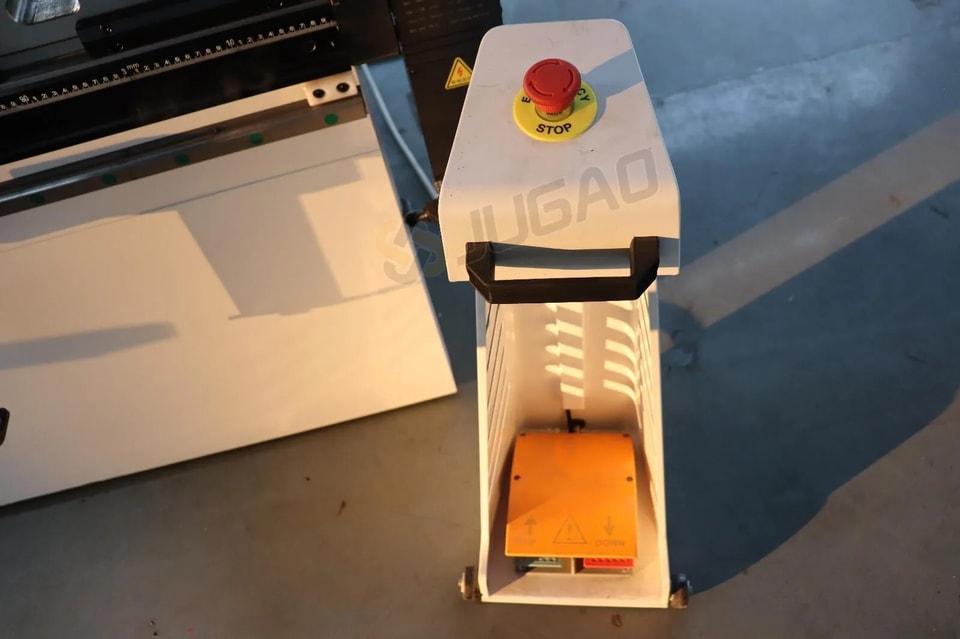

2. Emergency stop safety protection
3. Ergonomic material handling assistance
In modern sheet metal fabrication, multi-function foot pedal switches for CNC press brakes have become critical components for enhancing operational efficiency. This innovative control system consolidates traditionally separate commands into a single pedal through integrated design, significantly streamlining workflow.

I. Revolutionary Operation Experience
The next-generation pedal switch features modular design with:
l Triple-function integration (start/pause/emergency stop)
l 15° inclined pedal surface for ergonomic operation
l Anti-slip texture design (friction coefficient ≥0.8)
l IP54 protection rating for industrial environments
II. Safety Protection System
Dual safety mechanisms:
1. Instant Emergency Stop
l Response time <0.1 second
l Dual-circuit power cutoff
l Mechanical self-locking device
2. Smart Misoperation Prevention
l Pressure-sensitive recognition (5-50kg adjustable)
l Delayed response to accidental contact
l Real-time status indicator lights
III. Material Handling Assistance

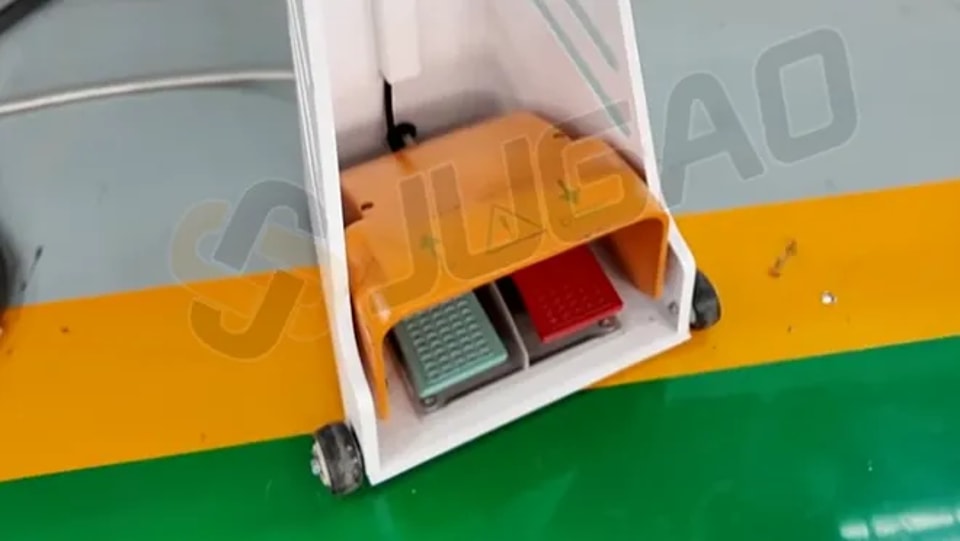

Innovative front-mounted roller system includes:
l 304 stainless steel load-bearing rollers (150kg capacity each)
l Adjustable height range (±30mm)
l Omnidirectional rotation (360° free movement)
l Silent bearing technology (<65dB operation noise)

Technical Specification Comparison
Feature | Conventional | This Product |
Response Time | 0.5s | 0.2s |
Function Integration | Single-function | 7 modes |
Safety Certifications | CE | CE+ISO13849 |
Service Life | 500,000 cycles | 2,000,000 cycles |
Application Benefits
An appliance manufacturer achieved:
l 40% reduction in die change time
l 75% decrease in operation errors
l 22% increase in daily production capacity
(Note: Actual performance may vary based on equipment configuration and operating environment)
Maintenance Tip: Regular compressed air cleaning of pedal interior can extend switch lifespan by over 30%
