Safety Protection System

Optical Safety System - Advanced

JUGAO® CNC press brake use OEM EMBEDDED LAZERSAFE offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe’s PCSS A Service, the Lazersafe is category 4 compliant and meets the world’s most demanding international safety standards(CE Certified Category 4 Safety Controller with integrated).

Optional:

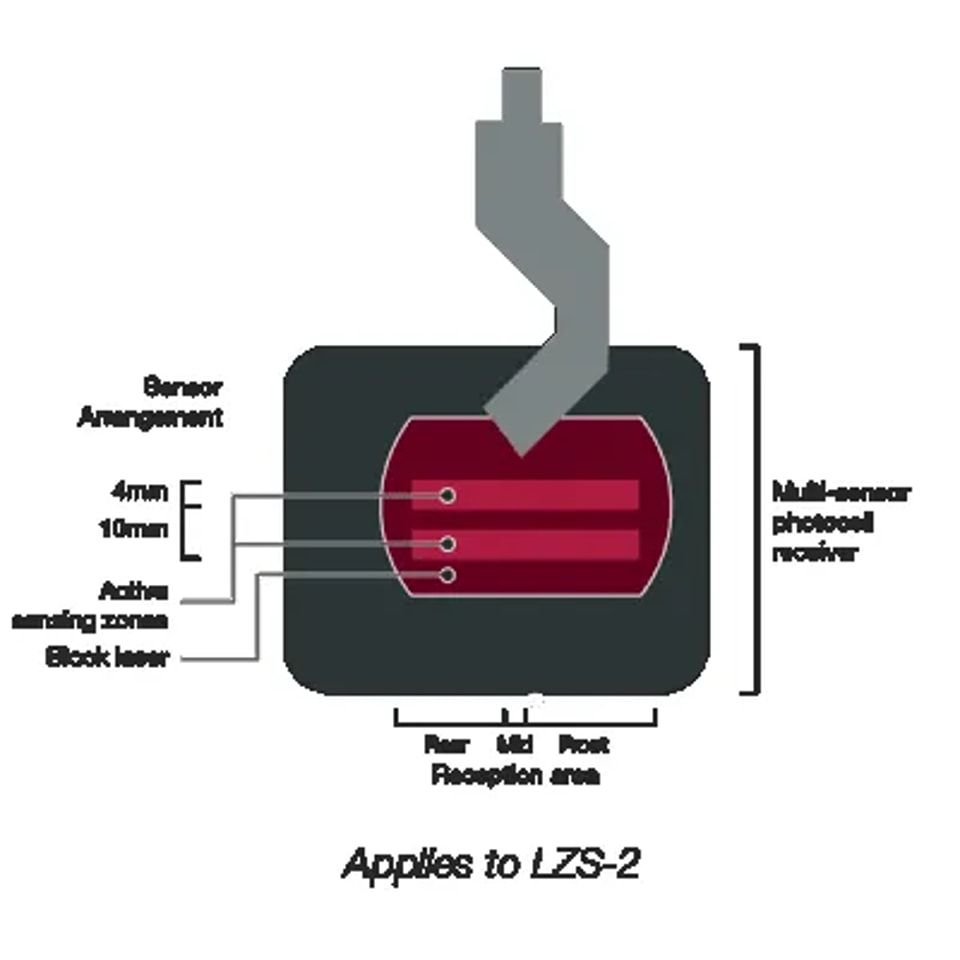

1. Lazersafe-PCSS A0 LZS-XL

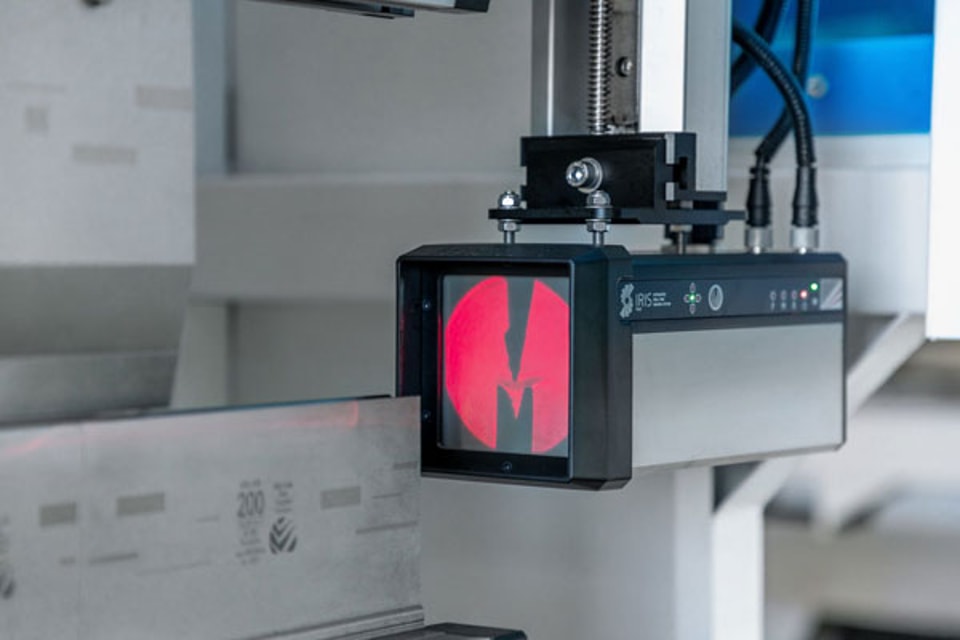

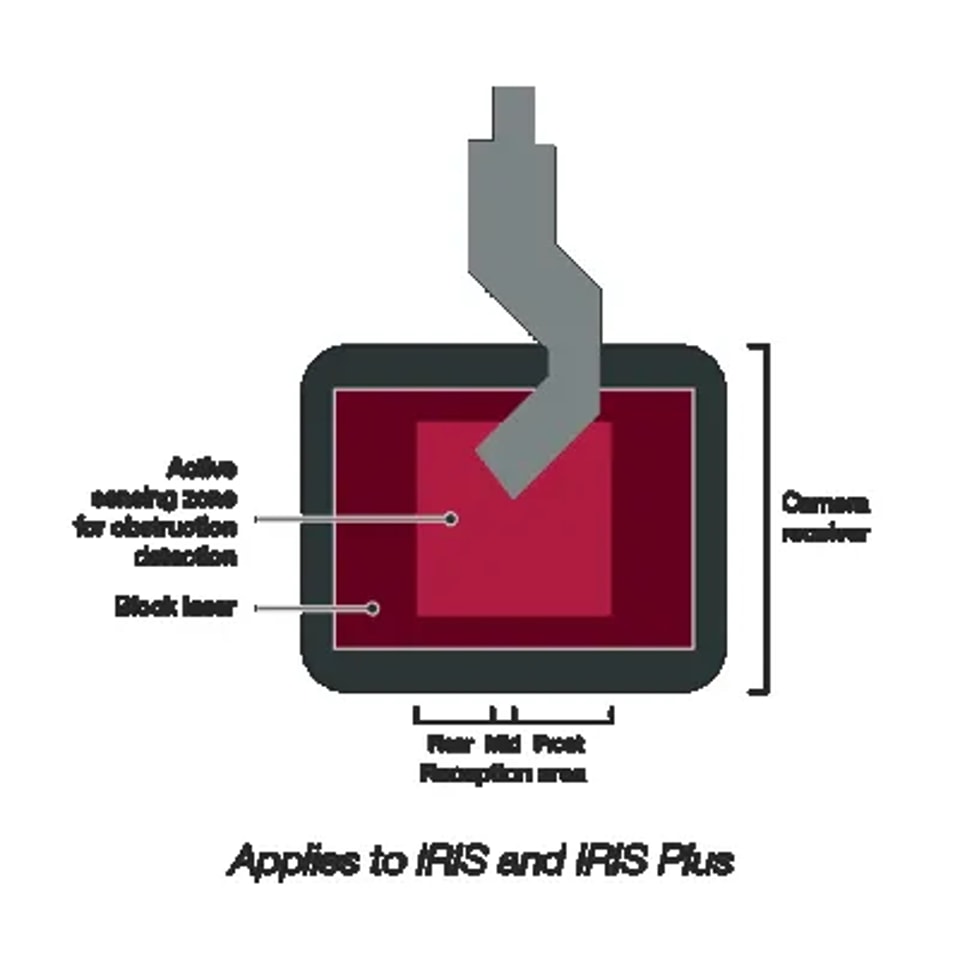

2. Lazersafe-PCSS IRIS

Advantage:

Automatic Tool Alignment:

The systems with a camera receiver feature automatic tool alignment that eliminates the need for precise manual adjustment, and this process can also be fully automated in the CNC via SmartLink, eliminating the need for the operator to press the TOOL ALIGN button.

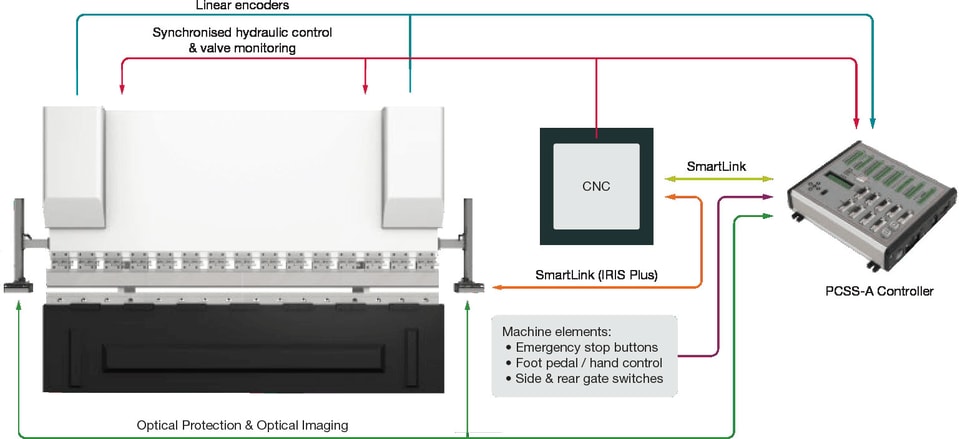

Press Brake Control Safety System - Advanced

The PCSS-A is a programmable safety controller designed to improve the performance and safety of press brakes. It provides flexibility for the press brake manufacturer and simplifies the design process by combining all related control, safety and monitoring functions into a single system and eliminates the need for complex integration of third party components and software. PCSS-A provides an optimum balance of functionality and performance with reduced build cost.

This provides an efficient and cost effective platform with fewer components, reduced wiring, simplified interface and CE Certified hardware and software to minimise engineering and build time.
