Rear Stop Option
Rear Stop Option

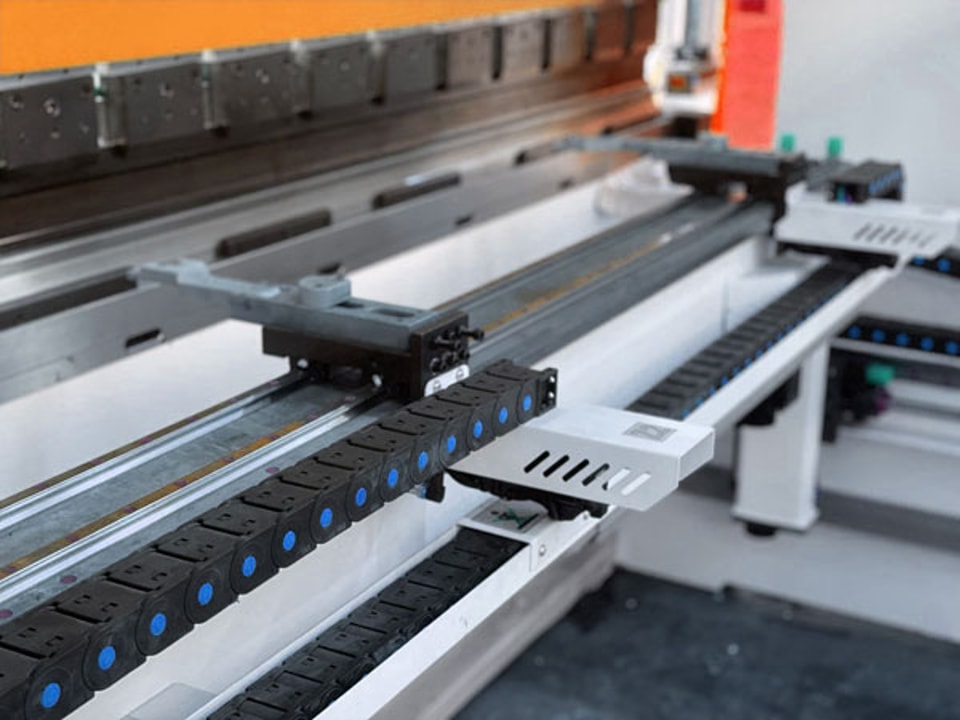

Press Brake 2-Axis CNC BackGauge With X, R-Axis
1. Ball screws and linear guide on X, R-axis
2. Axis X speed 500 mm/s.
3. Manual Z1, Z2-axis with HIWIN linear guide
4. Mechanical accuracy ± 0.03 mm.
5. Fingers with double stop and micrometric adjustment.

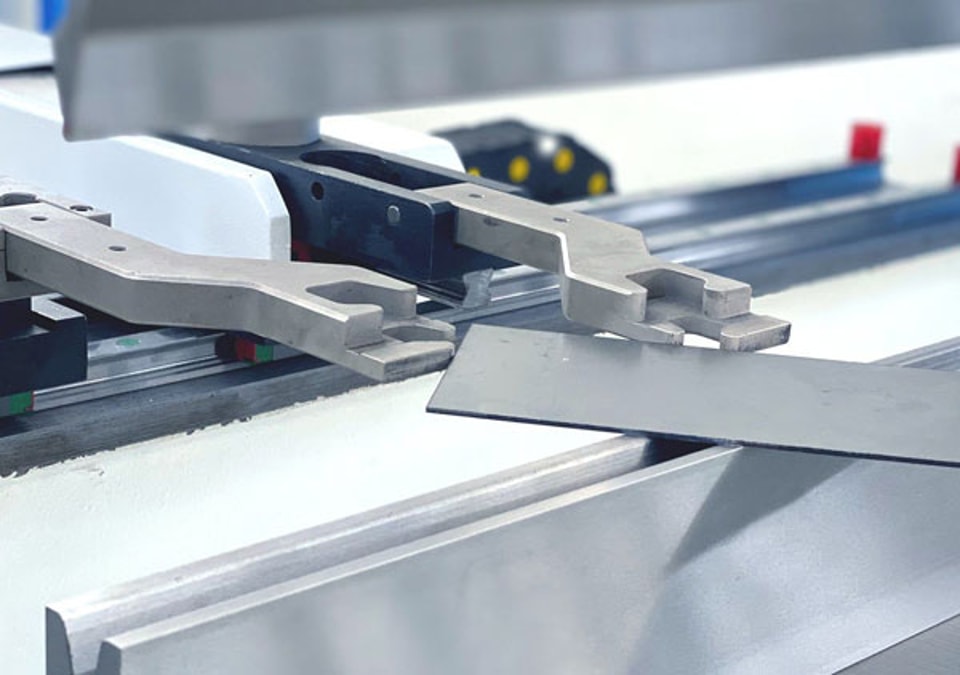

Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis
1. Ball screws and linear guide on X, R-axis
2. Precision belts and YYC rack on axes Z1‐Z2.
3. Fingers with double stop and micrometric adjustment.
4. Mechanical accuracy ± 0.03 mm.
5. Axes Z1‐Z2 speed 1000 mm/s.
6. Axis X speed 500 mm/s.

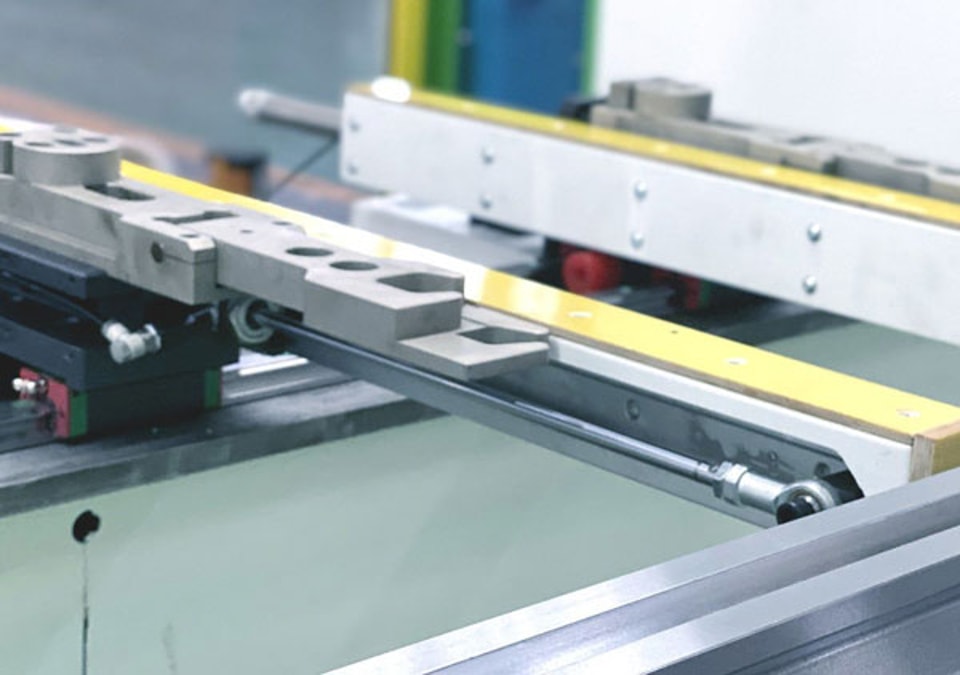

Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis
1. Ball screws and linear guide on X, R-axis
2. Precision belts and YYC rack on axes Z1‐Z2.
3. Fingers with double stop and micrometric adjustment.
4. Mechanical accuracy ± 0.03 mm.
5. Axes Z1‐Z2 speed 1000 mm/s.
6. Axis X speed 500 mm/s.
7. SPA Thin supports system in the fingers.
8. Load capacity – 30 kg per support.

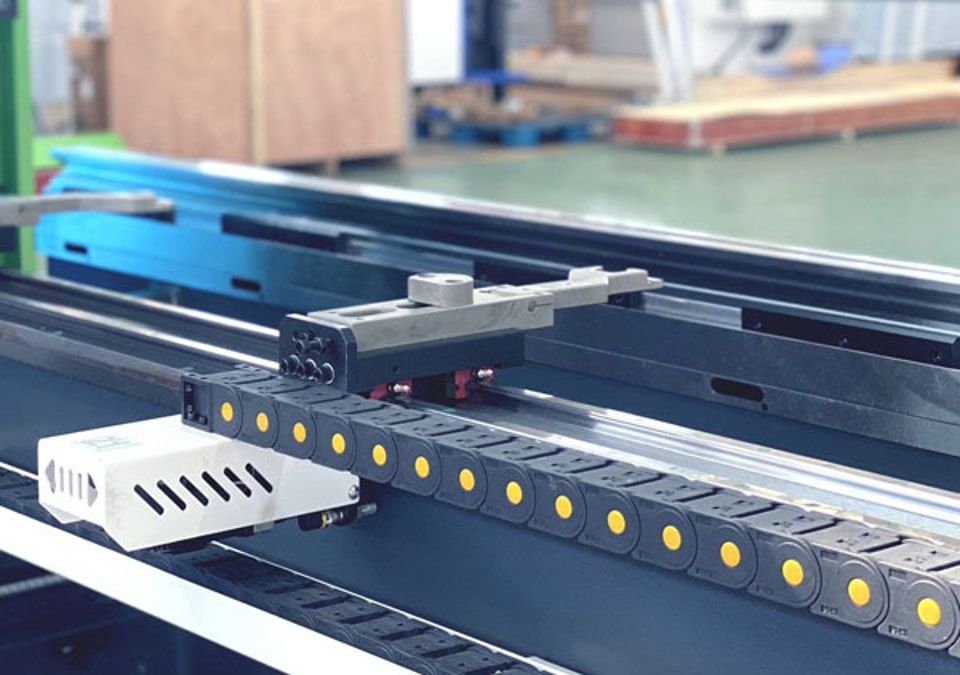

Press Brake 5-Axis CNC BackGauge With X, R, Z1, Z2, Delta X2-Axis
1. Ball screws and linear guide on X, R-axis
2. Precision belts and YYC rack on axes Z1‐Z2.
3. Fingers with double stop and micrometric adjustment.
4. Mechanical accuracy ± 0.03 mm.
5. Axes Z1‐Z2 speed 1000 mm/s.
6. Axis X speed 500 mm/s.
7. Axis Delta X speed 500 mm/s.

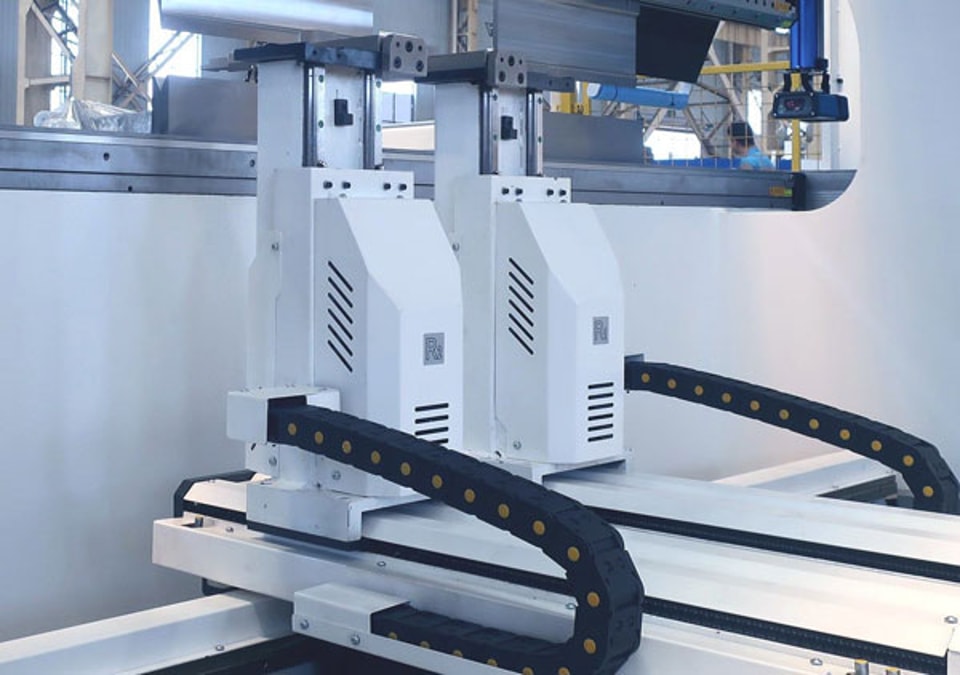

Press Brake 6-Axis CNC BackGauge With X1, X2, R1, R2, Z1, Z2-Axis
1. Ball screws and linear guide on X, R-axis
2. Precision linear guide and YYC rack on axes Z1‐Z2.
3. Fingers with double stop and micrometric adjustment.
4. Mechanical accuracy ± 0.03 mm.
5. Axes R1‐R2 speed 500 mm/s
6. Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
7. Axes Z1‐Z2 speed 1100 mm/s.
