Optimizing ESA S630 Bend Management: Key Strategies and Practical Tips

Table of Contents

• Leveraging the Last Bend Feature

• Making the Most of the Machine Functions Page

• Practical Program Saving Methods

• Refining Tooling Strategies

• Navigating Other Menu Pages

• Using Remote Program Selection

• Frequently Asked Questions (FAQ)

◦ What are the first steps to set up ESA S630 Bend Management on a new machine?

◦ Can ESA S630 Bend Management support custom bending programs?

◦ How to effectively use remote program selection with ESA S630 Bend Management?

• Conclusion

For professionals aiming to refine their bend management workflows, the ESA S630 system delivers unmatched optimization solutions. You may be wondering how to apply best practices to maximize efficiency and streamline operations—and this guide is designed to answer that.

This article shares actionable strategies to unlock the full potential of ESA S630 Bend Management. By adopting these methods, you’ll transform your bending operations: boosting precision, cutting downtime, and ultimately increasing production output. Let’s explore the steps that turn ordinary bend management into a streamlined, high-performance process.

Leveraging the Last Bend Feature

To boost efficiency in bending operations, mastering the “Last Bend” feature in the ESA S630 Bend Management system is critical. This feature acts as a protective mechanism by labeling the final bend in a processing section, avoiding unintended insertion of extra bends. When used correctly, it helps operators maintain precise, error-free processing sequences—you can identify it by the last bend icon located in the top-right corner of the figure below:

Integrating the “Last Bend” feature into your ESA S630 workflow can significantly improve accuracy, especially when handling complex bending sequences with multiple steps.

Making the Most of the Machine Functions Page

In the ESA S630 Bend Management software, the “Machine Functions” page is key to enhancing machine control during bending. Here, operators can set custom functions for each bend to tailor performance to specific tasks.

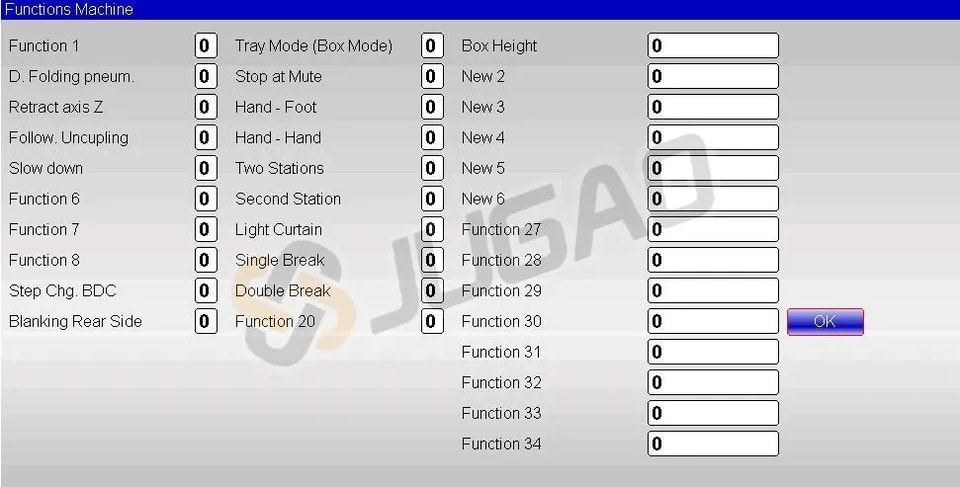

To access this feature: Press the corresponding button on the Editor page, then select the option 9>> Machine Functions. The pop-up window offers a range of settings to fine-tune operations:

• D. Folding Pneumatic Function: Triggers the pneumatic lifting of dies, ensuring precision for Dutch folding bends.

• Z Axis Retract Function: Adjusts the Z1 and Z2 axes based on the “Z Deviation value” to maintain processing precision.

• Follower Uncoupling Function: Executes a release cycle to control the movement of the follower component.

• Slow-Down Function: Keeps the ram descending at a low speed, improving control during the bending cycle.

• BDC Step Change Function: Enables bend adjustments at the lower dead point, enhancing accuracy.

• Rear Side Blanking Function: Works with MCS safety systems to deactivate the rear beam when needed.

• Tray Mode (Box Mode) and Box Height Functions: Ensure safe bending of box-shaped workpieces using “laser safe” systems.

• Stop at Mute Function: Allows pausing when speed changes occur within the “laser safe” system.

• Hand-Foot and Hand-Hand Functions: Provide manual stop control at mute points for flexible operation.

• Two Station and Second Station Functions: Manage dual-pedal operation when using the “laser safe” system.

The “Machine Functions” page is essential for precise control in ESA S630 Bend Management—it lets you tailor operations to specific workpiece needs, ensuring both efficiency and safety.

Practical Program Saving Methods

Efficient program management is critical for smooth operations in ESA S630 Bend Management. Starting from version 10.1, the formats of work programs have been expanded to include 20 functions. While version 10.x supports older program formats, it lacks backward compatibility—so you’ll need to save programs in formats compatible with previous versions when required.

Overview of Version Saving

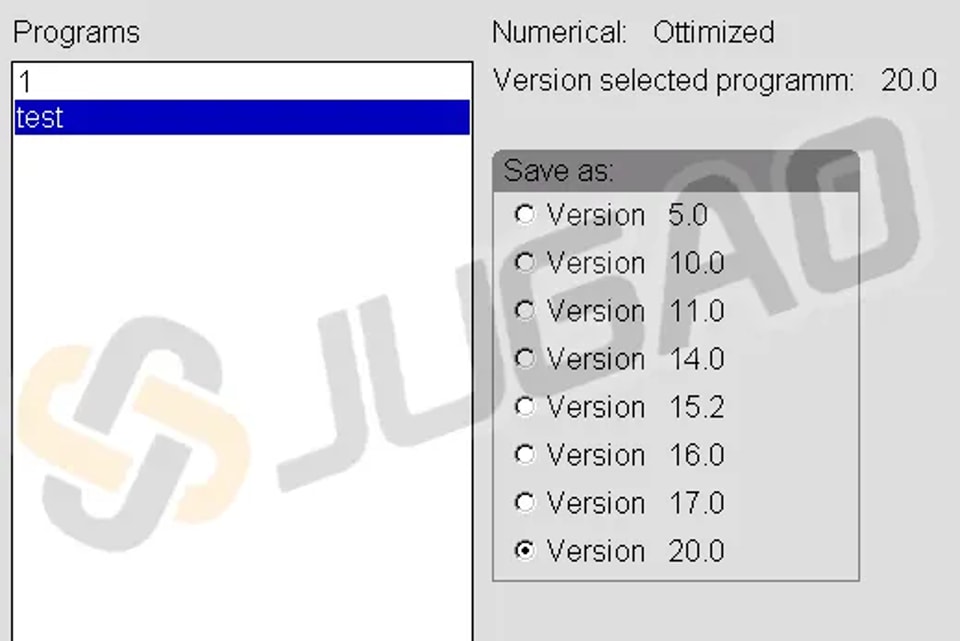

The Version Saving page simplifies program management by displaying current programs, their version indices, checkboxes for selecting target save versions, and function keys like [Save As…] and [Save ALL As…].

Saving a Single Numeric Program

To save a program in a format compatible with an older version:

1. Navigate to the Program List interface.

2. Click [Save Version] to open the saving page.

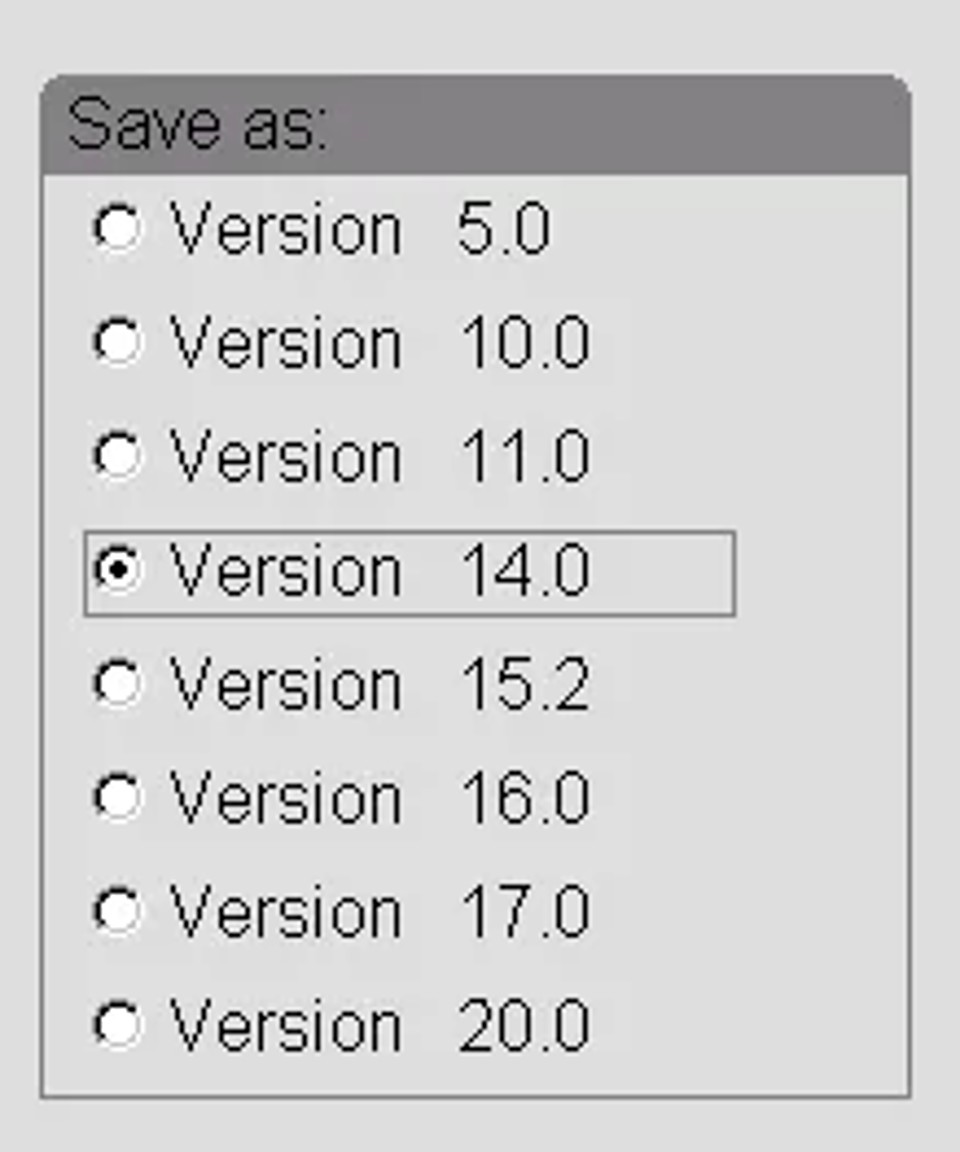

3. Use the touchscreen to select the desired format (e.g., Version 14.0).

4. Tap [Save As…] to name the program and complete the save.

Saving All Programs

To save all existing programs at once:

1. Open the Program List.

2. Access the saving page by clicking [Save Version].

3. Use the touchscreen to choose the target format (e.g., Version 14.0).

4. Insert a formatted USB drive into the machine.

5. Select [Save all As…] to save all programs to the USB drive.

These methods boost the reliability and efficiency of ESA S630 Bend Management, ensuring easy access to programs and compatibility across different system versions.

Refining Tooling Strategies

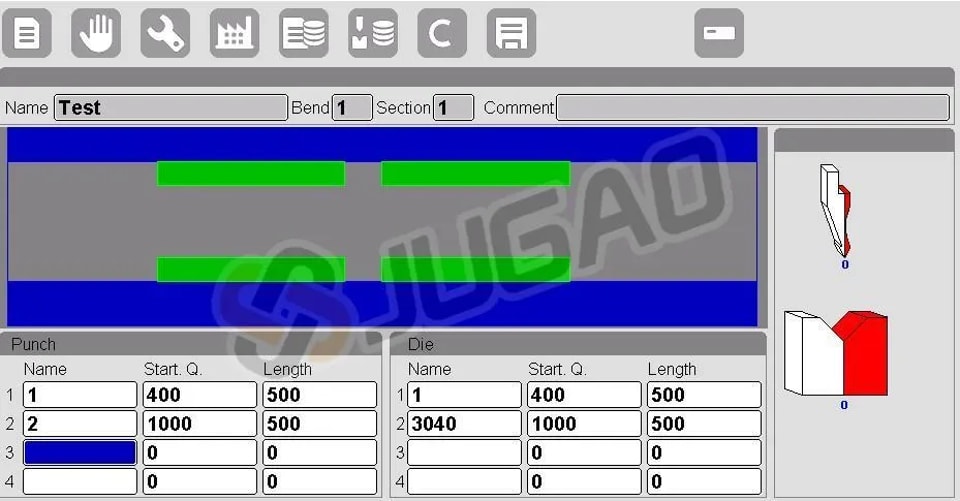

Effective ESA S630 Bend Management relies on skillful use of the “Tooling” page—which manages workstations and automatically calculates Z-axis positions. To open this page: Go to the Editor, then choose the option 11 >> Tooling. The interface shows a front-facing view of the machine, where “Teeth” icons stand for the tools, and control windows are located on the right side.

At the bottom of the page, two key windows display details for up to four workstations, including:

• Workstation Number: Specify which workstation is active (ranging from 1 to 4).

• Tool Identification: Match the names of dies and punches to the listed tools.

• Measurements: Input initial dimensions—calculated from point 0 if “Distance 0-inside shoulder” is enabled.

• Tool Lengths: Enter the length of tools for each workstation.

By using these features, you can enhance ESA S630 Bend Management: ensuring precise tool selection, simplifying maintenance, and boosting overall efficiency in metalworking.

Navigating Other Menu Pages

Smooth operation of ESA S630 Bend Management requires knowing how to navigate key menu pages. Here’s how to use essential features:

Turning Off the NC

To safely shut down the CNC system:

1. Press the designated button twice to open the menu.

2. Select the option 5>> Shut Down.

Viewing the Software Version

To check software details (including SW Version):

1. Press the designated button twice to access the menu.

2. Choose the option 6>> Version.

Viewing or Changing the Logo

To check or modify the logo display:

1. Press the designated button twice to open the menu.

2. Select the option 7>> Logo.

Mastering these basic menu functions ensures you have personalized, efficient control over the ESA S630 Bend Management system.

Using Remote Program Selection

To use remote program selection mode, you first need to prepare the required resources and configure the CNC correctly. For detailed steps on configuration, refer to the Machine Parameters Manual provided by the machine manufacturer—this ensures the mode works as intended.

Frequently Asked Questions (FAQ)

What are the first steps to set up ESA S630 Bend Management on a new machine?

Start by referring to the machine’s user manual for initial setup guidelines. Next, configure the CNC parameters to ensure compatibility with ESA S630 Bend Management. Finally, verify all connections to ensure smooth program integration and avoid operational issues.

Can ESA S630 Bend Management support custom bending programs?

Yes, ESA S630 Bend Management is designed to handle custom bending programs. You can configure the CNC to accept these custom programs and execute them accurately—this flexibility helps meet unique production needs and enhances overall capabilities.

How to effectively use remote program selection with ESA S630 Bend Management?

To use remote program selection effectively, first prepare all necessary resources (as outlined in the manufacturer’s guidelines). Then, configure the CNC according to the instructions in the Machine Parameters Manual. Proper configuration minimizes downtime and improves operational efficiency.

Conclusion

When optimizing ESA S630 Bend Management, a set of core strategies can greatly boost operational efficiency and cut down on downtime. By prioritizing precise setup, making use of remote program selection, and maintaining regular system upkeep, your press brake system will deliver optimal performance. These strategies work together to streamline bending operations, improve precision, and increase overall productivity.

For comprehensive support and to fully unlock the potential of ESA S630 Bend Management, reach out to our expert team. We’re here to provide in-depth insights, customized solutions, and additional documentation to guide you through every step. Don’t hesitate to contact us for consultations, extra resources, or to explore related documentation on our website. By partnering with us, you can ensure your machinery operates at peak efficiency, consistently delivering exceptional results.
