Master the DELEM DA-52S tool programming guide

When it comes to optimizing the efficiency and precision of your metalworking operations, mastering DELEM DA-52S tool programming is essential. If you're seeking in-depth guidance on how to program tools effectively using the DELEM DA-52S, you've come to the right place. In this article, I'll walk you through the key techniques for mastering DELEM DA-52S tool programming, helping you enhance your machining processes. Whether you're new to this system or looking to refine your existing skills, this guide will provide the foundational knowledge you need to unlock the full potential of your equipment.

Introduction

The DELEM DA-52S system is a cornerstone in the field of metal forming, delivering precise and efficient control for tool programming.

Press this key for tool programming.

The first time this key is pressed, the screen for punch programming appears. To switch to programming of bottom dies, press this key again.

Programming of Punches

In the realm of DELEM DA-52S Tool Programming, setting up your punches correctly is essential for achieving precise bends and maintaining tool longevity.

Punch Library

The Punch Library in the DELEM DA-52S allows operators to catalog and efficiently manage up to 30 punch tools, which is essential for streamlining workflows and ensuring effective tool usage. Familiarizing yourself with this library is crucial for efficient DELEM DA-52S Tool Programming.

Step 1: Accessing the Punch Library
Programming of punches begins by pressing the tools key on the DELEM DA-52S. Use the left/right arrow keys to navigate through the library and view existing punches or select a tool slot that’s not programmed, indicated by an asterisk (*).

Step 2: Adding Punch Tools
To add a new punch, enter the tool’s specifications such as type, width, and angle. Accurate input of these parameters ensures the DELEM DA-52S can apply them during operation effectively.

Mastering the Punch Library within the DELEM DA-52S Tool Programming can significantly enhance your efficiency, providing both precision and longevity to your machine operations.

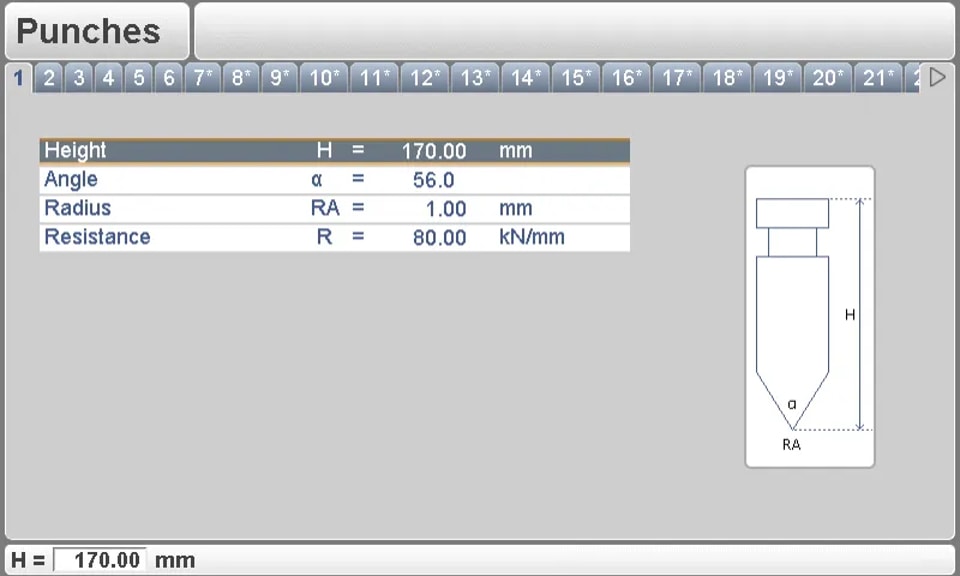

Punch Parameters

For optimal DELEM DA-52S Tool Programming performance, precise input and adjustment of punch parameters are essential.

Key Parameters:

l Height (H): Critical for bend depth calculations. Ensure accurate input for precise bending.

l Angle (a): Determine and set the punch tip angle for the desired bend results.

l Radius (RA): While used as a selection criterion, ensure it matches the task requirements.

l Resistance (R): Set the maximum allowable force (in kN/mm) to prevent overload and damage.

Optimization Steps:

l Material Adjustment: Fine-tune settings to accommodate different material types for consistent results.

l Thickness Compensation: Adjust for variations in thickness to maintain precision and quality.

By adhering to these guidelines, you enhance the effectiveness and lifespan of your punches, achieving precise and reliable metal forming with the DELEM DA-52S system.

Programming of Bottom Dies

Properly programming bottom dies is as important as punches, as they work in tandem to form precise bends in the workpiece. Getting familiar with the DELEM DA-52S Tool Programming for bottom dies will enhance your machining efficiency and precision.

Die Library

The Die Library is another fundamental component in DELEM DA-52S Tool Programming, offering a structured way to manage and recall die information. It allows you to store and organize up to 30 dies, providing a comprehensive database for your tools.

Step 1: Navigating the Die Library

The programming of dies is started by pressing the tools key.

Step 2: Adding and Storing Dies

When adding a new die, enter all relevant specifications, including V-width, angle, and die height. Accurate data ensures consistency in product output.

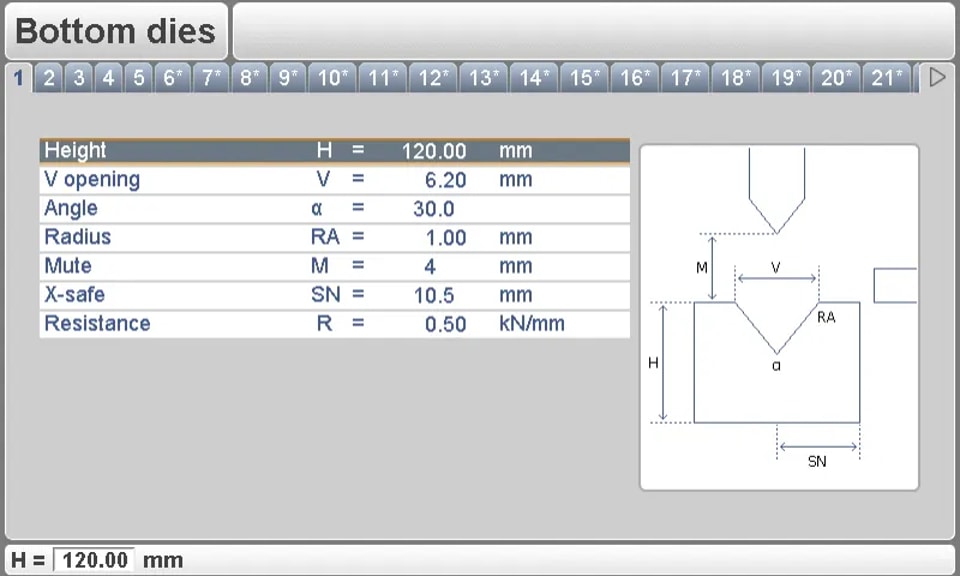

Die Parameters

Fine-tuning die parameters optimizes bending operations and helps avoid costly material waste.

Height (H): Influences bend depth; ensure accurate input.

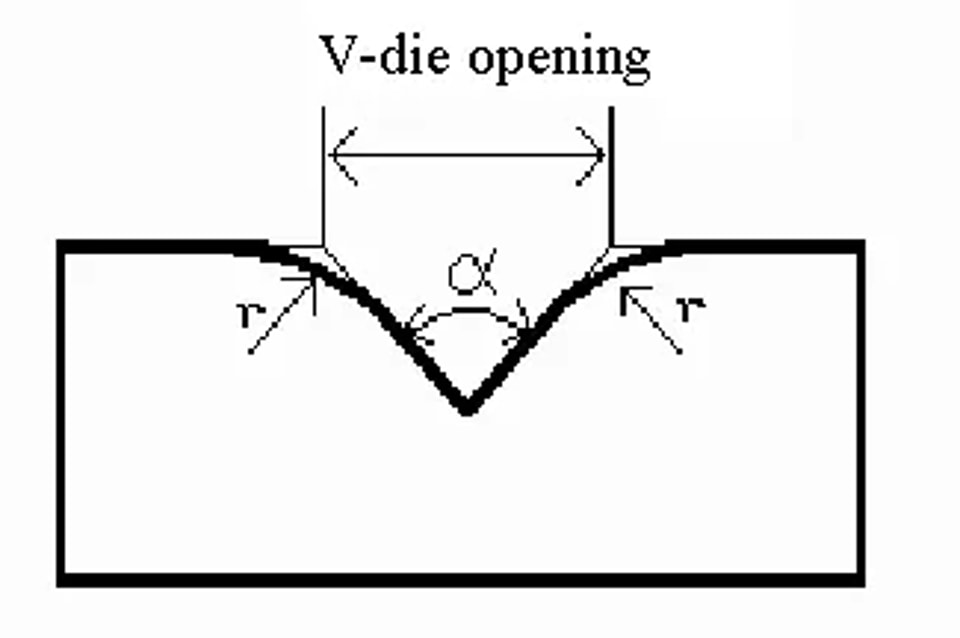

V-opening (W): Distance between touching lines; crucial for bend accuracy.

Angle (α): Determines bend shape; match to project requirements.

Radius (RA): Affects curvature; select based on desired bend.

Mute (M): Distance for speed change; optimize for smooth operation.

X-safe (SN): Calculated safety zone (minimum X-axis value), which will be used in the case an R-axis is mounted. This to prevent finger to die collision. The indicated minimum value is computed automatically from the die dimensions as follows:

l X-SAFE = FS + ½ V in which:

l FS = flat section on the back side of the V-grove

l V = opening value

In this formula also a small additional safety value (0.5 mm) has been added.

Resistance (R): Maximum force in kN/mm; maintain within safe limits.

By mastering these elements of DELEM DA-52S tool programming—through an understanding of punch and die management—you can improve productivity and precision on your shop floor, achieving superior results with each use.

Conclusion

Mastering DELEM DA-52S tool programming involves several key steps: understanding the interface, accurately defining and managing tools, customizing tool parameters, and regularly updating and maintaining the system. Together, these elements empower operators to optimize machine performance, ensuring both accuracy and efficiency in machining processes.

To fully realize the potential of your DELEM DA-52S, it is essential to follow the outlined steps meticulously. Proper setup and continuous learning play a key role in enhancing the machine's capabilities. If you have any questions or need further assistance, please don't hesitate to contact our JUGAO CNC MACHINE team. For more in-depth resources and support, we invite you to explore our documentation and guide library available on our website.
