Master DELEM DA-69S Product Management

If you're looking to master the intricacies of DELEM DA-69S product management, you've come to the right place. In this article, I'll guide you through the essential features and functionalities of the DELEM DA-69S system, which are crucial for efficient product management in a CNC environment.

Whether you're a seasoned professional or just beginning to explore CNC machine programming, understanding how to navigate and utilize the DELEM DA-69S product library can significantly enhance your workflow efficiency. This guide provides practical solutions and insights to help you streamline your operations and achieve optimal results. Let's explore how DELEM DA-69S product management can transform your CNC operations.

Introduction to DELEM DA-69S Product Library

The DELEM DA-69S product library is a centralized hub for managing the array of items executed and designed on your CNC machine.

In the Products mode existing, previously produced, products can be selected to start production or modification in order to make a similar product. To start making a new product or program New Product or New Program can be used from this mode.

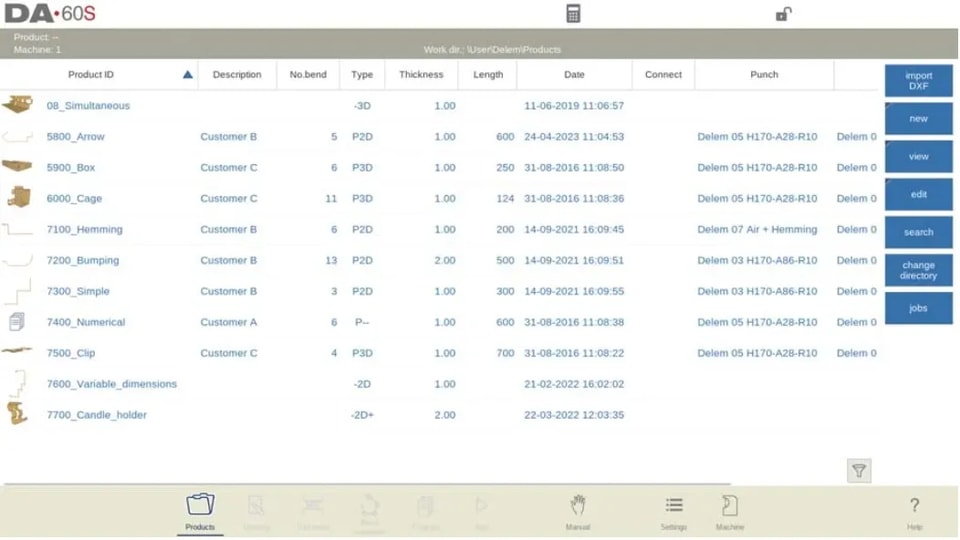

The Main View

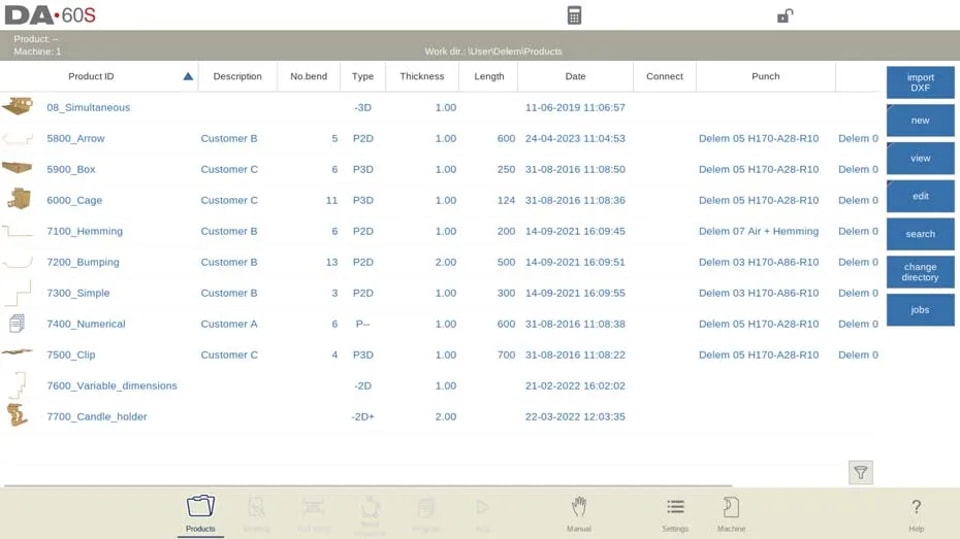

This mode allows users to select, modify, and execute product programs seamlessly. Each product entry is detailed with a graphical thumbnail or symbol for numerical programs, a Product ID, a Product Description, the Number of bends, the Type of product, and the Date it was last used or modified—key for optimizing workflow and ensuring up-to-date usage. The Type indication of the product shows following types of products:

l P– the product has a CNC program, there is no drawing

l -2D the product consists of a 2D drawing, there is no CNC program

l P2D the product has a 2D drawing and a CNC program

l -3D the product consists of a 3D drawing, there is no CNC program

l P3D the product has a 3D drawing and a CNC program

To activate a product program, simply tap the Product ID or any part of the product’s line. If the list exceeds the screen’s limit, swipe up to reveal additional products, ensuring that you can select and activate any program swiftly. This approach not only streamlines operations but also minimizes errors, optimizing the overall CNC management process.

Navigating the Product Library

To begin mastering DELEM DA-69S product management, start by accessing the main view of the product library. Simply navigate to the menu and select the library section. This provides a comprehensive display of all stored programs and graphical products, offering an intuitive interface for easy navigation and management.

Methods for Product Selection

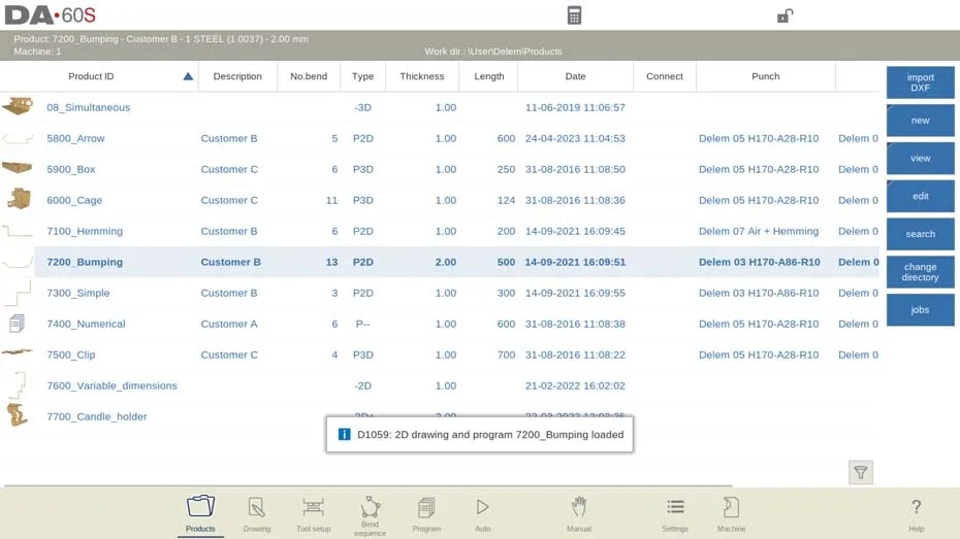

To select a product a single tap will do. The product will be selected and loaded into the memory. From here production can be started by tapping Auto. Also navigation can start through the Products Drawing (if existing), its Tool Setup, the Bend Sequence and the numerical Program of the product.

This allows operators to quickly work with several products simultaneously, saving time and reducing errors.

Starting a New Graphical Product

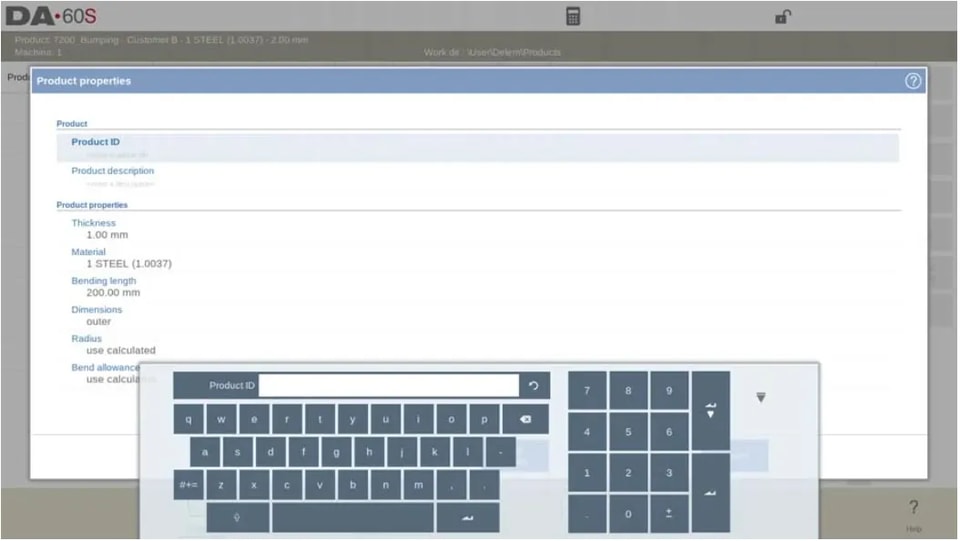

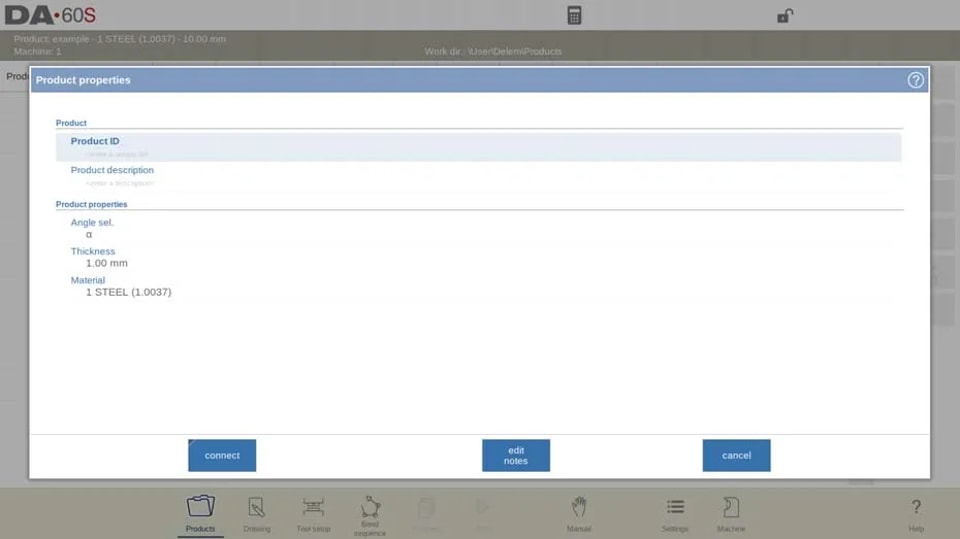

Creating new products is a fundamental part of DELEM DA-69S product management. To start a new graphical product, click on ‘New Product’ in the library view. Follow the on-screen instructions to input the necessary parameters.

This step is essential for customizing and adding unique products tailored to production needs.

Initiating a Numerical Program

When dealing with standardized operations, starting a numerical program is frequently required. Within the DELEM DA-69S product library, select ‘New Numerical Program’ and set your parameters based on existing templates or your specifications.

This facilitates structured and repeatable processing, vital for maintaining consistent output quality.

Managing Products with Ease

Views and Their Roles in Product Management

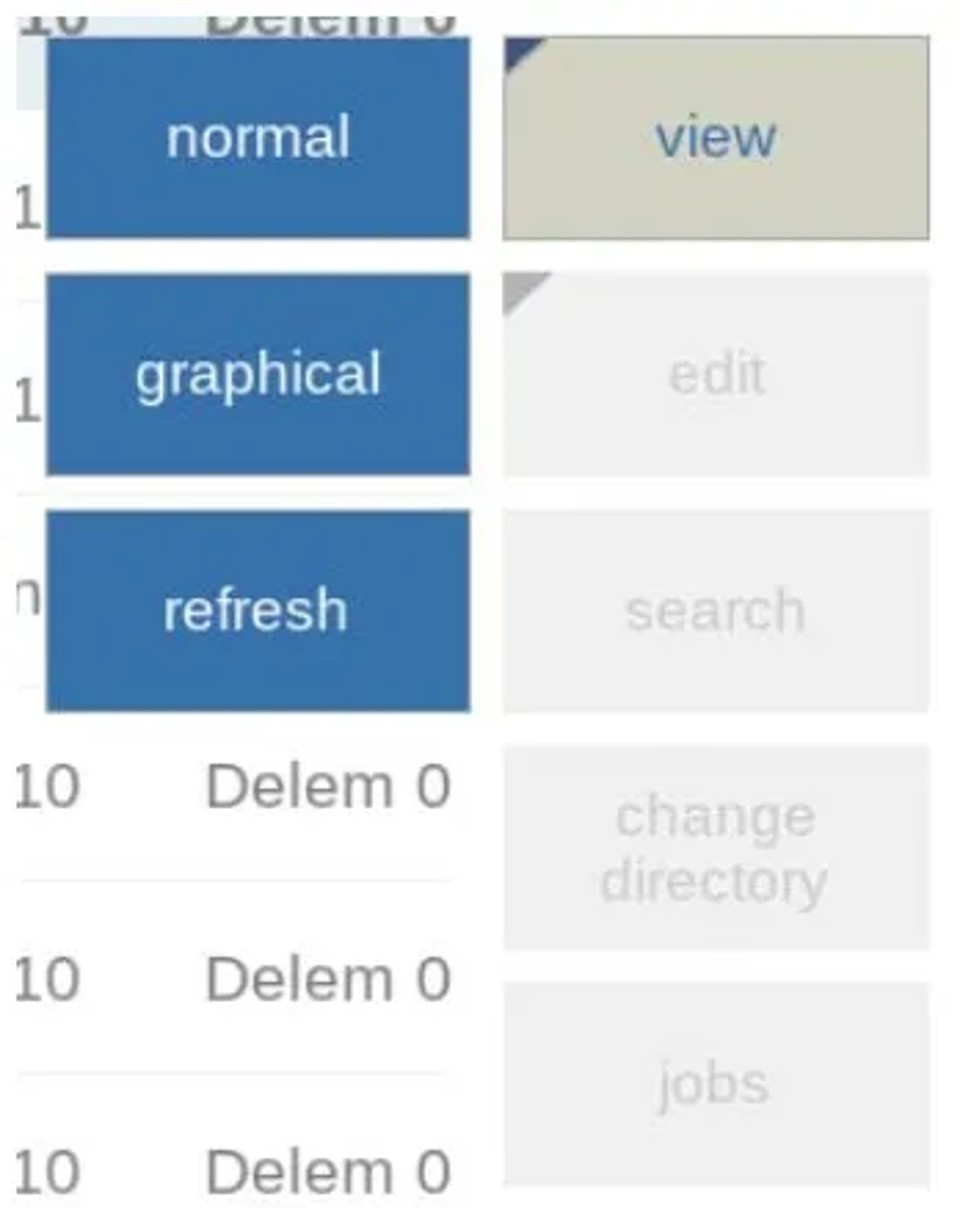

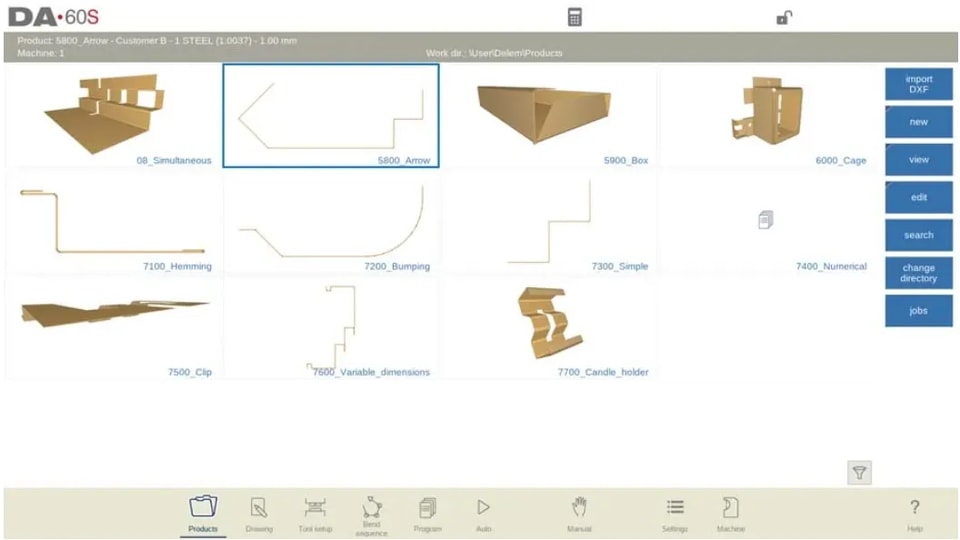

DELEM DA-69S product management offers various views—list and grid—to manage products. These views serve distinct roles: list view for detailed information and grid view for ease of visual recognition.

Choosing the right view can simplify the management process, allowing operators to focus on key product attributes.

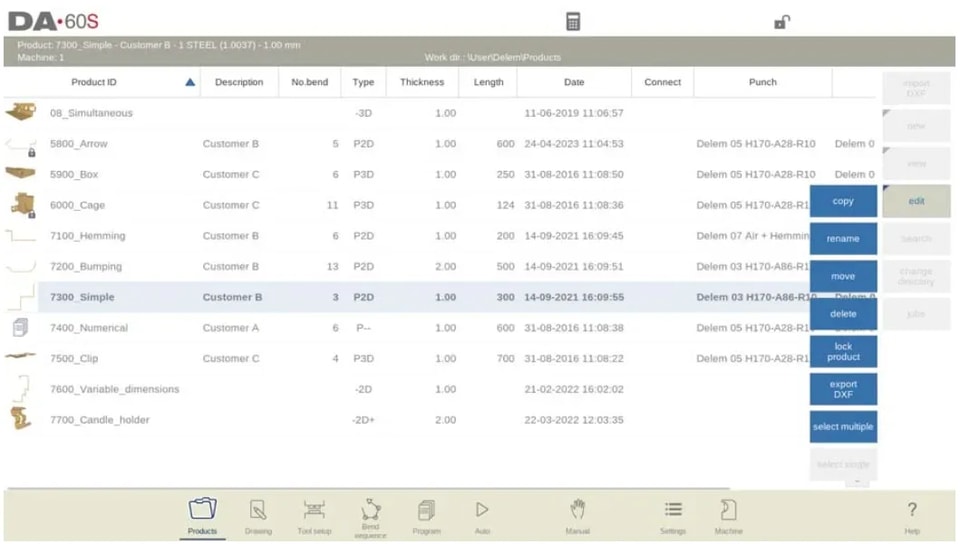

Steps to Copy, Delete, Rename and Move Products

Routine management tasks such as copying, deleting, or renaming products are necessary for organization.

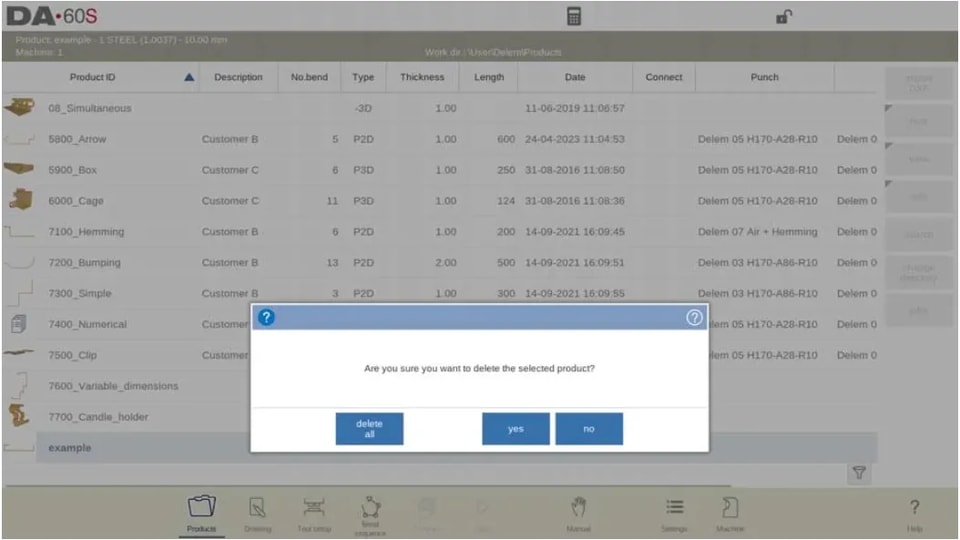

l Deleting a Product: To remove a product, first select it by tapping on the product in the Products mode. Once selected, tap on ‘Edit’ and then ‘Delete’. Confirm the action when prompted to complete the deletion. If you need to delete all products and programs simultaneously, simply choose the ‘Delete All’ option. This step ensures a clean and organized product directory.

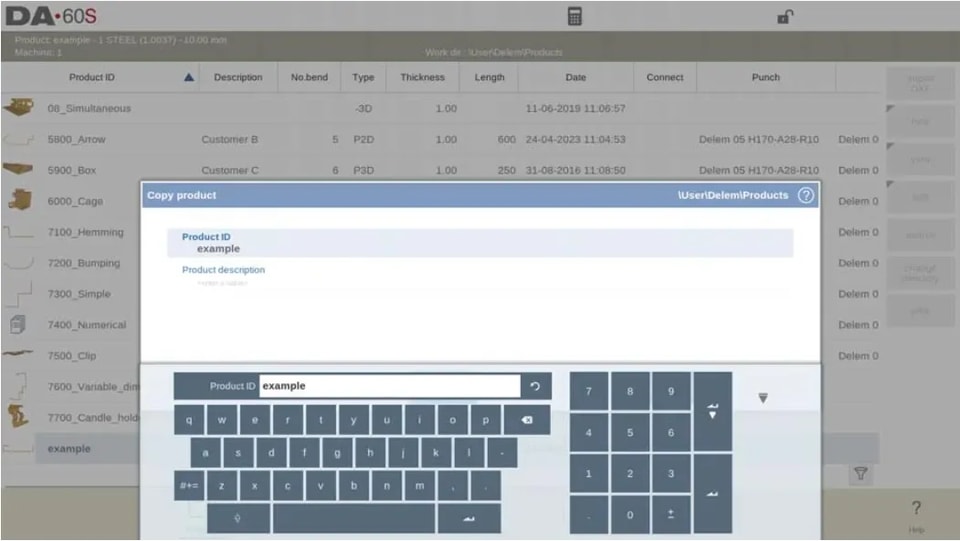

l Copying a Product: For duplicating a product, select the desired product or program. Tap ‘Edit’ followed by ‘Copy’. You can then assign a new name to the copied product, which will appear in the same directory. The duplicate will retain all settings, including tool setup and bend sequence adjustments, providing an exact replica.

l Renaming and Moving a Product: Products can be moved or renamed to better organize your directories. After selecting the product or program, tap ‘Edit’ and choose either ‘Move’ or ‘Rename’ from the options. Moving relocates the product to a different directory, while renaming allows you to assign a new name within the same directory, ensuring enhanced organization and management of your CNC operations.

In the DELEM DA-69S product management system, simple right-click operations provide access to these options, enabling efficient duplication, removal, or renaming of products without disrupting workflow.

Locking and Unlocking Products for Security

Secure your CNC operations by utilizing the locking/unlocking feature in DELEM DA-69S product management. This function prevents accidental modification or deletion of crucial products. Employ it by selecting the product and choosing ‘Lock’ or ‘Unlock’, ensuring only authorized changes are made.

Advanced Product Selection Techniques

Selecting Multiple Products Simultaneously

Selecting products efficiently is vital for streamlined CNC operations. DELEM DA-69S product management offers straightforward methods: single-click selection for individual items and control-click for selecting multiple products.

l To select a single product again tap Edit and choose Select single.

l To select multiple products tap Edit and choose Select multiple. Now multiple products can be selected. This multiple selection can be copied, moved, deleted, locked or unlocked.

This technique is particularly beneficial during batch processing or when making collective changes in settings.

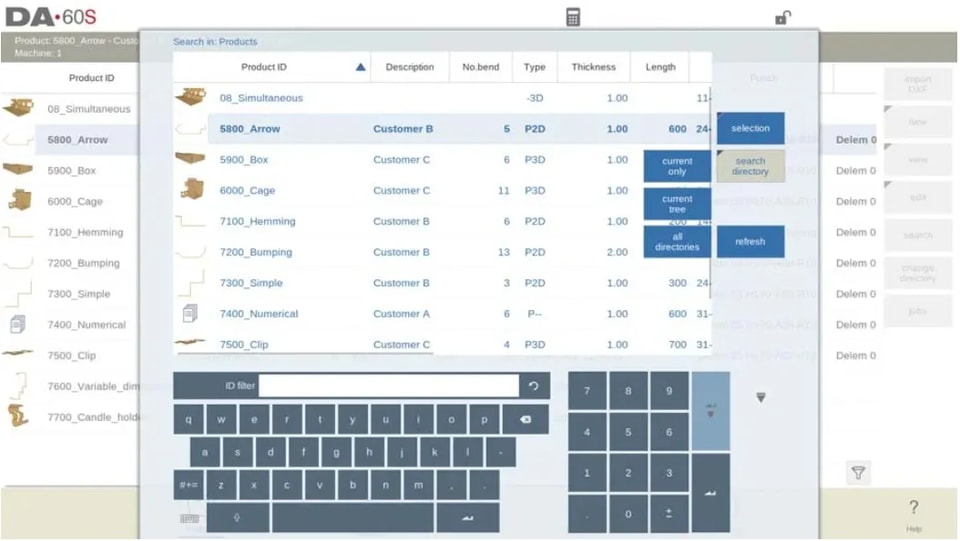

Utilizing the Search Function for Quick Access

The search function is a powerful tool in DELEM DA-69S product management for swiftly finding specific products. Here’s a step-by-step guide to help you utilize this feature effectively:

l Activating the Search Screen: Begin by tapping the ‘Search’ button. This action will bring up the search screen promptly, allowing you to start your query right away.

l Entering Filter Criteria: Type in your desired filter string, which can be divided by spaces for precision. The system will initiate a live search based on your input, streamlining the process of locating specific items.

l Selecting Search Directories: Choose your preferred search directory to refine your results. You have the flexibility to search across all directories, within the current tree, or limit it to the current directory. This ensures that you only explore relevant areas.

l Defining Search Parameters: Utilize the ‘Selection’ option to conduct searches by Product ID or Product Description.

l Using Partial Entries: You can enter complete names or numbers, or simply a part of them. If the partial entry matches multiple products, all relevant product names will be displayed.

Enter keywords related to the product name or type, and the library will filter relevant results. This saves time and aids in maintaining focus on production tasks.

How to Use Filters to Narrow Down Product Choices

Refine your product selection using the filter feature. DELEM DA-69S allows for filtration by type, date, or status. Here’s a step-by-step guide to using filters:

l Initiate the Filter: Tap the filter icon in the lower right corner to access the filter feature.

l Enter Filter Criteria: Use the keyboard to enter specific text to filter products.

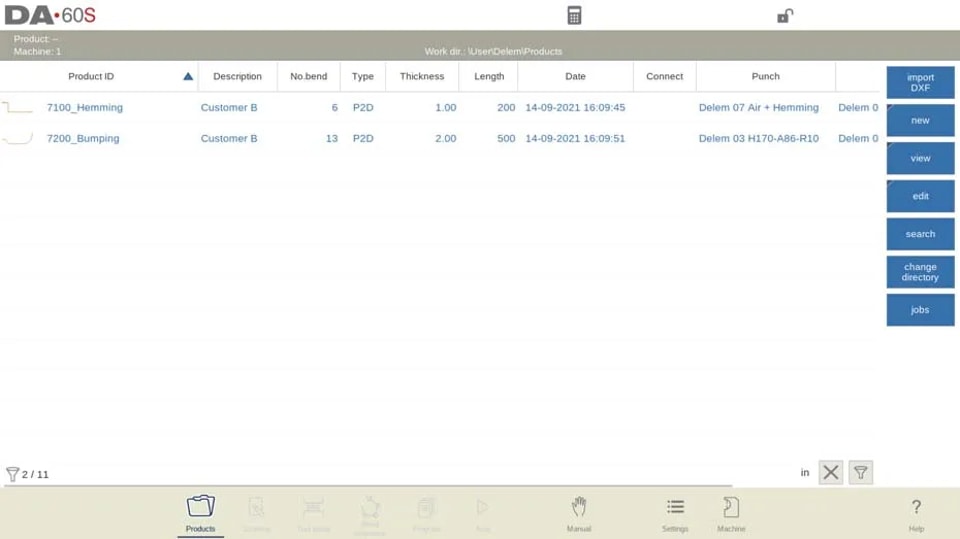

l Check Filter Status: Look for the filter icon on the lower left, which shows the number of filtered versus total items.

l Remove the Filter: Tap the cross icon next to the filter icon to view all products again.

Applying filters can dramatically reduce the time spent searching, helping operators quickly zero in on necessary products.

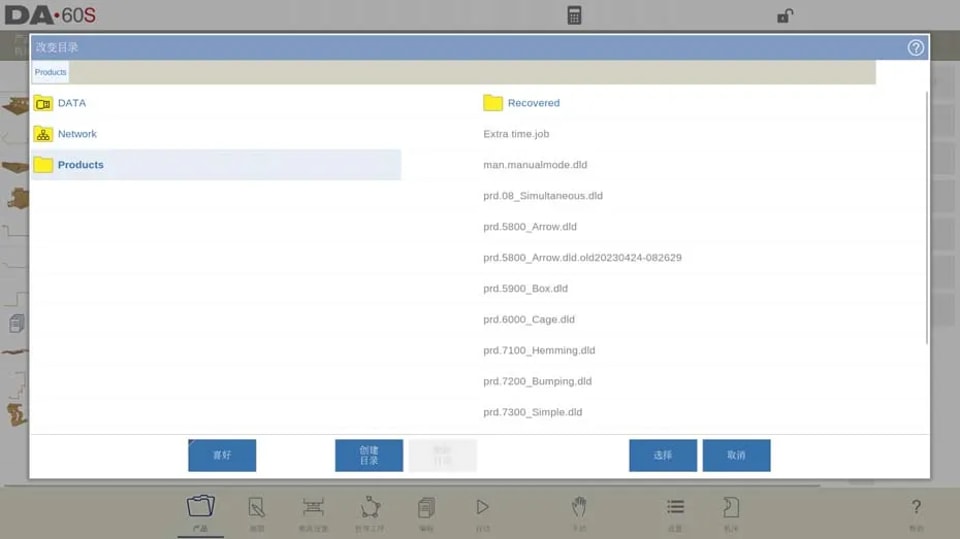

Changing Directories for Better Organization

An organized library is crucial for efficient DELEM DA-69S product management. Enhance your DELEM DA-69S product management by efficiently organizing directories:

l Change Directory: Tap ‘Change Directory’ to switch or add new directories, keeping products well-categorized.

l Remove Directory: Select and tap ‘Remove Directory’ to delete obsolete ones, confirming the action as needed.

l Select Directory: Use ‘Select’ to view products in the chosen directory. The active directory name is shown in the header.

l Make Subdirectory: Tap ‘Make Subdir.’ to create a subdirectory, using up to 24 alphanumeric characters. Avoid slashes (‘/’).

l Remove Subdirectory: Delete empty subdirectories after confirming. The default ‘PRODUCTS’ cannot be removed.

l Important Notes: Product copying between subdirectories is done in Drawing or Program mode. The system remembers the last active subdirectory and product selection for convenience.

Leveraging Network Product Selection for Collaboration

Collaborative settings benefit from DELEM DA-69S’s network product selection capabilities.

To enhance collaboration and optimize DELEM DA-69S product management, follow these streamlined steps for using network product selection:

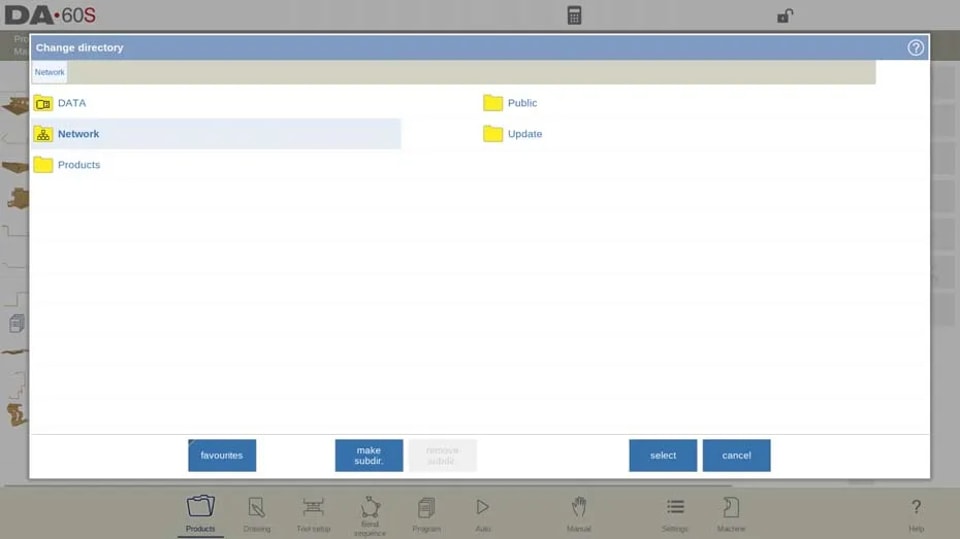

l Accessing Network Directories: After mounting a network directory, find it under ‘Network’ next to the ‘Product’ directory. The drive name indicates it’s ready for use.

l Navigating Directories: Use the directory browser to select, add, or remove directories and products. Tap ‘Select’ to view products in the active directory, which is shown in the screen header.

l Maintaining Active Selection: The control remembers your active subdirectory and product selection, maintaining workflow until you choose another.

l Handling Network Issues: For ‘read-only’ networks or interruptions, products save to a ‘Recovered’ subdirectory to prevent data loss.

l Refreshing Product Listings: Tap ‘Refresh’ in Products mode to update the product library, ensuring you have the latest network-stored data.

This feature enables sharing products across networks, fostering teamwork and seamless integration between different users and machines. Such collaboration optimizes operations and boosts productivity.

Shop floor control, Job List function

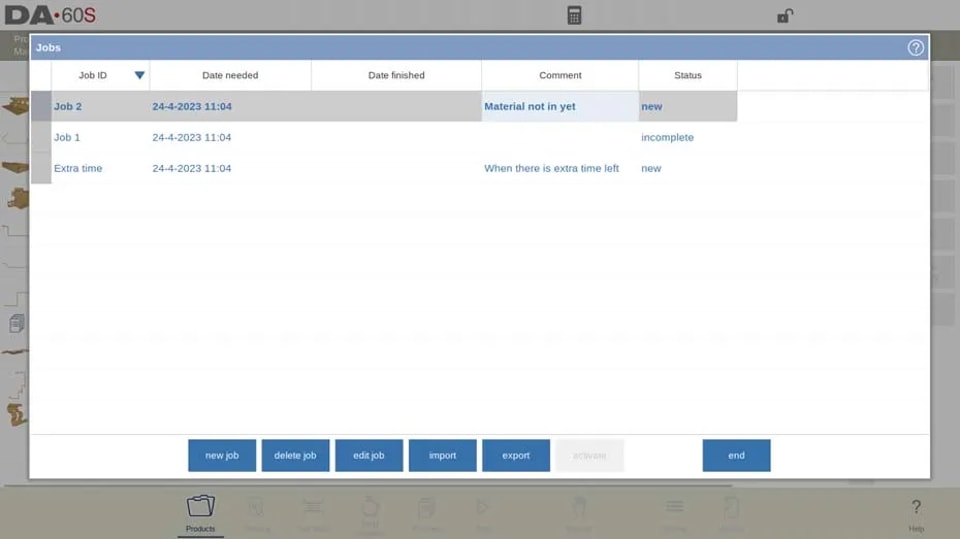

The DELEM DA-69S streamlines shop floor management with its Job List function, allowing operators to efficiently generate and send job orders to machines. By accessing the Jobs screen via the Jobs command button, users can view prepared jobs, each with a Job ID, dates for need and completion, and optional comments.

The Job List status indicators provide real-time updates on the progress of each job. Statuses include:

l New: No products have been produced yet.

l Incomplete: The desired number of products has not been fully produced.

l In progress: The job is actively loaded and undergoing production.

l Finished: All product batches have been successfully confirmed as completed.

The Edit Job key allows modifications, showing needed, produced, and trashed product counts to monitor progress. Starting production is simple: select a job, activate it for automatic mode, and press Start to begin the bending process, enhancing overall efficiency.

Conclusion

Mastering DELEM DA-69S product management involves understanding and effectively utilizing a range of key features. By efficiently navigating the product library, employing advanced selection techniques, and managing products with ease, operators can significantly enhance workflow and productivity. Key steps include starting new graphical and numerical programs, making effective use of copy, delete, and rename functions, and leveraging search and filter capabilities to streamline operations. Additionally, locking/unlocking and directory management help ensure organized and secure product handling.
