How to Troubleshoot Press Brake Oil Leakage

Oil leakage is a prevalent issue for press brake operators, usually identified by oil stains around the equipment. In most cases, it starts as a small leak that can be timely detected and repaired with proper inspection procedures. Based on practical experience in maintaining hydraulic press brakes in actual production settings, oil leakage is commonly triggered by worn seals, loose hydraulic connectors, or contaminated hydraulic oil. This article outlines practical troubleshooting techniques for diagnosing press brake oil leakage, elaborates on its main causes, and demonstrates how to pinpoint the exact leak location to prevent severe hydraulic system malfunctions.

Common Causes of Press Brake Oil Leakage

Before starting the troubleshooting process, it’s essential to identify the potential sources of oil leakage in a press brake’s hydraulic system. Given that the hydraulic system operates under high pressure, even a tiny defect can result in noticeable oil leakage.

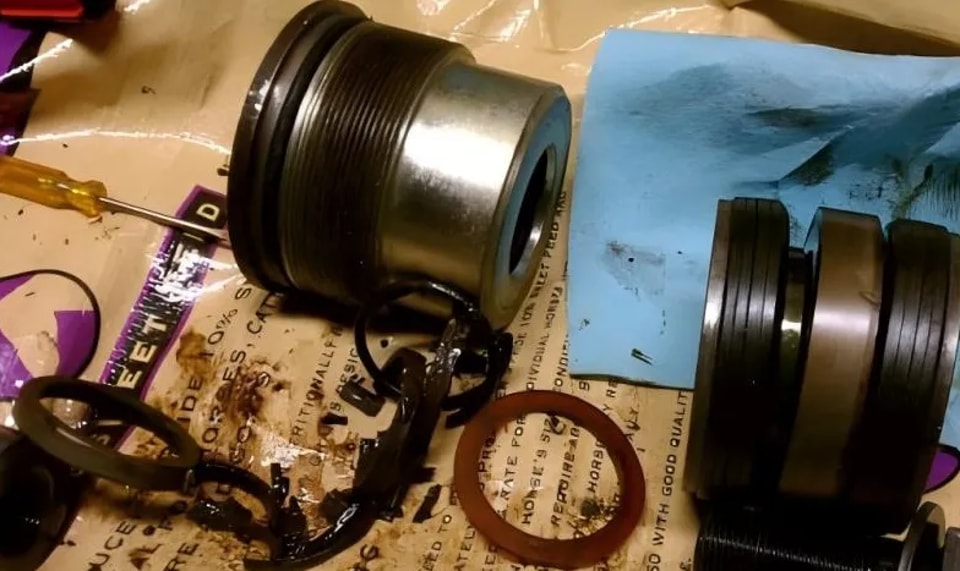

Worn Hydraulic Cylinder Seals

Worn cylinder seals are one of the top causes of press brake oil leakage. Seals endure constant friction and pressure cycles as the ram moves over an extended period, leading to gradual wear and tear.

Typical indicators of this issue include:

• Oil seepage around the cylinder rod

• Gradual loss of hydraulic pressure during the bending process

• Visible oil residue on the surface of the ram

When these symptoms are observed, it’s necessary to inspect the condition of the cylinder rod and determine if the seal needs to be replaced immediately.

Loose Hydraulic Pipe Fittings

Loose fittings in hydraulic pipelines are another frequent culprit. The continuous vibrations generated during machine operation can slowly loosen pipe connectors over time, creating gaps for oil to leak out.

This problem may lead to:

• Visible oil drops forming at pipe joints

• Slight and irregular fluctuations in hydraulic pressure

• Oil stains accumulating around the connector areas

Tightening the loose fittings and checking the condition of sealing rings can usually resolve this leakage issue rapidly and effectively.

Damaged Hydraulic JUGAO

Hydraulic JUGAO are prone to cracking or aging degradation due to long-term use, exposure to high temperatures, or repeated bending stress during machine operation. Leakage from damaged JUGAO may present as a fine oil spray or slow seepage, which can be easy to overlook initially.

In regular maintenance work, key inspection points for hydraulic JUGAO include:

• Visible surface cracks or fraying

• Bulging or deformed sections on the JUGAO

• Moist oil residue around the JUGAO surface

Timely replacement of damaged hydraulic JUGAO is critical to prevent sudden and unexpected hydraulic system failures.

Step-by-Step Guide to Troubleshoot Press Brake Oil Leakage

To accurately locate the source of oil leakage, a systematic and step-by-step troubleshooting process is essential. The following is a standardized procedure for diagnosing press brake oil leakage:

Step 1: Clean the Hydraulic Area

The first and fundamental step is to thoroughly clean all hydraulic components. Accumulated dust, dirt, and old oil residue can cover the actual leak source, making it impossible to identify the problem accurately.

Use a clean, lint-free cloth to wipe down the following key components:

• Hydraulic pumps and their connecting parts

• All oil valves and valve blocks

• Hydraulic pipe joints and connectors

• The surface of hydraulic cylinders and rams

A clean hydraulic area makes it much easier to spot fresh oil traces and pinpoint the exact leak location.

Step 2: Run the Machine and Observe Leak Points

After completing the cleaning, operate the press brake and perform several full bending cycles under normal working conditions.

During machine operation, closely observe the following areas for any signs of oil leakage:

• The movement of the cylinder rod and the surrounding seal area

• All hydraulic pipe connections and fitting joints

• Valve blocks, pressure regulators, and their connection ports

If oil leakage exists, fresh oil will immediately appear and accumulate around the faulty component, making the leak point easy to identify.

Step 3: Check Hydraulic Pressure Stability

Unstable hydraulic pressure is often a sign of internal leakage within hydraulic valves or cylinders, which is more hidden and not easy to detect through visual inspection alone.

Focus on monitoring the following aspects during this step:

• Real-time readings on the hydraulic pressure gauge for unexpected drops or fluctuations

• The smoothness of the ram’s up and down movement during bending

• Abnormal changes in hydraulic oil temperature during operation

A sudden and unexplained drop in hydraulic pressure typically indicates wear of internal seals in valves or cylinders, which is the root cause of internal leakage.

Step 4: Inspect Hydraulic Oil Quality

Contaminated hydraulic oil can accelerate the wear of seals and valves, leading to various leakage problems. Therefore, inspecting the quality of hydraulic oil is a crucial step in the troubleshooting process.

Key items to check for hydraulic oil include:

• Presence of metal particles or other solid impurities (caused by component wear)

• Abnormal dark coloration or turbidity (indicating oil oxidation or contamination)

• Water contamination (which can cause corrosion and seal damage)

Replacing contaminated hydraulic oil and changing the hydraulic oil filter in a timely manner can effectively prevent further leakage issues caused by oil quality problems.

Preventive Measures to Avoid Press Brake Oil Leakage

Once the existing oil leakage problem is fixed, implementing effective preventive measures is essential to avoid recurrence and ensure the long-term stable operation of the press brake.

Routine Hydraulic System Inspection

Regular inspection of the hydraulic system is the most basic and effective preventive measure. A quick weekly visual inspection can detect early signs of leakage before the problem worsens and leads to more serious damage.

Key items for routine inspections include:

• The wear condition of hydraulic cylinder seals and rod surfaces

• The tightness of all hydraulic pipe joints and fittings

• The integrity of hydraulic JUGAO surfaces (no cracks, bulges, or fraying)

• The oil level in the hydraulic tank and the cleanliness of the oil

Proper Hydraulic Oil Maintenance

Hydraulic oil is the lifeblood of the press brake’s hydraulic system, and poor oil maintenance is a major factor accelerating seal wear and valve damage. Adhering to standard oil maintenance practices is critical to reducing leakage risks.

Recommended hydraulic oil maintenance practices:

• Replace hydraulic oil strictly according to the machine’s specified operating hours

• Change hydraulic oil filters at regular intervals as per the maintenance manual

• Take anti-contamination measures during oil refilling (e.g., using clean funnels, sealing the oil tank)

These simple yet effective steps can significantly extend the service life of hydraulic components and reduce the probability of oil leakage.

Maintain Stable Working Temperature

Excessively high hydraulic oil temperature can rapidly degrade the material of seals and hydraulic JUGAO, leading to hardening, cracking, and subsequent leakage. Maintaining a stable working temperature for the hydraulic system is therefore a key preventive measure.

To ensure temperature stability, the following steps should be taken:

• Regularly check and ensure the cooling system of the hydraulic unit is functioning properly

• Keep the ventilation area around the hydraulic unit clear and unobstructed

• Monitor oil temperature at all times to ensure it stays within the manufacturer’s recommended range

A stable working temperature can effectively extend the lifespan of all hydraulic components and minimize the risk of oil leakage caused by high-temperature degradation.

Press Brake Oil Leakage Troubleshooting Checklist

To simplify and standardize the troubleshooting process, the following quick checklist can be followed to efficiently and safely identify the exact source of oil leakage:

1. Thoroughly clean all hydraulic components and remove all old oil residue and dirt

2. Operate the machine under normal conditions and locate fresh oil leakage points

3. Inspect the condition of hydraulic cylinder seals and the surface of cylinder rods

4. Check all hydraulic pipe fittings and tighten any loose connections

5. Examine hydraulic JUGAO for cracks, bulges, fraying, or other damage

6. Verify the quality of hydraulic oil and replace it with new oil if contamination is found

FAQs

What is the most common cause of Press Brake Oil Leakage?

Based on practical on-site maintenance experience, worn hydraulic cylinder seals and loose hydraulic pipe fittings are the two most frequent causes of oil leakage in press brake hydraulic systems.

Can Press Brake Oil Leakage affect bending accuracy?

Yes, it can. Oil leakage leads to an unavoidable loss of hydraulic pressure, which causes unstable movement of the press brake’s ram. This instability results in inconsistent bending angles, reduced bending precision, and an overall decline in the machine’s working performance.

How often should I inspect my press brake hydraulic system?

It is recommended to conduct a quick visual inspection of the hydraulic system on a weekly basis. For more detailed hydraulic maintenance (e.g., checking internal seal conditions, testing pressure stability), the frequency can be determined based on the machine’s actual usage—usually every 3 to 6 months for heavy-use equipment.

Is it safe to operate a press brake with minor oil leakage?

Operating a press brake with even minor oil leakage is not recommended. Under the high pressure of the hydraulic system, small leaks can quickly develop into large ones. Additionally, leaked oil can contaminate other machine components, cause additional wear, and even lead to sudden hydraulic system failure during operation, posing safety risks to operators and equipment.

Conclusion

Troubleshooting press brake oil leakage requires careful and detailed inspection combined with a systematic, step-by-step approach. By following the steps of cleaning the hydraulic system, observing leak points during machine operation, checking hydraulic pressure stability, and inspecting hydraulic oil quality, the exact cause of oil leakage can be quickly and accurately identified.

Regular hydraulic system maintenance, standardized hydraulic oil management, and routine inspections are the most effective ways to prevent oil leakage and ensure the reliable and stable operation of press brakes. If persistent or complex hydraulic leakage issues are encountered that cannot be resolved through on-site troubleshooting, professional technical support from the after-sales team is recommended—our technical experts are always available to provide professional maintenance guidance and on-site support for your press brake system.
