How to quickly solve the problem of tool changing on a pipe bending machine?

In pipe bending, "tool changing" typically refers to replacing mold components such as bending dies, clamping dies, anti-wrinkle dies, and mandrels, rather than traditional cutting tools. Problems such as angular deviations, wrinkling, and scratches that occur after mold replacement are among the most common issues encountered in on-site operations. Mastering systematic and rapid solutions can significantly shorten debugging time and ensure production continuity.

Three-step method for root cause investigation

Step 1: Identify the Problem Type

Abnormalities after tool change typically fall into three categories:

**Angle Inaccuracy:** The actual bending angle deviates significantly from the set value, or the springback is abnormal.

**Surface Defects:** Wrinkling on the inner side of the bend, tearing on the outer side, surface scratches.

**Geometric Deviation:** Pipe twisting, elliptical cross-section, inaccurate feed length.

Step 2: Troubleshoot the Core Causes Item by Item

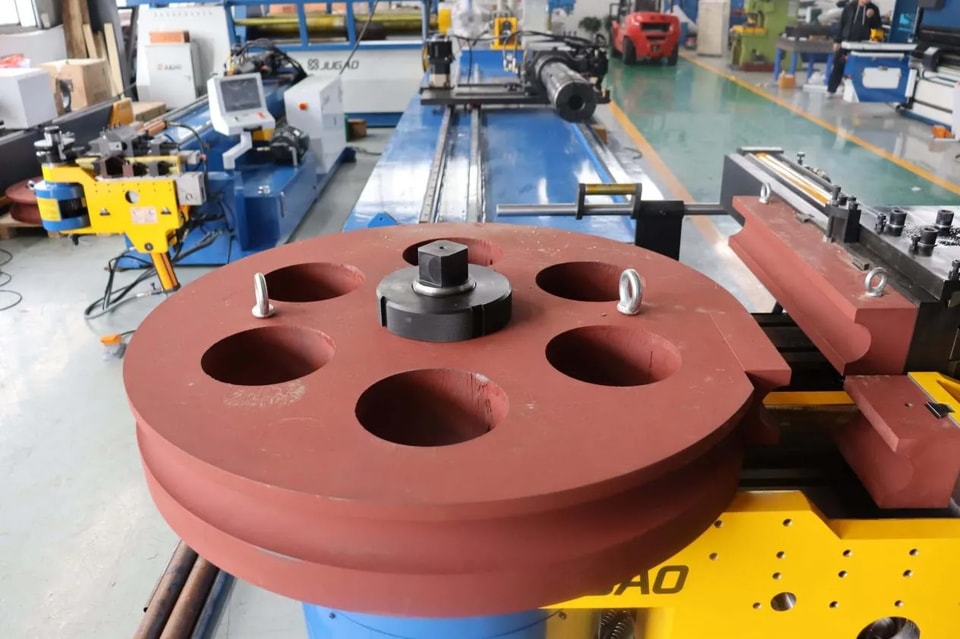

1. Incompatible Die or Incorrect Installation

The most direct source of problems after tool change is a mismatch between the die and the pipe.

**Pipe Outer Diameter Not Fitting the Die Groove:** The die specifications must perfectly match the pipe's outer diameter. Using an oversized die will cause wrinkling, while an undersized die will cause flattening or even jamming.

**Incorrect Bending Radius (R Angle) Selection:** The die's bending radius determines the pipe's bending angle and must be strictly selected according to the drawing requirements.

**Inadequate Installation or Loosening:** If the clamping die or anti-wrinkle die is not installed correctly, or if the fixing bolts are loose, the die will shift during bending.

Quick Solution:

Before changing the die, verify that the die specifications match the pipe's outer diameter, wall thickness, and bending radius.

During installation, ensure the die positioning steps are aligned, and tighten the bolts diagonally in stages to the specified torque.

Run the die in manual mode at low speed under no-load to check if each die moves smoothly and without interference.

2. Die Alignment and Mandrel Position Incorrect

Die alignment is crucial for ensuring pipe bending accuracy. Even minor deviations can cause pipe twisting or uneven bending.

Misalignment of Bending Die and Mandrel: The mandrel, anti-wrinkle die, and bending die are not on the same centerline.

Inappropriate Mandrel Extension: Excessive extension will scratch the inner wall of the tube; insufficient extension will not effectively prevent wrinkling.

Quick Solutions:

Use a ruler or laser alignment tool to check if the bending die and mandrel are coaxial.

Adjust the mandrel extension position: Generally, the center of the first ball joint of the ball-end mandrel should be 0.5-1.5mm before the cutting line of the bending die (depending on wall thickness).

Check if the leading edge of the anti-wrinkle die is aligned with the cutting line of the bending die; the gap should be just enough to fit the tube without jamming.

3. Abnormal Clamping Force and Lubrication:

Different materials have significantly different clamping force requirements. Stainless steel requires much higher clamping force than aluminum. If the previous pressure parameters are used after changing the tool, it is very easy to cause the tube to slip or indent.

Insufficient clamping force: The pipe slips during bending, causing angle loss of control.

Excessive clamping force: Indentations appear on the pipe surface.

Insufficient lubrication: Dry friction between the pipe and the die causes scratches and noise.

Quick solutions:

Start with lower pressure and gradually increase the clamping force, ensuring the pipe does not slip.

Apply sufficient special pipe bending oil to the bending die grooves, mandrel, and anti-wrinkle die.

Check the surface of the pipe blank for cleanliness, removing burrs and oil stains.

4. Control system parameters not updated

After changing the die on some CNC pipe bending machines, the previously stored parameters such as mandrel retraction, bending speed, and pressure are no longer applicable. If the correct parameters are not re-entered, the equipment may continue to use the old configuration, leading to bending deviations.

Quick Solution:

According to the new mold specifications, re-enter parameters such as mandrel retraction position, bending speed, and pressure.

Save the successful parameters as a recipe for one-click recall during the next tool change, avoiding repeated settings.

5. Automatic Tool Changer (ATC) Failure

For automatic pipe bending machines equipped with ATC, post-tool change failures are often related to the tool changing device itself. This mainly manifests as errors in tool magazine movement and positioning, unstable robotic arm gripping, etc., and in severe cases, can cause the tool changing action to jam.

Quick Solution:

Check if the air pressure reaches the standard range of 6 kg ± 1 kg.

Check the robotic arm's gripping status and confirm the tool holder is locked in place.

Check if the tool change origin position is accurate; recalibrate if necessary.

Step 3: Trial Bending Verification and Fine-tuning

Take a section of pipe of the same specifications as the final product for trial bending.

Measure the actual angle using an angle meter and compare it with the set value.

Check the surface of the bent pipe for wrinkles, scratches, and cracks.

Fine-tune the anti-wrinkle die gap, mandrel position, or over-bending compensation value based on the trial bending results.

Repeat the trial bending until the quality is qualified before mass production.

Preventive advice

Establish a tool change checklist: including specifications verification, alignment confirmation, lubrication status, parameter settings, etc., and verify each item after each tool change.

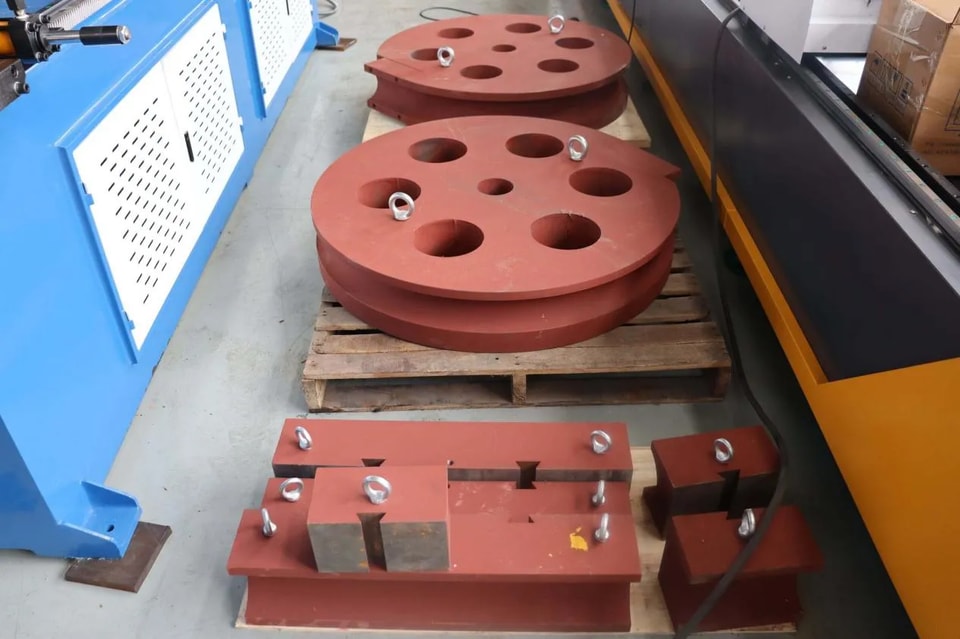

Standardize mold storage: Clean and apply anti-rust oil to molds after use, and store them separately to prevent impact and corrosion.

Record successful parameters: Archive the bending parameters corresponding to each material, pipe diameter, and wall thickness for direct retrieval during the next tool change.

The key to quickly resolving tool change issues lies in combining systematic troubleshooting with standardized procedures. From mold compatibility, installation alignment, parameter settings to trial bending verification, every step has a set steps to follow, minimizing debugging time.
