Programming Constants

Programming constants are integral to the ESTUN E310P, providing precision and consistency in operations. These constants define critical parameters that enable the controller to function with high accuracy. Users can set specific constants related to speed, position, and pressure to tailor the system to their unique application needs.

Clickto switch to the “Programming Constants” page.

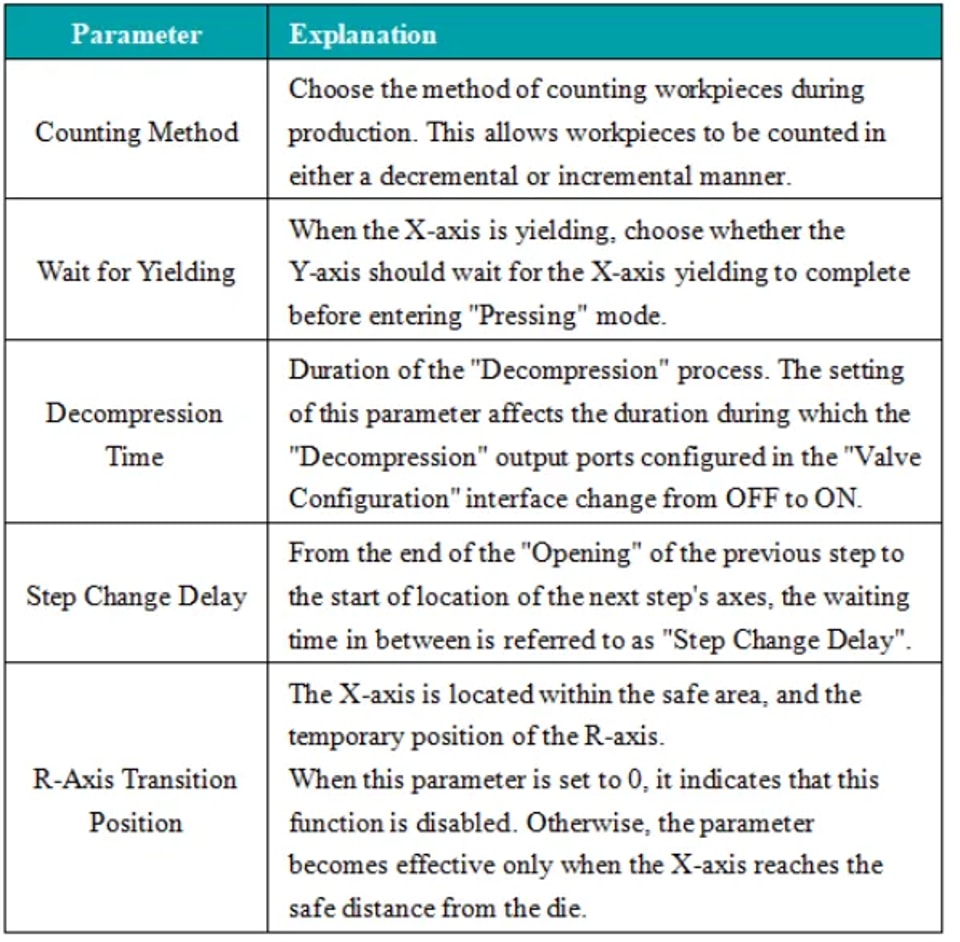

By fine-tuning these constants, you can ensure that the machinery operates at optimal efficiency, reducing wear and prolonging the equipment’s lifespan.

Program Management

Program Management on the ESTUN E310P is designed for flexibility and ease of use. The controller allows for the creation, editing, and storage of multiple programs, facilitating quick transitions between different tasks.

Creating a New Program

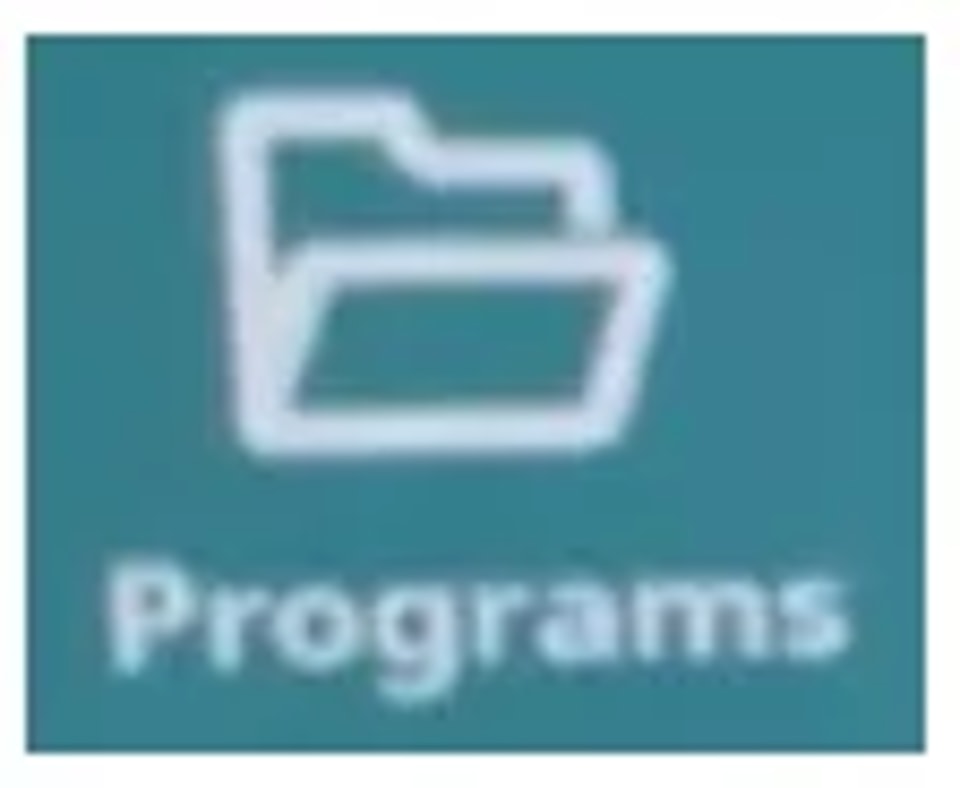

l Click on “Program Management” to access the “Program” page.

l Click “Create” and enter the program number on the new program creation page. Click “Done” to automatically load the new program. The currently active program will be the newly created one. Subsequently, edit the corresponding parameters in the multi-step program. In the program management section, you can view the basic parameters of the newly created program and its creation time.

Note: When creating a new program, the program is automatically loaded with ESTUN E310P Programming.

Loading a Program

To load a program in the ESTUN E310P Programming system, click on the row containing the program you want to load, and then click “Load”. This action calls the loaded program in the multi-step program.

Deleting a Program

To delete a program within the ESTUN E310P Programming setup, click on the row containing the program you want to delete, and then click “Delete”. Afterward, choose “OK” in the pop-up dialog asking, “Do you want to delete this program?”.

Note: You cannot delete a currently executing multi-step program.

By following these steps in the ESTUN E310P Programming functionality, you can manage your programs efficiently and effectively, ensuring seamless operation and optimal productivity.

Mold Setting

Mold Setting is a critical feature of the ESTUN E310P, enabling precise control over the molding operations.

Here is a brief overview of the setup steps:

l Click and then select “Mold Set”. There are a total of 30 sets of dies available.

l Click on the row corresponding to the desired mold “ID” that you wish to set.

l Click “Edit” to input the technical parameters of the mold using the virtual keyboard that appears.

l Click “Done” to confirm the input, and then click “Save Changes” to save the parameters.

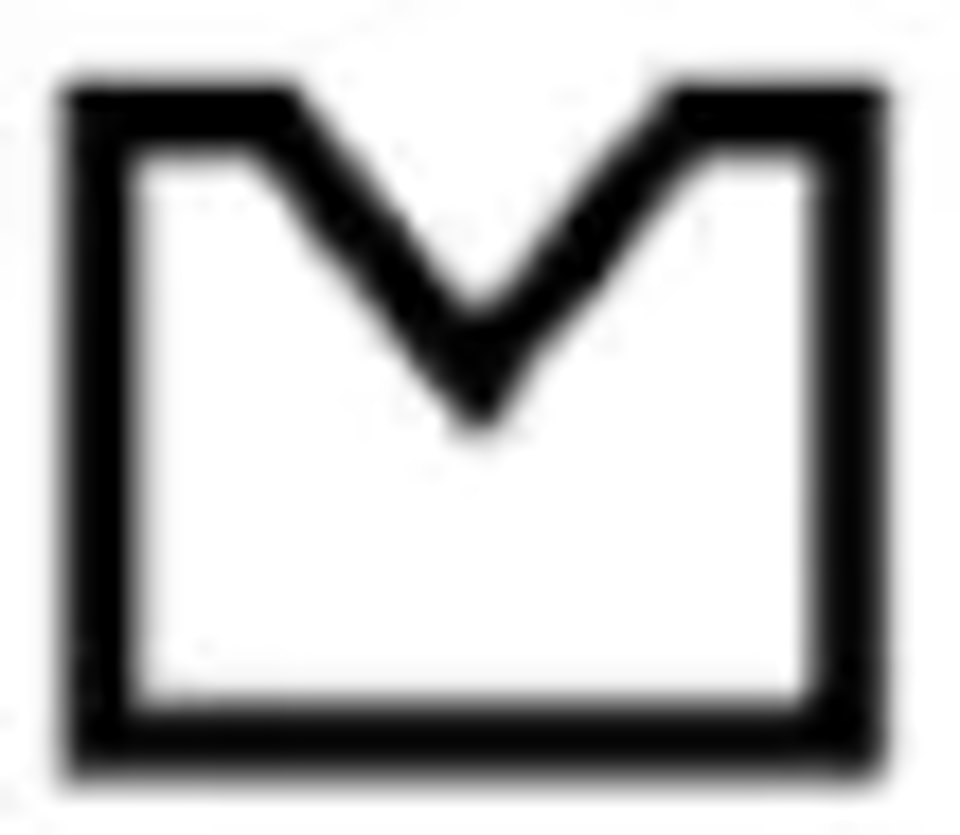

Refer to the diagram below for an illustration of the mold’s technical parameters:

l H: The height of the mold. This height is used to calculate the depth of the bend.

l V: The width of the die’s V notch. The V width is the distance between the two intersecting lines of contact.

l α: The angle of the die.

l R: The radius of each side of the V notch.

l S: Safety distance. This parameter becomes effective after the R axis is mounted to prevent interference between the stop finger and the die. The calculation formula is: “Safety Distance = FS + V/2”. Where: FS = The flat portion behind the V notch; V = V opening width.

This function allows operators to input specific parameters that dictate the mold shape and size, enhancing the quality and consistency of the final product. The ESTUN E310P provides intuitive interfaces for mold setting, ensuring that even complex mold configurations can be managed with ease. This capability is particularly beneficial in industries where precision is paramount.

Single-Step Operation

The Single-Step Operation mode provides operators with the ability to execute individual steps in a process with meticulous control. This mode is ideal for testing and prototyping, as it allows for the observation and modification of each step before proceeding.

Overview of the Procedure:

l Access the single-step page or clickto switch to the single-step page.

l Click on the parameter you want to set.

l Input the desired value in the popped-up virtual keyboard.

l Click the “Done” key to confirm the input.

l Repeat steps 2 to 4 for additional parameter settings.

l After configuring all desired parameters, click the “Start/Stop” button to initiate device operation.

Parameter Specification

Input the material number for the workpiece. 1: Steel; 2: Aluminum; 3: Zinc; 4: Stainless Steel; 5: New Material 1; 6: New Material 2.

When programming in angle mode, input the ID of the die to be used. When programming in position mode, enter 0.

Input the thickness of the workpiece.

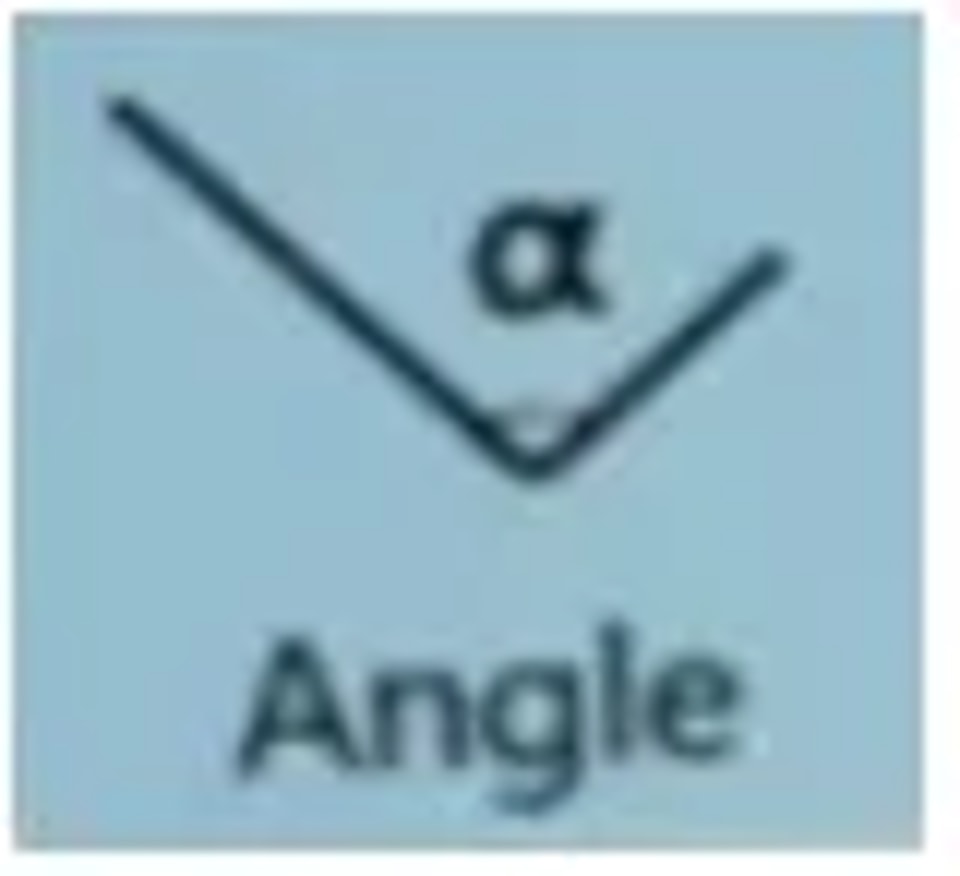

Sets the desired bending angle for current step.

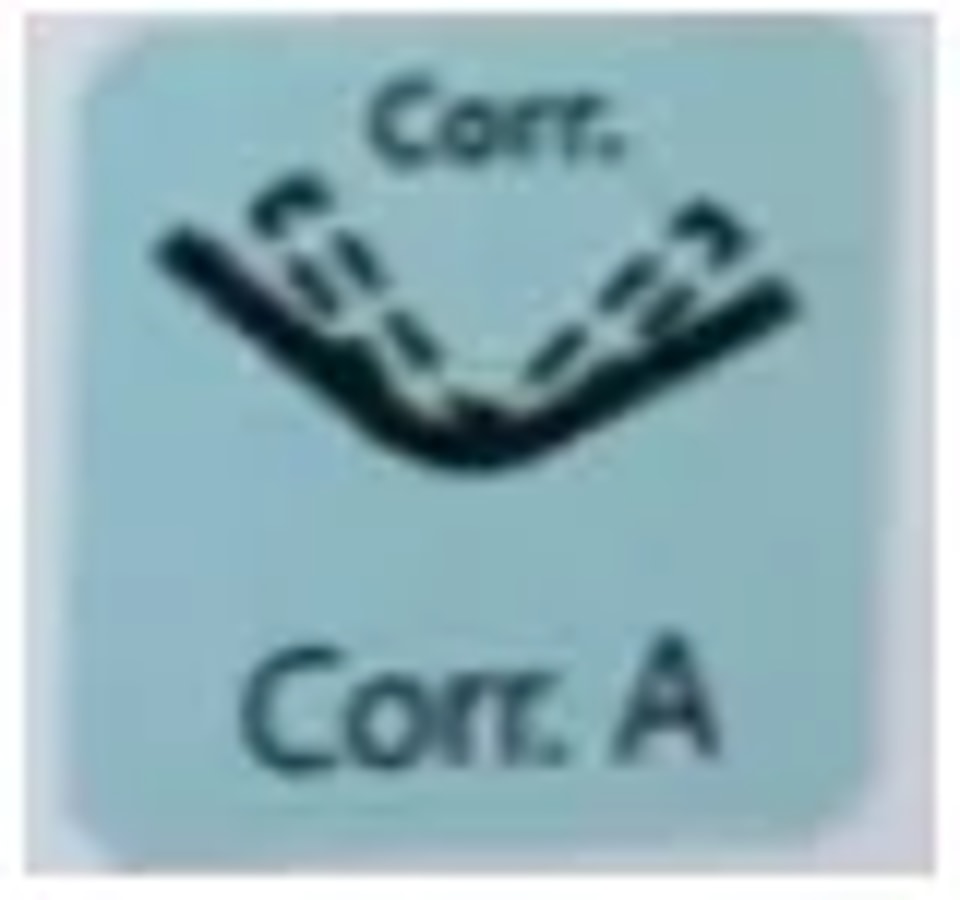

Input the angle correction for the current bending step; only effective for this specific step.

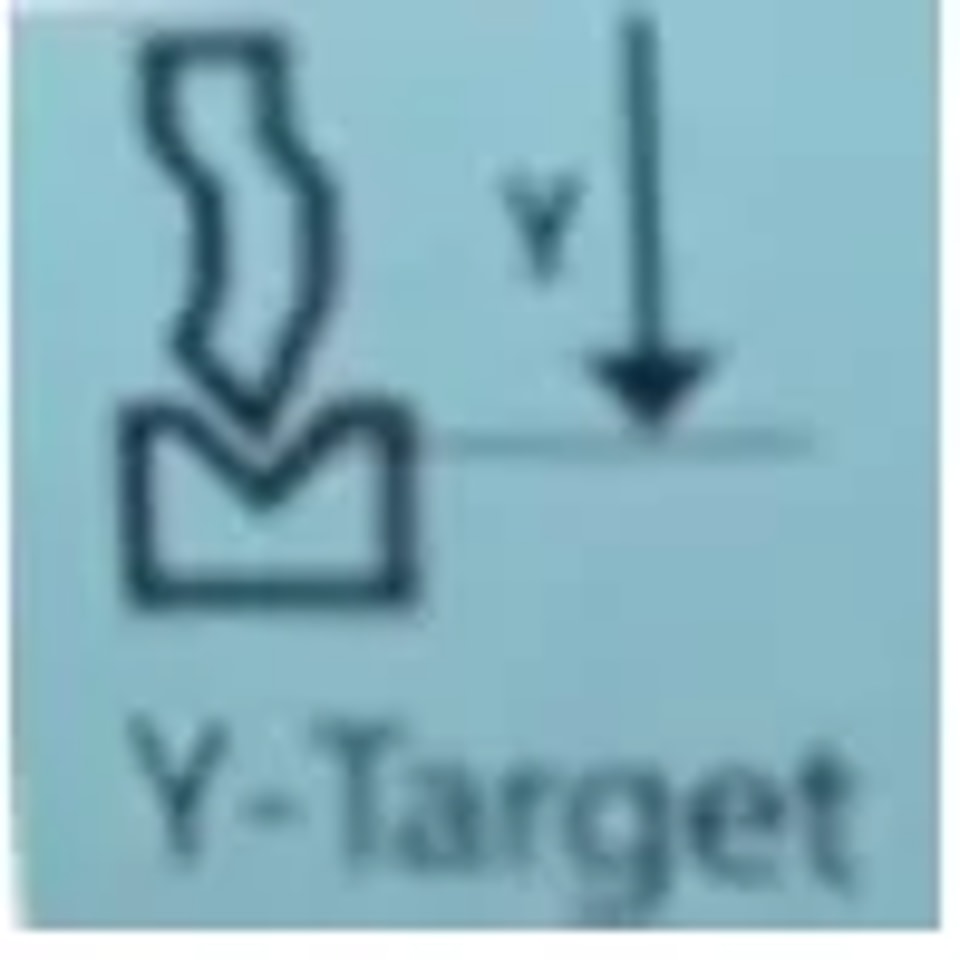

The target position value for the Y-axis. When programming in angle mode, this value is automatically calculated, but users can modify it.

The target position value for the X-axis.

The yielding distance of the X-axis during the bending process.

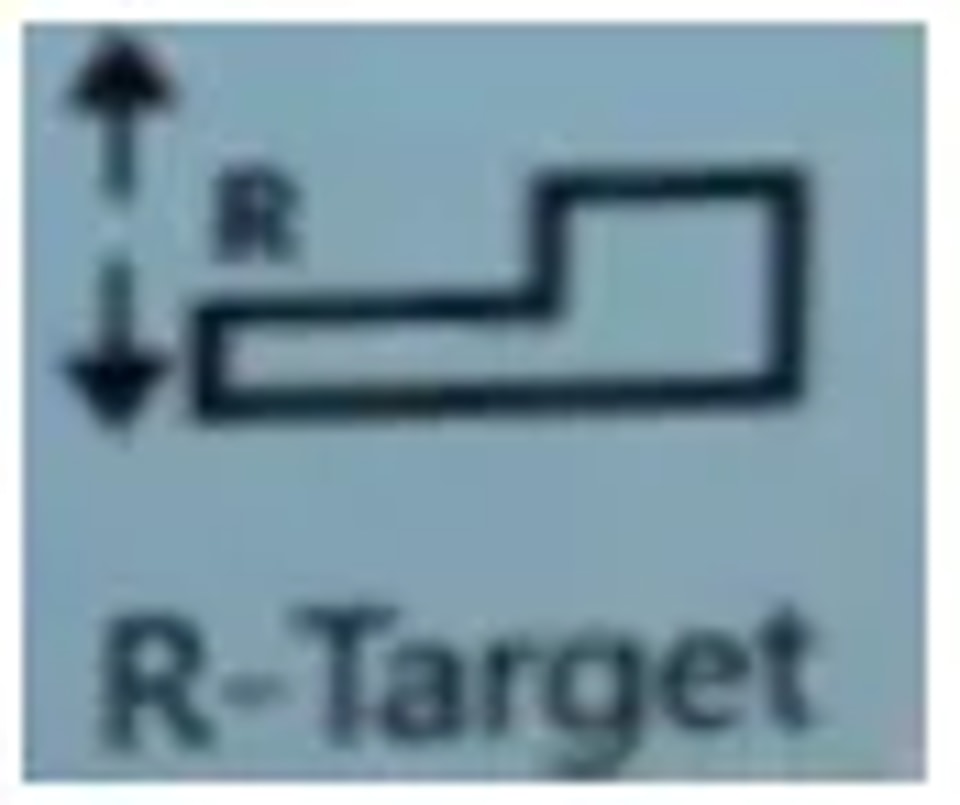

The target position value for the R-axis.

Compensation value for disturbances.

By engaging in Single-Step Operation, users can identify potential issues early in the process and make necessary adjustments, thereby enhancing the overall reliability and quality of production.

Multi-Step Operation

Multi-Step Operation on the ESTUN E310P allows for the automation of a sequence of operations, improving efficiency in production environments where multiple steps are required.

Overview of the Procedure

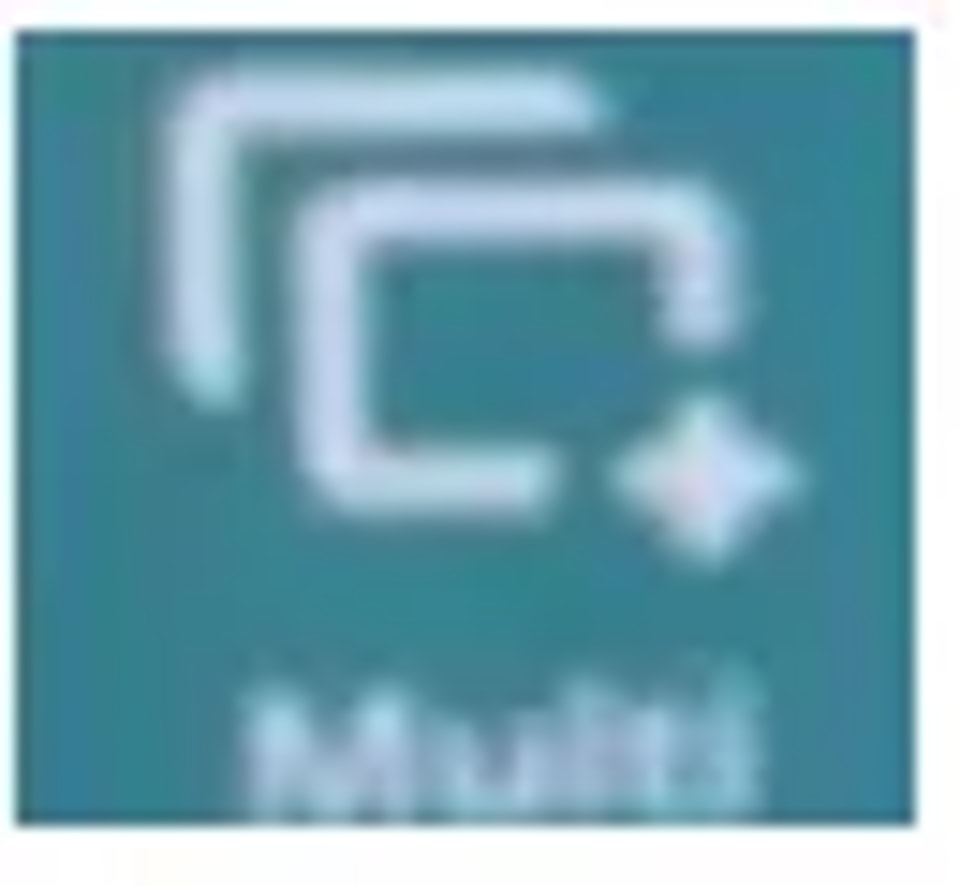

l Click on the multi-step program iconto switch to the multi-step program page.

l Click on the parameter you want to set.

l Click “Done” to confirm the input.

l Repeat steps 2 to 4 for additional parameter settings.

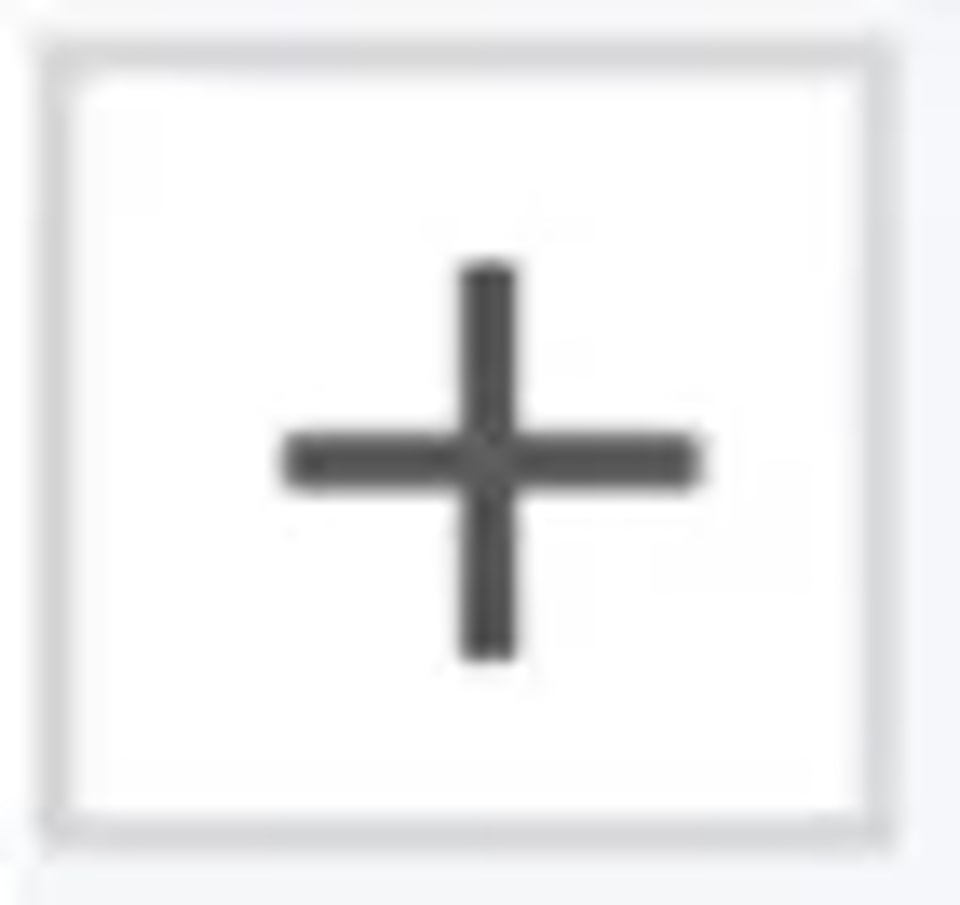

Clickto add a new step, which copies the content of the previous step.

After all desired parameters are set, click the “Start/Stop” button to initiate device operation.

Quick Programming

In addition to regular programming, quick programming is also available. Click “Quick” at the top of the multi-step program page to facilitate multi-step programming. After programming is complete, click “Run” to execute.

This mode automates transitions between operations, thereby reducing manual intervention and potential for errors. Operators can program complex sequences that the ESTUN E310P will execute with precision, ensuring that manufacturing processes are both streamlined and robust.
