Dealing with inconsistent bending angles in sheet metal work means grappling with the vexing issue of press brake springback—a problem that plagues many operators who end up adjusting angles over and over, without a clear grasp of why the metal reverts to its original shape after being bent. Springback is an inherent physical characteristic of metal when bent, but excessive springback is far from an unsolvable problem. This guide will walk you through practical, shop-tested strategies to minimize JUGAO press brake springback, enhance bending precision, and achieve consistent, reliable results in day-to-day production.

What Leads to Severe Press Brake Springback?

Before addressing press brake springback, it’s crucial to get to the root of what causes it to become excessive in sheet metal bending operations.

Springback happens because metal undergoes elastic recovery once the bending force is removed. The higher the material’s strength and the larger the bend radius, the more pronounced the springback effect will be.

The main contributing factors are:

• Materials with high tensile strength (e.g., stainless steel and high-strength steel)

• Overly wide V-die openings

• Inadequate bending force applied

• Incorrect selection of punch radius

• Flawed angle programming in CNC press brake systems

By identifying the primary factor behind springback in a specific machining task, you can implement targeted solutions, rather than making random angle adjustments that yield little results.

Setting the Overbending Angle on CNC Press Brakes

Controlled overbending is one of the most straightforward and effective ways to minimize press brake springback.

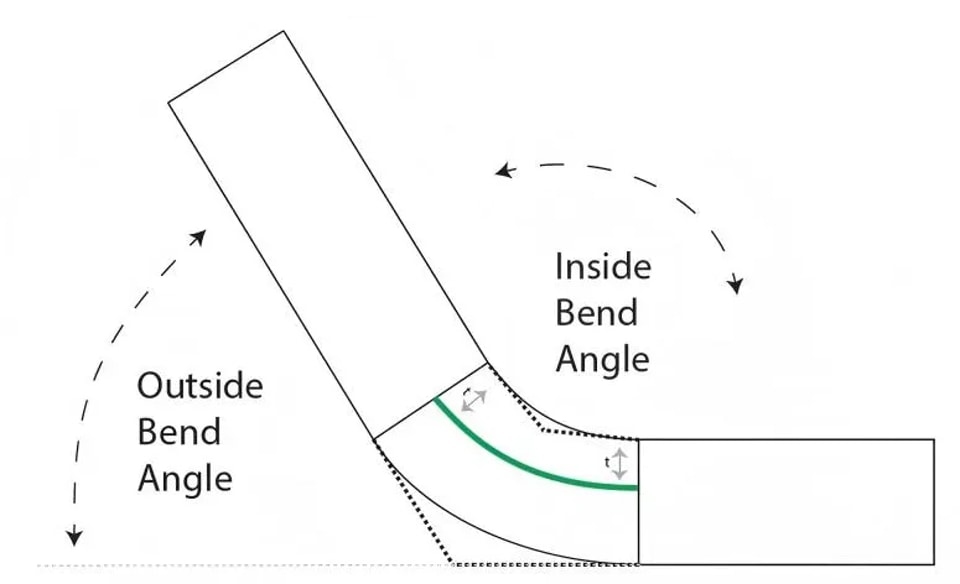

Step 1: Figure Out the Anticipated Springback Value

The formula for calculating springback value is: Δθ=θi(【E−kσyE)Ri+KntRi+Knt−1】

Start by conducting a test bend using the exact material and thickness required for the job. After measuring the actual bending angle with a digital angle gauge, compare it to the pre-programmed angle—the difference between the two is the springback value you need to account for.

For instance, if you program a 90° bend but the actual measured angle is 92°, you’ll need to apply an overbending compensation of approximately 2°.

Step 2: Add Angle Compensation in the Control System

Modern CNC control systems like Delem let you adjust bending angles directly through the control interface. Instead of making manual adjustments every time you run a job, input the calculated compensation value into the program—this ensures consistent results, especially for batch production runs where repeatability is key.

This method shines in mass production scenarios where maintaining uniform bending angles is non-negotiable.

Refining Tooling Choices to Cut Down on Springback

The right tooling selection is a pivotal factor in minimizing press brake springback, and poor tooling choices are a common culprit behind excessive springback.

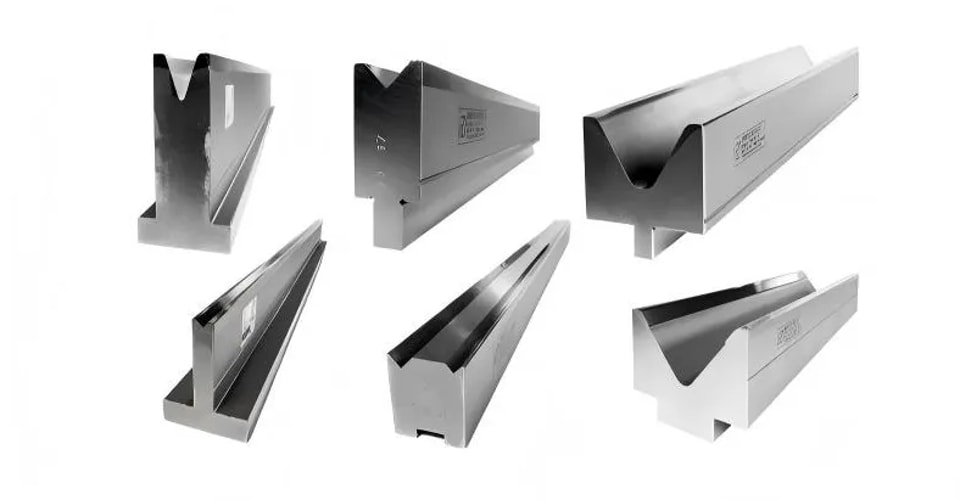

Picking the Right V-Die Opening

A frequent mistake in sheet metal bending is using an overly wide V-die opening. A larger V opening leads to a bigger bend radius, which in turn amplifies springback.

Here’s a tried-and-true rule for selecting V-die openings:

• For mild steel, a V opening that’s 6–8 times the material’s thickness is ideal.

• For stainless steel, narrow the V opening slightly to better control the material’s elastic recovery and reduce springback.

Opting for a Smaller Punch Radius

A smaller punch tip radius increases the plastic deformation of the metal during bending, which reduces the portion of elastic recovery that causes springback. That said, it’s important to strike a balance: a punch radius that’s too small raises the risk of material cracking, especially when working with high-strength steels.

Boosting Bending Force and Mastering Bottoming Methods

Increasing the penetration depth of the punch into the die is another highly effective strategy for curbing excessive press brake springback.

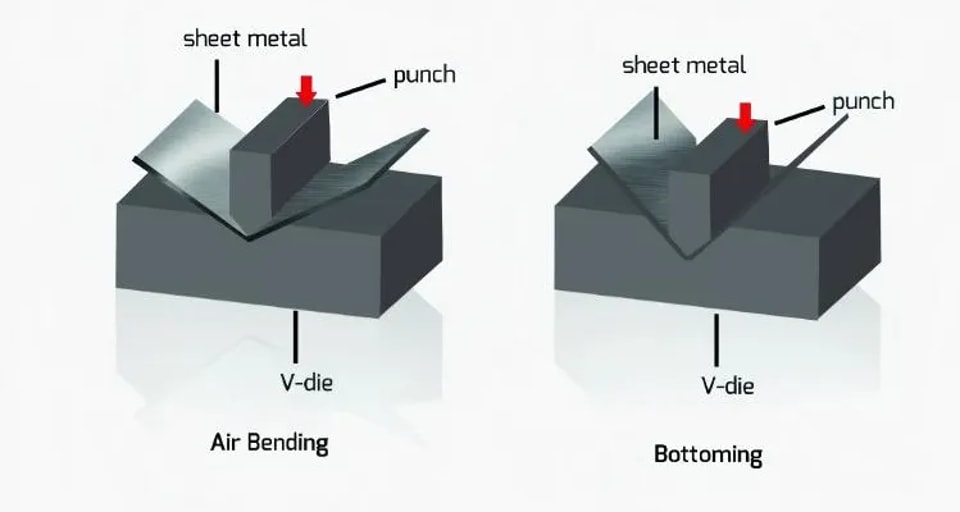

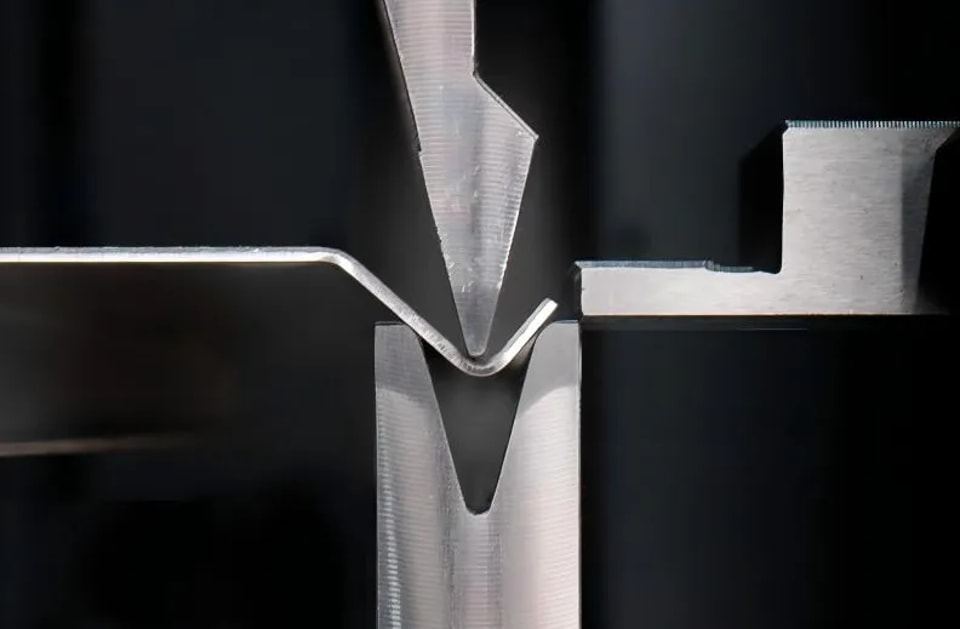

Air Bending Versus Bottoming

Air bending is prone to producing more springback because the material isn’t fully forced into the die cavity during the bending process.

When the project specifications allow, switching to either of these methods can drastically reduce springback:

• Bottoming

• Coining

Coining is particularly effective at minimizing springback because it forces the material to undergo plastic deformation beyond its elastic limit. However, this method demands higher tonnage and requires the press brake to have sufficient load capacity.

Before using bottoming or coining, always calculate the required tonnage using a bending force chart to avoid overloading the machine and causing damage.

Material-Related Tips for Reducing Springback in Sheet Metal Bending

Different sheet metal materials exhibit distinct behaviors during the bending process, and each has a typical springback range to keep in mind:

• 304 stainless steel: 2 to 3 degrees

• Mild aluminum: 1.5 to 2 degrees

• Cold-rolled steel: 0.75 to 1.0 degree

• Hot-rolled steel: 0.5 to 1.0 degree

• Copper and brass: 0.00 to 0.5 degree

High-Strength Steel and Stainless Steel Considerations

These materials have a higher yield strength than mild steel, which directly translates to greater press brake springback.

When bending high-strength steel or stainless steel, follow these steps to minimize springback:

• Narrow the V-die opening

• Increase the overbending compensation value

• Ensure the backgauge is positioned with absolute precision

• Conduct multiple test bends before starting mass production

The Impact of Grain and Rolling Directions

It’s also essential to check the material’s grain direction when planning a bend. Bending the material perpendicular to its rolling direction not only reduces the risk of cracking but also improves the consistency of the bend angle, further minimizing springback variation.

Material control is often an overlooked aspect of sheet metal bending, yet it has a significant impact on the final bending accuracy and the degree of springback.

Machine Calibration and Backgauge Precision

Even the most optimal tooling and perfectly calculated angle compensation will fail to reduce springback if the press brake itself is not properly calibrated and maintained.

Verifying Ram Parallelism

If the press brake’s ram is not parallel to the worktable, one side of the bent part will show more springback than the other, leading to inconsistent angles. Regularly check the ram’s parallelism using a precision gauge to catch and correct this issue early.

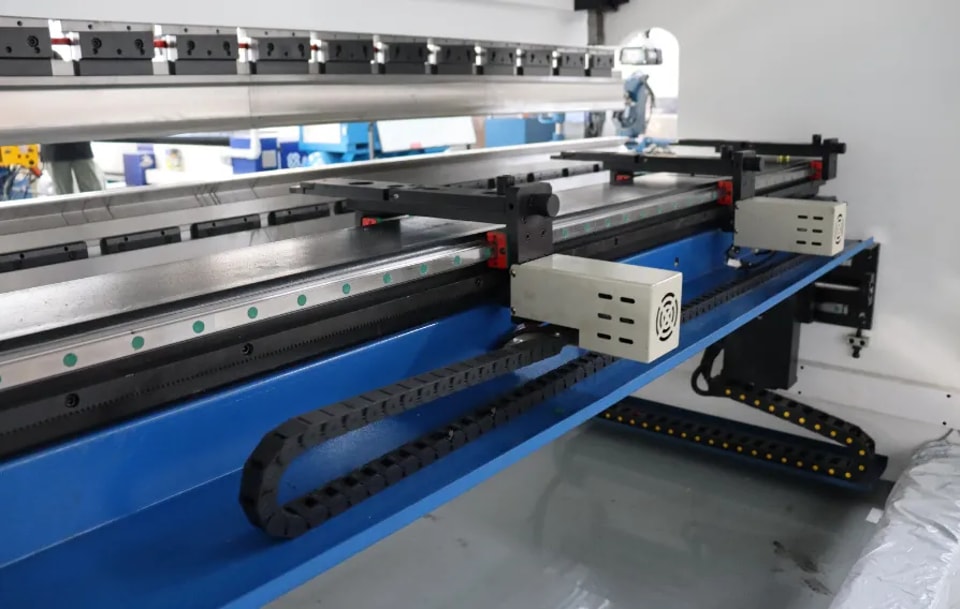

Calibrating the Backgauge System

Inaccurate backgauge positioning changes the length of the flange being bent, which indirectly disrupts the consistency of the bend angle and exacerbates springback issues. Mastering the calibration of a press brake’s backgauge system is therefore essential for reducing bending variations and springback.

Consistent machine maintenance and regular calibration are key to minimizing cumulative bending errors that contribute to excessive springback.

Frequently Asked Questions

Why is press brake springback more prominent in stainless steel?

Stainless steel has a higher tensile strength and greater elasticity than mild steel, which means it undergoes a more significant elastic recovery after the bending force is removed, leading to more severe springback.

What’s the most effective way to reduce press brake springback without replacing tooling?

The most practical solution is to implement controlled overbending compensation in the CNC controller—this is done by first conducting test bends, measuring the actual springback, and then inputting the corresponding compensation value into the program.

Does raising tonnage always lower springback?

Not necessarily. Increasing tonnage to boost penetration depth can help reduce springback, but excessive tonnage can damage the press brake’s tooling and even the machine itself. Using controlled bottoming or coining techniques is a more effective and safe approach to minimizing springback.

How to calculate springback with high accuracy?

The most reliable method is to perform a test bend with the actual production material and thickness, measure the final bent angle with a digital angle gauge, and compare this measurement to the pre-programmed angle. The numerical difference between the two is the precise compensation value you need to use.

Conclusion

Press brake springback is an unavoidable physical phenomenon in sheet metal bending, but excessive springback is entirely controllable. By understanding the unique properties of the materials you’re working with, selecting the right tooling, applying accurate overbending compensation, and ensuring the press brake is properly calibrated and maintained, you can drastically improve bending precision and achieve consistent production results.

If you’re struggling with unstable bending angles or receiving quality complaints related to springback, start by analyzing the root factors behind the excessive springback instead of making blind, repeated adjustments to your CNC programs. For professional guidance on tooling selection, tonnage calculation, or CNC compensation settings, don’t hesitate to reach out to our technical team. We’re always on hand to help you achieve stable, high-precision bending results for all your sheet metal projects.
