Press brake bending repeatability is a core indicator for guaranteeing stable and high-quality metal forming outcomes. If you want to enhance the repeatability performance of your press brake, this article will provide targeted guidance. It elaborates on the key elements that affect bending consistency and offers practical solutions to optimize equipment operation, so you can stably manufacture high-precision components in mass production.

Understanding Press Brake Bending Repeatability

Press brake bending repeatability means the equipment can deliver identical bending effects in multiple consecutive working cycles. It directly determines the dimensional stability of formed parts and the qualification rate of finished products. Multiple factors, including equipment adjustment status, tooling matching, material uniformity, and daily maintenance, will exert an impact on repeatability. The core objective is to eliminate deviation errors and ensure consistent processing results no matter how many processing cycles are executed.

1. Standard Calibration for Press Brake Equipment

Carrying out standardized calibration is a fundamental step to upgrade bending repeatability. Regular and precise calibration keeps the equipment running within the designed tolerance range. Out-of-calibration equipment will directly cause bending size deviations and unstable processing quality.

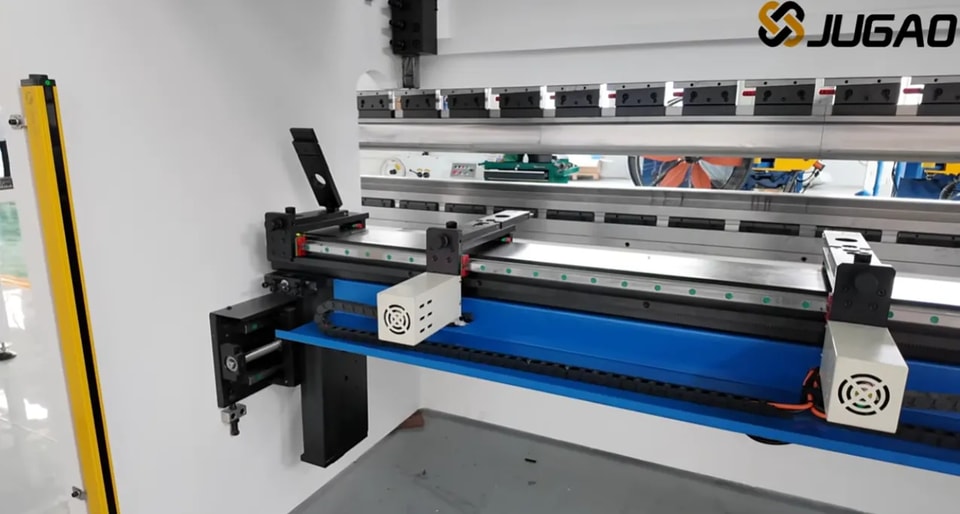

Step 1: Calibrate the Backgauge System

The backgauge system undertakes the key task of accurate workpiece positioning. To secure high repeatability, calibrate the backgauge strictly in accordance with the equipment’s technical parameters. Misalignment or improper parameter configuration will lead to tiny size differences of formed parts.

Step 2: Adjust the Ram Position

Accurate ram positioning is the premise of consistent bending. Check and adjust the alignment between the ram, tooling, and processed material. Any dislocation will bring about bending angle fluctuations and damage the repeatability of the process.

2. Stable Tooling Installation and Management

Tooling is a critical component that affects bending repeatability. Standardized installation, precise alignment, and regular maintenance of tooling are essential to keep bending effects consistent.

Step 1: Adopt High-Quality Tooling

Select high-strength, wear-resistant tooling matched with your press brake model, which helps achieve accurate and repeatable bending. Worn, deformed, or damaged tooling will cause unstable bending angles and inconsistent part sizes.

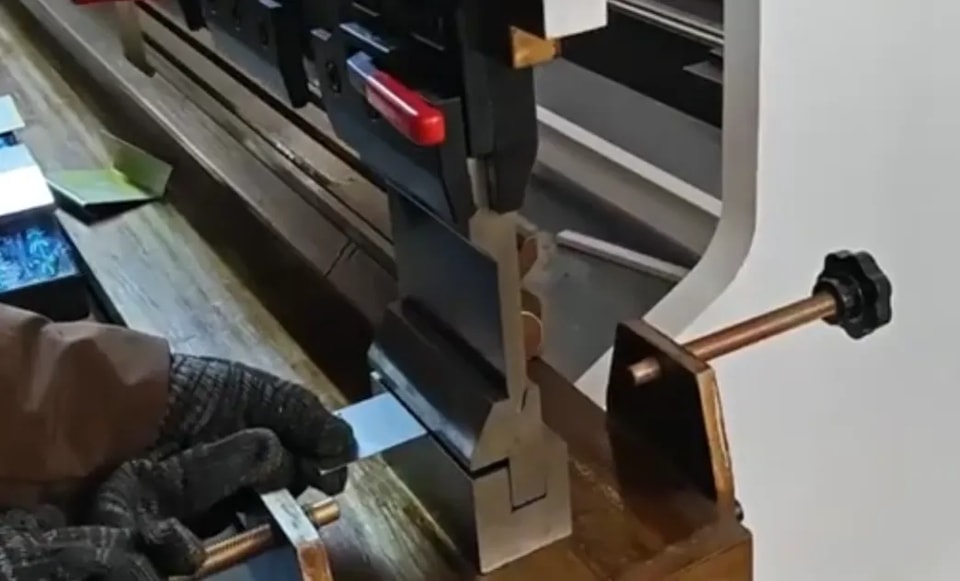

Step 2: Verify Tooling Alignment

Before formal processing, recheck the fastening and positioning accuracy of tooling. Even slight misalignment will result in irregular bending deformation and reduce processing stability.

3. Effective Control of Material Differences

Material uniformity is another key factor affecting bending repeatability. Differences in material thickness, hardness, and surface flatness will change the stress and deformation laws during bending.

Step 1: Guarantee Material Consistency

Use raw materials that fully meet the project’s technical requirements. Unstable material performance will lead to obvious differences in the final forming effect. It is necessary to inspect material parameters before production to reduce potential quality risks.

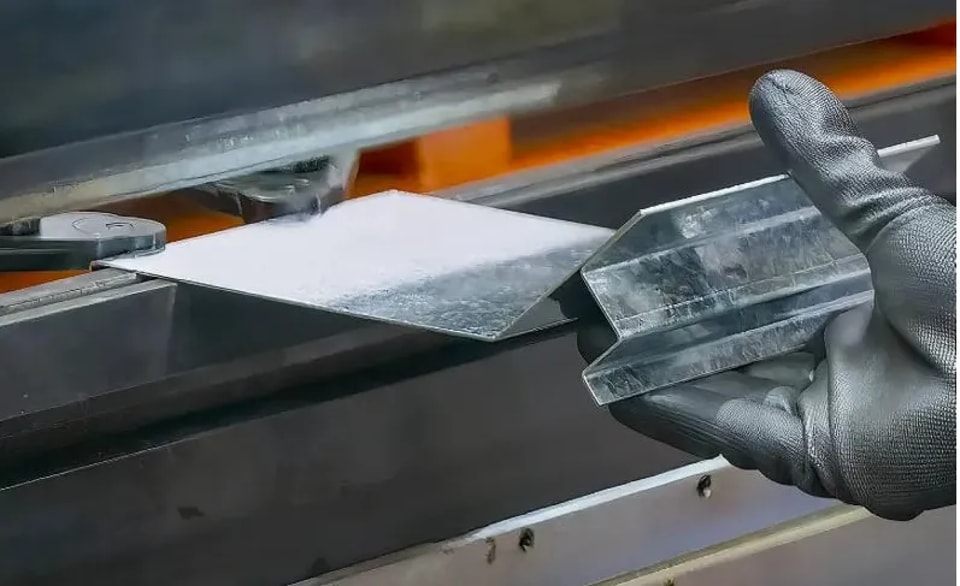

Step 2: Standardize Material Positioning

Keep the material placement position in the press brake consistent in each processing. Tiny position shifts will change bending angles and depth, thus reducing the repeatability of the whole process.

4. Routine Equipment Maintenance

Regular maintenance is indispensable to maintain the long-term accuracy and repeatability of a press brake. Periodic inspection and servicing keep all parts in optimal working condition, lowering the probability of processing errors and equipment failures.

Step 1: Lubricate Moving Parts

Carry out sufficient lubrication on moving parts such as the ram and backgauge system to ensure smooth operation and reduce mechanical wear. This can effectively avoid processing inaccuracies caused by mechanical jamming or excessive abrasion.

Step 2: Inspect Hydraulic Systems

The hydraulic system provides the driving force for the press brake ram. Hydraulic pressure fluctuation will result in inconsistent bending force and unstable processing. Regularly check for oil leakage, pressure anomalies, and other faults, and repair them in time to maintain stable bending performance.

FAQs

What methods can boost the bending repeatability of a press brake?

To improve bending repeatability, you should implement standardized calibration of the press brake, keep tooling setup stable, control material consistency, and conduct regular equipment maintenance. These measures can minimize processing errors and improve bending accuracy and stability.

How frequently should a press brake be calibrated?

It is recommended to calibrate the press brake at least once a year. If the equipment runs for a long time, has heavy workloads, or shows obvious performance anomalies, the calibration frequency should be increased appropriately.

Will tooling conditions influence bending repeatability?

Yes. Worn tooling or incorrect alignment will seriously reduce bending repeatability. Inspect and maintain tooling regularly to ensure it is in good working condition.

Conclusion

Improving press brake bending repeatability is the key to obtaining consistent high-quality metal forming parts. Through standardized equipment calibration, stable tooling management, strict material difference control, and scientific daily maintenance, the press brake can maintain high-precision and stable operation. If you need further technical support or more solutions for press brake optimization, you can consult our professional technical team at any time.
