Press Brake Precision and Performance Evaluation Guide

In metal fabrication, press brakes serve as critical equipment for achieving precise bends in sheet metal. The accuracy and efficiency of these machines directly influence product quality and production throughput. This comprehensive guide outlines systematic approaches to assess both the precision and operational performance of press brake equipment, ensuring optimal functionality throughout its service life.

Evaluating Press Brake Precision

Precision evaluation focuses on three fundamental aspects that determine bending accuracy:

1. Bend Angle Measurement

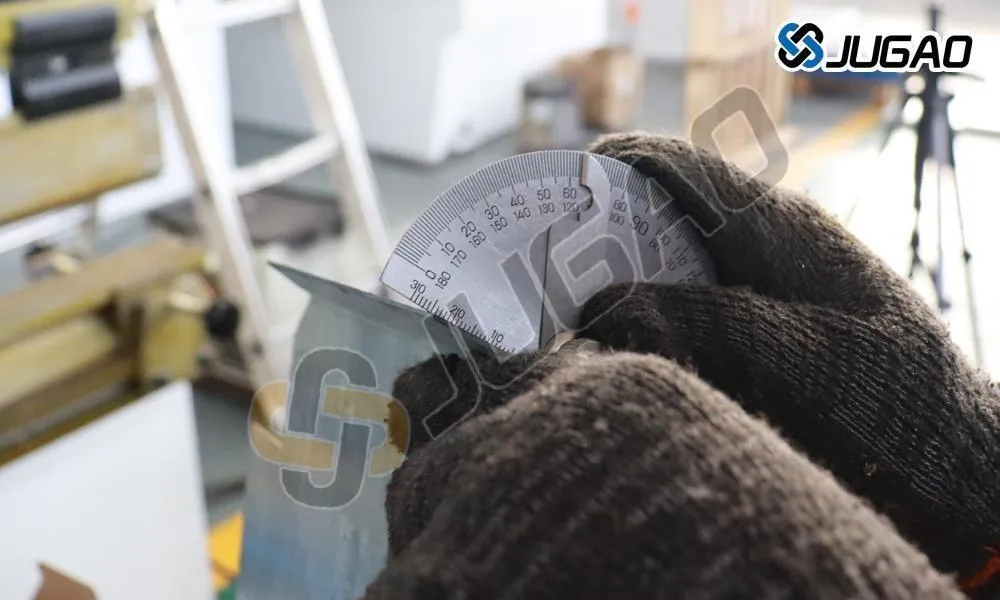

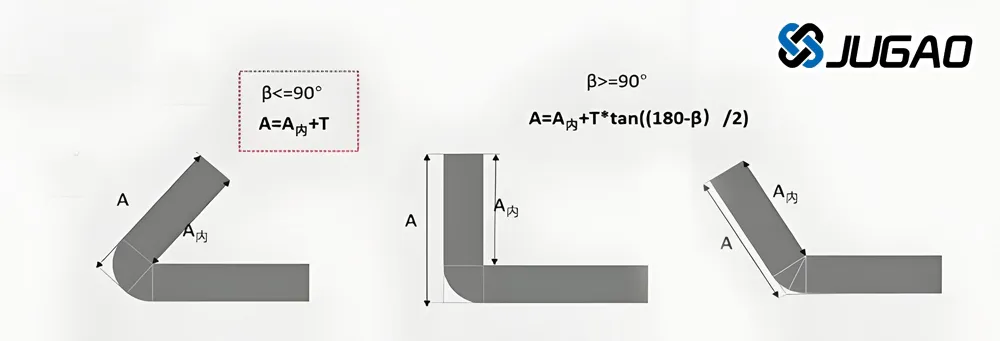

Utilize digital angle finders or precision protractors to measure formed angles against specified tolerances. For optimal results:

l Conduct measurements immediately after bending while material memory effects are present

l Compare multiple samples from different positions across the working length

l Document variations exceeding ±0.5° as potential calibration issues

2. Parallelism Verification

Tool alignment critically affects bend uniformity. Verification protocol:

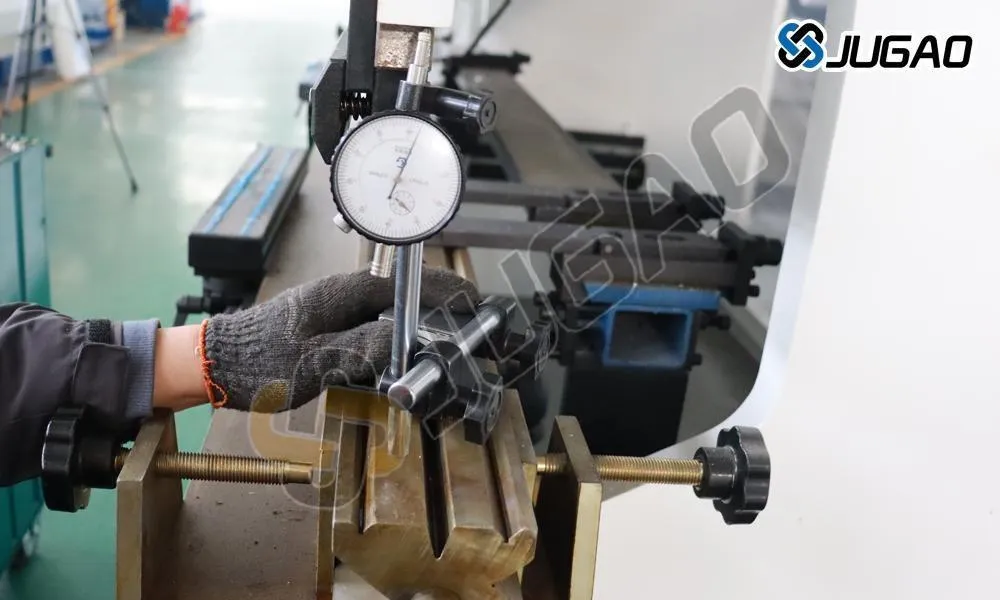

l Mount dial indicators on the ram at 200mm intervals

l Perform full stroke movements while recording deviation

l Acceptable tolerance: ≤0.02mm per 100mm of working length

l Correct misalignment through toolholder adjustments or machine recalibration

3. Process Consistency Analysis

Consistency Testing

Execute sequential bending tests with identical parameters to evaluate:

l Angle reproducibility across 20+ consecutive cycles

l Material springback consistency

l Tooling wear patterns affecting dimensional stability

l Statistical process control methods help identify developing trends requiring intervention.

Assessing Operational Performance

Beyond precision, operational metrics determine production efficiency:

1. Cycle Time Optimization

l Time complete bending cycles from ram descent to return

l Compare actual times against manufacturer specifications

l Analyze acceleration/deceleration profiles for improvement opportunities

l Target ≥90% of rated cycle speed in production conditions

2. Control System Functionality

ControlInterface

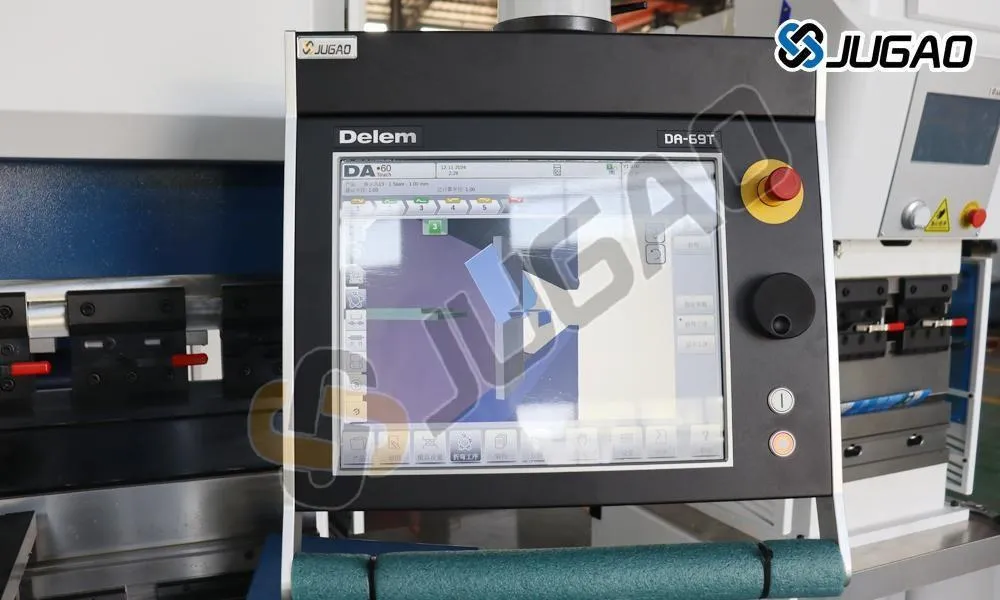

Modern CNC systems should demonstrate:

l Intuitive programming interface responsiveness

l Accurate axis position feedback

l Predictive error prevention capabilities

l <100ms command execution latency

Conduct test programs combining multiple bend sequences to verify stability.

3. Hydraulic System Evaluation

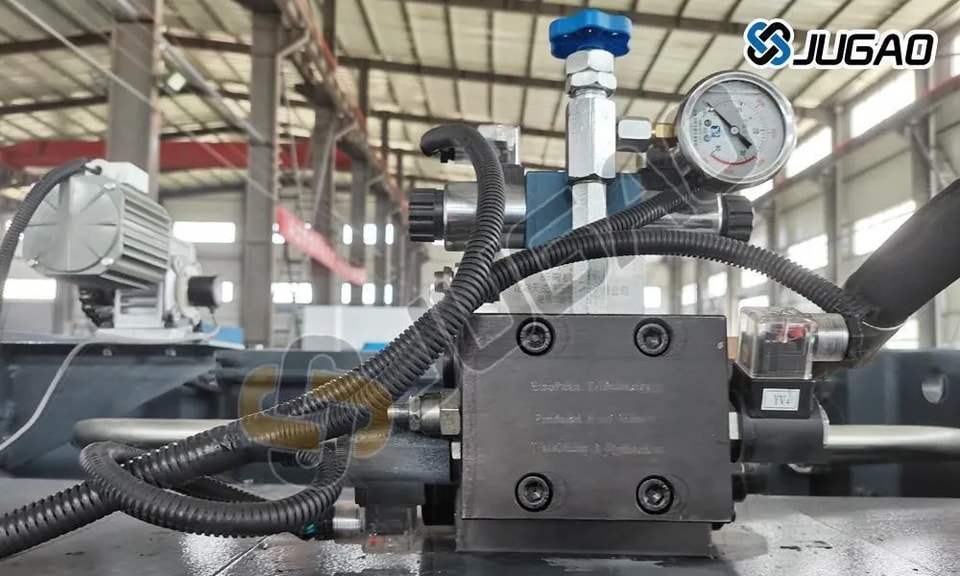

Monitor pressure transducers during operation to identify:

l Pump efficiency degradation

l Valve response times

l Pressure fluctuations exceeding ±5% of setpoint

l Abnormal thermal signatures indicating component wear

Maintain detailed pressure logs for predictive maintenance scheduling.

Frequently Asked Questions

Q: What's the most accurate method for bend angle verification?

A: Laser-based measurement systems provide ±0.1° accuracy, though digital protractors (±0.5°) suffice for most applications when properly calibrated.

Q: How to address inconsistent bend angles across the working length?

A: First verify tool parallelism, then check for ram deflection using strain gauges. Thermal compensation may be required for machines with >3m working lengths.

Q: Recommended evaluation frequency for production equipment?

A: Perform basic checks weekly, comprehensive evaluation quarterly, or after 50,000 cycles. Increase frequency when working with high-tensile materials.

Conclusion

Systematic evaluation of press brake equipment incorporates both precision verification and performance benchmarking. Implementing regular assessment protocols minimizes quality deviations while maximizing equipment utilization. For specialized applications requiring tighter tolerances, consider integrating automated measurement systems with real-time process adjustment capabilities.
