Guide to Properly Enabling ESA S640 System Functions

Enabling the ESA S640 Metal-working Machine Function can significantly enhance your metalworking capabilities, unlocking advanced features such as the "New Bend" function and Dutch folding bend forcing. If you're aiming to maximize the performance of your equipment, you've come to the right place. This guide provides a clear, step-by-step walkthrough to help you activate the ESA S640 function, ensuring you can fully leverage its potential for precision metal forming tasks.

Whether you're new to the system or an experienced operator, understanding how to enable and fine-tune this feature is essential for optimizing your workflow and achieving superior bending results. With the right setup, the ESA S640 can transform complex operations into seamless, efficient processes—boosting both productivity and accuracy in your workshop.

Enabling the “Metal-working Machine” Function

Enabling the ESA S640 Metal-working Machine Function opens up advanced capabilities in your operation. Here’s a detailed guide on how to enable it:

Step 1: Access the Configuration Page

l From the Editor page, press the key to open the menu.

l Select item 2 >> Configuration to enter the Configuration page.

Step 2: Enter Machine Parameters

l Select item 6 >> Machine parameters.

l Enter the required password and press [Ok].

l Press the key Parameters 2.

Step 3: Enable the Metal-working Machine

l Enter the value 1 in the Metal-working machine field found in the Auxiliary Functions parameters group.

Result: Once completed, both the “New Bend” and “Dutch Folding” bend forcing functions will be enabled, enhancing your machine’s functionality.

How to Use the “New Bend” Function

The “New Bend” function facilitates the creation of bends with consistent data, optimizing the bending process:

l Next Bend Function: By pressing the button while on the last bend, a new bend is added mirroring the previous bend’s data.

l Insert Step Function: Select the Enter step from the menu to add a new bend at the current position, replicating previous data.

Note: Beware of unintentionally adding bends while intending to scroll. Use the navigation button to navigate through bends and the [New Step] button for traditional new step addition whenever this function is not enabled.

Dutch Folding Bend Forcing

With the ESA S640 Metal-working Machine Function enabled, executing Dutch Folding becomes straightforward and efficient:

This advanced feature, accessible in both the Editor and Summary Bends pages, empowers users to perform Dutch Folding with minimal effort. By setting the Y1 Angle field to a value of 0, you effectively configure the system to handle Dutch Folding bends. This process ensures consistent accuracy and precision in creating these complex bends.

Benefits of Using Dutch Folding:

Consistency: Ensures uniformity across similar projects, maintaining quality and reducing the margin for error.

Precision and Control: By automating the setting process, operators can achieve highly precise bend angles without manual adjustments.

Enhanced Efficiency: Quick setup reduces downtime, allowing for a seamless transition between different bending tasks and increasing productivity.

Versatility: This flexible feature supports various metal-working needs, adapting to both simple and intricate designs with ease.

Understanding the Last Bend Icon

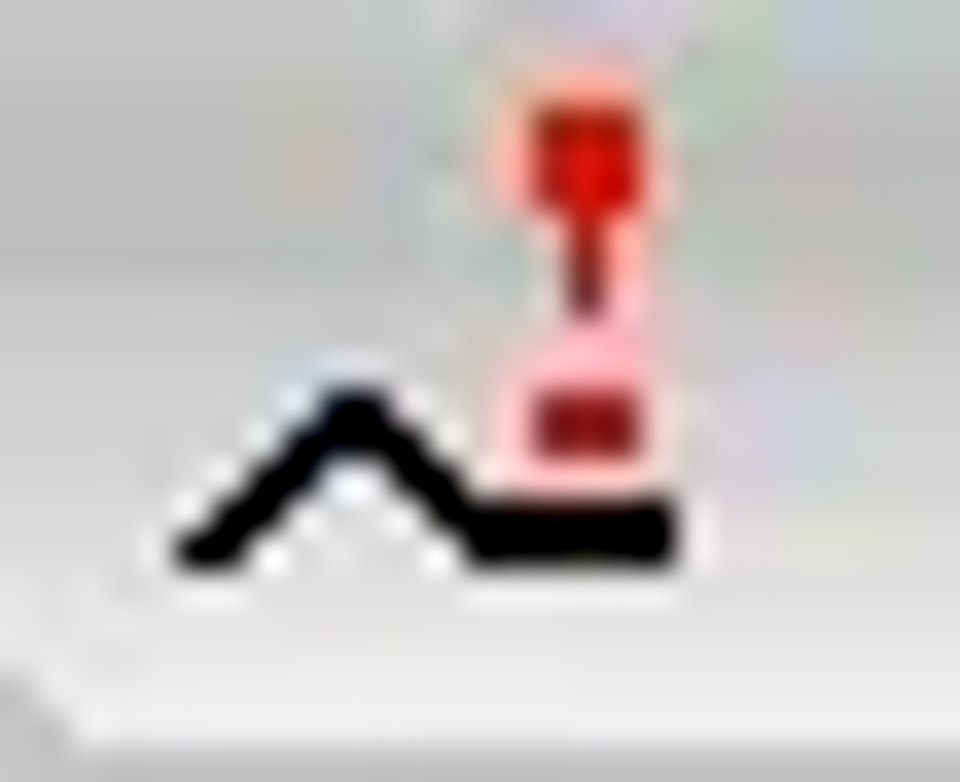

In the ESA S640 interface, the last bend icon is a crucial visual cue for operators, indicating that the current bend is the final one in a section.

This feature is essential for preventing the accidental addition of new bends, which can disrupt the sequence.

Importance of the Last Bend Icon:

l Error Prevention: The icon serves as a reminder, helping operators avoid mistakenly adding bends beyond the intended sequence.

l User-Friendly Interface: Positioned at the top right part of the screen, as illustrated in figure 59, the icon provides clear, immediate feedback on the bend sequence status.

l Workflow Efficiency: By signaling the last bend, it helps maintain the integrity of the current bend configuration, optimizing workflow and reducing the need for corrections.

Conclusion

Activating the ESA S640 Metal-working Machine Function requires a solid grasp of the system interface and precise configuration of its settings. Begin by navigating to the main menu and selecting the “Metal-working Machine” option. From there, follow the on-screen instructions to calibrate the parameters based on the specific requirements of your project. It's advisable to test the setup using a sample material to verify both accuracy and operational efficiency. To ensure long-term performance, make it a habit to regularly update the system software.

Proper configuration of the ESA S640 function is key to unlocking its full potential and maintaining consistent results across tasks. If you need further guidance or assistance with more advanced settings, don’t hesitate to reach out to our technical support team. For a deeper dive into related topics, be sure to explore our comprehensive documentation library, which offers a wide range of articles and resources covering various metal-working systems and operational techniques.
