Explanation of CNC Press Brake Machine Axis

Home  >  Blog  >  Other Technical Support  >  Explanation of CNC Press Brake Machine Axis

Explanation of CNC Press Brake Machine Axis

Sep 01, 2025

Overview

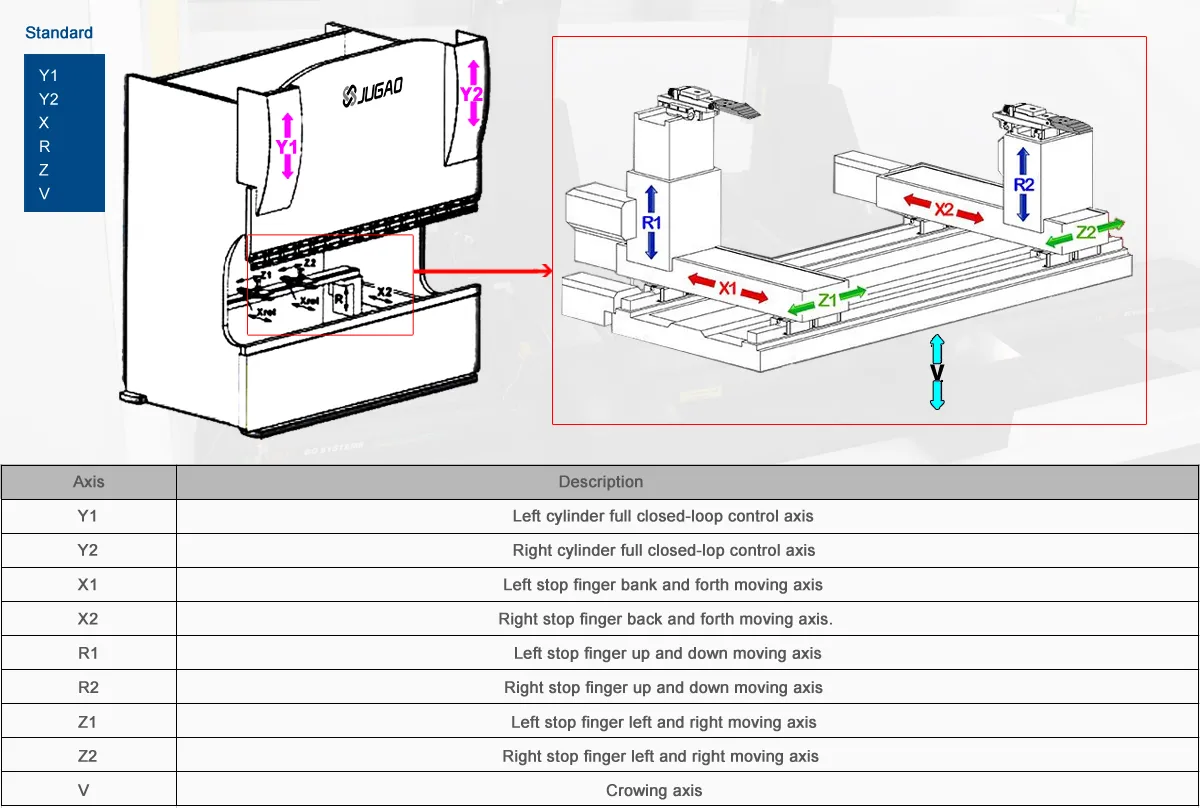

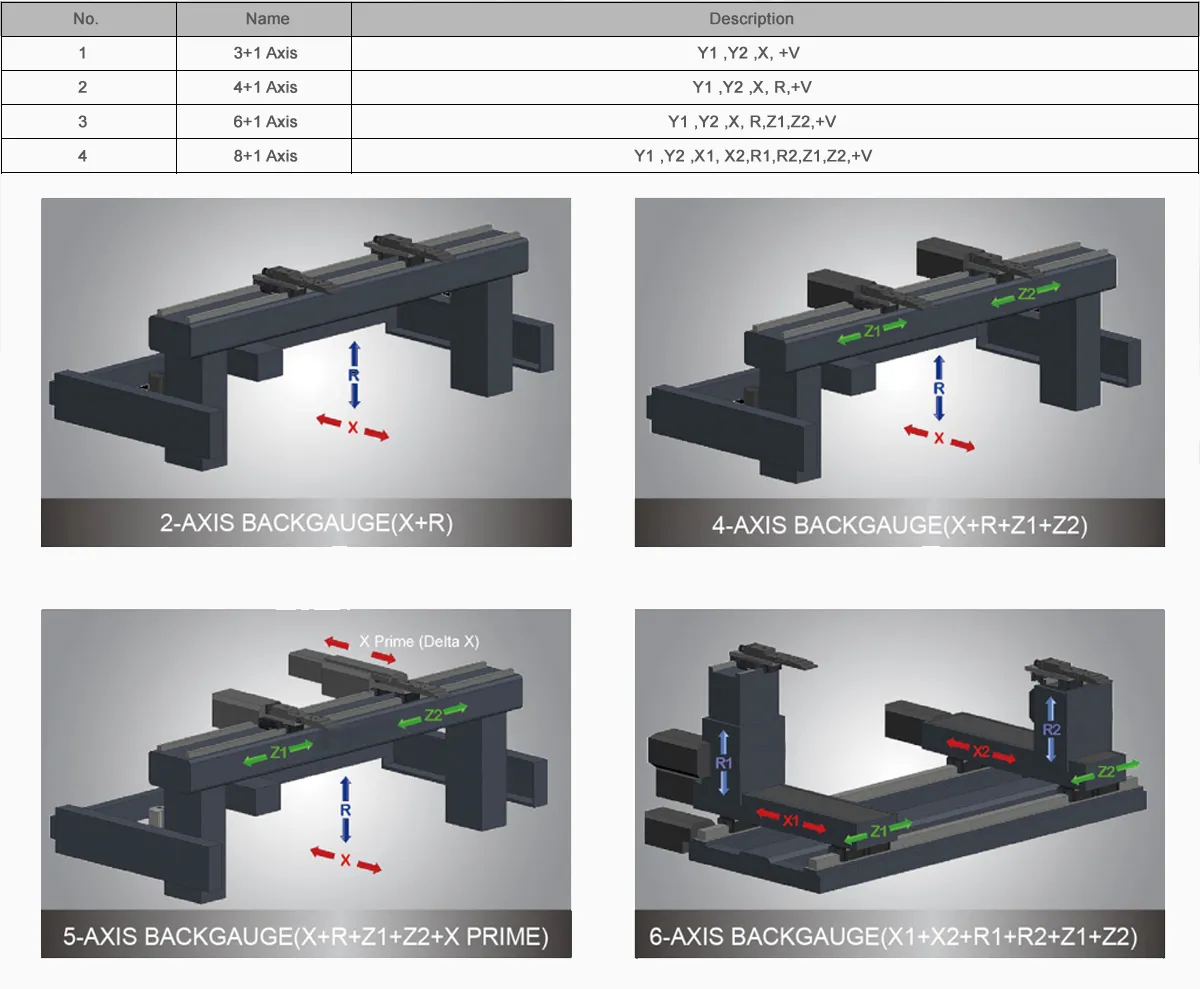

when we say CNC press brake axis,we always heard of Y,X.R axis,but we are often into confusion with these axes.Because different axis means different moving direction,Today we will make a deep clear explanation about press brake axis.
