Detailed Dimensions of Upper and Lower Dies for Bending Machines

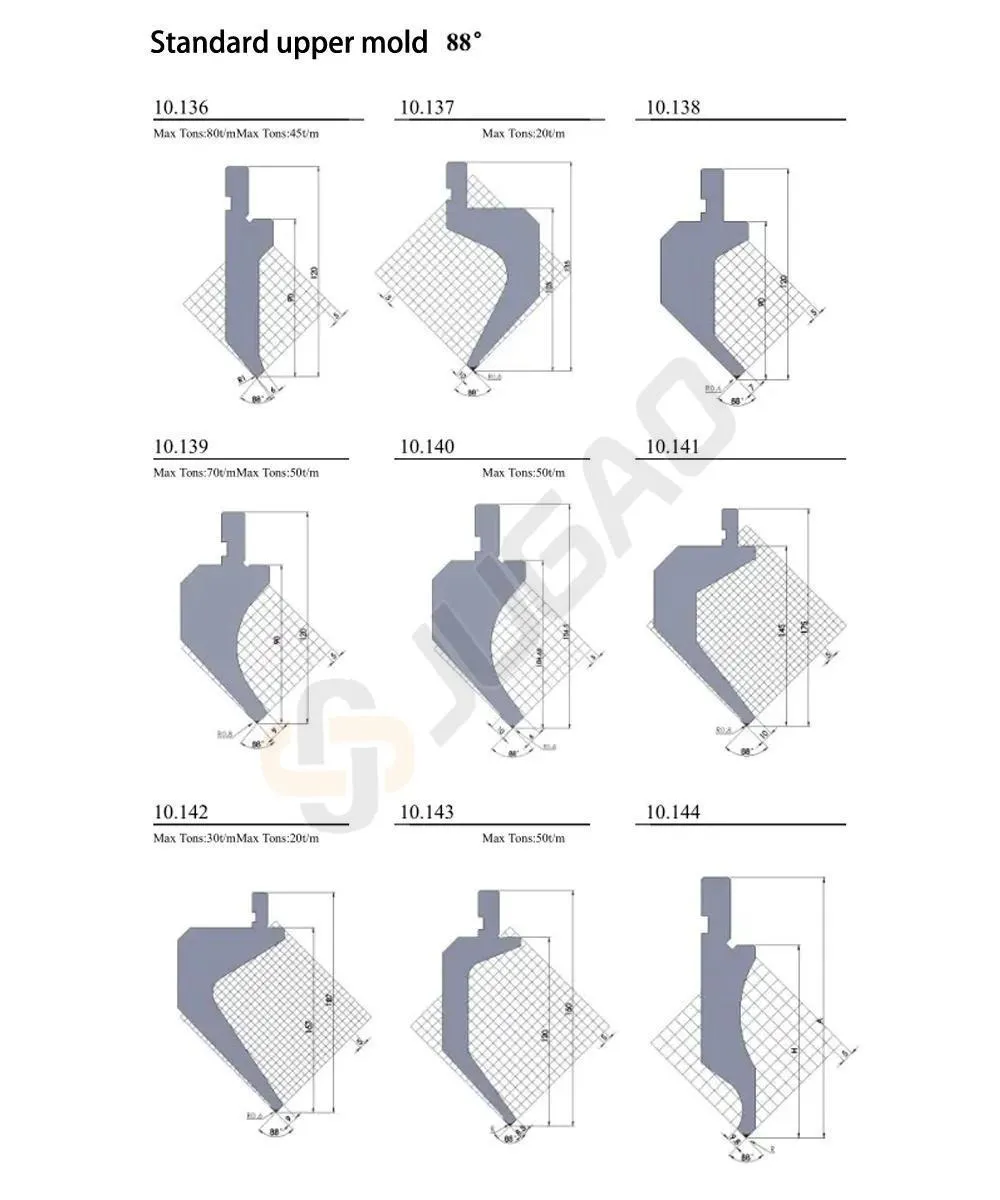

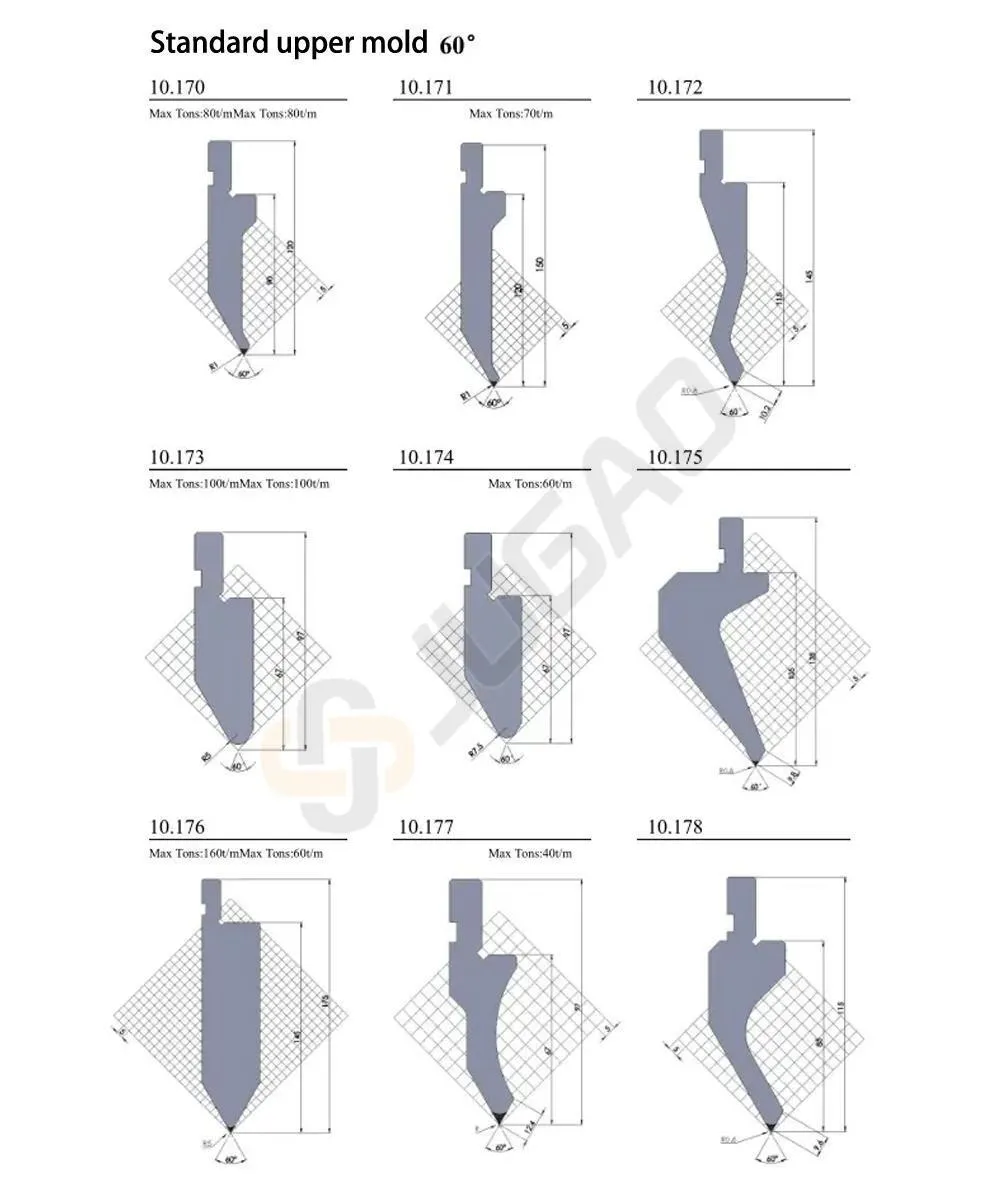

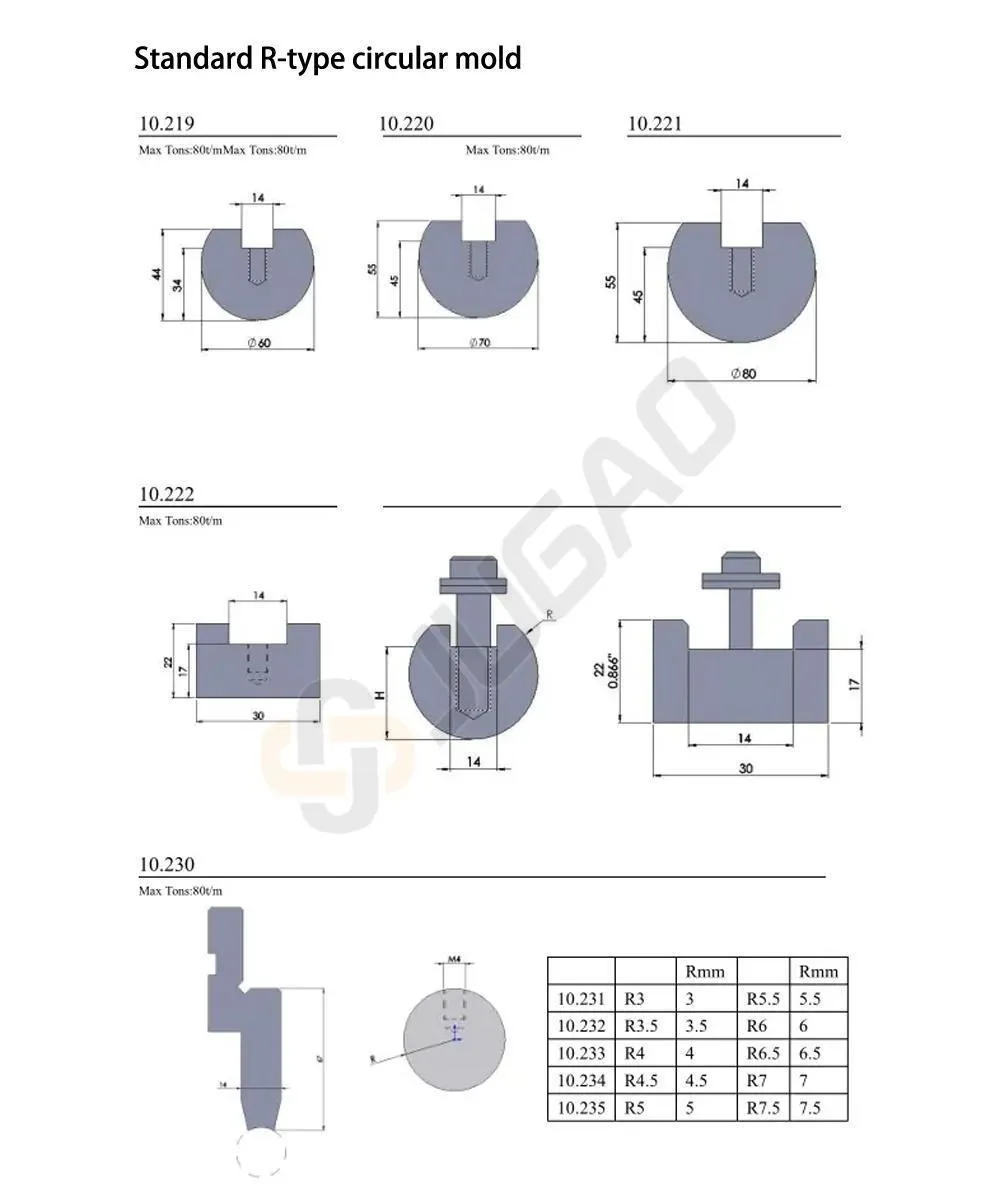

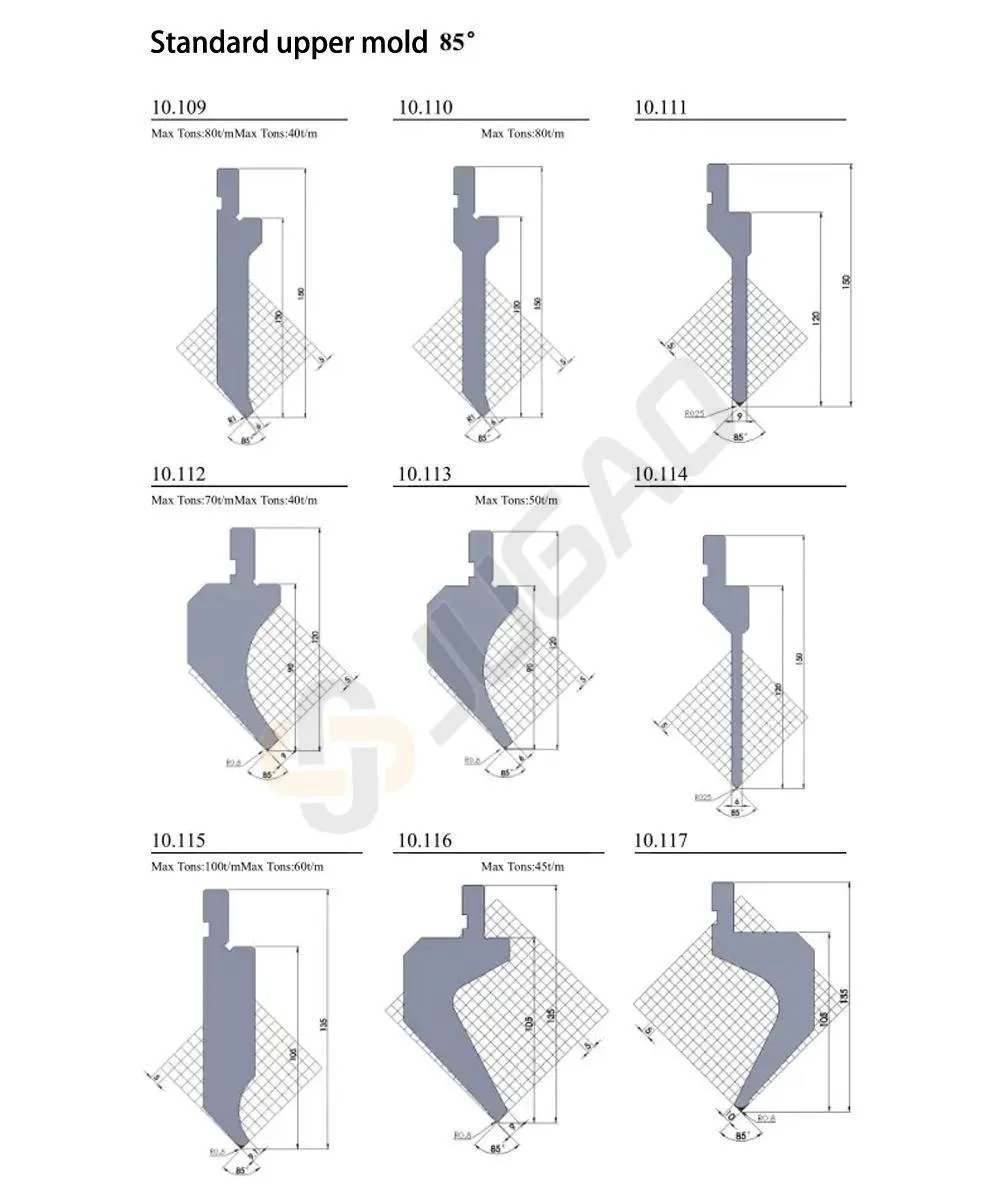

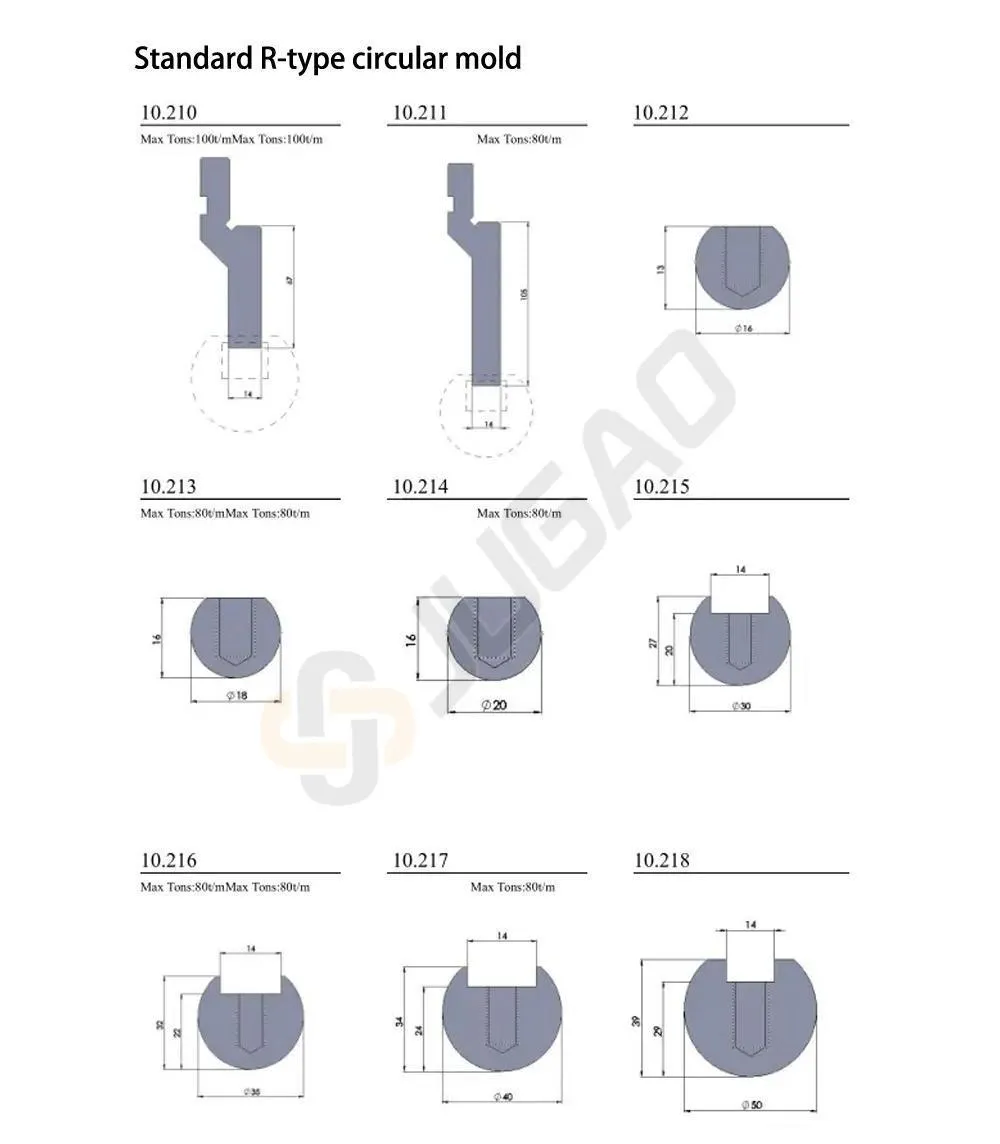

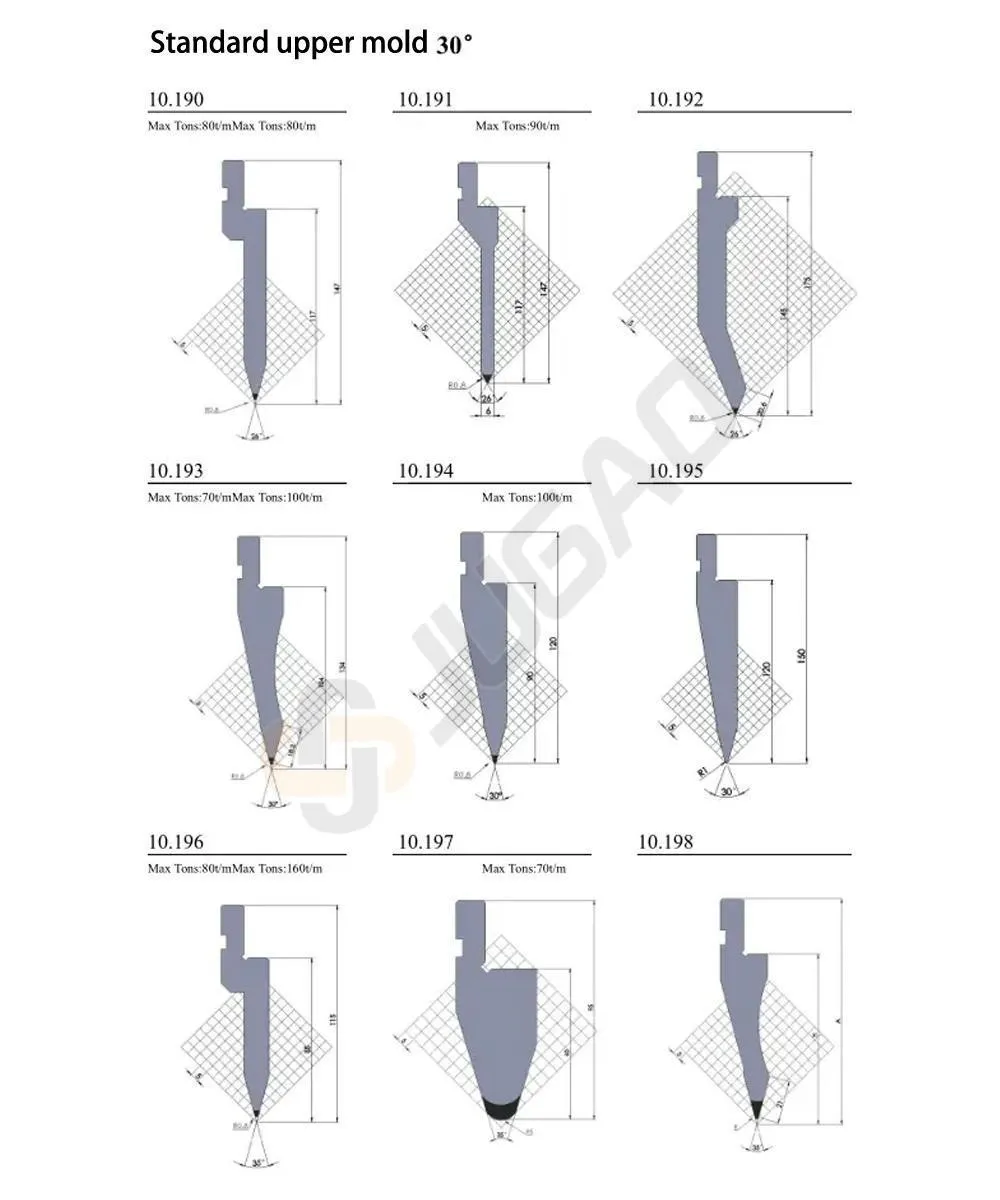

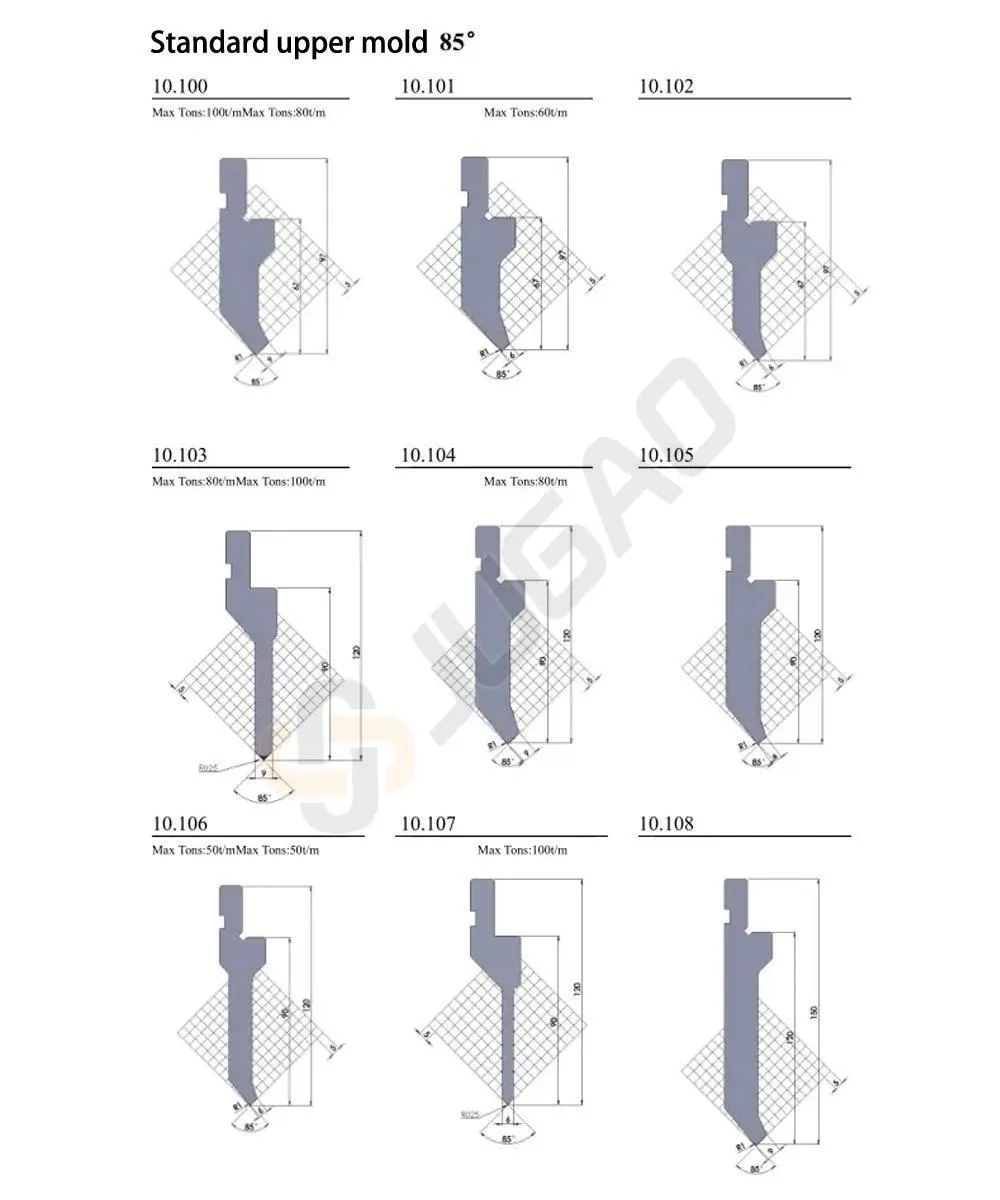

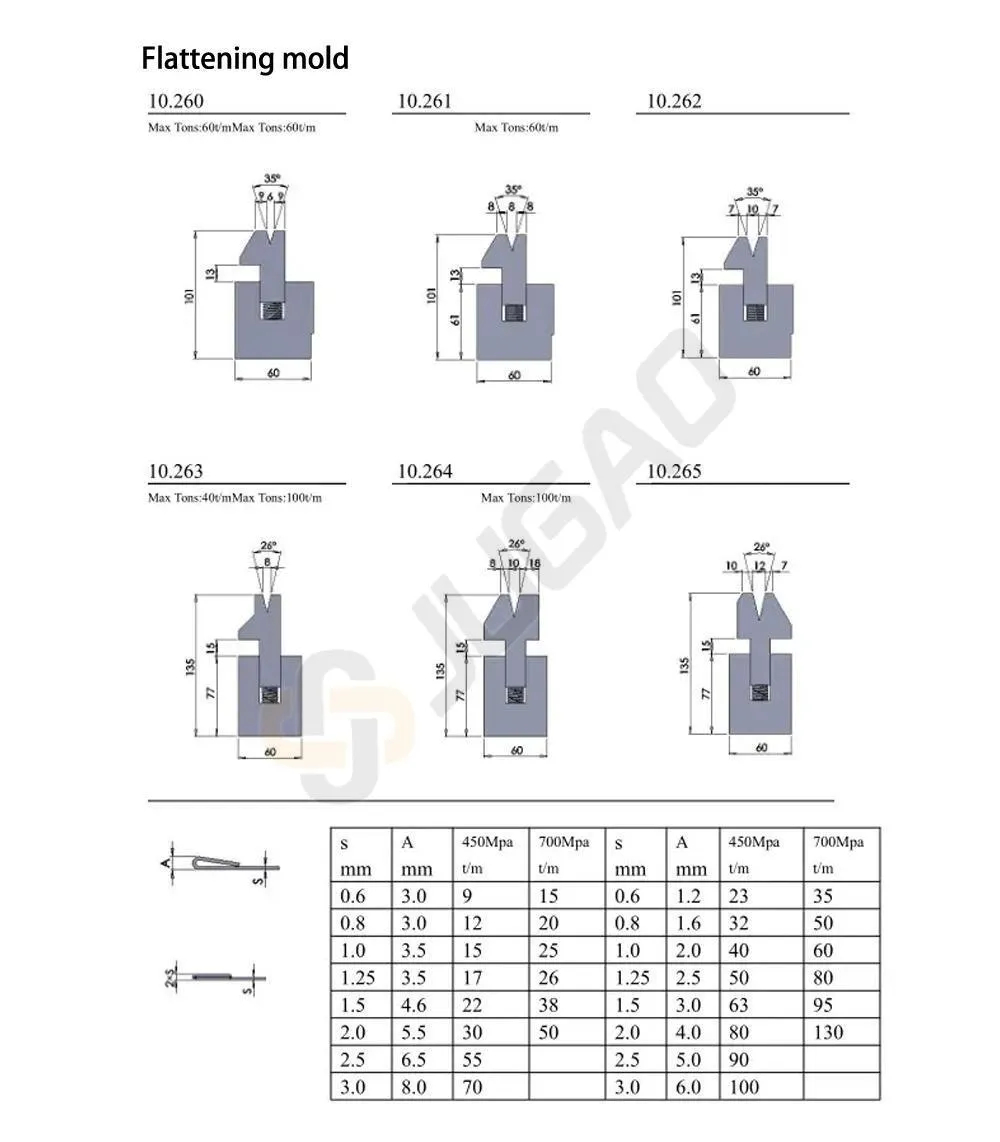

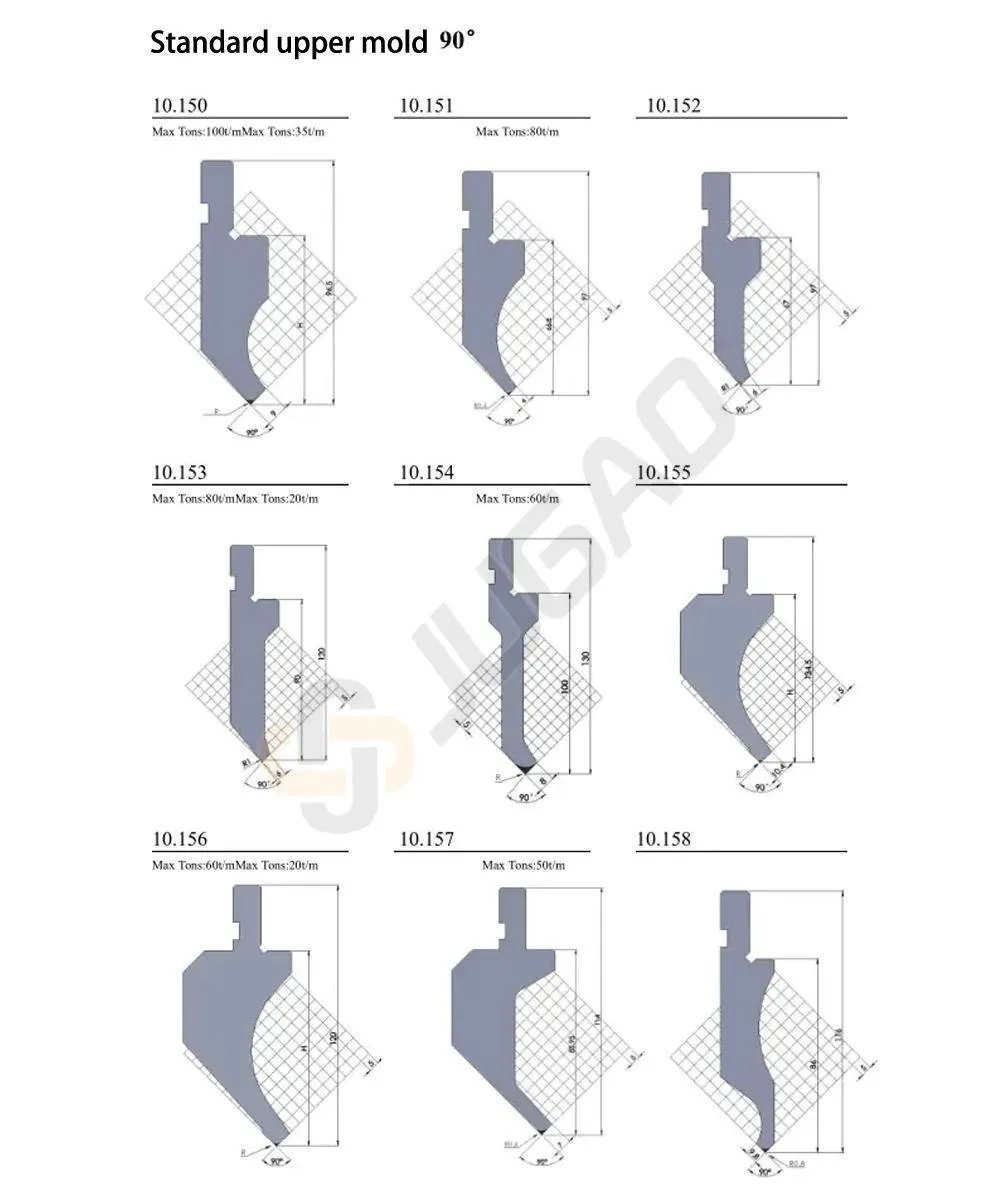

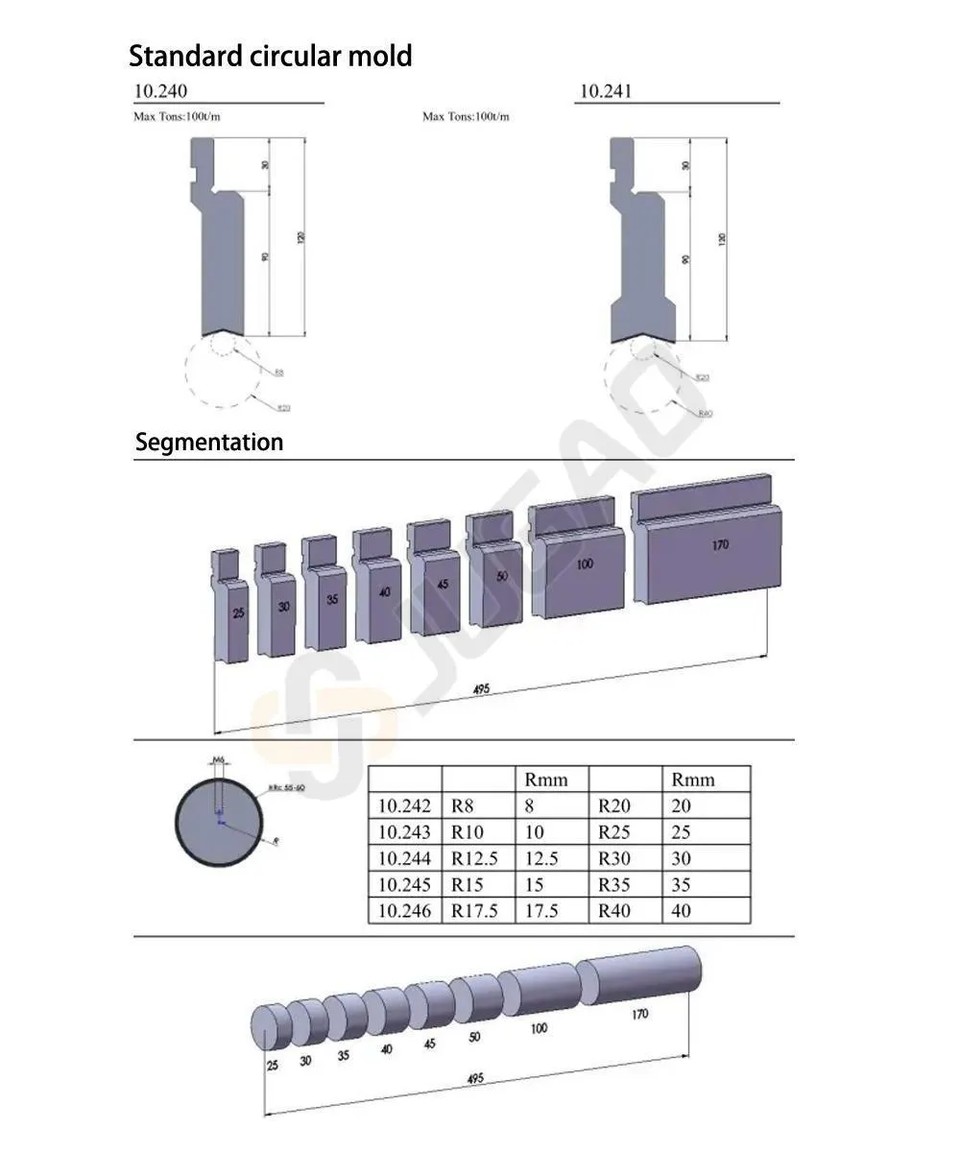

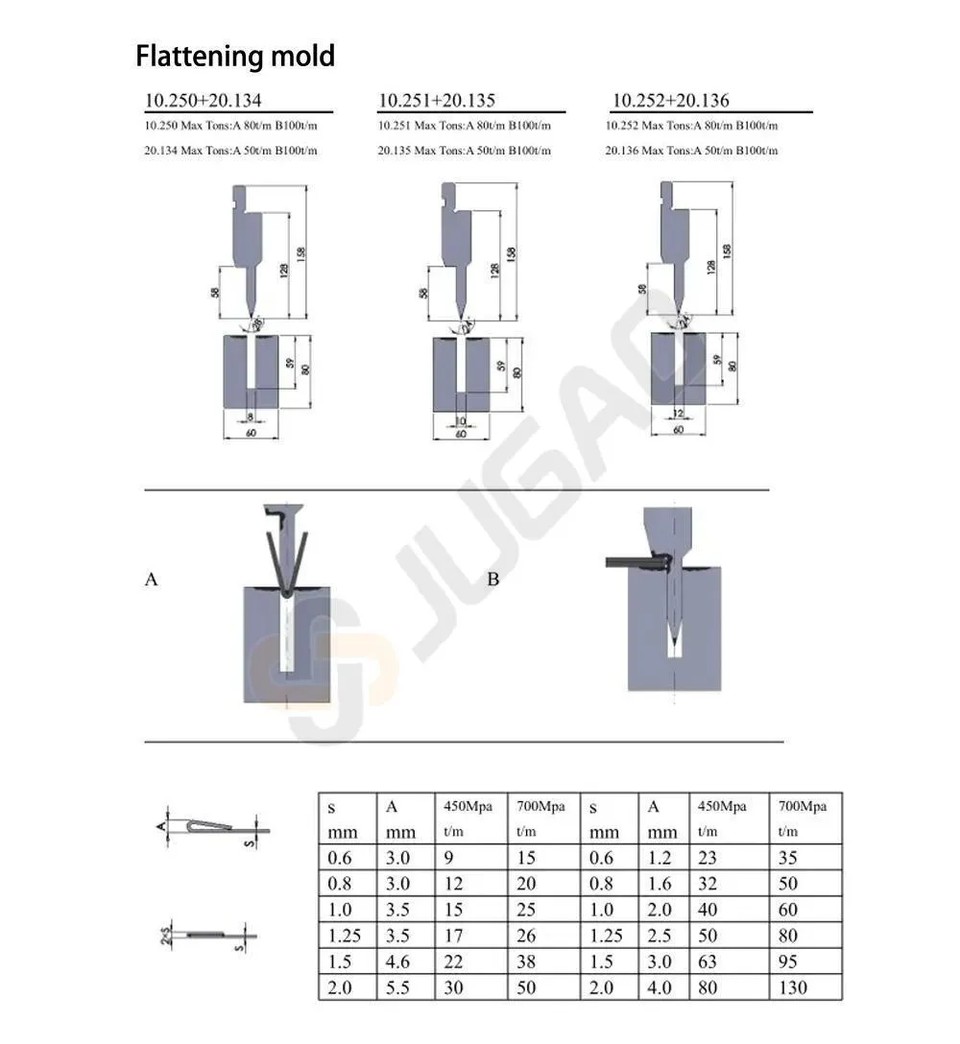

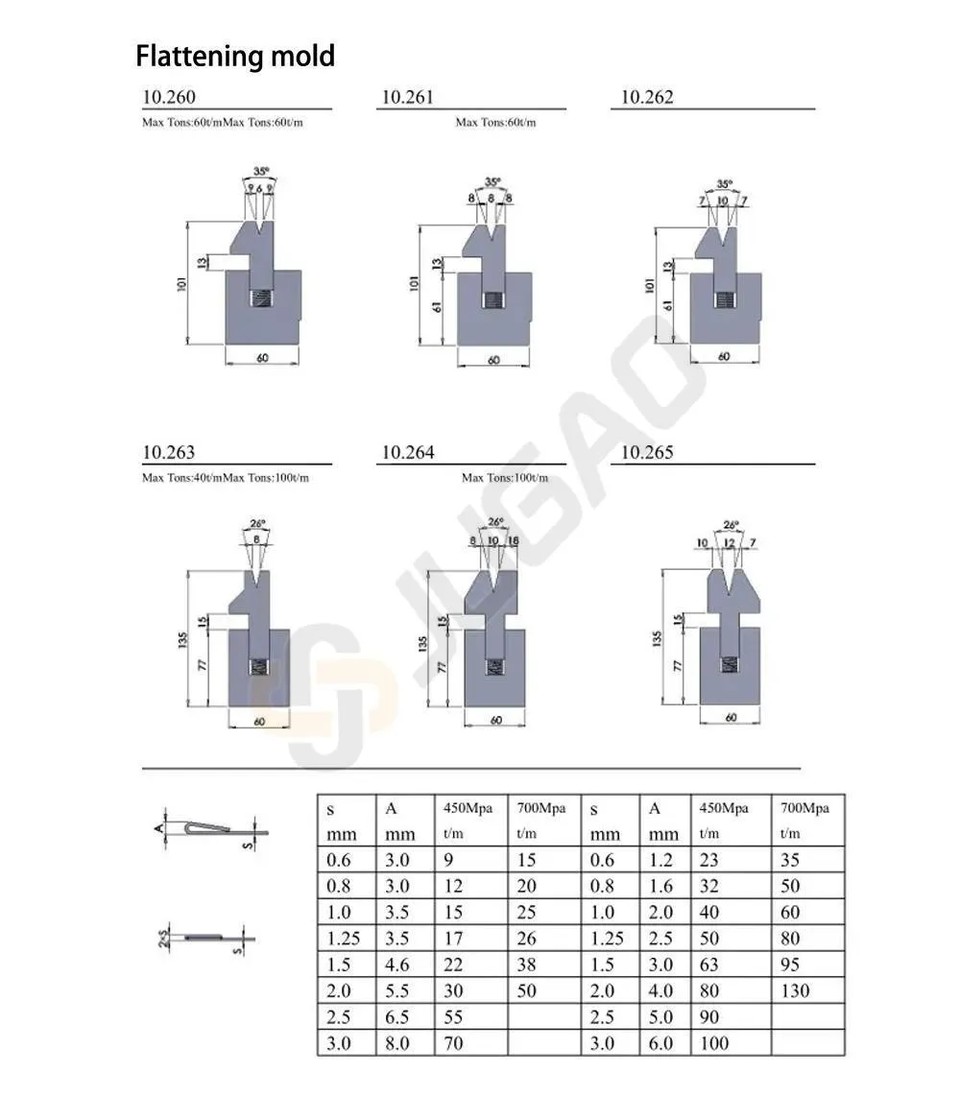

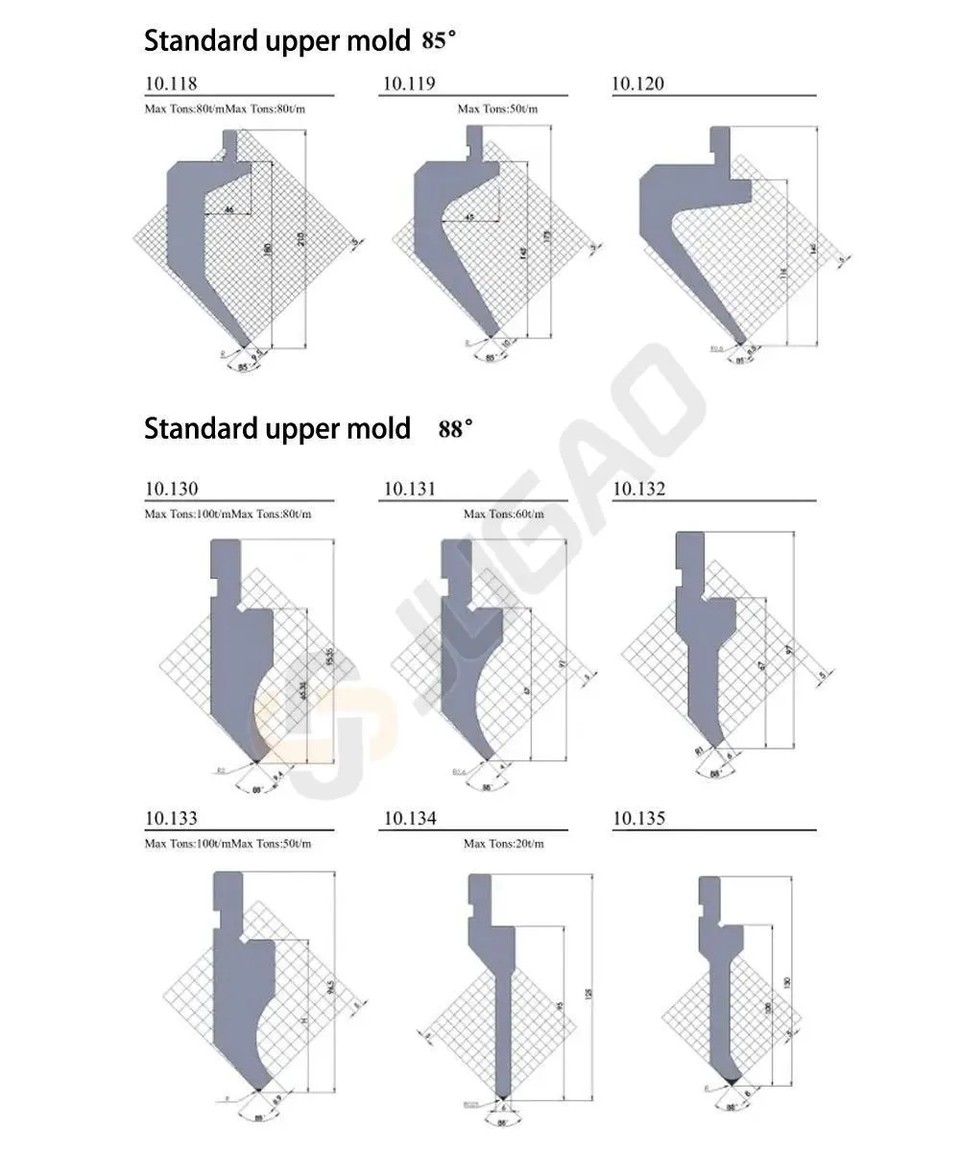

Bending dies, as core process equipment in the sheet metal processing industry, are widely used in the forming process of various metal sheets. Proper selection and operation of dies can significantly improve production efficiency, effectively ensure processing accuracy, and extend the die's service life. This article systematically introduces the key dimensional parameters of bending dies of different specifications (which can be scaled proportionally for reference), providing detailed basis for related process design.

Sheet metal bending requires experience; observe how experienced craftsmen bend sheets and why they do it that way. To learn more about bending machines or bending processes, please contact our JUGAO CNC MACHINE team.
