Classification and Characteristics of Welding Robots

Mobile welding robots are robots that perform welding work, mainly consisting of two parts: the robot itself and the welding equipment. Welding robots are generally divided into spot welding and arc welding. Robots can be seen working in various industries, with mobile welding robots being one of the most widely used types in industry. So, do you know the classification and characteristics of welding robots? Let's take a look at the relevant introduction.

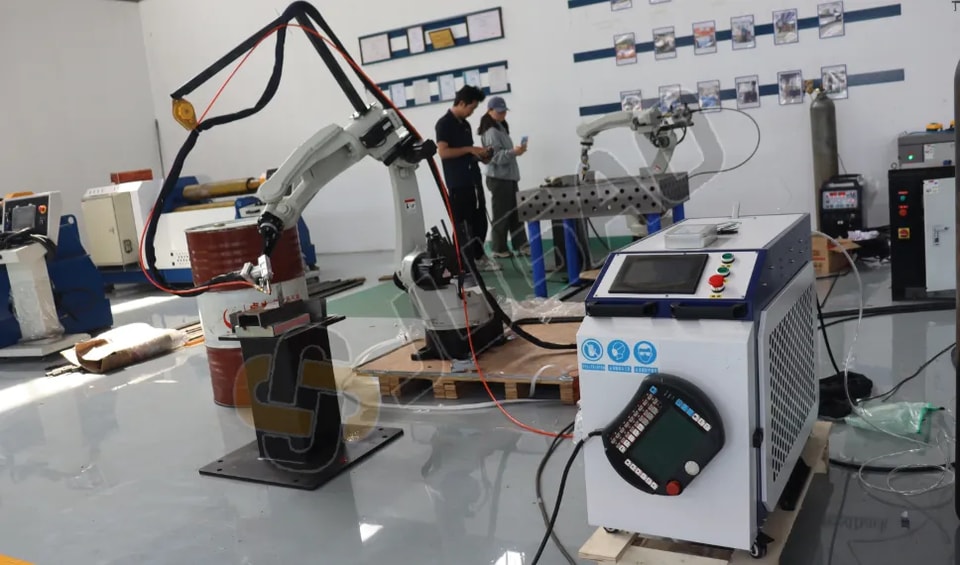

Characteristics of Arc Welding Robots

Arc welding robots mostly use gas shielded welding methods. Common welding power sources such as thyristor-based, inverter-based, waveform-controlled, pulsed, or non-pulsed types can all be installed on the robot for arc welding. Since the robot control cabinet uses digital control, while the welding power supply is mostly analog control, an interface is needed between the welding power supply and the control cabinet.

Its characteristics can be summarized as follows:

1. High Production Efficiency and Stability

l Continuous Operation Capability: Can work 24 hours a day without interruption, significantly improving production efficiency.

l **Stable Cycle Time:** Parameters such as welding speed, wire feed speed, and oscillation trajectory remain constant, unaffected by operator fatigue or skill level fluctuations, ensuring consistent production cycle time for each product.

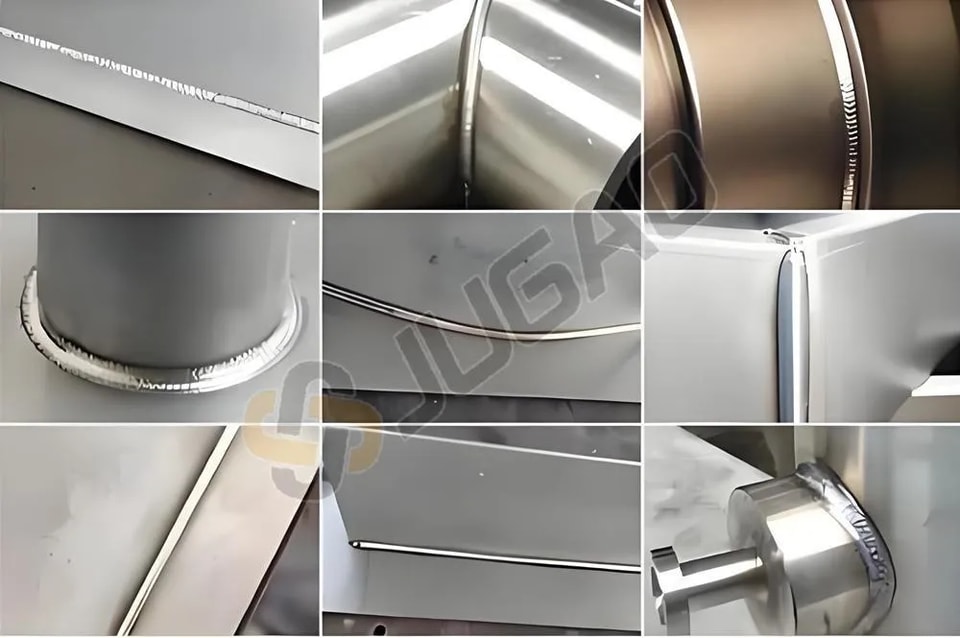

2. **Excellent Welding Quality Consistency:**

l High trajectory accuracy: Extremely high repeatability (typically ±0.05mm to ±0.1mm), accurately reproducing the taught trajectory and avoiding random defects common in manual welding such as undercut, weld deviation, and weld beads.

l Stable process parameters: Precise control of welding current, voltage, arc length, and welding speed ensures aesthetically pleasing weld formation, consistent penetration, and significantly reduces rework rates.

l Reduced physical exertion: For heavy-duty welding of large structural components (such as engineering machinery and ship sections), the robot eliminates the need to consider the operator's physical limits when holding the welding torch, easily completing long-duration welding in complex postures.

3. **High Flexibility and Automation Integration:**

l Rapid switching: By modifying the control program, it can quickly adapt to the welding requirements of different products, particularly suitable for multi-variety, small-batch production models.

l External axis linkage: Typically equipped with positioner linkage functionality. The robot and positioner (turntable) move in tandem, always keeping the welding torch in a "vertical-down" or optimal welding posture, achieving high-quality welding of complex spatial curves.

l System Integration: It is easily integrated with loading and unloading systems, handling robots, vision recognition systems, and quality inspection systems (such as laser weld seam tracking and molten pool monitoring) to form unmanned intelligent manufacturing units or digital workshops.

4. Dependence on Pre-production Preparation and Management

l High Workpiece Precision Requirements: Arc welding robots are "teach-and-playback" type devices or rely on high-precision sensors. If the workpiece loading accuracy is poor or the assembly gap is inconsistent, the robot cannot adjust its technique as flexibly as a human welder, easily leading to burn-through or incomplete penetration. Therefore, high-precision tooling and fixtures are usually required.

l Programming and Maintenance Barriers: Although offline programming and drag-and-drop teaching technologies are available, they still require high levels of programming skills, welding process knowledge, and equipment maintenance expertise from operators.

l Large Initial Investment: The equipment itself, positioner, tooling and fixtures, safety protection systems, and subsequent maintenance costs are relatively high.

In summary, the core characteristics of arc welding robots lie in their stability, efficiency, and precision, significantly improving the consistency of welding quality and the level of production automation. However, it also places higher demands on the precision of upstream processes (material preparation, beveling, assembly) and process management and maintenance.

Characteristics of Spot Welding Robots

Due to the use of an integrated welding gun, the welding transformer is mounted behind the welding gun, so the transformer of the spot welding robot must be as miniaturized as possible. Currently, new timers are microcomputer-based, so the robot control cabinet can directly control the timer without the need for a separate interface.

The welding gun of the spot welding robot uses an electric servo welding gun. The opening and closing of the welding gun is driven by a servo motor, with code disk feedback, allowing the opening degree of the welding gun to be arbitrarily selected and preset according to actual needs, and the clamping force between the electrodes can also be steplessly adjusted.

The characteristics of spot welding robots can be summarized as follows:

1. Extremely high motion speed and short cycle time

l High-speed motion: Spot welding robots typically use AC servo motors for driving, possessing extremely high acceleration and motion speed (maximum speeds can reach over 2.0 m/s) to achieve rapid jumps between hundreds of welding points. 1. Extremely

l Short Cycle Time: Single-point welding time typically requires only 1.5-3 seconds (including pressurization, energization, maintenance, and pause). The robot can complete precise positioning between weld points at extremely high speeds, meeting the high cycle time requirements of automotive production lines where a car rolls off the line every tens of seconds.

2. High Load Capacity and High Rigidity Structure

l Heavy Load: Spot welding robots require an integrated welding transformer, welding clamp (including electrode arms), cables, and water-cooling piping. The overall load is typically between 100kg and 500kg (significantly higher than the 6kg-20kg of arc welding robots).

l Structural Reinforcement: Due to the significant impact and reaction forces generated when the welding clamp closes and applies pressure (the pressure typically reaches 300kgf-600kgf), the robot body and wrist structure must possess extremely high rigidity to ensure that the weld point position does not shift during the instant of pressure application.

3. Integrated Welding Gun and Servo Control Technology

l Integrated Welding Gun: To reduce cable loss and improve response speed, spot welding robots typically use integrated transformer welding guns (transformer and welding gun integrated), directly mounted on the robot's wrist.

l Servo Welding Gun (Servo Motor Driven): Modern high-end spot welding robots widely use servo welding guns, which offer significant advantages over traditional pneumatic welding guns:

² Longer Electrode Life: Precise control of electrode closing speed reduces impact spatter.

² Precise and Adjustable Pressure: Welding pressure can be dynamically adjusted according to sheet thickness and number of layers.

² Flexible Stroke: Automatic adjustment of the opening stroke according to different workpieces, eliminating the need to replace cylinders or adjust limit switches.

² Quality Monitoring: Real-time feedback on electrode wear facilitates predictive maintenance.

4. Complex External Axis Linkage and Spatial Accessibility

l Multi-Axis Collaboration: On automotive body-in-white welding lines, spot welding robots typically need to be linked with servo positioners or a seventh axis (ground/ceiling rail) to achieve all-position welding of large and complex curved surfaces such as body panels, roofs, and floor plates.

l Obstacle Avoidance Capability: The complex structure of the vehicle body and the dense number of weld points (a typical vehicle has 3000-5000 weld points) necessitate complex path planning capabilities from the robot to prevent interference between the welding gun and the vehicle body or fixtures in confined spaces.

5. High Dependence on Tooling, Fixtures, and System Integration

l Precise Positioning: Spot welding has a low tolerance for workpiece assembly gaps. To ensure weld quality (weld nugget diameter, penetration rate), high-precision welding fixtures are typically required to completely fix the workpiece, preventing gaps or misalignment during pressurization.

l System Complexity: The spot welding robot workstation integrates not only the robot body but also a water cooling system (cooling the welding gun transformer and electrodes), an electrode grinder (automatically grinding the electrode head to maintain conductivity), a welding controller, and a group control system (staggering power supply timing when multiple robots work simultaneously to avoid grid fluctuations).

6. Intelligent and Online Quality Monitoring

l Adaptive Compensation: Modern spot welding robots possess adaptive capabilities to address electrode wear, workpiece thickness variations, and current shunting. They can adjust welding current and pressure application time in real time by monitoring parameters such as dynamic resistance and electrode displacement.

l Quality Traceability: Welding parameters for each weld point (current, pressure, time, electrode wear count) can be uploaded to the Manufacturing Execution System (MES), enabling full lifecycle quality traceability. This is a common requirement in automotive industry quality systems (such as IATF 16949).

Summary: The core characteristics of spot welding robots can be summarized as: high load capacity, high-speed point-to-point motion, precise pressure application by servo welding guns, and system integration highly dependent on tooling and fixtures.

In the automotive manufacturing field, spot welding robots are core equipment on the body-in-white production line. The technical challenges lie not only in the high-load motion control of the robot itself but also in the deep integration of welding processes and automation systems—including electrode wear compensation, multi-machine collaborative control, and real-time monitoring of welding quality. If you are evaluating the application of spot welding robots, it is recommended to focus on: workpiece positioning accuracy, electrode regrinding cycle settings, and redundant design of the cooling system. These are often key factors affecting production line uptime.

This concludes the introduction to the classification and characteristics of welding robots. Welding robots are widely used in various industries. Their emergence has improved the labor intensity of manual labor, allowing them to work in complex environments, operate continuously, increase labor productivity, and reduce enterprise investment.
