Causes and effective solutions for noise in pipe bending machines

Abnormal noise during the operation of a pipe bending machine is often a distress signal from the equipment. Ignoring this noise not only affects the working environment but can also accelerate component damage and even cause downtime. The following analysis of common noise types provides the causes and corresponding solutions.

1. Hydraulic System Noise (Abnormal Pump Noise, Sharp Whistling)

Possible Causes:

* Low hydraulic oil level, air intake in pump

* Clogged suction filter, insufficient oil supply

* Oil viscosity too high, emulsified, or contaminated

* Pump shaft wear or internal parts damage

Solutions:

* Check oil level and replenish to the specified mark

* Replace suction and return filters

* Replace with clean, appropriately viscous hydraulic oil

* If the pump body is damaged, repair or replace the hydraulic pump.

2. Mechanical Transmission Noise (Gear Grinding Sound, Metal Clashing Sound)

Possible Causes:

* Worn or excessively wide clearance in the bending arm gears or rack

* Damaged bearings or poor lubrication

* Worn gears inside the reducer

* Loose bolts

Solutions:

* Inspect gear teeth; replace if severely worn; adjust meshing clearance

* Replace damaged bearings and add sufficient grease

* Check reducer oil level and gear condition; change oil or repair as needed

* Tighten all loose bolts, especially those related to mold fixing and transmission.

3. Pipeline Vibration and Resonance Noise (Low-Frequency Humming)

Possible Causes:

Hydraulic pipelines are not securely fixed, causing them to collide.

The inner diameter of the oil pipe is too small or the flow rate is too high.

Poor contact between the equipment and the ground causes resonance.

Solutions:

Add pipe clamps to prevent pipeline collisions.

Check if the oil pipe diameter matches the system flow rate.

Adjust the equipment's foundation bolts and install rubber vibration damping pads.

4. Motor and Fan Noise (Continuous Sharp Sound or Friction Sound)

Possible Causes:

Damaged or loose motor/fan blades.

Weared motor bearings.

Blocked cooling ducts.

Solutions:

Inspect and tighten or replace the fan blades.

Replace the motor bearings.

Clean dust and oil from the motor fan cover and heat sink.

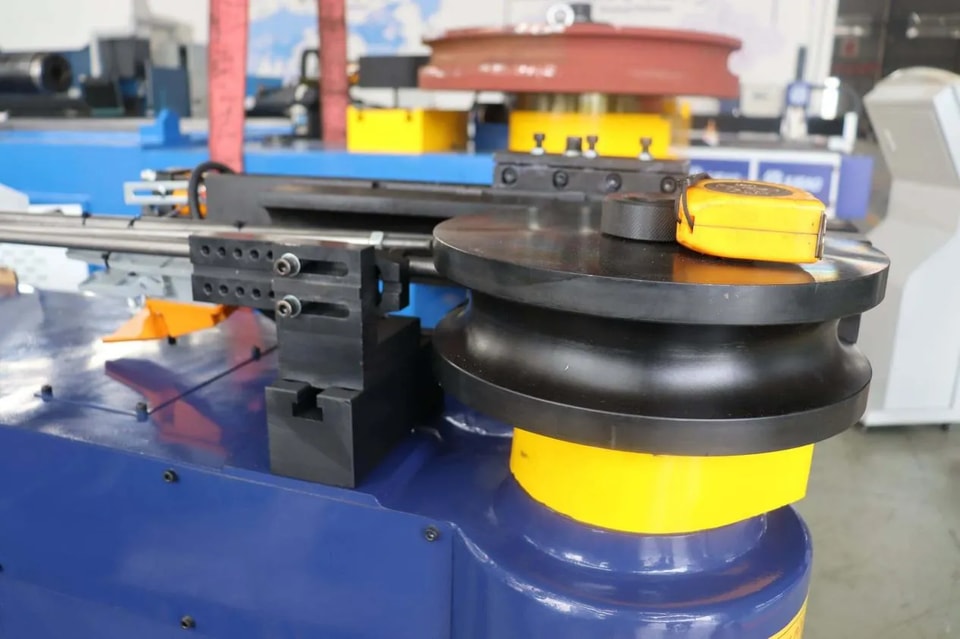

5. Noise from friction between the mold and the pipe (a sharp, squeaking sound)

Possible causes:

Insufficient lubrication, dry friction

Insufficient clearance between the anti-wrinkle mold and the pipe

Accumulated debris or burrs on the mold surface

Solutions:

Apply sufficient bending lubricant to the bending mold grooves, mandrel, and anti-wrinkle mold.

Adjust the anti-wrinkle mold clearance to ensure a tight fit with the pipe without jamming.

Clean the mold surface, remove burrs, or replace worn molds.

Troubleshooting noise from pipe bending machines should follow the principle of "first identifying the source of the noise, then addressing it accordingly." Regular maintenance and inspection, focusing on five areas—hydraulic system, mechanical transmission, piping, motor, and mold—can effectively eliminate abnormal noise and extend equipment lifespan.
