Troubleshooting Guide for JUGAO Press Brake Proportional Valves

Proportional valve malfunctions are one of the most prevalent problems plaguing JUGAO press brakes, often leading to issues like imprecise metal bending, unstable hydraulic pressure, and in severe cases, full machine downtime. This comprehensive troubleshooting guide breaks down the most common proportional valve problems, walks you through a step-by-step diagnostic and repair process, and outlines essential preventive maintenance measures. Whether you’re dealing with low hydraulic pressure, unresponsive machine movements, or a stuck valve, this guide will help you restore your JUGAO press brake to its optimal working condition quickly and effectively.

Common Proportional Valve Problems in JUGAO Press Brakes

The proportional valve is the core component of a JUGAO press brake’s hydraulic system, governing the flow and pressure of hydraulic fluid to ensure precise control over every bending operation. Below are the three most frequent issues with this critical part, along with their root causes and initial solutions:

Abnormally Low or Fluctuating Hydraulic Pressure

Uneven pressure or a sudden pressure drop during operation is a telltale sign of a proportional valve issue, which directly causes uneven bends and compromised workpiece quality.

• Root Cause: A clogged or partially seized valve restricts the normal flow of hydraulic fluid, disrupting stable pressure regulation.

• Preliminary Solution: Conduct a thorough inspection and deep cleaning of the valve to clear all blockages in the fluid channels. If cleaning fails to resolve the pressure issue, valve replacement may be required.

Slow or Unresponsive Ram Movements

If the press brake’s ram moves sluggishly or fails to act on operational commands, the proportional valve is almost certainly malfunctioning.

• Root Cause: This issue typically stems from wear and tear on the valve’s internal parts or physical damage to key valve components.

• Preliminary Solution: Examine the valve for visible signs of wear, corrosion, or damage. For unresponsive valves, perform a recalibration first; if recalibration is ineffective, replace the valve promptly.

Inconsistent Bending Precision

Inconsistent accuracy across consecutive bending operations indicates that the proportional valve is unable to adjust hydraulic pressure dynamically and accurately during the process.

• Root Cause: Valve malfunctions prevent proper real-time pressure regulation, leading to deviations in bending angles and dimensions.

• Preliminary Solution: Inspect the valve for damage and verify its calibration status. Recalibrate the valve to restore precise pressure control, or replace it if damage is found.

Step-by-Step Diagnosis and Repair of JUGAO Press Brake Proportional Valves

Troubleshooting and repairing the proportional valve requires a systematic, step-by-step approach to avoid misdiagnosis and unnecessary part replacement. Follow these four key steps for effective resolution:

Step 1: Inspect the Valve for Hydraulic Leaks

Hydraulic leaks are a primary cause of pressure loss and reduced machine efficiency, so leak inspection is the first and most critical step in the troubleshooting process.

• Operational Steps: Check all connection points and sealing elements of the proportional valve for oil seepage or leakage. Tighten any loose fittings immediately and replace damaged or worn seals with new, matching parts.

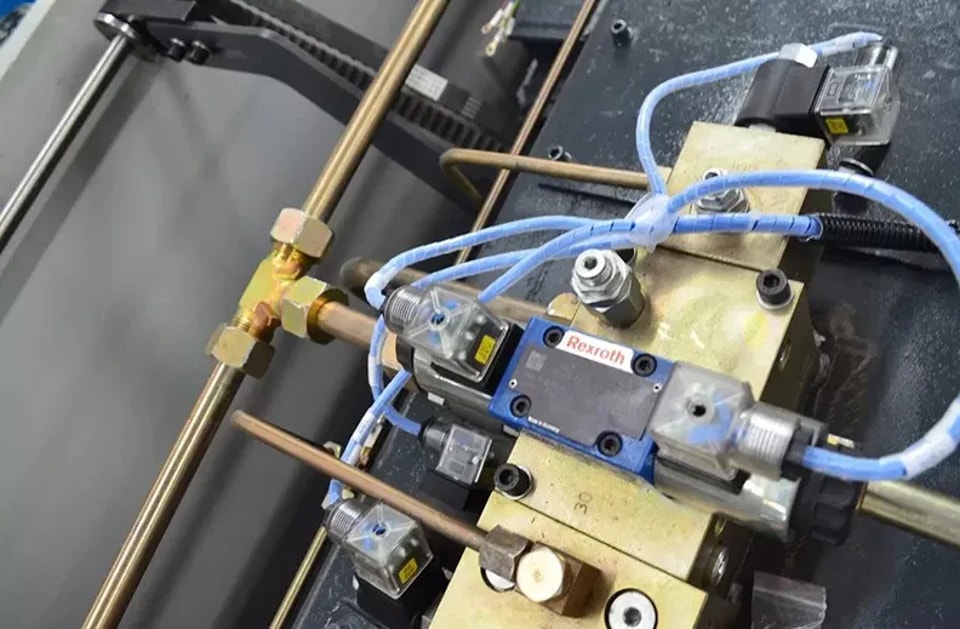

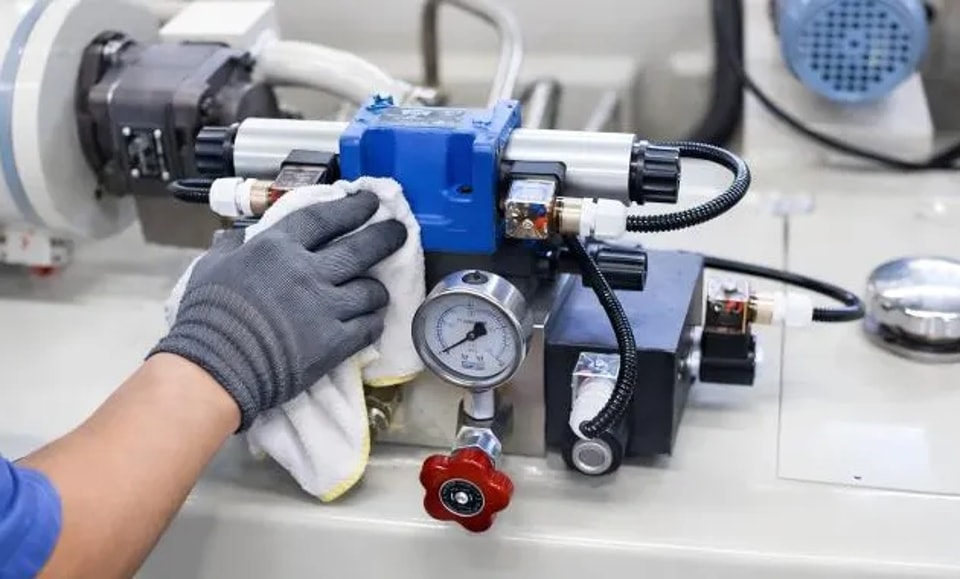

Step 2: Deep Clean All Valve Components

Dirt, metal shavings, and hydraulic fluid contaminants are major culprits of valve seizing and malfunction, making thorough cleaning an indispensable troubleshooting step.

• Operational Steps: Disconnect the proportional valve from the JUGAO press brake, then perform a full disassembly and deep clean. Use compressed air to blow out all debris from the valve’s internal channels and check for sediment buildup on core components, removing all contaminants completely.

Step 3: Test the Valve’s Functional Performance

After cleaning, a comprehensive functional test is essential to verify whether the valve can resume normal pressure and flow regulation.

• Operational Steps: Conduct a professional hydraulic pressure test to check if the valve can regulate pressure in accordance with operational requirements. If the test reveals irregular pressure regulation or unresponsive flow control, perform a full recalibration of the valve to restore its performance parameters.

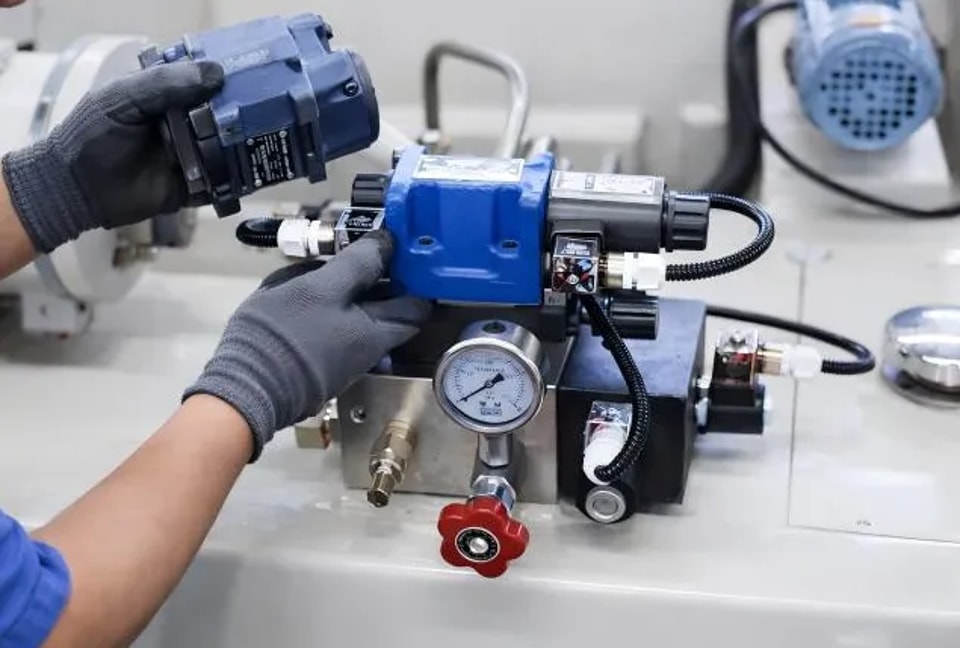

Step 4: Replace the Valve When Necessary

If cleaning and recalibration fail to resolve the malfunction, the valve is likely worn out or irreparably damaged, and replacement is the only viable solution.

• Operational Steps: Carefully remove the faulty proportional valve, ensuring no damage to the hydraulic pipeline or connecting parts. Install a new valve that fully matches the technical specifications of your JUGAO press brake, and perform a preliminary pressure test to confirm proper installation.

Preventive Maintenance Measures to Extend Proportional Valve Lifespan

Proactive preventive maintenance is far more effective than reactive troubleshooting for keeping the JUGAO press brake’s proportional valve in good condition and avoiding unplanned downtime. Implement these three core measures to maximize the valve’s service life:

Establish a Regular Maintenance Routine

Regular, scheduled maintenance is the foundation of extending the proportional valve’s lifespan and ensuring consistent machine performance.

• Action Plan: Create a fixed maintenance schedule based on the press brake’s daily operating hours. Conduct routine inspections, cleaning, and leak checks of the proportional valve during each maintenance session to keep the machine running at peak efficiency.

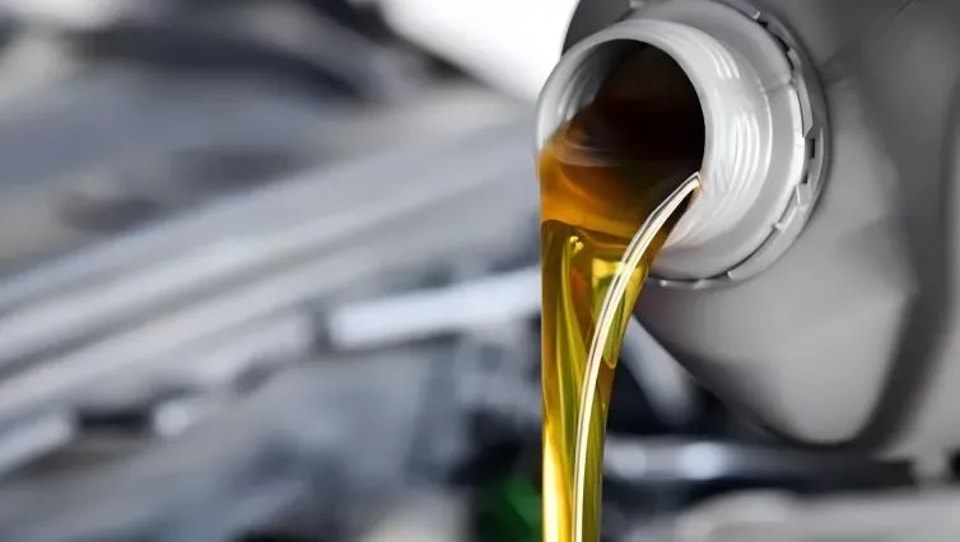

Use High-Quality Specified Hydraulic Fluid

Low-quality or non-specified hydraulic fluid accelerates valve wear, causes internal clogging, and degrades sealing performance, leading to premature valve failure.

• Action Plan: Always use the hydraulic fluid recommended by JUGAO for your press brake model, and replace the fluid at the specified intervals. Regularly check the fluid’s cleanliness and viscosity, and top up or replace it in a timely manner to ensure smooth valve operation.

Ensure Regular and Accurate Valve Calibration

Proper calibration is critical to the proportional valve’s ability to maintain precise pressure control, which directly impacts bending accuracy and overall machine performance.

• Action Plan: Perform a full calibration of the proportional valve on a regular basis, and conduct a recalibration immediately after any maintenance, repair, or part replacement work. This ensures the valve maintains consistent and precise pressure regulation for every bending operation.

Frequently Asked Questions (FAQs)

How can I identify a malfunctioning proportional valve in my JUGAO press brake?

The most obvious warning signs include fluctuating hydraulic pressure during operation, slow or unresponsive ram movements, and inconsistent bending precision across workpieces. If you notice any of these issues, inspect and test the proportional valve for damage, blockages, or calibration deviations immediately.

Can cleaning the proportional valve resolve all performance issues?

Cleaning can effectively fix problems caused by dirt, debris, or sediment buildup in the valve. However, if the issue stems from wear, corrosion, physical damage, or faulty calibration, cleaning alone will not resolve the problem, and further inspection or part replacement will be needed.

When is the right time to replace the JUGAO press brake’s proportional valve?

Replace the proportional valve when it shows clear signs of wear, corrosion, or physical damage; or when it experiences repeated malfunctions that cannot be resolved by cleaning, recalibration, or minor part repairs. Timely replacement prevents further damage to the press brake’s hydraulic system.

Conclusion

Troubleshooting proportional valve issues in JUGAO press brakes is a straightforward process when following a systematic, step-by-step approach. By identifying the common problems outlined in this guide and executing the diagnostic and repair steps correctly, you can quickly restore your press brake’s efficient and consistent operation.

The key to minimizing proportional valve malfunctions and extending its service life lies in proactive preventive maintenance: regular inspections and cleaning, the use of high-quality hydraulic fluid, and accurate, timely calibration. These measures not only reduce unplanned machine downtime but also ensure consistent bending quality and protect the overall integrity of the press brake’s hydraulic system.

If you encounter any difficulties during the troubleshooting, repair, or maintenance process, or if you are unsure about performing any of these operations, do not hesitate to contact our professional technical support team. We are dedicated to providing comprehensive assistance to keep your JUGAO press brake running smoothly and efficiently for long-term production.
