Step-by-Step Guide to ESA S640 Punch Setup

If you’re looking for a comprehensive tutorial on setting up punches for the ESA S640 press brake, this guide has you covered. We’ll break down every step of the ESA S640 punch setup process in detail, ensuring your operations run smoothly and with pinpoint precision. Whether you’re a seasoned metalworking professional or just starting out with the ESA S640, this walkthrough will resolve your uncertainties and equip you with the skills to complete punch setup efficiently—ultimately optimizing your metal fabrication workflows.

Punch List Management

The first step in ESA S640 punch setup is accessing and effectively managing the punch list, which lays the foundation for organized and efficient tool operation. Below is a detailed breakdown of how to access the list and manage your punch tools.

Accessing the Punch List

1. Toggle the Display: Press the dedicated switch button to switch between the punch list and die list. The interface may default to the die list, so a second press of the button will bring up the punch list.

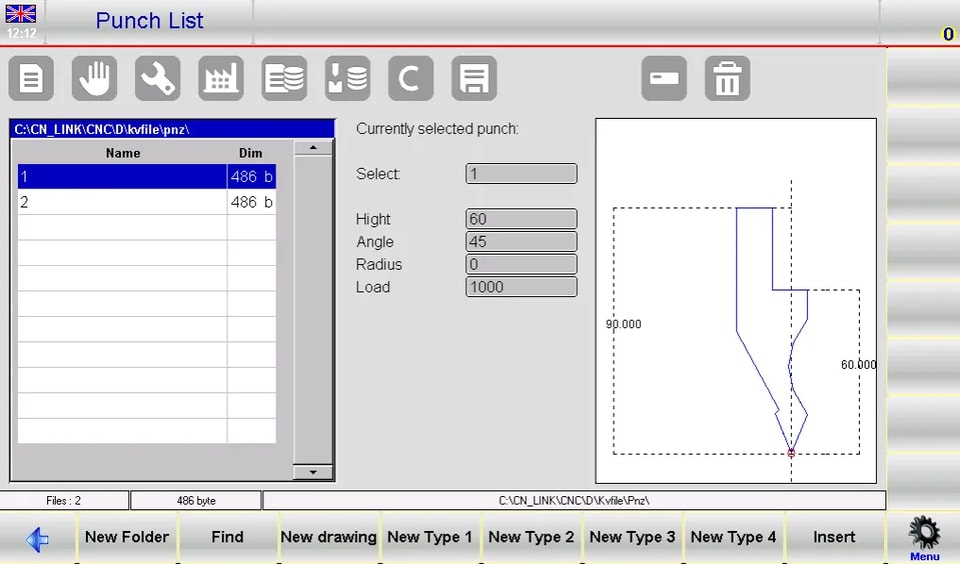

2. Understand the Interface Layout: Once the punch list is displayed, the interface is divided into three core sections:

￮ The left pane shows the complete catalog of all available punches.

￮ The central box set displays all technical data associated with the currently selected punch.

￮ The right pane provides a visual preview of the punch that is highlighted in the list.

Efficient Punch Management

Master the use of the system’s function buttons to navigate and manage the punch list with ease, and make the most of preview, editing, and data backup features for a streamlined workflow.

Navigating with Function Buttons

Use the built-in function buttons to perform core operations on the punch list:

• [New Folder]: Create dedicated folders to categorize and organize punches for different projects or operations.

• [Find]: Quickly search for and locate a specific punch from the full list, eliminating the need for manual scrolling.

• [New Drawing]: Design a completely custom punch from scratch to meet unique fabrication requirements.

• [New Type]: Choose from pre-configured punch types (Type 1, 2, 3, 4) to speed up the setup process for standard applications.

• [Insert]: Add the selected punch to your active work program or assign it to a specific bending operation.

Preview and Modification Tools

• Enable Tool Preview: The tool preview function is enabled by default to help you quickly identify punches visually; it can be toggled on or off as needed. To adjust this setting, open the system menu and select the 4>> Preview option.

• Copy a Punch: Select the target punch, open the menu, and choose 0>> Copy. Enter a unique name for the copied punch and confirm the action to save it.

• Rename a Punch: Highlight the punch you want to rename, access the menu, and select 1>> Rename. Input the new name and confirm to apply the change.

Erasing and Backing Up Punches

• Erase a Single Punch: Select the punch to be deleted, confirm your selection in the pop-up prompt, and press [Ok] to remove it from the list.

• USB Backup & Deletion:

￮ Save to USB: Insert a USB drive into the ESA S640 port, open the menu, and select 2>> Save Tools to back up all punches and dies to the external device.

￮ Erase All Tools: To clear the entire internal punch and die catalog, select 3>> Delete Tools from the menu and confirm with [Yes].

• Manage USB-Stored Tools: Insert a USB drive with pre-saved punch and die data into the system. You can access and manage these external tools using the same operations as the internal tool list.

• Transfer to Internal NC Disk: To save USB-stored tools to the ESA S640’s internal NC disk, select the 2>> Save Tools option from the menu.

Proper punch list management streamlines your ESA S640 setup workflow, ensures precision in metalworking tasks, boosts overall productivity, and cuts down on tool setup time significantly.

How to Create a New Punch in ESA S640

Creating a new punch is the core of the ESA S640 setup process, and it can be done by either designing a custom punch from scratch or modifying pre-set punch types to fit your needs. Follow the step-by-step instructions below to complete the process accurately.

Step 1: Initiate New Punch Creation

1. Open the Tool Library: Press the designated tool library button to bring up the punch list on the interface.

2. Switch to the Punch Section: If the die list is displayed by default, press the tool library button again to toggle to the punch list.

3. Select a Punch Configuration Method: Choose your preferred way to create a punch—either design a fully custom punch from scratch or use one of the four pre-set punch types with fixed default dimensions (the pre-sets can be adjusted to match your specific operational requirements).

> Important Note: Accurate punch drawings are essential for the system’s

workpiece anti-collision checks, and precise punch dimensions are the basis for calculating bending depth. If designing a custom punch from scratch is challenging, select a pre-set type and adjust its parameters to closely match the actual punch shape using the system’s predefined data fields.

4. Select the Corresponding Button:

￮ Press [New Drawing] to design a fully custom punch.

￮ Press [New Type 1]/[New Type 2]/[New Type 3] to use the respective standard pre-set punches.

￮ Press [New Type 4] to access the pre-set round punch.

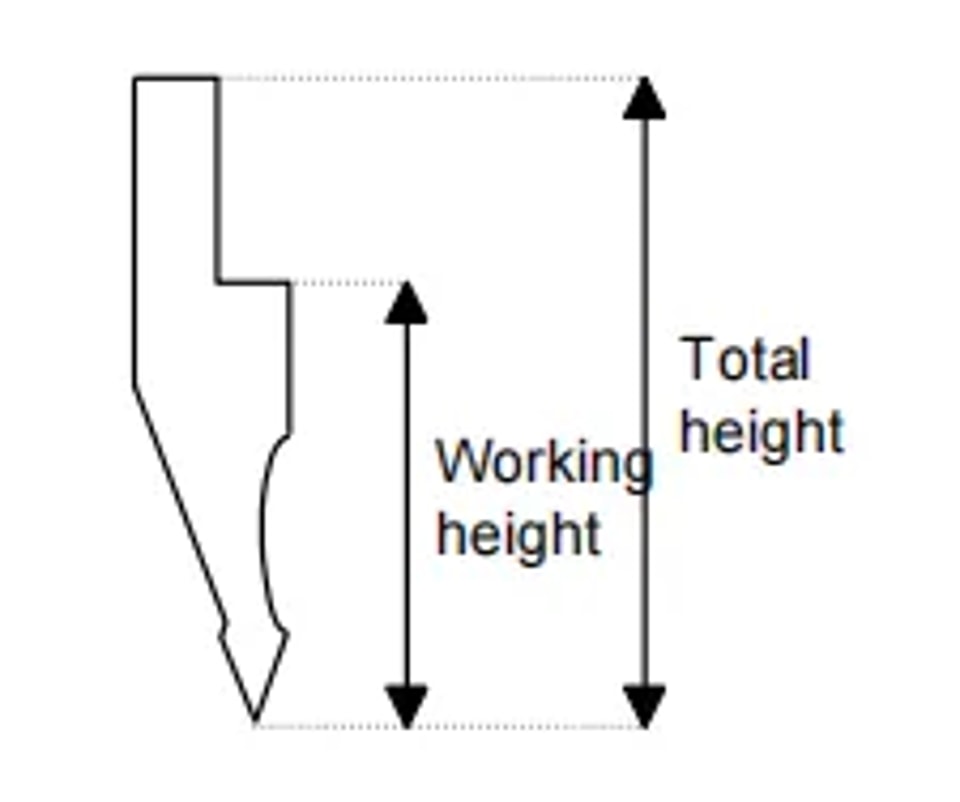

5. Input Punch Specifications: After selecting a punch type, a parameter entry window will pop up. Enter key dimensional data such as the punch’s total height and working height, ensuring all values align with your fabrication needs.

6. Enter the Drawing Page: Once the basic dimensions are entered, press [Ok] to access the punch drawing page. The page layout will vary based on the punch type selected. Finalize the punch design here to ensure it meets the requirements for the system’s anti-collision checks and bending depth calculations—both critical for operational safety and machining accuracy.

Following these steps carefully ensures your new punch setup is precise and tailored to your specific metalworking operations.

Step 2: Draw the Punch Geometry

After entering the basic punch parameters, the next step is to draw the precise punch geometry using the ESA S640’s integrated drawing tool. This step creates an accurate digital representation of the punch and prevents machining errors caused by mismatched tool geometry. The drawing function is accessed via the system’s dedicated drawing module, with additional details available in the official ESA S640 user manual.

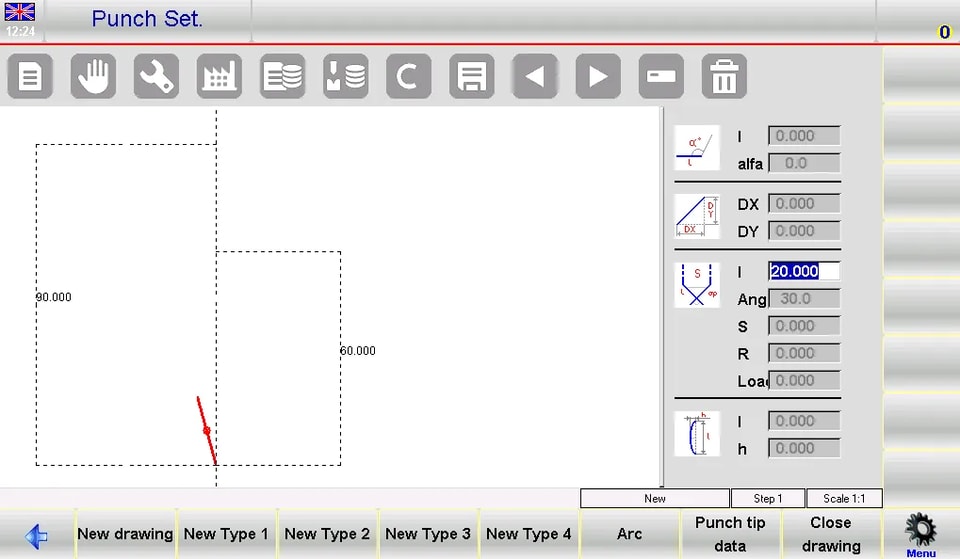

The drawing interface consists of a left-side drawing workspace and four right-side data entry panes, which are used to input polar coordinates, Cartesian coordinates, vertex points, and arc drawing parameters respectively.

Key Drawing Rules & Vertex Entry

Adhere to the following conventions to ensure the accuracy of your punch drawing:

1. Draw Counterclockwise: Always draw the punch geometry in a counterclockwise direction, and keep in mind that the machine’s back-gauges are located on the right side of the punch.

2. Define the Punch Tip (Critical Step): The punch tip is the most important part of the drawing. Start by entering the tip length “lp”, then complete the following steps:

￮ Enter and confirm the tip angle and chamfer dimensions (if required).

￮ Input the tip radius (in the R data field) and press [Ok].

￮ Enter the punch load (maximum tons per meter) and confirm the value. This sequence will draw the punch tip, and the system will apply a default length for the remaining punch sections for further editing.

Detailed Drawing Instructions

Using a standard punch as an example, follow these steps when working in the “lp” data field:

• Input Tip Data Sequentially: Enter the tip’s length and angle values one by one in the designated fields.

• Use the Arc Function for Curves: Press the [Arc] key to create smooth curved sections on the punch; enter the corresponding length and depth values for the arc to generate the shape.

• Fine-Tune Measurements: Use the system’s ±1° (angle) and ±1mm (length) graphic adjustment tools to refine punch sections, ensuring the digital drawing matches the physical punch as closely as possible.

Correct and Save the Drawing

• Make Corrections: If you enter incorrect data, navigate to the relevant data field to edit and correct the value.

• Save the Design: Once the drawing is complete, save it to the system’s internal memory. Name the punch using a combination of letters and numbers (for easy identification) and press [Ok] to confirm the save.

Step 3: Work with Pre-Set Punches

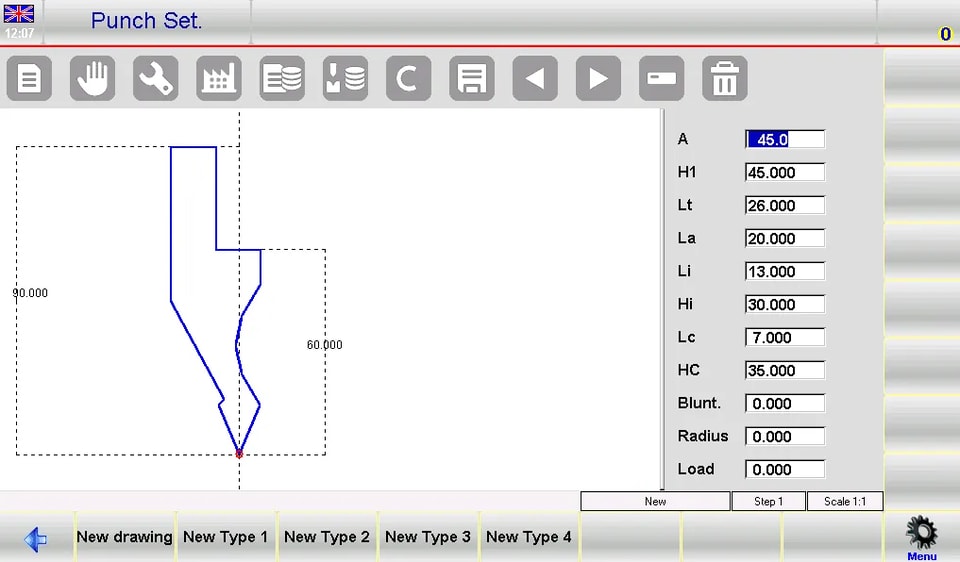

The pre-set punch interface features a pre-drawn punch geometry alongside a full set of editable data fields that define the punch’s shape and dimensions. Modifying any value in these fields and pressing [Ok] will automatically redraw the punch geometry to reflect the updated parameter, making it easy to adapt standard pre-sets to your needs.

Save Customized Pre-Set Punches

After adjusting the pre-set punch parameters to your requirements, save the customized design for repeated use in future operations:

1. Press the system’s save button to store the modified punch in the ESA S640’s internal memory.

2. Name the punch with an alphanumeric label (we recommend using the punch’s official catalogue code for easy reference).

3. Click [Ok] to confirm the save. This step ensures your customized setup is stored securely and can be accessed quickly for subsequent production runs.

Finalize the Punch Setup

Once all punches are configured, drawn, and saved, perform a full system check to verify the accuracy of all punch entries, parameters, and drawings. This final verification step minimizes the risk of operational errors and ensures the highest level of precision in all press brake bending tasks.

By following these detailed steps for ESA S640 punch and die setup, you’ll unlock the full capabilities of the system and significantly boost your production efficiency. Accurate punch setup is not only key to precise metalworking but also extends the service life of your ESA S640 press brake and its tooling.

Frequently Asked Questions (FAQ)

What is the recommended frequency for checking and updating the ESA S640 punch setup?

We recommend reviewing and updating your ESA S640 punch setup every 300 to 500 operating hours. Regular maintenance checks should include verifying the physical integrity of punch tools, recalibrating punch parameters in the system, and cleaning the tooling and relevant machine components to ensure optimal performance.

Can the ESA S640 support custom punch designs during setup?

Yes, the ESA S640 system fully supports the creation of custom punch designs during setup. Use the system’s [New Drawing] feature to design, draw, and save fully customized punch configurations that meet the unique requirements of your specific metalworking projects.

What steps should I take if a punch is misaligned in the ESA S640 setup?

If you encounter punch misalignment issues, first review the official alignment procedures outlined in the ESA S640 user manual. Ensure the physical punch is properly seated in the machine and that its digital configuration in the software is accurate. Utilize the system’s preview function to visually confirm the punch’s alignment in the digital workspace before starting any machining operations.

Conclusion

In summary, the ESA S640 punch setup process involves a series of key, structured steps that are essential for achieving optimal performance and precision in metalworking operations. By efficiently accessing and managing the punch list, leveraging pre-set punch types for fast setup, designing custom punches for unique needs, and performing regular maintenance and checks, you can significantly enhance the functionality of your ESA S640 press brake and extend its service life.

For more detailed technical support or to address any questions you may have about ESA S640 punch setup, we recommend contacting JUGAO. Additionally, explore our full range of technical documentation to gain further insights and guidance on maximizing the productivity and performance of your ESA S640 equipment.
