Regarding the degrees of freedom of industrial robots

In today's era of automated manufacturing, smart factories, and flexible production lines, industrial robots have become a "trump card" for enterprises to improve production efficiency and manufacturing precision. The term "degrees of freedom" appears frequently when selecting industrial robots, but many users new to industrial automation are still confused about its meaning. So, what are the degrees of freedom in industrial robots? Are more degrees of freedom always better? This article will delve into the definition of degrees of freedom, their performance impact, typical application scenarios, and answer a key question: Are more degrees of freedom always better?

What are the degrees of freedom in industrial robots?

In industrial robots, degrees of freedom typically refer to the number of spatial directions in which the robot can move independently, that is, the number of axes on which the robot's end effector (such as a welding torch, gripper, etc.) can move or rotate independently in three-dimensional space.

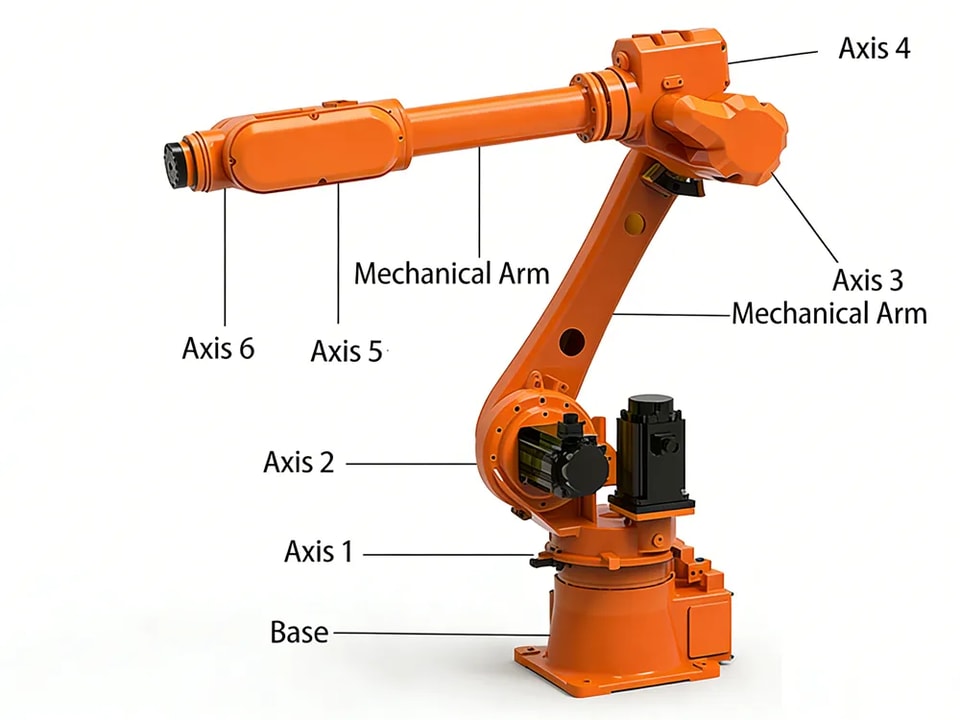

A typical six-axis robot has 3 degrees of freedom in motion and 3 degrees of freedom in rotation, enabling flexible operation across the entire space.

Four-axis robots are more focused on high-speed, precise operations within a horizontal plane.

Three-degree-of-freedom (DOF) robots also excel in lightweight sorting.

Key point: More degrees of freedom do not necessarily mean better performance; the choice must be tailored to the specific task scenario.

The impact of degrees of freedom on robot performance

1. Task Flexibility

Low degrees of freedom (1-3 axes): Suitable for simple path tasks such as handling and sorting; simple control logic and low maintenance costs.

High degrees of freedom (4-6 axes): Capable of adapting to more complex paths and spatial posture adjustments, such as automotive painting and precision welding.

2. Control Precision and Structural Rigidity

High degrees of freedom means more moving joints, placing higher demands on control algorithms and servo systems. Otherwise, error accumulation and dynamic stability issues may affect operational accuracy.

3. Cost and System Complexity

Each additional degree of freedom typically increases cost by 15% to 30%.

More complex systems mean a simultaneous increase in programming difficulty and maintenance costs, placing higher demands on maintenance personnel.

Full Analysis of Degrees of Freedom Application Scenarios

Six-Axis Robots: The Versatile Tool in Automotive Manufacturing

Six-axis robots, due to their excellent flexibility and spatial coverage capabilities, are widely used in welding, adhesive spraying, and assembly tasks in the automotive industry. For example, in welding car body structures, the multi-angle operation capabilities of six-axis robots significantly improve welding quality and efficiency.

Four-axis robots: Precision experts in electronics manufacturing

Four-axis robots excel in electronic component insertion and chip mounting. Their high repeatability and response speed on a horizontal plane make them the preferred choice for small-scale precision manufacturing.

Three-degree-of-freedom (DOF) robots: Highly efficient tools for food packaging

Three-DOF robots with a parallel structure stand out in the food and pharmaceutical packaging industries due to their ultra-high-speed movements. Although the number of degrees of freedom is low, their advantages are significant in high-frequency operations.

Is more degrees of freedom always better? Careful selection is key

While high degrees of freedom give robots greater flexibility, they also bring a series of hidden dangers:

Functional redundancy: Deploying six-axis or seven-axis robots for simple pick-and-place tasks will result in wasted resources.

Increased control complexity: While seven-axis robots can "mimic human movements" for obstacle avoidance, their inverse kinematics calculations become much more complex.

High maintenance costs: Each additional joint increases the potential failure rate, meaning higher maintenance costs and downtime risks.

Conclusion: More degrees of freedom are not necessarily better; adapting to the task scenario is the key principle. In summary: Choosing the right degrees of freedom unlocks a robot's maximum potential. The degrees of freedom of an industrial robot determine its range of motion, flexibility, and ability to adapt to complex environments. Properly configuring degrees of freedom can not only optimize production processes but also control costs and improve production line stability.

If you are selecting robotic equipment for your factory's intelligent transformation, remember: the most expensive degree of freedom is not necessarily the most suitable; rather, the degree of freedom that best matches the task is the most efficient!
