Operation Guide for the DELEM DA-69S System

Mastering the DELEM DA-69S controller is key to unlocking precision and efficiency in modern metal bending operations. If you're eager to quickly get up to speed with this advanced system, you've come to the right place.

In this guide, we’ll walk you through the core aspects of DELEM DA-69S operation, breaking down its key features and intuitive functionalities. Whether you're just starting out with the controller or looking to sharpen your existing skills, this article provides practical insights to help you navigate the interface with confidence and make the most of its powerful capabilities for your metalworking tasks.

Let’s dive in and accelerate your path to DA-69S proficiency.

Step 1: Familiarizing Yourself with the Interface

Start by becoming comfortable with the DELEM DA-69S interface. It features a user-friendly touch screen with intuitive navigation.

Beside the touch controls the front of the control consists of an emergency stop, the hand wheel and the start and stop buttons.

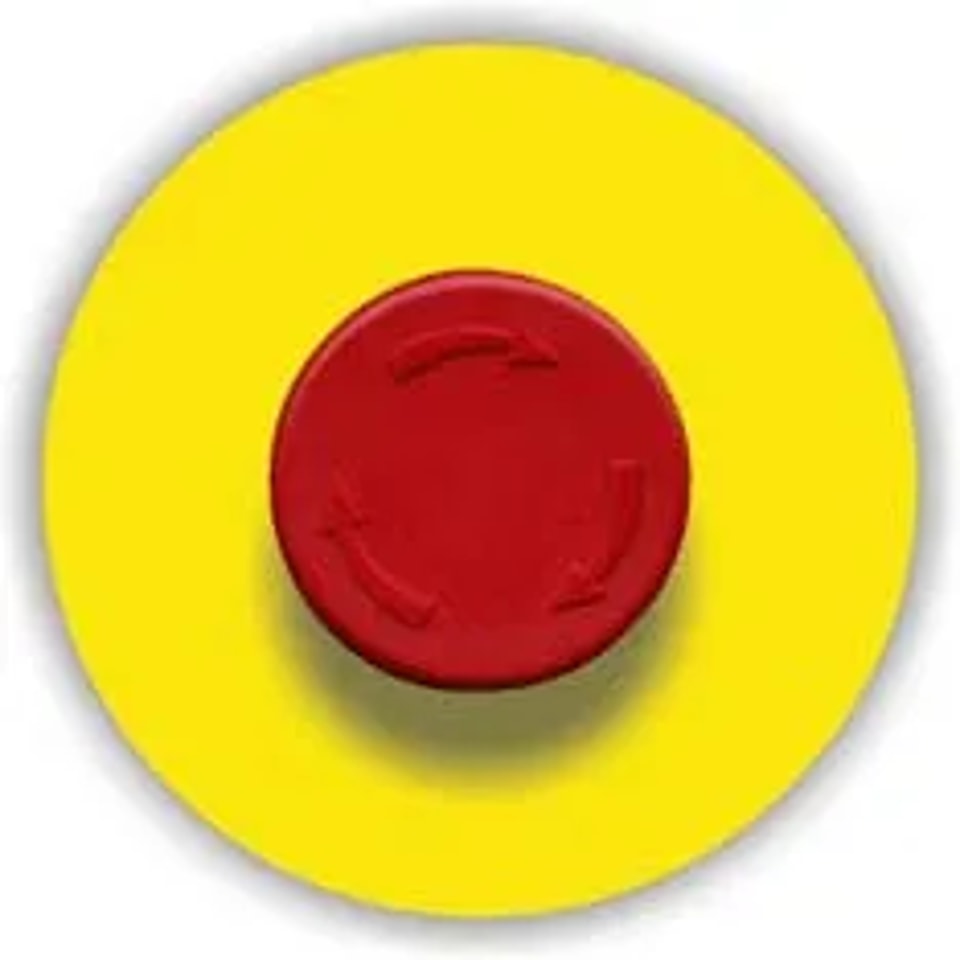

Emergency stop button, to be implemented by machine manufacturer.

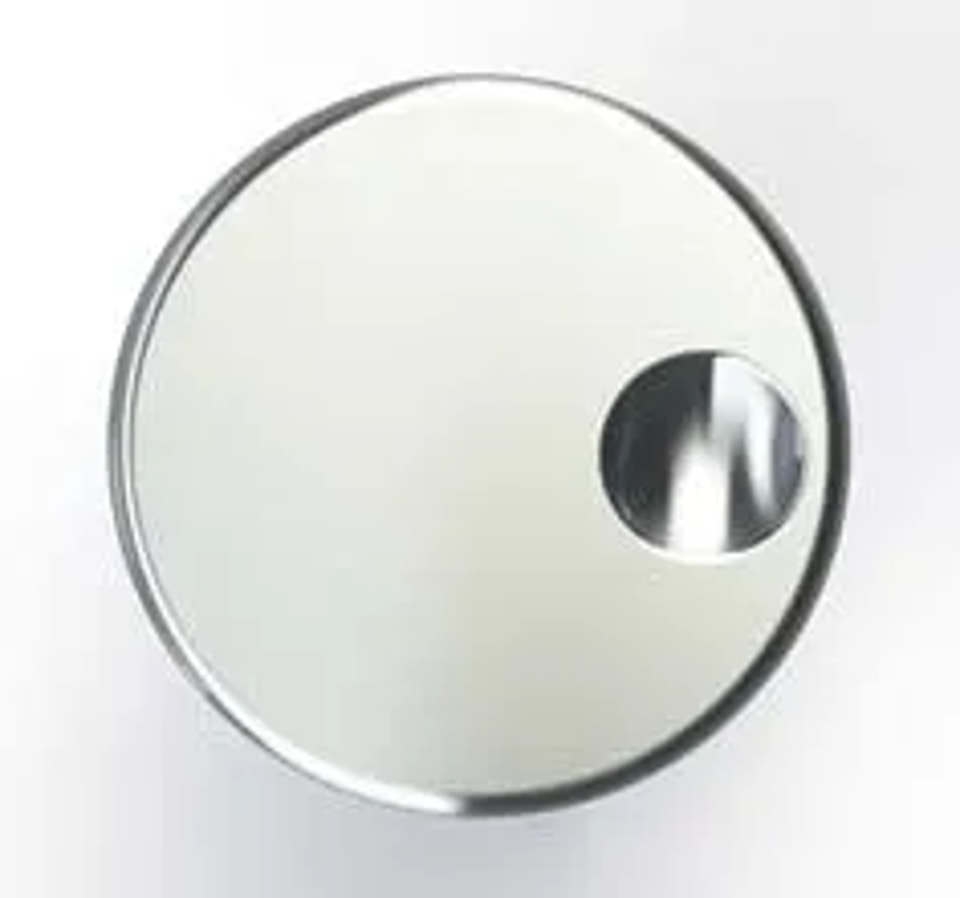

Hand wheel; manual control of any axis (Y + backgauge axes)

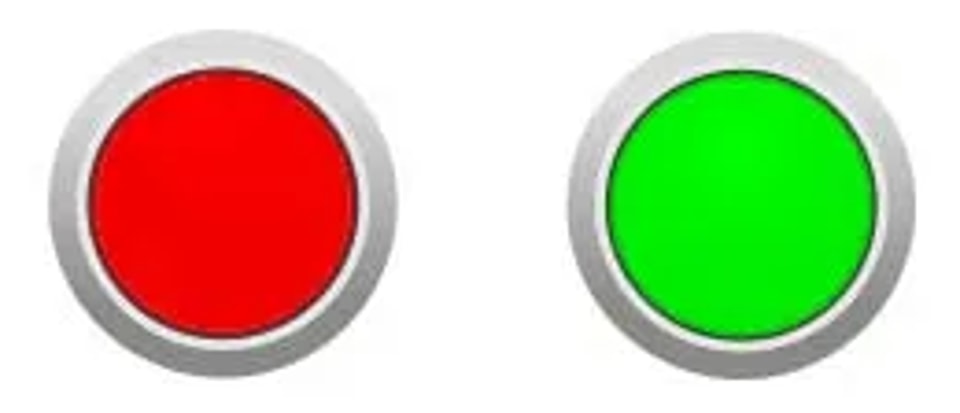

Stop button and Start button

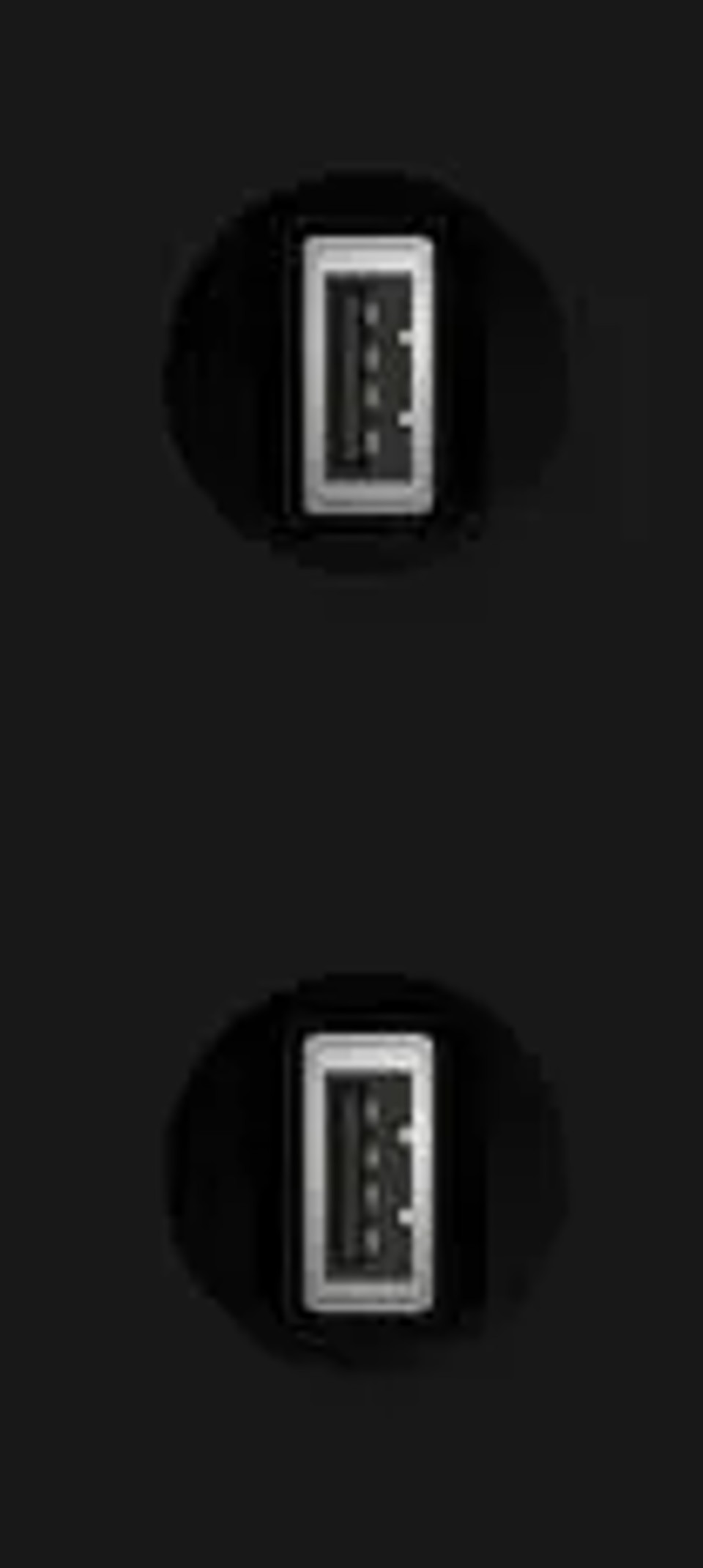

At the right side of the control two USB ports are available for connection of external devices, such as memory sticks or an external keyboard / mouse.

Spend some time exploring the menus and options available, familiarizing yourself with the layout. Understanding how to quickly access different functions can speed up your workflow and reduce setup times.

The control’s main screen looks as follows:

Just by tapping the various modes, the specific mode will be selected. The structure of the main screen is as follows:

Title panel

In the top the title panel is always shown. In this area you can find logo information, which product is loaded, the selected products directory and (when activated) the service row. Also machine indicators can be found here.

Information panel

In the information panel all functions and visualization related to the selected modus are displayed and can be found.

Command panel

The command panel is part of the Information panel and is the location where the controls related to the Information panel can be found.

Navigation panel

The Navigation panel is the area where all the major modes can be found. This area is always visible. The controls, large icons, can be used to directly switch from one mode to the other.

Step 2: Getting Started with DELEM DA-69S Operation

Preparations

To master the DELEM DA-69S Operation, it’s essential to make a few key preparations before starting product programming.

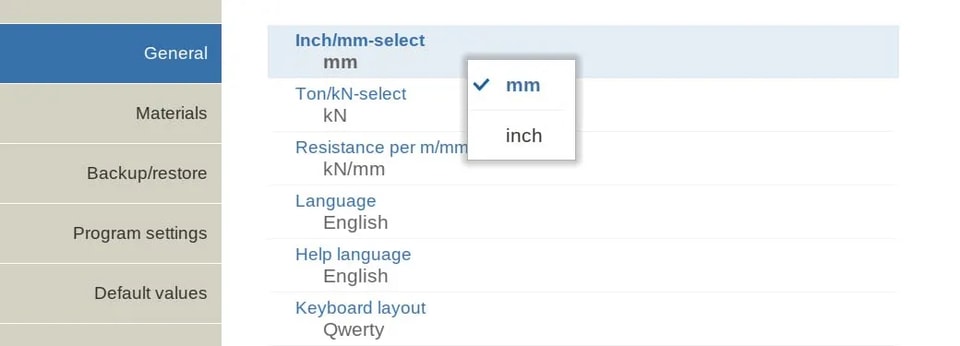

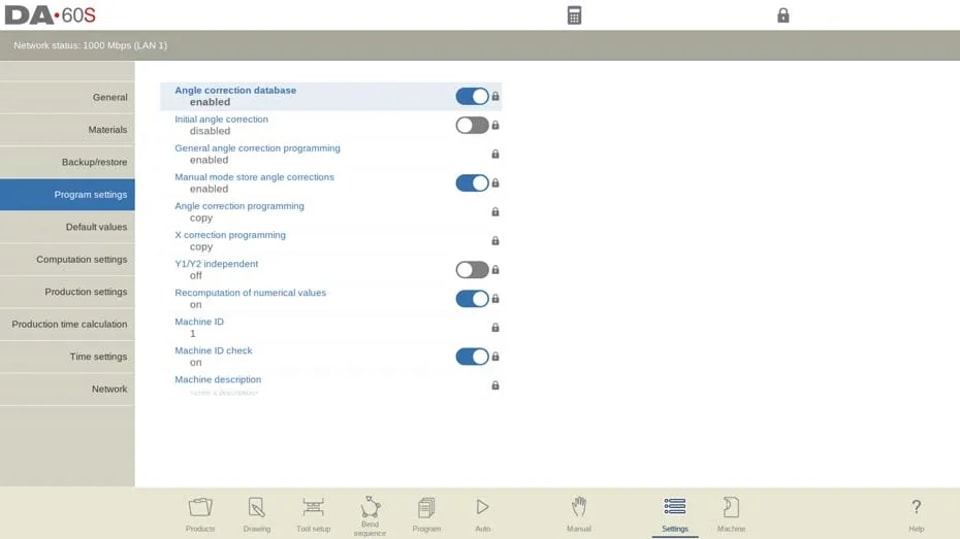

First, ensure that the correct material properties are programmed into the Material library. This is accessible on the Materials page within the Settings mode.

Next, you need to program the correct tools in the Tool library, as these are crucial for creating a CNC program. You can locate the libraries for various types of tools in the Machine mode.

By completing these steps, you’ll be well-prepared to efficiently utilize the DELEM DA-69S Operation.

Create a drawing

The DELEM DA-69S control allows you to create drawings of your products, enhancing your design capabilities. Here’s how to utilize this feature:

Access Drawing Functionality

l Tap Drawing: In the navigation panel, select “Drawing” to initiate a 2D or 3D drawing. Note that at this stage, bends or dimensions are not calculated.

Drawing Method on Touch Screen Control

1. Sketching:

² Tap the screen in the desired direction. Lines are drawn between points, with the final point marked by a large red dot.

² Utilize the ‘dragging’ feature by holding and moving your finger to adjust line direction or length. Adjust length and angle values as needed.

l Value Setting:

² After sketching, set precise angles and lengths by double-tapping the value to bring up the keyboard.

² Enter values using either:

Ø Enter Function: Closes the keyboard post-entry.

Ø Enter-Next Function: Keeps the keyboard open for subsequent inputs.

² If a mistake is made, use the “undo” button or backspace key to correct.

Enhance Drawing Experience

² Zoom Function: Pinch to zoom in or out.

² Fit-To-Screen: Tap the icon to resize the drawing for better visibility.

² Panning: Move drawings by dragging two fingers (3D) or a single finger (2D).

² Rotating: In 3D view, rotate the model by sliding a single finger.

Features of the Drawing Tool

² Design in both 2D and 3D.

² Enter dimensions for horizontal and vertical projections.

² Real-scale tool design options.

² Modify lengths, angles, and add/delete bends.

² Program special and hemming bends, or use bumping bends for large radii.

² Copy, change, and store existing products as new designs.

With these tips, you’re well-equipped to optimize your use of the DELEM DA-69S Operation for the JUGAO CNC MACHINE CNC Press Brake, resulting in precise and efficient production workflows.

Once you complete the product drawing, the DELEM DA-69S Operation offers Tool setup mode to program the exact tool set-up as it is organized on the machine. After this you can select the Bend Sequence mode to determine and simulate the required bend sequence.

Determine the bend sequence

Once you have determined the optimal sequence, you can generate the CNC program to streamline production. The Bend Sequence Computation offers various methods:

l Automatic calculation for minimized production time.

l Interactive and manual determinations available.

Additionally, the system provides tools to visualize potential collisions with either the tools or the machine, allowing for free selection among different tool and machine shapes to best fit your needs.

You’ll also find some additional Features:

l Assign turn times and back gauge speed.

l Compute blank length and production time.

l Simulate bending sequence and program finger positions.

Numerical program

The numerical program allows you to access and manage the active product values:

l Creating a CNC Program:

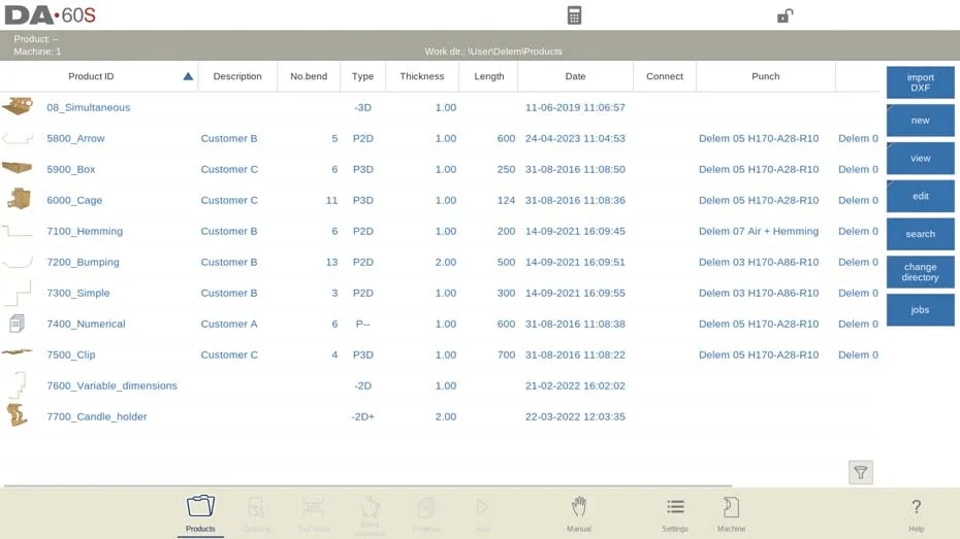

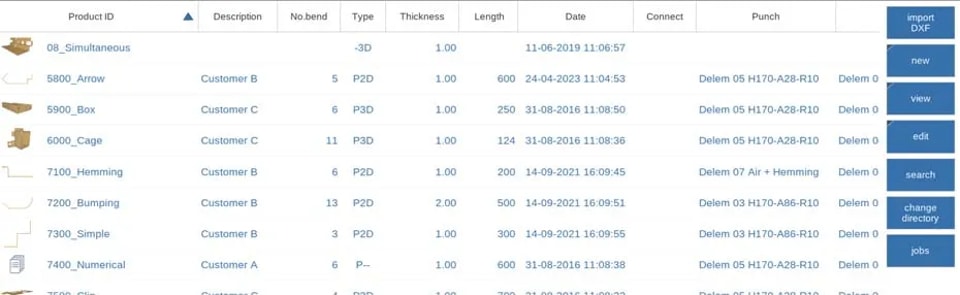

1. Manual Entry: Initiate via Products mode, step-by-step through ‘New Program’. Note that collision checks are absent; relies heavily on operator experience.

2. Graphical Generation: Start in Products mode, then ‘New Product’ via Drawing mode for visualization during production.

l Program Storage and Post-Processing:

² After completing a drawing with the bend sequence, store the program to convert it into a numerical format.

² Automatic calculations adjust machine configurations like force, Y-axis, X-axis, R-axes positions, etc.

Production Modes: Auto and Manual

In the DELEM DA-69S Operation, there are two primary production modes to accommodate different manufacturing needs: Auto and Manual.

In Auto Mode, the system executes complete programs sequentially, bend by bend, offering an option called Step Mode for initiating each bend individually. This mode is designed for streamlined, continuous production.

On the other hand, Manual Mode allows for the independent programming and execution of a single bend, making it ideal for testing and observing the specific behaviors of the bend system.

This flexibility ensures that operators can optimize both production efficiency and accuracy while using the DELEM DA-69S Operation.

Data Backup and External Storage

Secure product and tool files by storing them externally, either on a network or USB stick. This allows for efficient backup and file exchange between DELEM controls.

By understanding these components of the DELEM DA-69S Operation, you can enhance the precision and efficiency of your CNC Press Brake processes, ensuring optimal production outcomes.

Step 3: Using Programming Aids

The DELEM DA-69S Operation enhances productivity with a range of programming aids designed to streamline CNC operations.

Enhanced User Assistance and Navigation

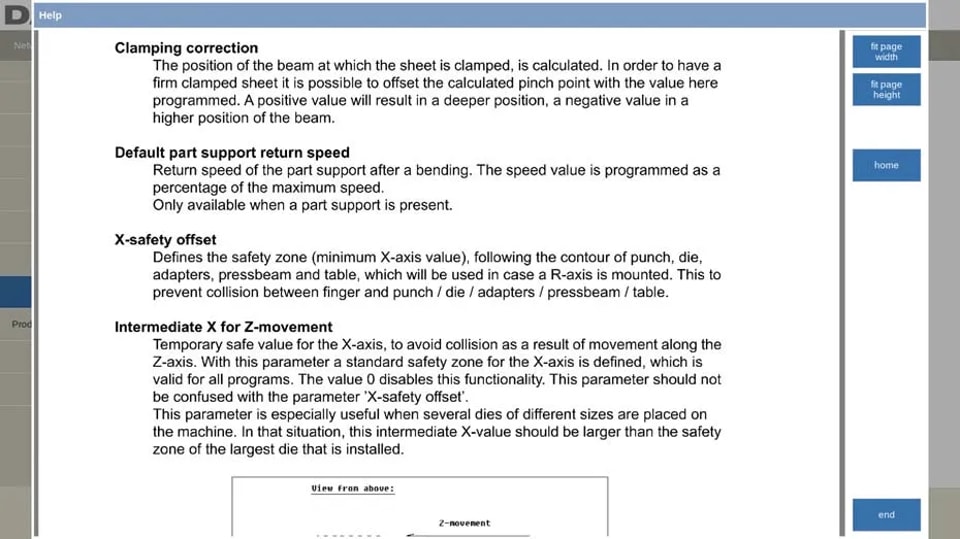

The DELEM DA-69S Operation streamlines CNC processes with a robust set of programming aids. The system’s built-in Help function provides instant, context-specific guidance, while the intuitive listbox functionality simplifies parameter selection directly from the screen.

Navigation is further enhanced by organizing screens into tabs, facilitating quick access to various functions.

The live search feature allows users to efficiently locate products, tools, or materials by simply entering part of an ID, and auto-sort and filter capabilities in selection tables make data management more effective.

Input and Security Features

For precision input and editing, the DELEM DA-69S Operation offers a dynamic on-screen keyboard supporting alphanumeric and special characters, tailored to field requirements.

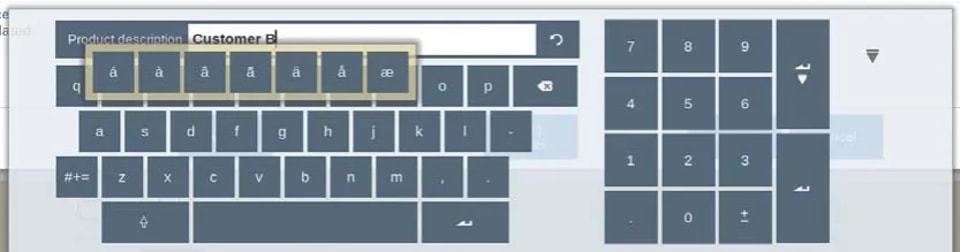

Special characters (like á, à, â, ã, ä, å, æ) are supported by the on screen keyboard by keeping a character (like ‘a’) pressed.

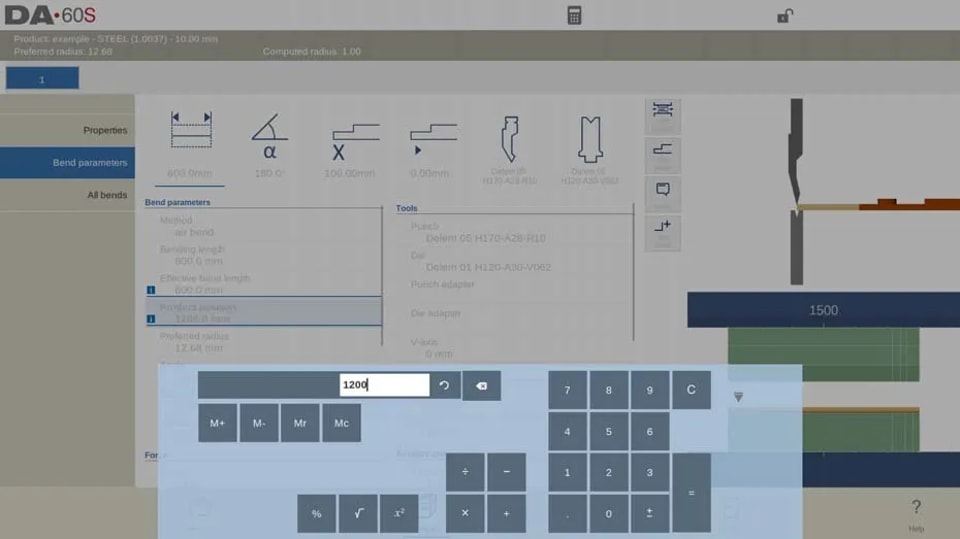

The integrated calculator simplifies arithmetic operations, enabling seamless calculation of percentages and square functions among others.

Security is prioritized with a dual-level key-lock function, allowing for Program Lock and Machine Lock settings to restrict unauthorized changes, thus safeguarding operational integrity.

Network, User Management, and Additional Tools

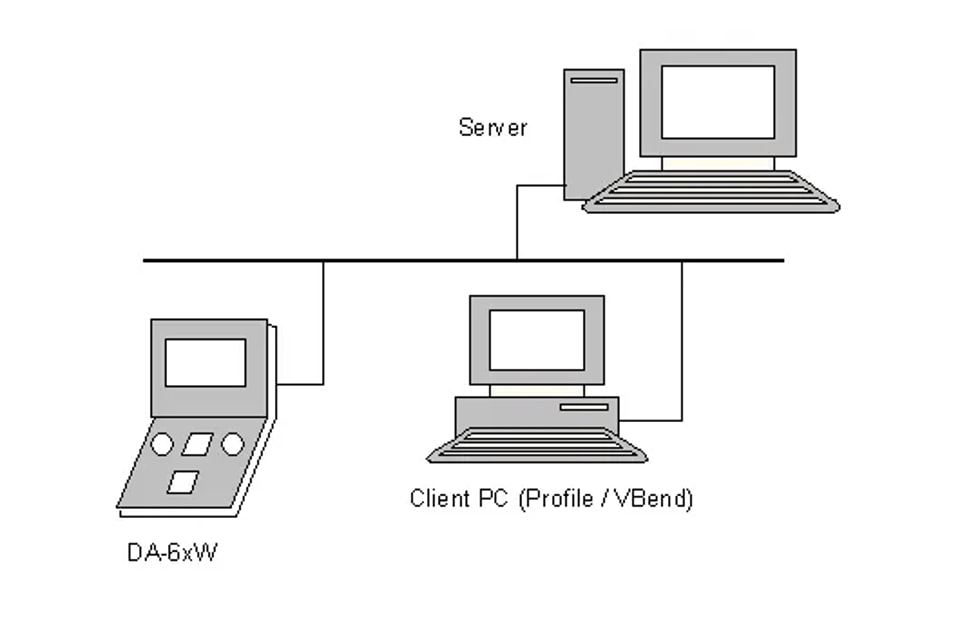

The DELEM DA-69S Operation also features a network interface for effortless import and export of product files, enhancing workflow connectivity.

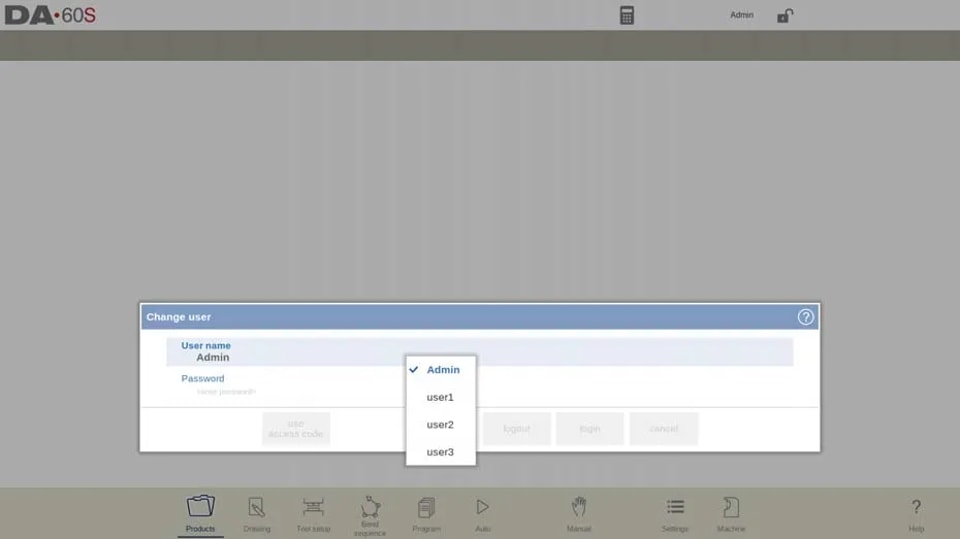

Multi-user support enables login and logout functionalities, ensuring secured user access. In the Products mode the ‘change user’ function enables the change of a user as well as the logout of the current user. When this system is active one needs to login at every start-up.

The OEM function panel offers quick access to manufacturer-specific indicators, and the Message Center centralizes notifications for efficient management.

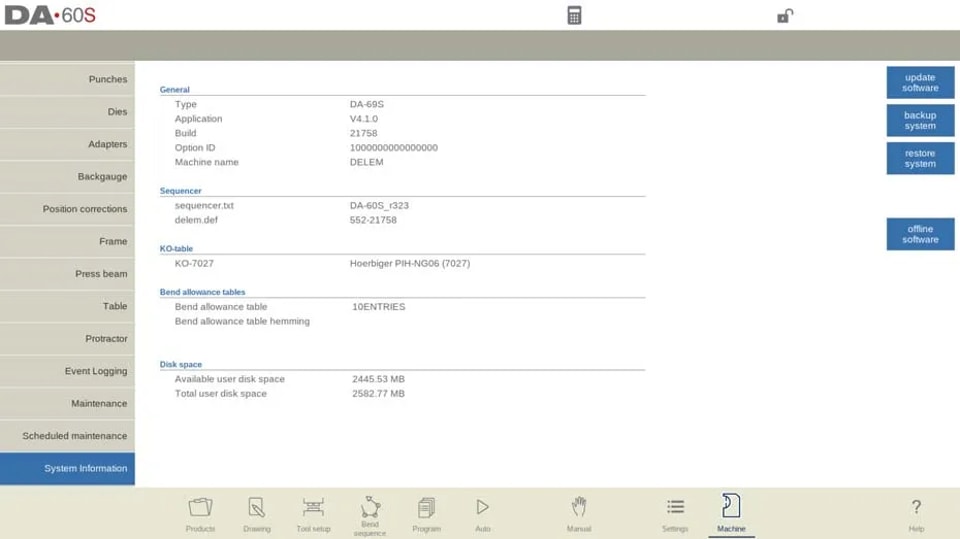

Keeping track of software versions is made easy through the System Information tab, ensuring users are always informed of their control system’s capabilities.

Example of version number:

l V 1.2.3

l V stands for version

l V 1.x.x is the major version number

l V x.2.x is the minor version number

l V x.x.3 is the update version number

These comprehensive features optimize efficiency, security, and usability, underscoring the system’s functionality in CNC operations.

Maintenance Tips for Optimal DELEM DA-69S Performance

Routine Inspections and Cleaning

Regularly inspect the DELEM DA-69S for any signs of wear or damage. Clean the touch screen and machine components to prevent dust buildup that can affect performance. Scheduled maintenance keeps the machine in peak condition and extends its lifespan.

Software and Firmware Updates

Stay updated with the latest software and firmware releases for the DELEM DA-69S. Manufacturers often release updates to enhance performance, add new features, or address bugs. Timely updates ensure your controller operates with maximum efficiency and reliability.

By following these structured guidelines and maintenance tips, you’ll be well on your way to mastering the DELEM DA-69S operation.
