Key Functional Features of DELEM DA-53T Operating System

Table of Contents

1. Intuitive User Interface and Navigation

2. High-Definition Touchscreen Display

3. Diverse Operation and Programming Modes

4. Step-by-Step Getting Started Guide

5. Efficient Program Modification Methods

6. Auto and Manual Production Modes

7. Data Backup and External Storage Capabilities

8. Practical Programming Aids

9. Convenient Listbox Functionality

10. Precise Parameter Zoom Function

11. Flexible Interface Navigation

12. Easy Text Input and Editing

13. Alphanumeric vs. Special Character Input

14. Intelligent Message Centre

15. Secure Keylock Function

16. Accurate Manual Positioning

17. Versatile Software Compatibility

18. Frequently Asked Questions (FAQ)

19. Conclusion

If you’re looking to master the core features of the DELEM DA-53T operating system, this guide will walk you through all its key functionalities. This advanced control system is engineered to boost the precision and efficiency of metalworking processes, and whether you’re a veteran in the field or a newcomer, grasping its capabilities is the key to optimizing your production workflow. Let’s dive into what makes this control system a top choice for modern press brake operations.

Intuitive User Interface and Navigation

High-Definition Touchscreen Display

The DELEM DA-53T operating system is equipped with a high-quality touchscreen display that streamlines navigation and elevates the operator-machine interaction. Its interface is crafted for maximum clarity, enabling operators to manage and execute all tasks with ease. The actual display of your control panel may vary slightly from the standard model.

Core Front Control Components

1. Integrated Start/Stop Buttons: These key operation buttons are seamlessly built into the touchscreen interface for one-touch access.

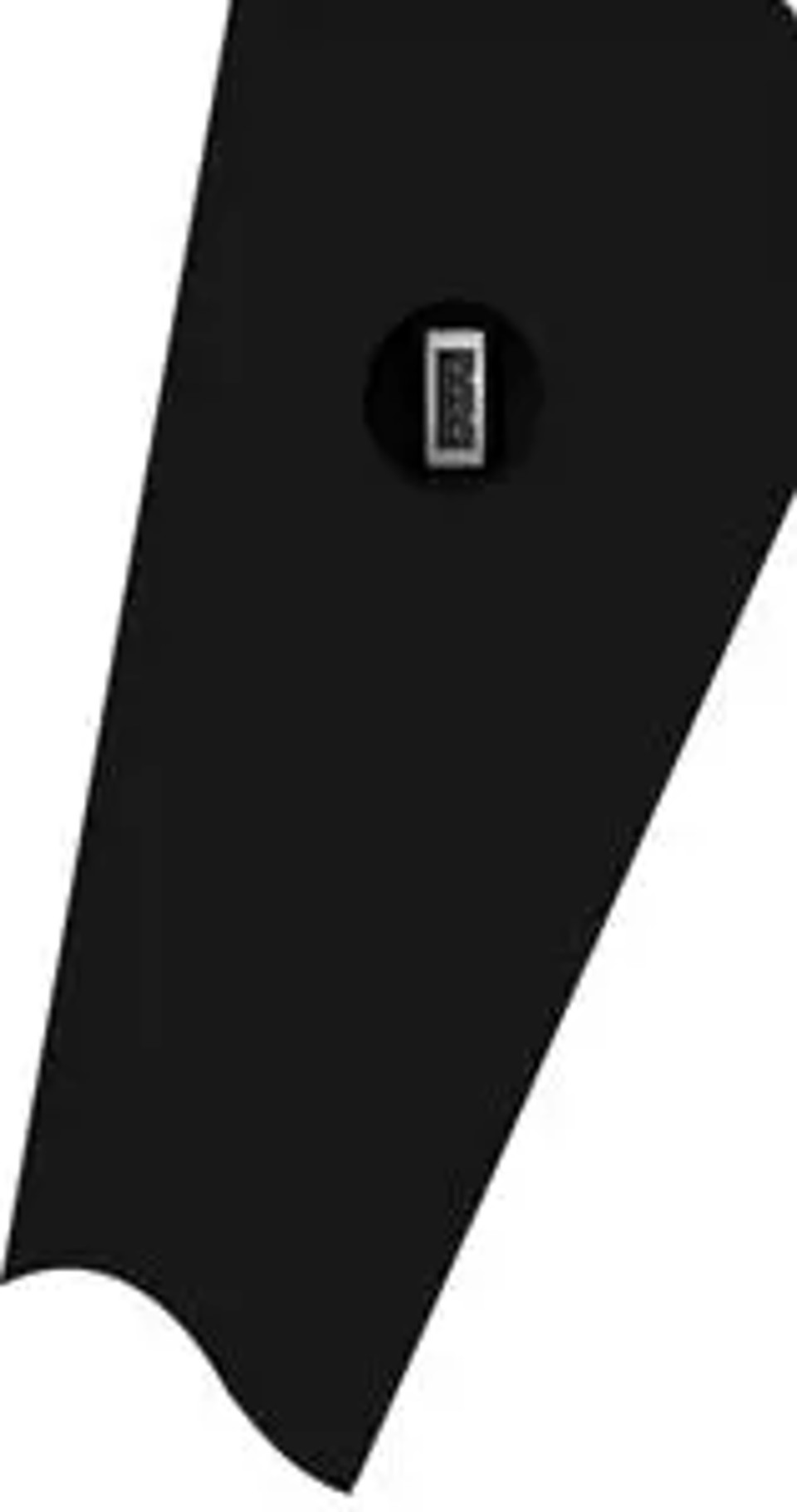

2. USB Connectivity Ports: A USB port is positioned on the right side of the control panel, supporting connections to external devices such as USB flash drives, external keyboards, and mice for extended functionality.

Diverse Operation and Programming Modes

The main screen of the DELEM DA-53T control panel changes dynamically based on the active navigation button, with the default display showing the Products function when the system is initialized. Users can switch between different functional modes with a simple tap on the corresponding icons or buttons.

The main screen is structured into four core panels, each with a dedicated purpose:

1. Title Panel: Permanently displayed at the top of the screen, it shows brand logo, loaded product information, an optional service row, and real-time machine status indicators.

2. Information Panel: Displays all functions and visualizations associated with the currently selected mode, serving as the central hub for operational information.

3.

3. Command Panel: A sub-section of the Information Panel, housing all control buttons and options relevant to the content shown in the Information Panel.

4. Navigation Panel: A persistent on-screen section featuring large, icon-based buttons for all major functional modes, enabling one-click switching between different operational modules.

Main Navigational Modes

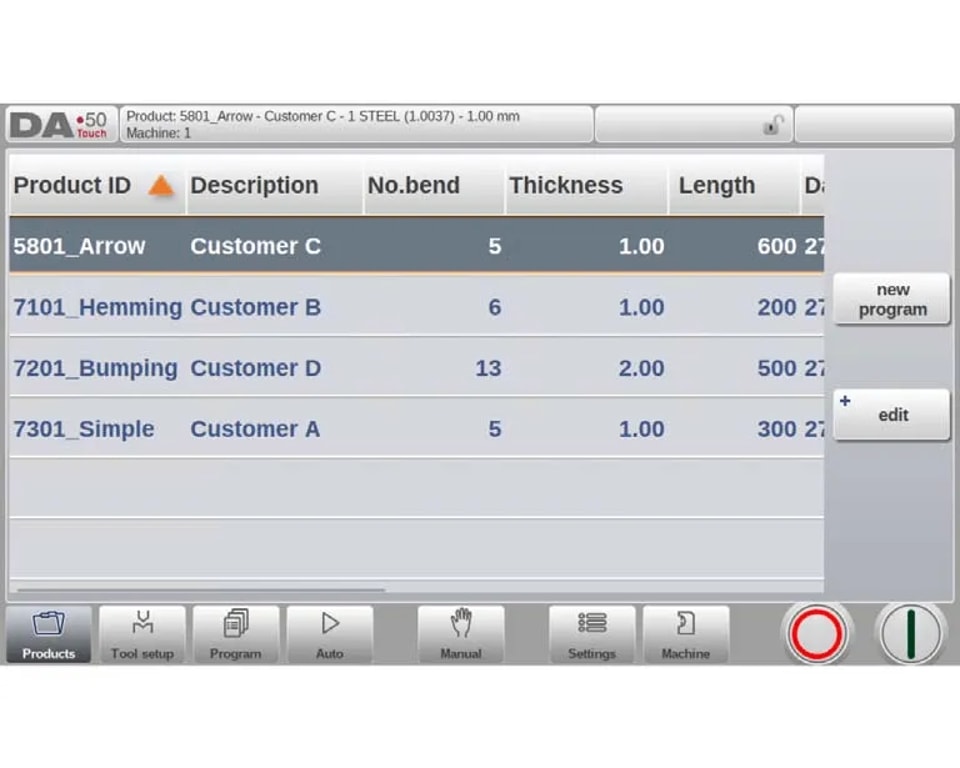

• Product Library Mode: Create new programs and select pre-saved programs from the built-in product library.

• Tool Setup Mode: Configure machine parameters and modify existing tool setup configurations.

• CNC Programming Mode: Numerically create new CNC programs or edit existing ones with precise numerical adjustments.

• Production Mode: Launch the production process for the pre-selected program and monitor real-time production status.

• Single Bend Mode: Program all parameters for a single independent bend, without linking to a complete production program.

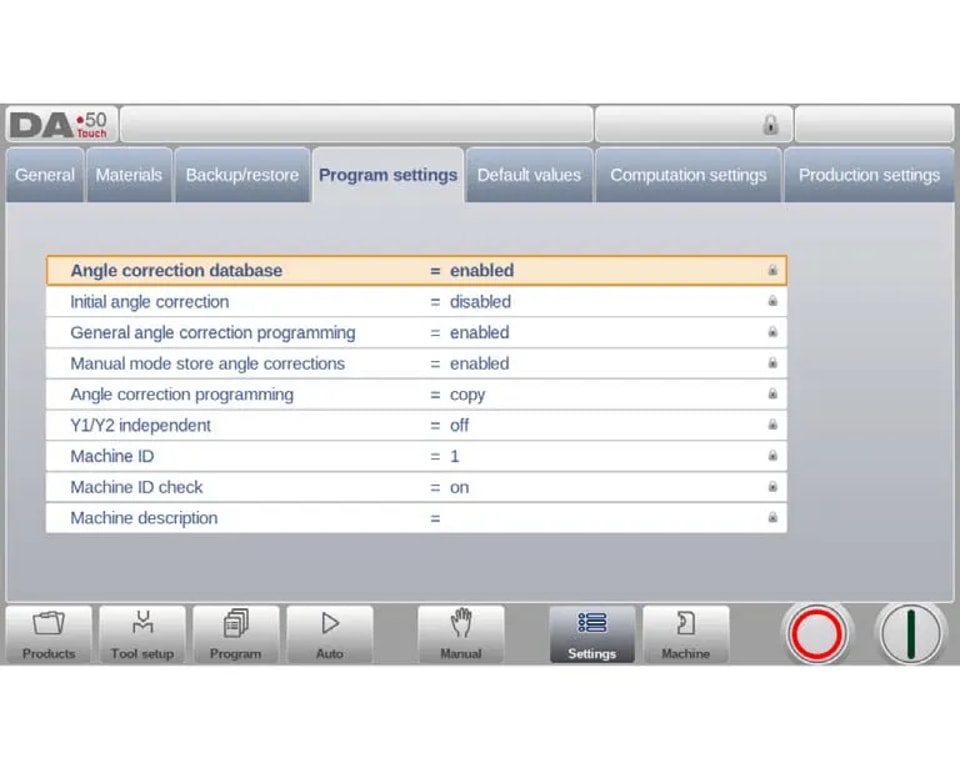

• User Programming Settings Mode: Customize user preferences for new program creation, and input and store material properties in the dedicated material library.

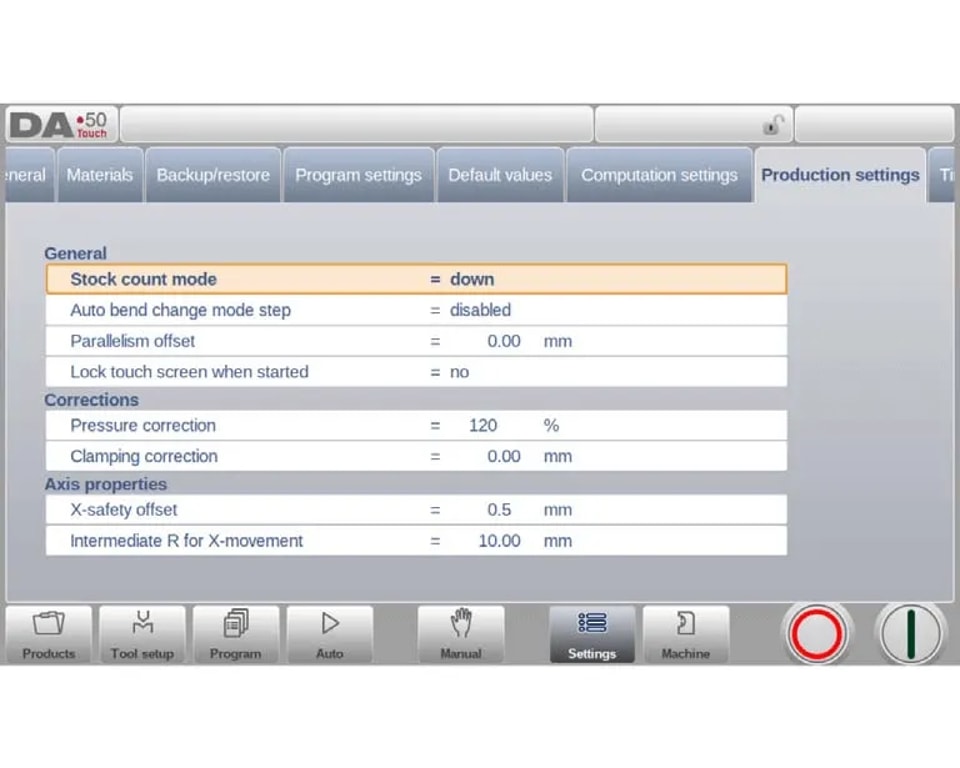

• Machine System Settings Mode: Adjust machine-related user preferences, manage the tooling library and tool editor, perform data backup/restore, and check software version information, among other system-level operations.

Step-by-Step Getting Started Guide

Creating a precise bend program with the DELEM DA-53T operating system is a streamlined process, following these simple steps:

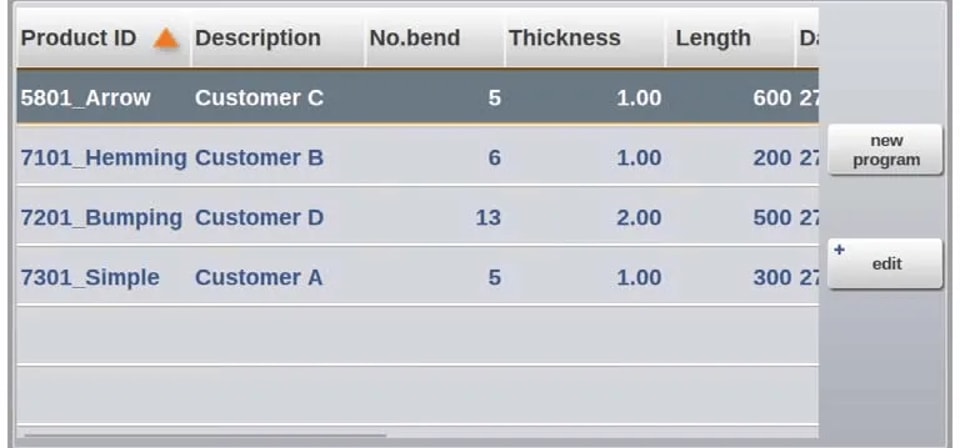

1. Create a New Program: Navigate to the Product Library Mode and select the "New Program" option to initiate program creation.

2. Set Basic Program Attributes: Enter the essential details of the new program and confirm the input by pressing the "Accept" button.

3. Complete Tool Setup: The system automatically redirects to the Tool Setup Mode; select or modify tooling configurations as required, then proceed to the Program menu.

4. Configure Bend Parameters: In the Program menu, set the specific parameters for the initial bend, and use the "Add Bend" function to add additional bends with customized parameters as needed.

5. Start Production: Tap the "Auto" mode button and press "Start" to begin mass production of the programmed product.

This step-by-step process supports independent parameter adjustment for each individual bend, ensuring high efficiency and precision in the production process.

Efficient Program Modification Methods

The DELEM DA-53T’s versatile Program menu provides full access to numerical programming functions and the parameter values of the currently loaded product. Through this menu, users can modify existing programs quickly and efficiently, select individual bend steps for independent adjustment, and monitor and revise programmed values in real time as production demands change. The system dynamically calculates the position of each axis based on the specific machine configuration, guaranteeing precise and reliable operational performance at all times.

Auto and Manual Production Modes

Auto Mode

Complete product programs can be executed in Auto mode, which runs the entire bending process step-by-step automatically. The Step sub-mode is available in Auto mode, allowing operators to start each individual bend manually for more controlled production.

Manual Mode

Manual mode is a fully independent production mode that enables programming and execution of a single bend at a time. It is primarily used to test the performance and accuracy of the bending system before full-scale production, helping operators verify bend parameters and system functionality.

Data Backup and External Storage Capabilities

The DELEM DA-53T supports external storage of both product programs and tool configuration files, which can be saved to a USB flash drive via the built-in USB port. This feature not only provides a secure backup solution for critical production data but also enables seamless file exchange between multiple DELEM control systems, facilitating collaborative production and data sharing.

Practical Programming Aids

Convenient Listbox Functionality

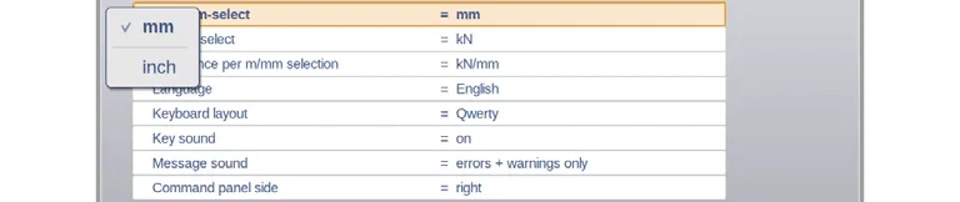

The system simplifies parameter management with an intuitive listbox function. For parameters with a fixed set of optional values, users only need to tap the corresponding parameter line to open the listbox, view all available options, and select the desired value with a single tap.

To cancel the selection and close the listbox without changing the current parameter, simply tap any area outside the listbox, ensuring smooth and uninterrupted parameter adjustment.

Precise Parameter Zoom Function

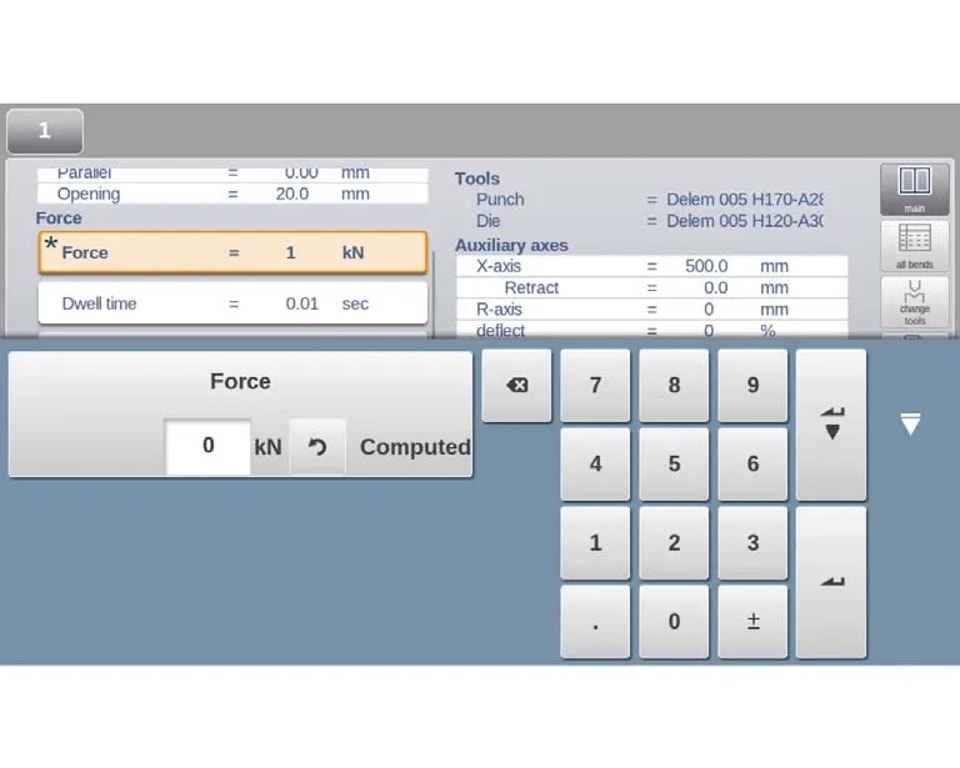

The parameter zoom function is a core feature of the DELEM DA-53T, designed to help operators focus on detailed parameter adjustments. When a key parameter (e.g., bending force) is selected in Program mode, the corresponding parameter line and related settings automatically enlarge on the screen, enabling more accurate fine-tuning of critical values.

When a different parameter is selected, the previously zoomed parameter reverts to its standard size, and the newly selected parameter is magnified, ensuring operators always have a clear view of the parameter they are adjusting.

Flexible Interface Navigation

In many functional modes, the program screen is divided into multiple tabbed sections for organized display of different functional modules. Tabs can be switched with a simple tap, and for tabs that are partially or fully hidden, users can drag the tab row horizontally to bring the desired tab into view and select it, ensuring easy access to all functional sections.

Easy Text Input and Editing

A movable cursor is available for all input fields, allowing users to enter specific values or text at any position within an existing input. Simply tap the desired position in the input field to bring up the cursor, and input content will be added at that exact location, enabling precise text and value editing.

Alphanumeric vs. Special Character Input

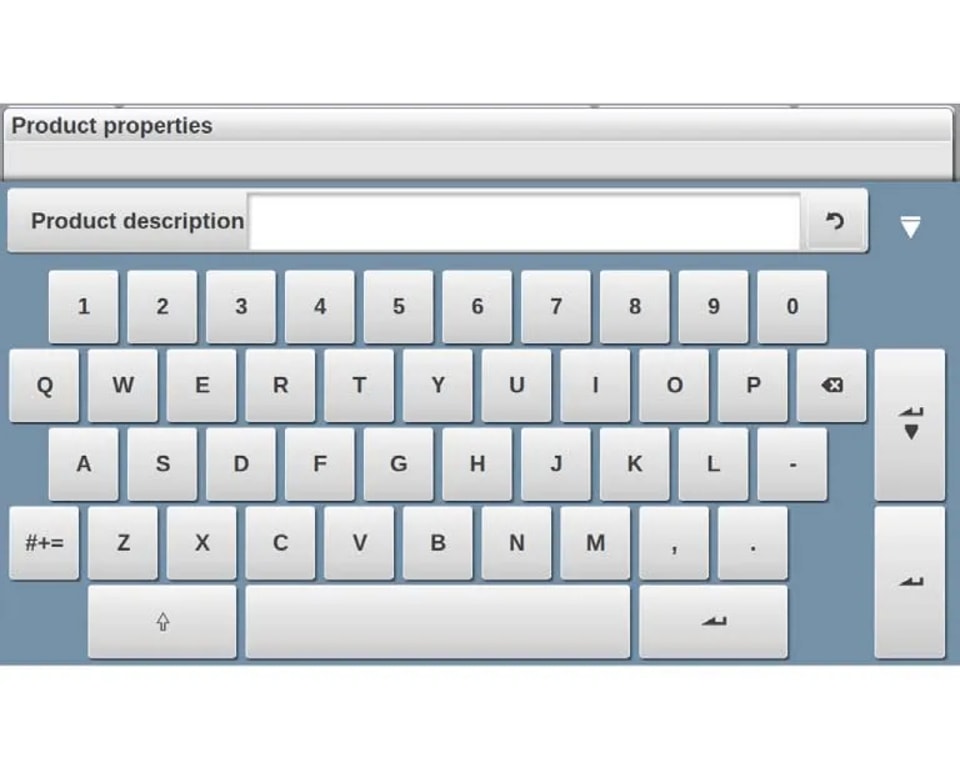

The DELEM DA-53T features a comprehensive on-screen virtual keyboard that supports both alphanumeric and special character input, with intelligent input field recognition: numeric input fields automatically filter out non-numeric characters to prevent incorrect input, while full keyboard access is available for alphanumeric input fields.

Special Character Input

Special characters such as?, %, and - can be easily accessed via a dedicated special character button located in the lower-left corner of the on-screen keyboard, further enhancing the system’s ease of use.

Extended Character Set Support

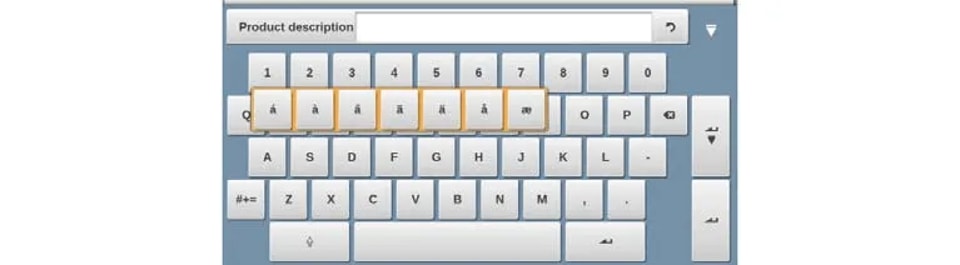

For accented characters (e.g., á, à, â), users only need to hold down the corresponding base letter on the on-screen keyboard to bring up the extended character options, ensuring the system meets the diverse text input requirements of different regions and users.

Intelligent Message Centre

The DELEM DA-53T is equipped with an intuitive message management system that centralizes all notifications and alerts from the PLC, safety systems, and sequencer, streamlining operational communication and alert management.

Message Display and Management

Messages sent to the Message Centre are indicated by a dedicated icon in the top title panel, next to symbols such as the keylock. Users can tap this icon to temporarily hide messages for uninterrupted programming and tap it again to restore the message display at any time.

Real-Time New Message Notifications

When new messages or alerts are received in the background, a visual indicator appears on the Message Centre icon, ensuring operators are promptly notified of any system updates, warnings, or operational prompts.

Secure Keylock Function

The DELEM DA-53T includes a robust keylock function to protect critical product programs and machine settings by preventing unauthorized access and modifications.

Two-Level Control Locking

1. Program Lock (Grey): Restricts the system to only product selection and Auto mode execution, completely blocking any modifications to existing programs.

2. Machine Lock (Red): Fully locks the entire machine control system, preventing all operational and programming use of the control panel.

Lock Activation and Deactivation

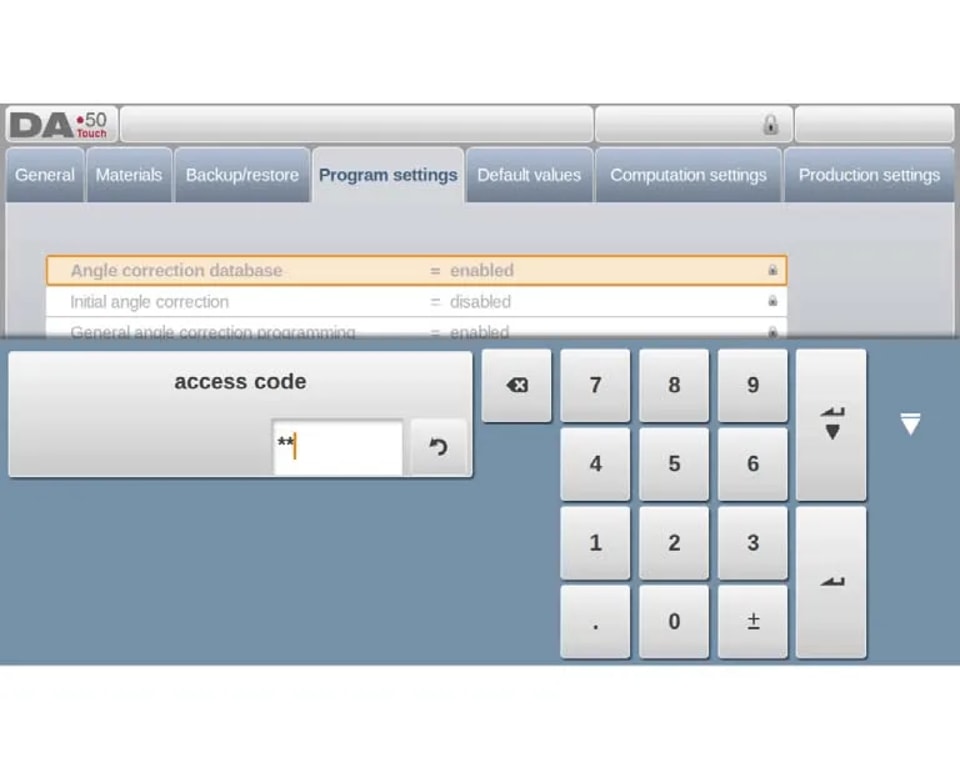

To activate a lock, tap the keylock symbol on the screen and enter the pre-set access code to enable either the Program Lock or Machine Lock. Active lock restrictions are indicated by lock symbols next to the relevant parameters and functions. To unlock the system, tap the keylock symbol again and enter the correct access code; the lock indicators will then disappear, and full functionality will be restored.

Customizable Access Codes

Access codes for both lock levels can be personalized and modified by the user as needed. Detailed instructions for code management and modification are provided in the system’s Installation Manual, giving users full control over the system’s security settings.

Accurate Manual Positioning

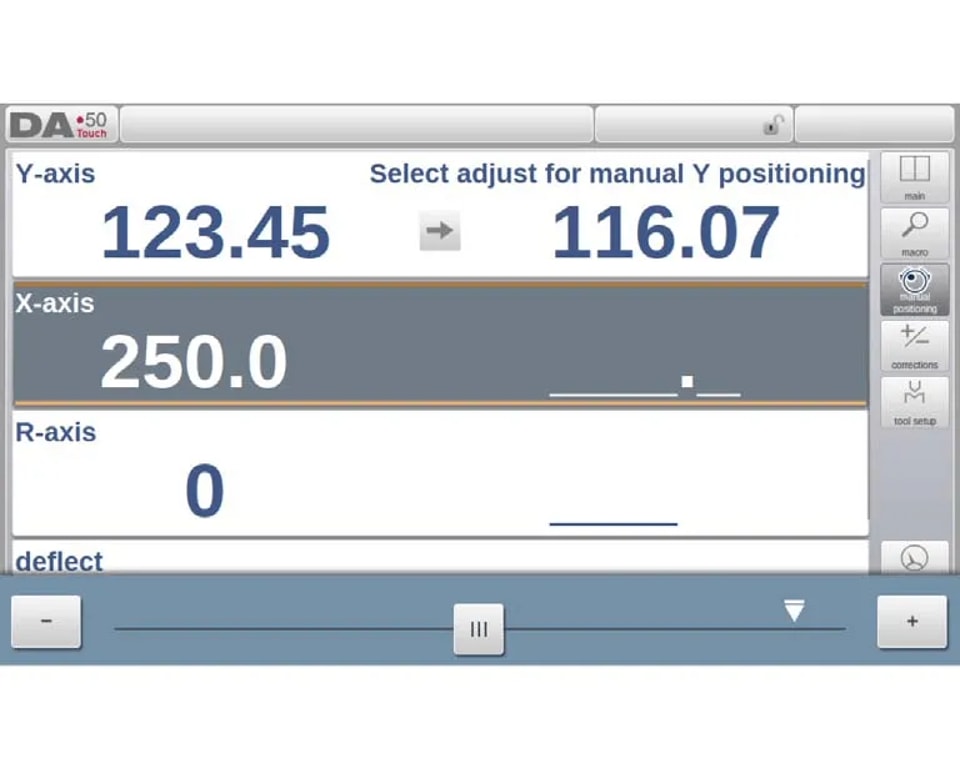

The DELEM DA-53T offers an intuitive interface for precise axis positioning in both manual and automatic modes. A speed control slider is located at the bottom of the screen, allowing operators to adjust the speed of axis movement in real time; the axis stops moving immediately when the slider is released. Precision adjustment buttons are positioned at both ends of the slider for fine-tuning the axis position, and an auditory beeper provides real-time feedback during axis movement, enhancing the operator’s situational awareness and ensuring accurate positioning.

Versatile Software Compatibility

The DELEM DA-53T operating system is designed for seamless compatibility with a wide range of third-party software solutions, delivering enhanced control flexibility and expandability. This cross-software compatibility maximizes the system’s operational efficiency and supports customized integration with existing production systems.

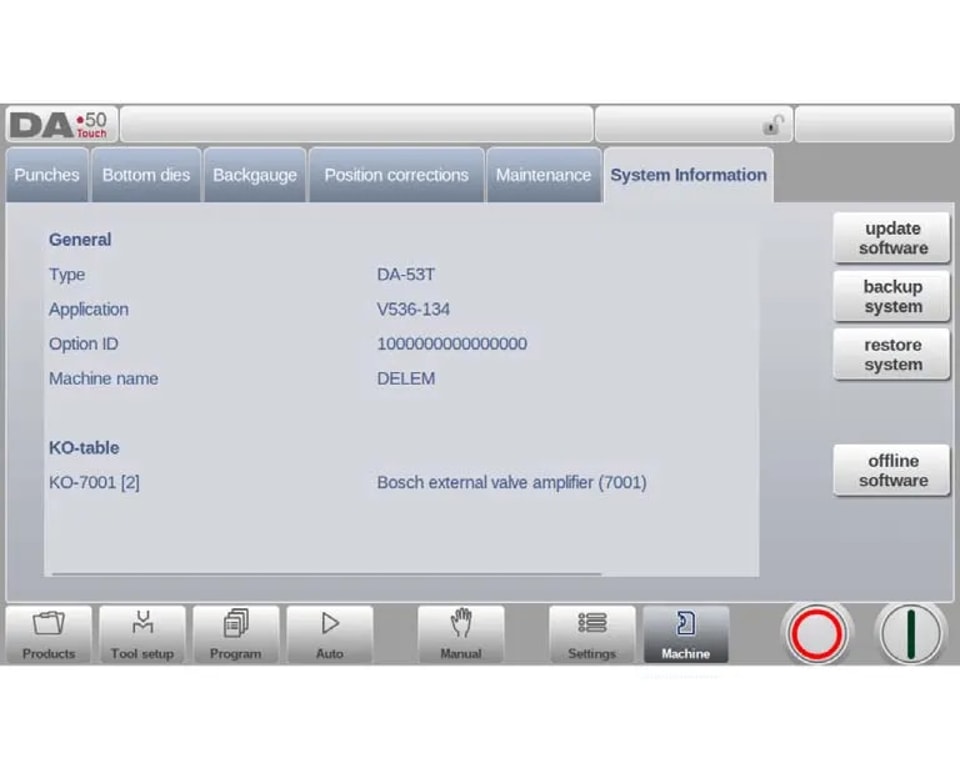

The current software version of the control system is displayed in the System Information tab of the Machine System Settings Mode, with a clear version number format (e.g., V 1.2.3) that follows these conventions:

• V: Abbreviation for "Version"

• First digit (1): Major version number, updated when new core features are added that may change normal operational workflows

• Second digit (2): Minor version number, updated when new auxiliary features or enhancements are added without altering existing operational workflows

• Third digit (3): Update version number, used for bug fixes and minor corrections to the current software version

Frequently Asked Questions (FAQ)

How to navigate the DELEM DA-53T operating interface effectively?

The DELEM DA-53T interface is built for intuitive operation. The persistent Navigation Panel on the main screen features large icon-based buttons for one-click switching between all major modes. Familiarizing yourself with the Title, Information, and Command Panels is key, as they provide real-time machine status updates and all essential operational control options.

How to maintain the DELEM DA-53T operating system in optimal condition?

Regular maintenance is critical to consistent performance. Frequently check the real-time machine indicators in the Title Panel, and perform routine inspections in accordance with the system’s maintenance guidelines. Make full use of the built-in data backup/restore functions to protect critical production data, and keep the system software updated to the latest version. The Title Panel will display clear visual cues when the system requires maintenance or attention, ensuring timely intervention.

Conclusion

In summary, the DELEM DA-53T operating system is designed with a user-centric approach, boasting an intuitive interface, advanced precise programming functionality, and flexible customizable settings that adapt to diverse production needs. Its standout features include a well-structured main screen, seamless one-click navigation, and fully adjustable settings for both machine operation and user preferences. All these features enable operators to manage and execute metalworking tasks with maximum precision and efficiency, streamlining production workflows and reducing operational errors.

To unlock the full potential of the DELEM DA-53T operating system, it is essential to fully familiarize yourself with all its features and understand how to leverage them to improve production efficiency and productivity. If you have any questions or require further technical assistance, please contact our support team at any time. Additionally, you can access more detailed technical documentation and learning resources on our official website to enhance your proficiency and operational skills with the DELEM DA-53T system.
