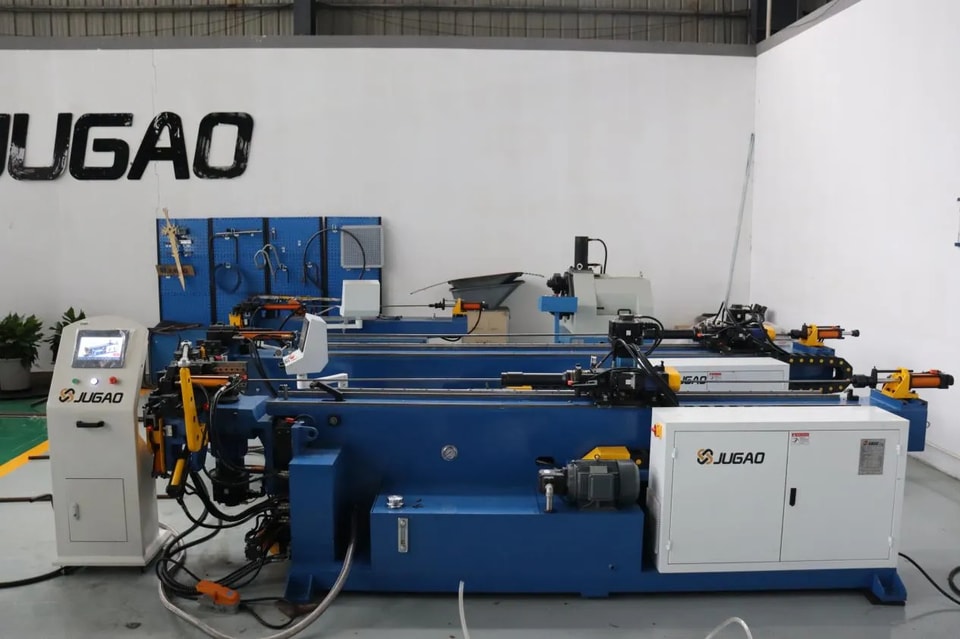

How to determine the root cause of wear on the guide rails of a pipe bending machine?

When the guide rails of a pipe bending machine wear and begin to affect the machine's accuracy, cause vibration, or increase the running resistance of the bending carriage, the processing quality of the product and overall production efficiency will decline. If you are exploring the causes of premature guide rail wear and hope to find its root cause before the problem causes serious losses, this article will provide you with practical guidance. In the following content, I will systematically introduce the common manifestations of guide rail wear, diagnostic methods, and troubleshooting approaches to help maintenance teams and operators accurately determine the root cause of guide rail damage. By identifying problems early, you can avoid unnecessary parts replacements, reduce equipment downtime, and ensure the stability of the bending process.

How to Determine if the Guide Rails of a Pipe Bending Machine Are Wearing During Operation

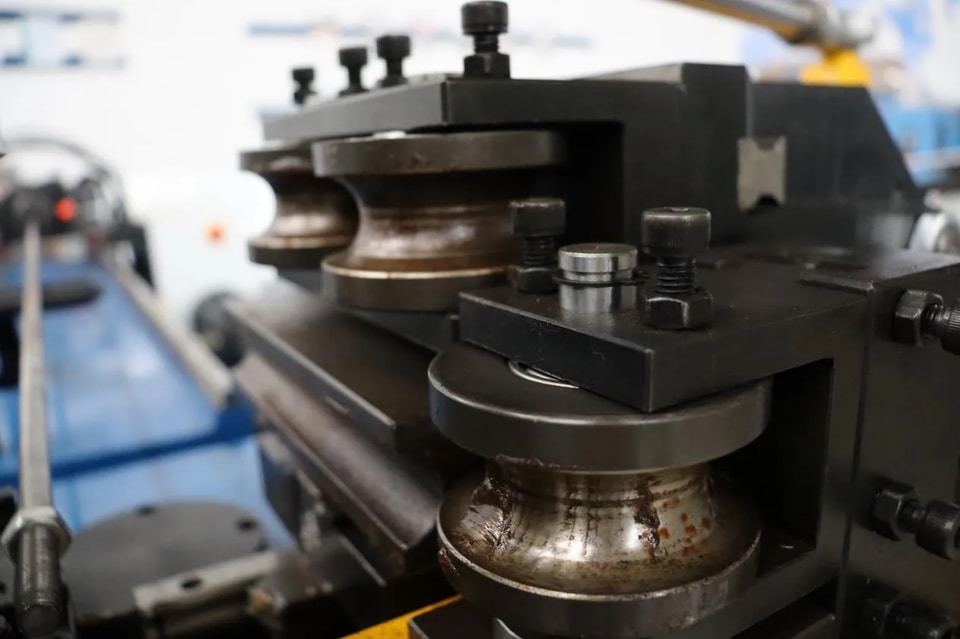

1. Observe the Changes in Accuracy During Repeated Bending Processes

One of the early typical manifestations of guide rail wear in pipe bending machines is inconsistency in processing results. When there are significant angle differences in the pipes processed under the same program and process parameters, it often indicates that the wear on the guide rail surface has affected the running stability of the carriage. It is recommended to use a digital angle measuring tool to compare the results of multiple bending operations. If the deviation shows a gradually increasing trend, it usually points to mechanical wear problems, rather than control system or software deviations.

2. Pay attention to abnormal vibration and noise.

Vibration is not only a disturbance during operation, but also a precursor to mechanical failure. When the guide rail surface is worn or poorly lubricated, the carriage will not move smoothly during movement, increasing friction, which can lead to noise, vibration marks on the pipe surface, and even localized overheating. If the vibration is more pronounced under heavy load conditions, it may be related to poor guide rail alignment or lubrication system failure.

3. Manually move the carriage and check the running resistance.

Switch to manual mode and slowly push the carriage to feel if its movement is smooth. If you encounter jamming, uneven resistance, or localized pauses, it usually indicates that the guide rail surface is damaged or contaminated with particles. Under normal conditions, the carriage should be able to move smoothly under a small external force.

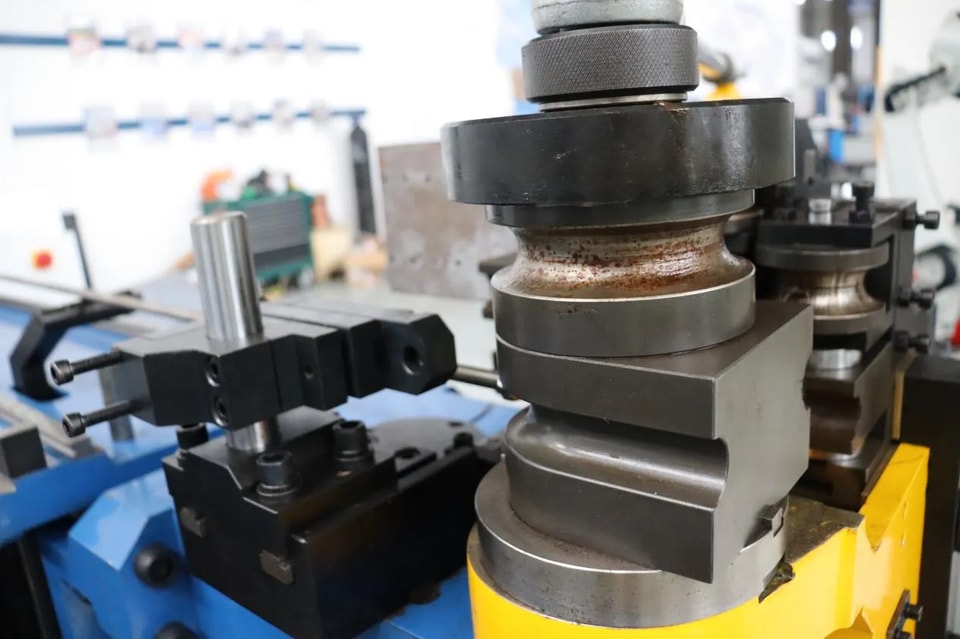

How to diagnose the mechanical causes of guide rail wear in a pipe bending machine

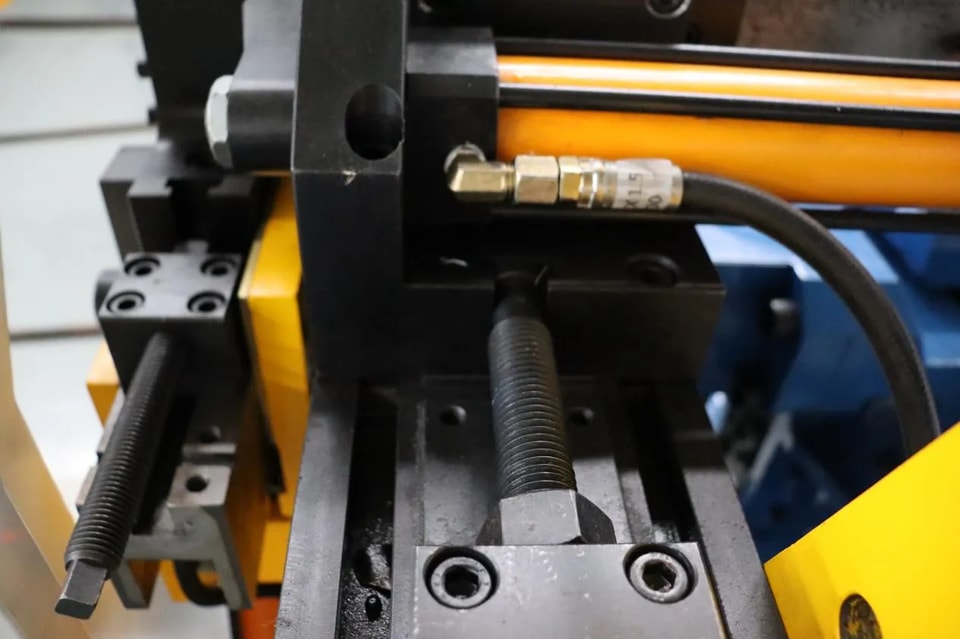

1. Alignment deviation between the frame and the guide rail.

Poor alignment is a common cause of abnormal guide rail wear. When the carriage and guide rail are not perfectly perpendicular in their running direction, the load will be concentrated on one side or a localized area of ​​the guide rail, leading to uneven wear, manifested as unilateral indentations, scratches, or skewed wear patterns.

Solution: Use a dial indicator to check the alignment of the guide rail and carriage, gradually adjust the guide rail mounting bolts, and continuously monitor the deviation. Note that you should never force alignment under load, as this can create structural stress and exacerbate wear.

2. Lubrication System Failure or Improper Use

The normal operation of the guide rail depends on continuous and adequate lubrication. Blockage in the lubrication lines, unstable oil supply, or the use of unsuitable lubricants will lead to direct contact between metal surfaces, rapidly accelerating wear.

Solution: It is recommended to check the lubrication system weekly to ensure unobstructed oil flow. Use a dedicated lubricant suitable for linear motion components, avoiding the use of ordinary grease. If necessary, perform flow tests to verify the uniformity of oil supply to each lubrication point.

3. Intrusion of Metal Dust or Impurities

During pipe bending, friction between the pipe and the mold may generate metal shavings or other particles. If these impurities adhere to the guide rail surface and are not cleaned in time, they will act like abrasives, accelerating guide rail wear.

Solution: It is recommended to install protective covers on the guide rails and establish a regular cleaning schedule. Use a dry cloth for cleaning, avoiding water to prevent rust. When processing ferromagnetic materials, consider adding a magnetic collection device to reduce the spread of metal dust.

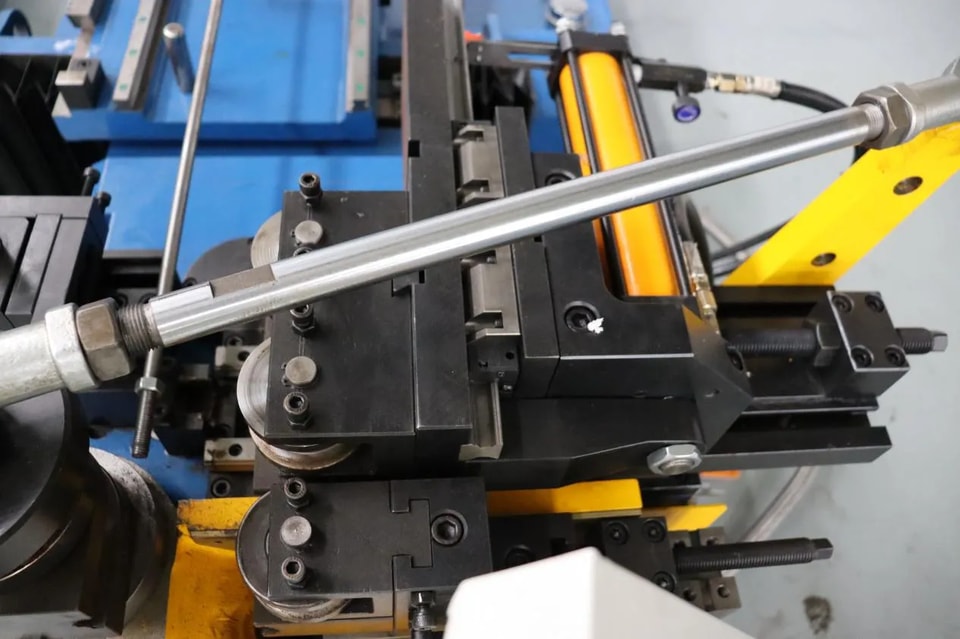

4. Uneven Load Distribution

If operators do not keep the pipes level during installation, or fail to effectively support long pipes, the guide rails will bear additional torsional forces instead of the linear load intended in the design, leading to uneven wear.

Solution: Strengthen operator training to ensure that pipes are placed stably before bending. For long pipes, auxiliary support devices can be installed. For equipment operating under high loads for extended periods, it is recommended to reassess the guide rail load-bearing capacity and upgrade specifications if necessary.

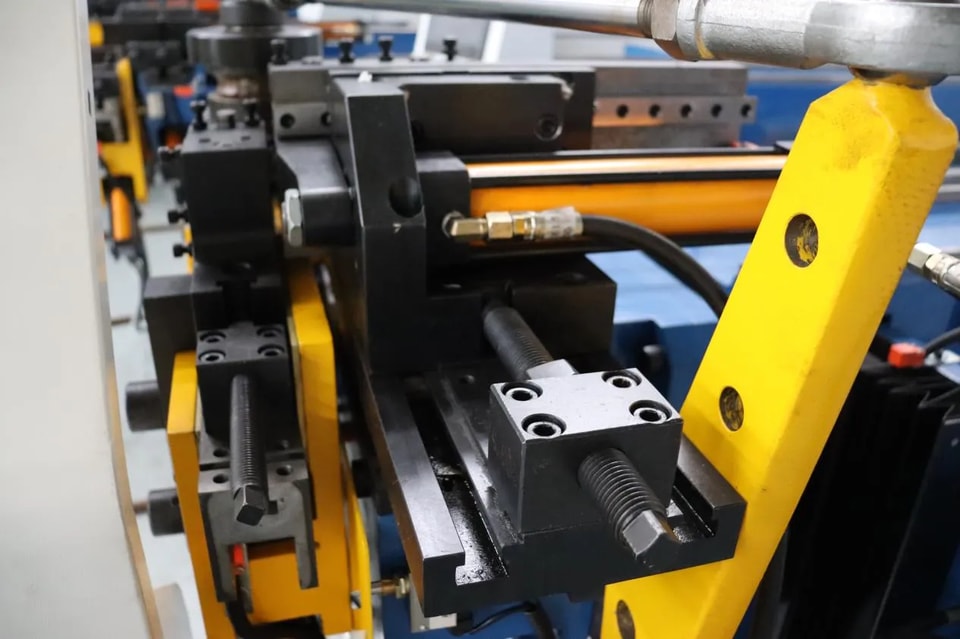

How to Delay Guide Rail Wear Through Routine Maintenance

Inspection Plan Recommendations

Weekly: Visually inspect the guide rail condition and clean surface debris.

Monthly: Check the lubrication system operation.

Quarterly: Conduct a comprehensive alignment and accuracy test.

Annually: Invite professionals to conduct a system evaluation.

Lubrication Frequency Reference

Light Load Use: Every two weeks

Medium Load: Once a week

Continuous Heavy Load Production: Every 3 to 4 days

Operator Training is Essential

Many cases of guide rail wear stem from improper operating habits or lack of communication between shifts. It is recommended to develop clear operating procedures, standardize the pipe loading process, and record equipment status during shift handover. New operators should also undergo systematic training to ensure they master the correct operating methods.

Through scientific inspection, accurate diagnosis, and standardized routine maintenance, you can effectively extend the service life of the pipe bending machine's guide rails, ensuring the equipment's processing accuracy and operational stability.
