How Does Back Gauge Design Influence Shearing Accuracy?

Table of Contents

• The Significance of Back Gauge Design for Shearing Equipment

￮ Boosting Material Placement Precision

￮ Securing Reproducibility and Operational Efficiency

• Core Attributes of a High-Performance Back Gauge

￮ Robust and Stable Structural Build

￮ Accurate and Dependable Positioning System

￮ Convenient Adjustment and Calibration

• Steps to Maximize Back Gauge Accuracy

￮ Step 1: Routine Inspection and Upkeep

￮ Step 2: Standardized Calibration Operations

￮ Step 3: Choosing Appropriate Back Gauge Fingers

• Fixing Typical Back Gauge Malfunctions

￮ Resolving Irregular Cutting Lengths

￮ Rectifying Back Gauge Misalignment

• FAQ: Frequently Asked Questions About Back Gauge Design and Precision

• Conclusion

For those running a shearing machine, you know the back gauge is a core component that directly determines cutting precision and stable output. Grasping how different back gauge structures affect shearing accuracy helps you pick the right equipment and maximize workshop performance. This article clarifies the link between back gauge design and shearing precision, offers actionable methods to boost accuracy, and provides troubleshooting guidance to maintain consistent, high-quality shearing.

The Significance of Back Gauge Design for Shearing Equipment

Boosting Material Placement Precision

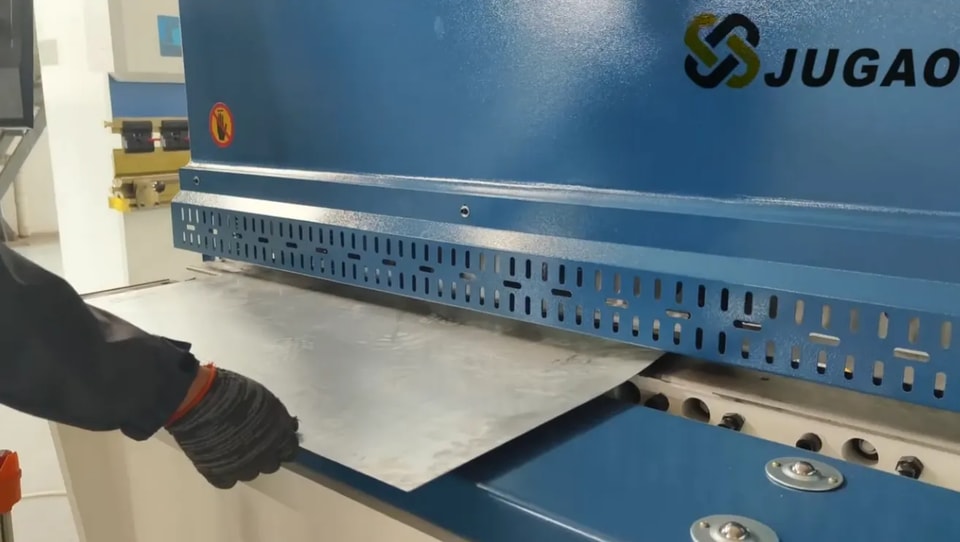

A professionally designed back gauge delivers precise material placement, which is fundamental for accurate and uniform shearing. It firmly fixes and locates metal sheets at a set distance from the shear blade, a factor that directly shapes cutting accuracy. A poorly structured back gauge leads to unstable material alignment and flawed shearing outcomes.

Securing Reproducibility and Operational Efficiency

A high-quality back gauge also excels in delivering repeatable precision. Today’s CNC back gauges, especially those with automated positioning functions, enable consistent accurate cuts in batch production, greatly lifting productivity and cutting down material waste.

Core Attributes of a High-Performance Back Gauge

Robust and Stable Structural Build

Rigidity stands as the most critical trait of a reliable back gauge. A solid, stable back gauge eliminates vibration, bending and shifting during operation. With a firm structure, the shearing process maintains minimal deviation and steady high precision.

Accurate and Dependable Positioning System

To optimize shearing results, the shearing machine should be equipped with a high-precision positioning system. Contemporary shearing machines often adopt premium servo motors, linear guides and precision ball screws for back gauge movement. These top-tier components ensure exact positioning and consistent repeatability, bringing exceptional cutting quality.

Convenient Adjustment and Calibration

An efficient back gauge allows simple adjustment and calibration. Regular calibration sustains long-term precision, letting operators reset the device quickly when needed. Machines with user-friendly controls and intuitive interfaces improve both operating accuracy and ease of use.

Steps to Maximize Back Gauge Accuracy

Step 1: Routine Inspection and Upkeep

Regular checks of the back gauge mechanism are essential to preserve precision. Examine the condition of mechanical parts, lubricate moving components and verify alignment at set intervals. Routine maintenance reduces wear, enhances stability and extends the accurate service life of the machine.

Step 2: Standardized Calibration Operations

Calibration is indispensable for steady performance. Follow the manufacturer’s guidelines to conduct periodic calibration. This usually involves digital measuring tools or built-in calibration functions to set the back gauge at the correct distance from the blade, keeping shearing accuracy at an optimal level.

Step 3: Choosing Appropriate Back Gauge Fingers

The structure and type of back gauge fingers also heavily influence precision. Select fingers that match your material type and cutting demands. Well-designed fingers hold sheets firmly without slipping or moving, ensuring stable and accurate shearing.

Fixing Typical Back Gauge Malfunctions

Resolving Irregular Cutting Lengths

When cutting lengths are inconsistent, first check the back gauge’s alignment and stability. Adjust or recalibrate the positioning system, and confirm the fingers clamp sheets tightly. Also, rule out mechanical failures or worn parts that cause instability.

Rectifying Back Gauge Misalignment

Back gauge misalignment severely undermines cutting accuracy. Regularly check that the back gauge stays parallel to the blade across its full travel range. Realign and recalibrate following the manufacturer’s instructions to rapidly restore cutting precision.

FAQ: Frequently Asked Questions About Back Gauge Design and Precision

Q: Why does my shearing precision decrease over time?
A: Precision loss usually stems from component wear, inadequate maintenance or back gauge misalignment. Regular inspections and timely calibration effectively maintain stable shearing accuracy.

Q: How frequently should I calibrate the shearing machine’s back gauge?
A: Calibration is recommended every few months, or whenever cutting inaccuracies appear. Always follow the specific instructions provided by your equipment manufacturer.

Q: Does back gauge design have a notable impact on productivity?
A: Definitely. A well-designed back gauge supports accurate, repeatable and fast positioning, substantially improving workshop efficiency and output.

Q: Can I upgrade my back gauge system for better precision?
A: Most shearing machines support upgrades to more advanced back gauge systems, such as CNC-controlled models. Contact your machine manufacturer or supplier to explore suitable upgrade plans for enhanced accuracy and productivity.

Conclusion

Back gauge design is central to a shearing machine’s cutting accuracy, consistency and overall productivity. By understanding its importance, carrying out regular inspections, performing precise calibration and selecting matching components, you can greatly improve the precision and efficiency of your shearing operations. For more professional support, upgrade solutions or specific questions about back gauge design, feel free to contact the expert team at JUGAO—we are committed to helping you achieve excellent performance with your shearing equipment.
