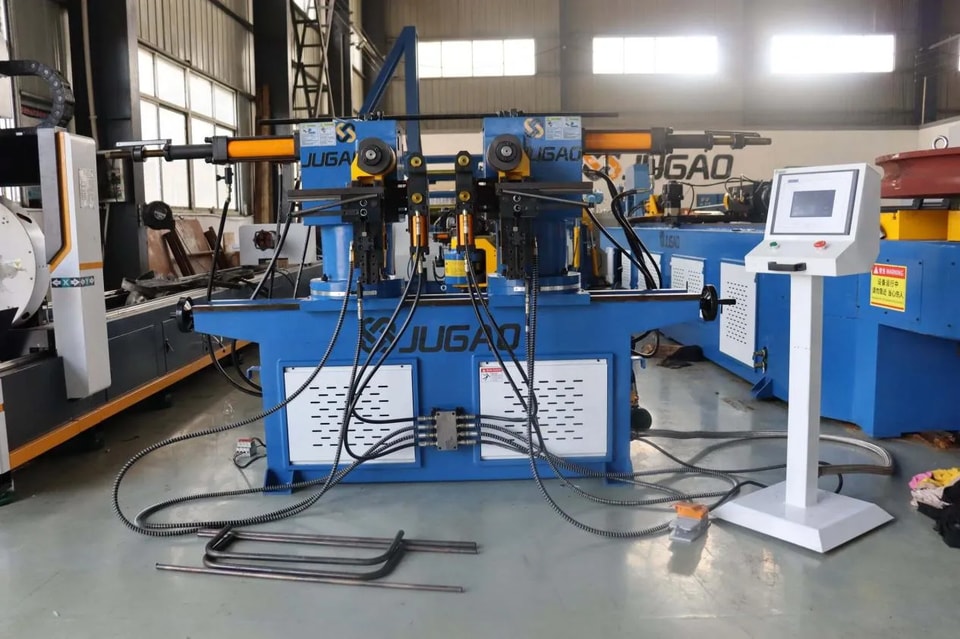

How to improve air circulation in the electrical cabinet of a pipe bending machine?
Poor heat dissipation in the electrical cabinet will directly shorten the lifespan of components such as frequency converters and PLCs, and may even cause overheating alarms and shutdowns. Improving air circulation hinges on three key aspects: layout, selection of heat dissipation devices, and routine maintenance.

1. Optimize Layout for Natural Airflow
Place high-heat-generating components (inverters, servo drives) in the upper part of the cabinet, and sensitive components (PLC, control power supply) in the lower part, utilizing the natural upward flow of hot air.
Leave sufficient space around the cabinet: ≥100mm on both sides and ≥300mm on the top, avoiding close proximity to walls.
Ensure no obstructions between the lower air inlet and upper air outlet; remove unnecessary baffles to create a natural "bottom in, top out" convection channel.
2. Select Cooling Method Based on Operating Conditions
Forced Air Cooling (Filtered Fan): Suitable for ambient temperatures below 35℃ and moderate heat generation. The intake fan is installed at the bottom of the cabinet, and the exhaust fan at the top; the airflow must match the heat generation capacity. A filter pad must be installed at the air inlet to prevent dust and oil mist from entering the cabinet.
Industrial Air Conditioner or Heat Exchanger: When the ambient temperature exceeds 35℃, or the cabinet requires a high sealing rating (e.g., IP54 or higher), fan cooling is limited; an industrial air conditioner should be installed. If only isolation of the air inside and outside the cabinet is required (in a dusty environment), a heat exchanger can be used.
It is recommended to install a thermostat, set to automatically start cooling at 40℃ to prevent the fan from running ineffectively for extended periods.
3. Routine Maintenance: Maintain Good Ventilation
Clean or replace the air inlet filter monthly. A clogged dust filter can reduce heat dissipation efficiency by more than 50%.
Regularly check the fan's operation; replace any fans that make abnormal noises or stop running immediately.
When cleaning the inside of the cabinet, always use a vacuum cleaner. Never use compressed air to blow it out, otherwise dust and moisture will enter the components and cause short circuits.
Quarterly use an infrared thermometer to randomly measure the temperature of key components (inverter heat sink, contactor). If the temperature exceeds 70℃, investigate the heat dissipation problem.

Optimizing component layout, scientifically selecting heat dissipation methods, and regularly cleaning the filter screen—doing these three things well can effectively control the internal temperature of the electrical cabinet within a reasonable range, and the electrical failure rate of the pipe bending machine will be significantly reduced.
