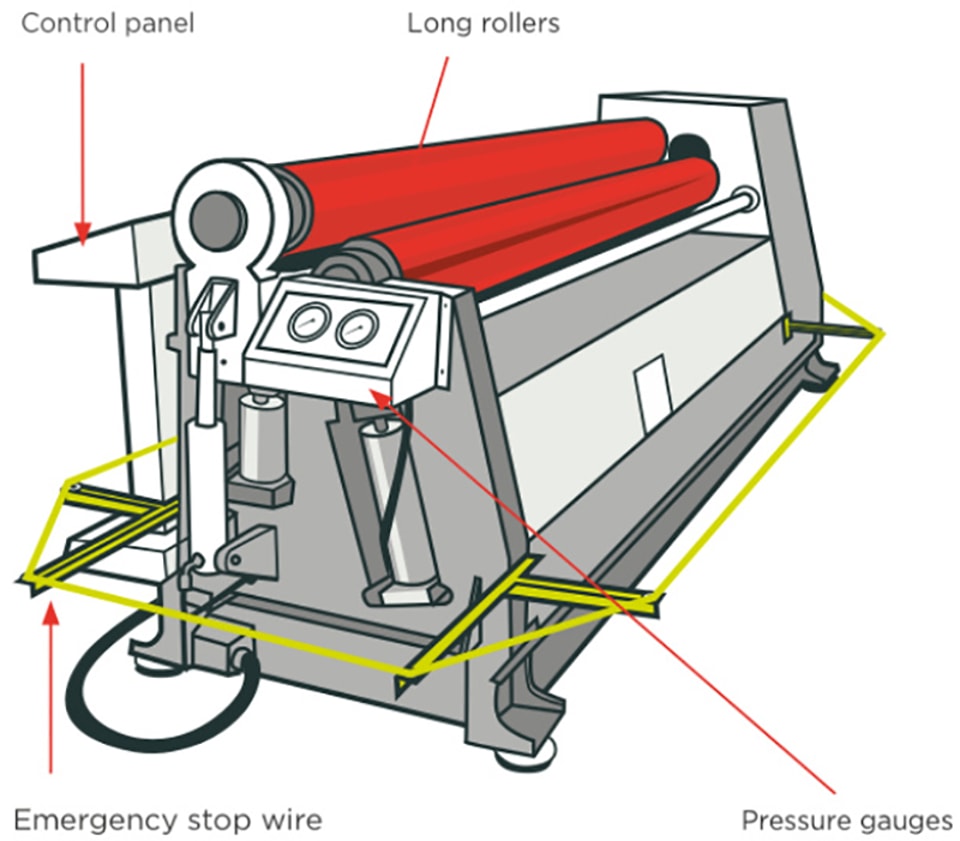

1, This is a type of 3 roller asymmetric plate rolling machine.The upper roller is the main drive.

2, The bottom roller do the elevation movement,through the meshing between the gear of up and bottom roller to clamp the plate tight.

3, The side roller do the movement of inclined lifting.

4, There’s a double function of pre-bending and circle.It’s impact and easy to operate and maintenance.



Sample show



  •
  •
  •
  •

Product parameters:

NO.

NAME

DATA

UNIT

REMARKS

1

Useful length

1500

mm



2

Max bending thick capacity

6

mm



3

Top roller diameter

170

mm



4

Bottom roller diameter

170

mm



5

Side roller diameter

170

mm



6

Minimum bending diameter

300mm

210

mm

240N/mm2

700mm

260

mm

240N/mm2

1500mm

350

mm

240N/mm2

7

Rolling Speed

5

m/min



8

Main Motor

3

KW



9

Formal dimension

Length

2800

Mm



Width

800

Mm



Height

1100

Mm



10

Weight

1500

Kg

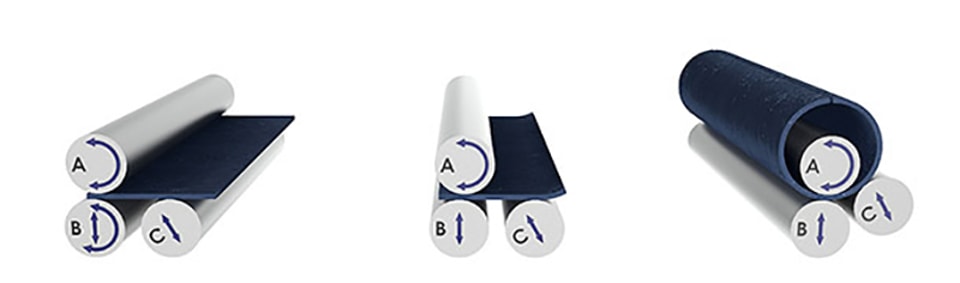

Working principle

Accessories brand list

No.

Name

Model/Manufacturer

Other

Configuration

1

Controller

Button

Standard

2

Electrics

Germany Schneider electric

Travel switch & Limit switch

3

Main motor

Siemens motor

4

Reducer motor

Siemens motor

5

Upper roller

Produced by JUGAO

6

Down rollers

Produced by JUGAO

7

Sides support

Produced by JUGAO



SPARE PARTS AND SPECIAL TOOLS

Accessory

1

GB801-2011

Bolt M16X500

Piece

4

2

GB7160-2016

Nuts M16

Piece

4

3

GB610-2014

Electrical box key

Piece

1

Spare parts

4

GB689-2018

O type seal ring

Piece

17

5

GB638-2018

Combination seal ring

Piece

16



LIST OF ACCOMPANYING DOCUMENTS:

Document

1

Manual Operation Book

Copy

1

2

Certification of CE

Copy

1

3

Packing list/Commercial Invoice( Certification of Origin)

Copy

1

4

Inspection Qualified

Copy

1



RODUCTS DETAILS



  •
  •
  •
  •
  •
  •
  •
  •
