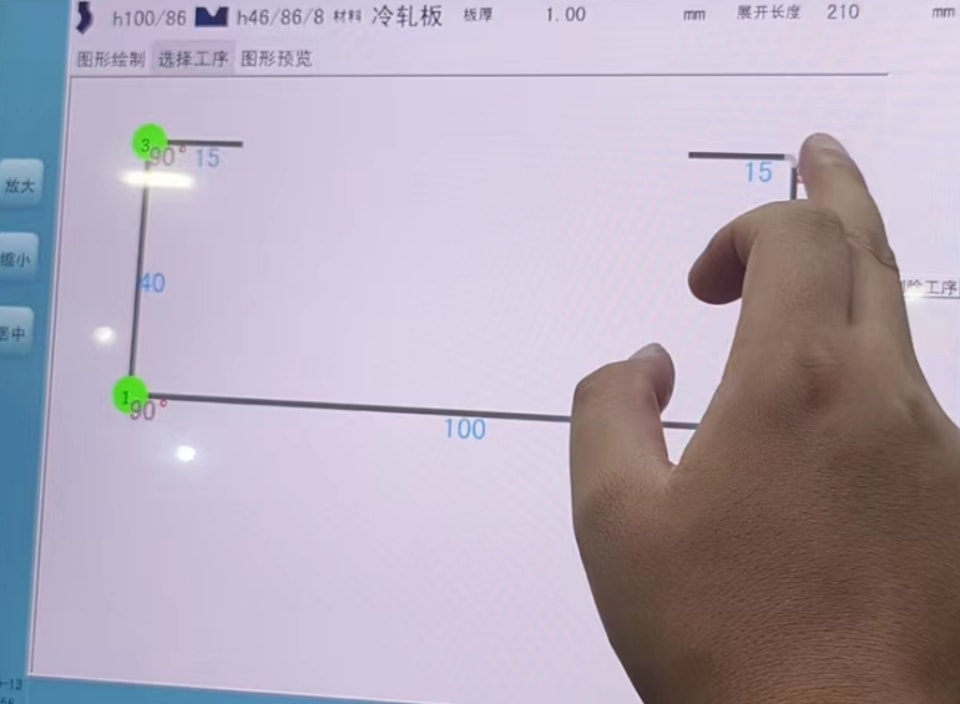

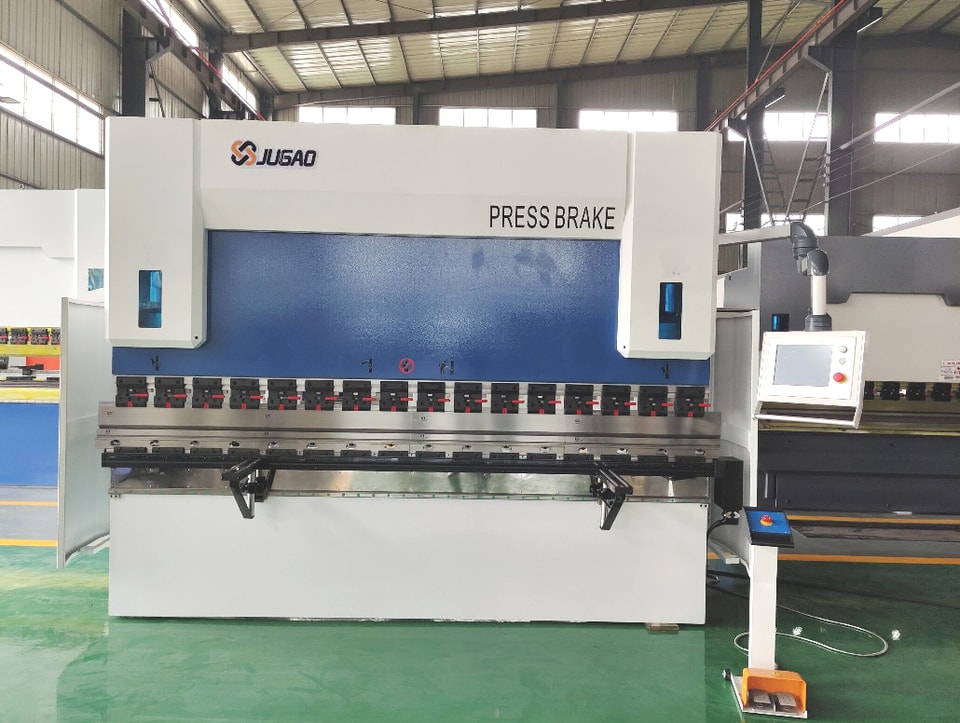

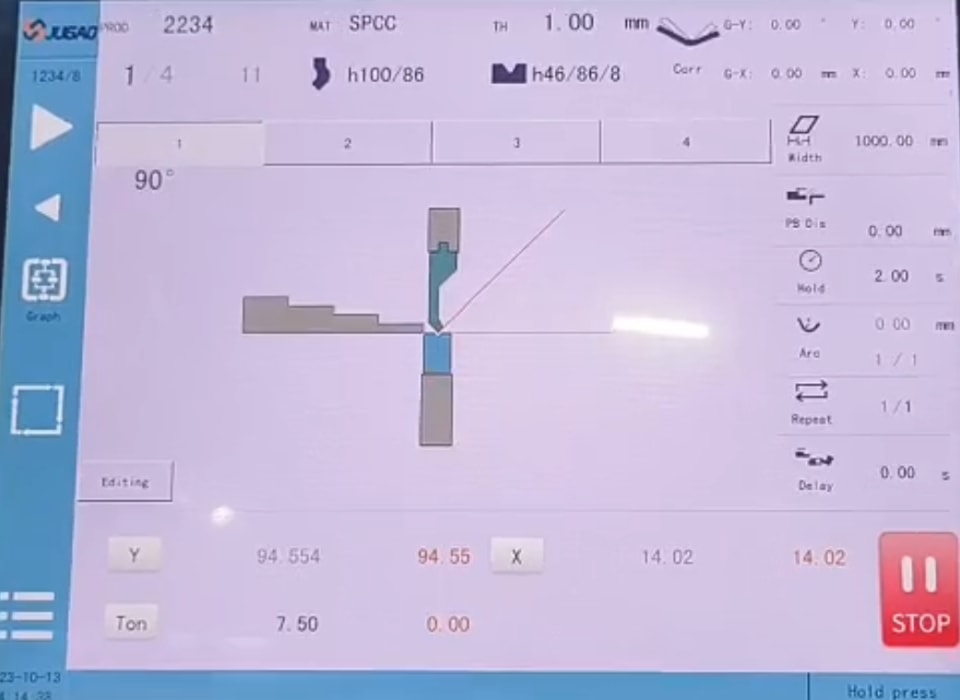

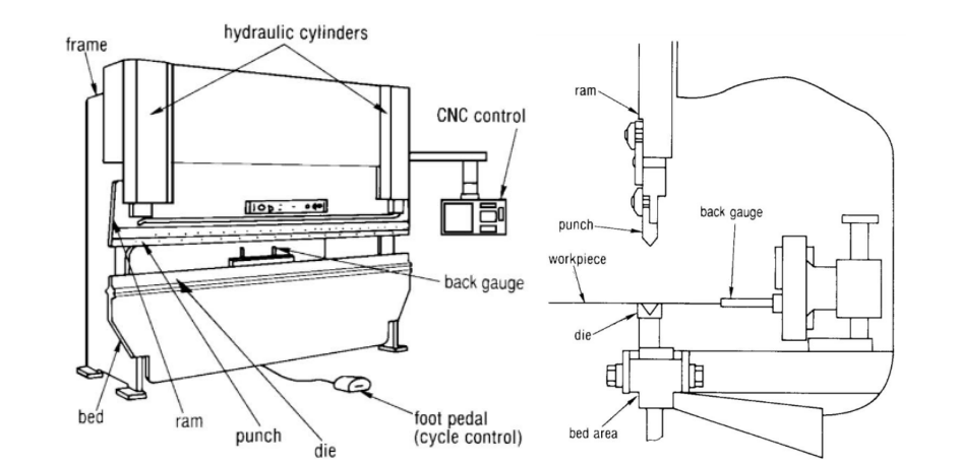

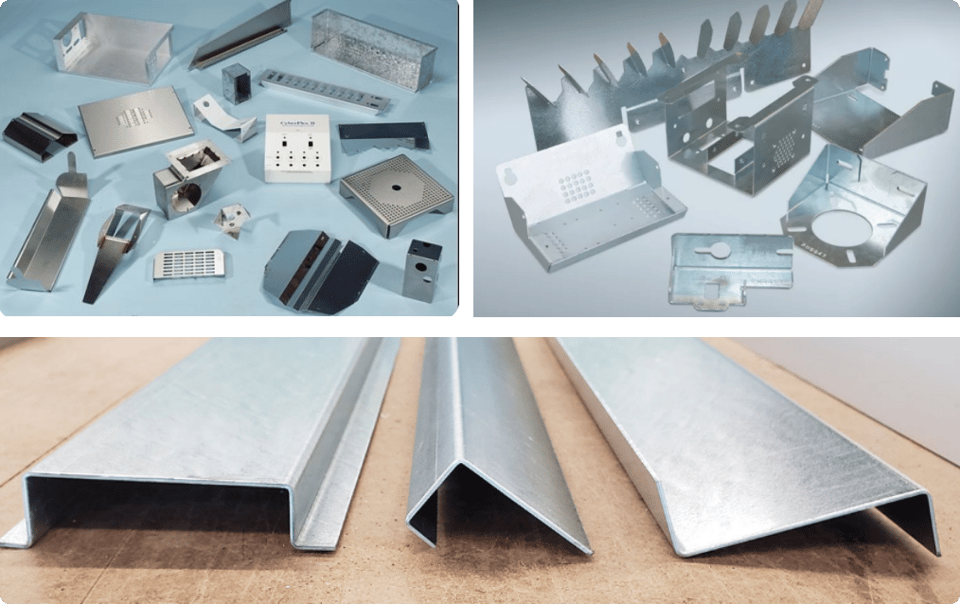

TECHNICAL SPECIFICATION 125TON/3200 CNC press brake. T15 controller. Graphic programming
Send us your part drawing, material and thickness. An engineer will confirm the configuration and come back with a written quote.
Downloads


Specification
Machine
details
Configurations vary by order. Ask for a written specification with your quote.
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Mechanical synchronised positive stop design,and by T15 CNC programmable controller assuring accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with T15 CNC System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

NO. | NAME | DATA | UNIT | REMARKS | ||
1 | Nominal Pressure | 1250 | KN | |||
2 | Length of working table | 3200 | mm | |||
3 | Distance between columns | 2600 | mm | |||
4 | Throat Depth | 320 | mm | |||
5 | Ram stroke | 120 | mm | |||
6 | Max opening height | 385 | mm | |||
7 | Ram speed | Free | 80 | mm/s | ||
Running | 10 | |||||
Back stroke | 80 | |||||
8 | Main motor | Type | Y132M-4 | B5 | ||
Power | 7.5 | KW | ||||
Speed | 1400 | rpm | ||||
9 | Gear pump | Type | HG1-25-01R-VPC | |||
Pressure | 25 | L/mi n | ||||
Flow | 31.5 | MPa | ||||
10 | Max working pressure of hydraulic system | 25 | MPa | |||
11 | Machine Dimension | Length | 3300 | Mm | ||
Width | 1550 | Mm | ||||
Height | 2200 | Mm | ||||
12 | Weight | 7000 | Kg | |||

No. | Name | Model/Manufacturer | Other | Configuration |
1 | CNC System | þTouch 15 |
Standard
| |
2 | Electrics | Germany Schneider electric | Travel switch & Limit switch | |
3 | Main motor | Siemens motor | ||

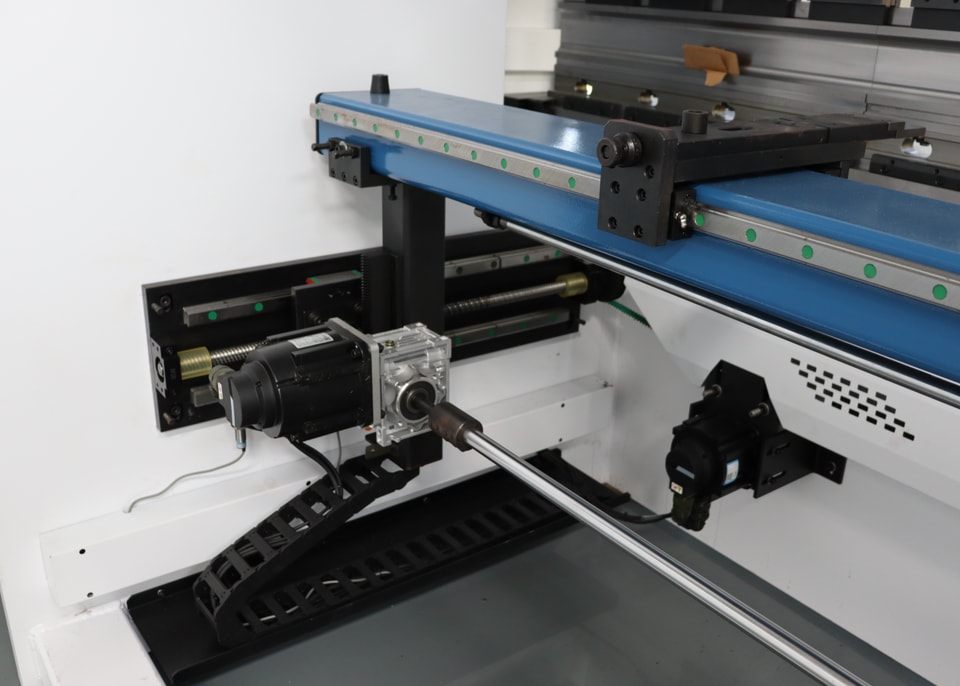

4 | Back gauge, synchronous belt, synchronous wheel | Taiwan, China | Positioning control | |
Guaranteed precision | ||||
5 | Servo Motor for Y and X axis | Yaskawa | ||
6 | Pedal Switch | South Korea KACON | ||

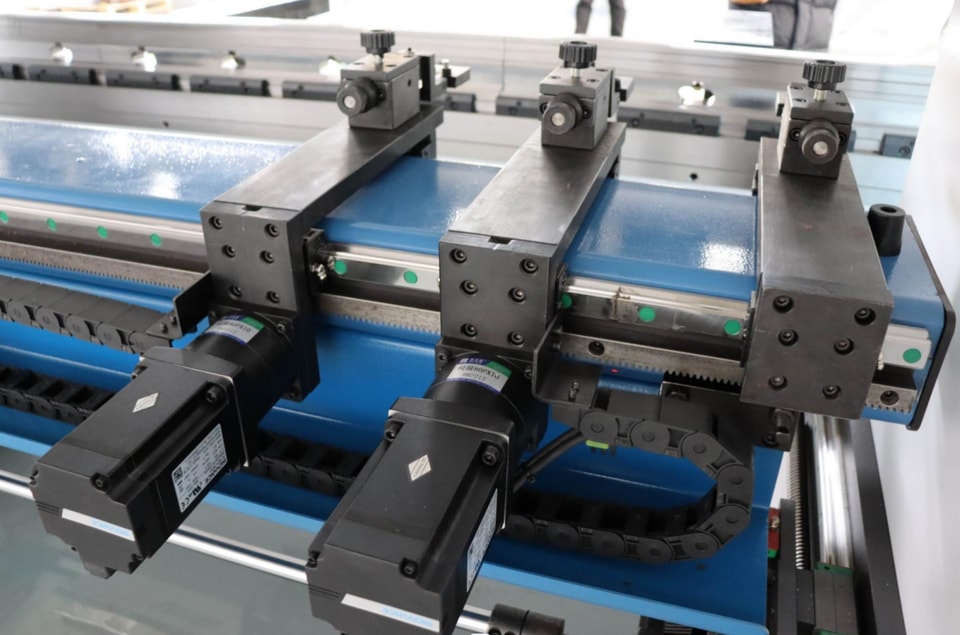

7 | Back gauge | Ball screw linear guide rail-Taiwan HIWIN | ||
8 | Hydraulic system | Bosch Rexroth Germany | ||
9 | Oil pump | SUNNY USA | ||
10 | Sealing ring | PARKER-America | ||
11 | Oil tube connector | Casing connector | ||
12 | Front safety guard | Produced by JUGAO | ||
13 | Back safety guard | Produced by JUGAO | ||

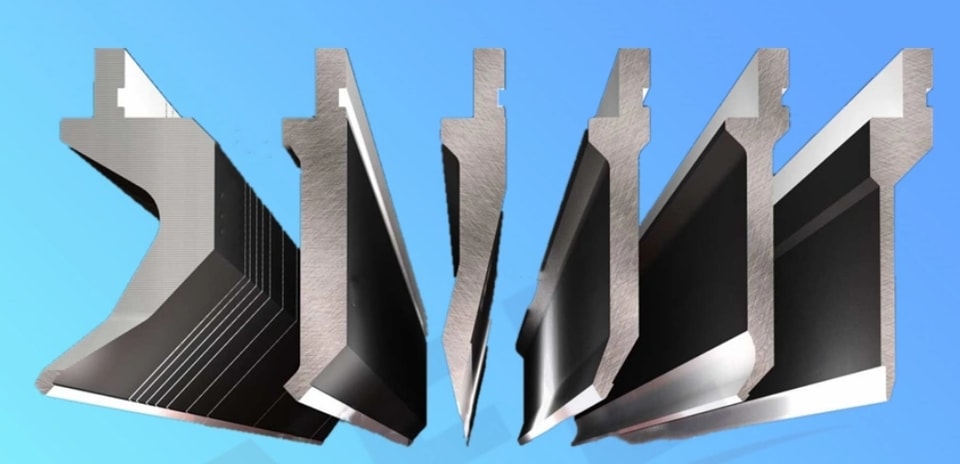

14 | Die | One set of standard dies | ||
15 | Clamping | General clamping tools | ||
16 | Clamping | Quick clamps | |
17 | Back stop up and down | Produced by JUGAO | Optional |
18 | Fingers left and right moving | Produced by JUGAO | |
19 | Big Throat | Produced by JUGAO | |
20 | Back Fingers Up and Down | Produced by JUGAO | |

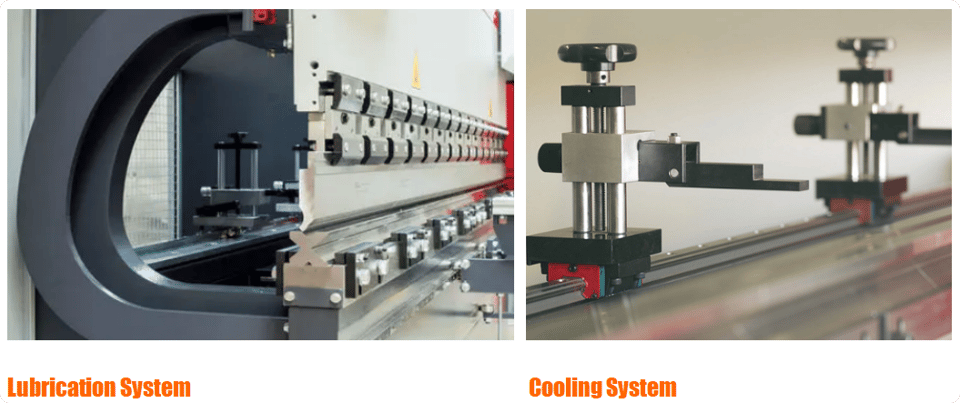

21 | Lubrication System | Produced by JUGAO | |
22 | Cooling System | Produced by JUGAO | |

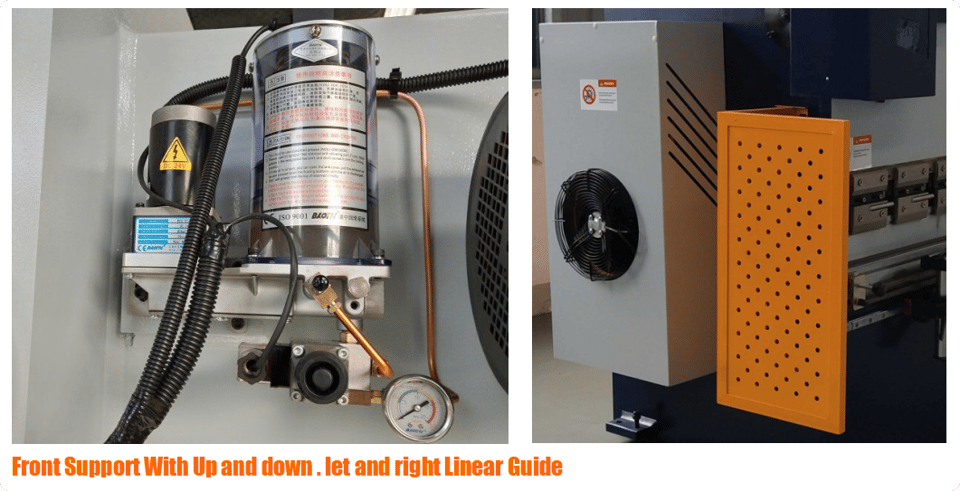

23 | Up and down Linear Guide | Produced by JUGAO | |

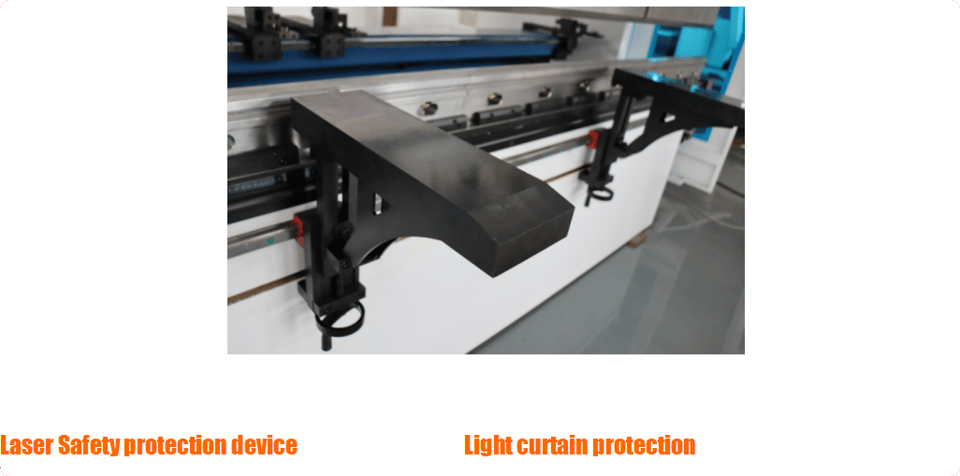

24 | Laser Protection | DSP Italy | |
25 | Front photoelectric protection | LNTECH Shandong | |
26 | Back photoelectric protection | ||

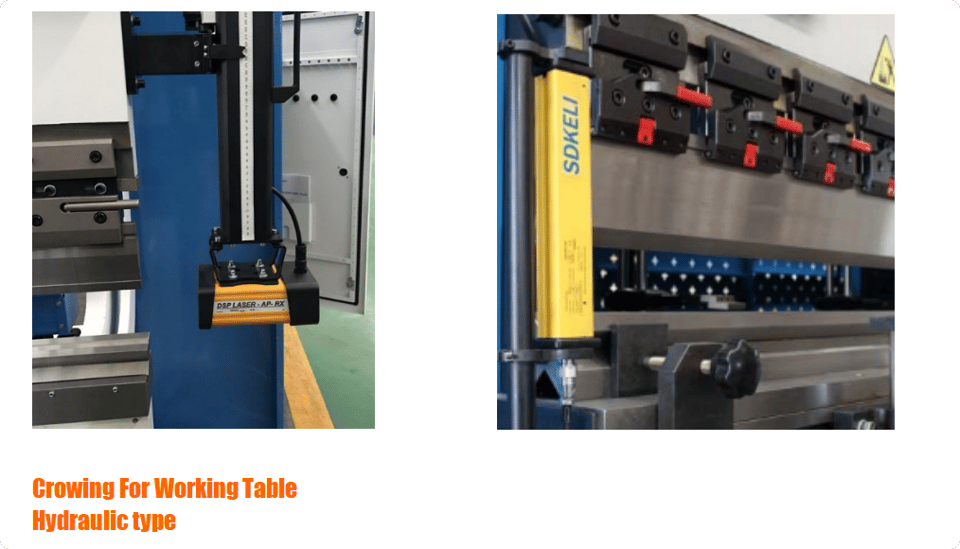

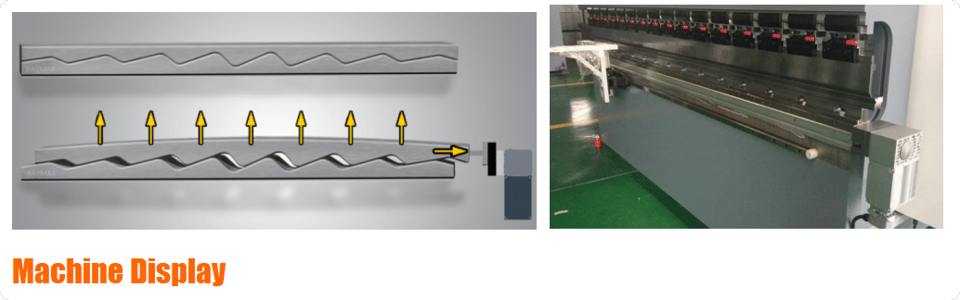

27 | Crowning mode | Hydraulic crowning | |

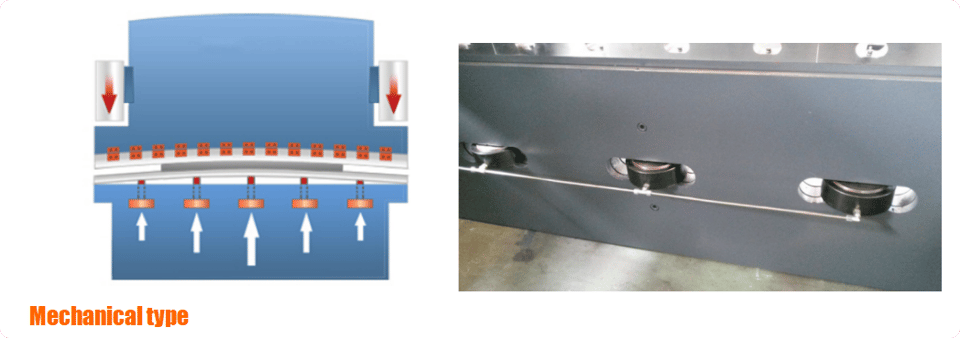

28 | Crowning mode | Mechanical crowning | |
29 | System options | E21.E200. E300, DA41T | |
30 | Safety standard | þCE ¨CSA þNR-12 ¨OSHA |
Accessory | ||||
1 | GB801-2011 | Bolt M16X500 | Piece | 4 |
2 | GB7160-2016 | Nuts M16 | Piece | 4 |
3 | GB98-2015 | Inflatable tools | Piece | 1 |
4 | GB610-2014 | Electrical box key | Piece | 1 |
5 | GB766-2018 | Button box power key | Piece | 2 |
6 | GB568-2018 | Foot switch | Piece | 1 |
Spare parts | ||||
7 | GB689-2018 | O type seal ring | Piece | 17 |
8 | GB638-2018 | Combination seal ring | Piece | 16 |
Document | |||
1 | Manual Operation Book | Copy | 1 |
2 | Certification of CE | Copy | 1 |
3 | Packing list/Commercial Invoice( Certification of Origin) | Copy | 1 |
4 | Inspection Qualified | Copy | 1 |

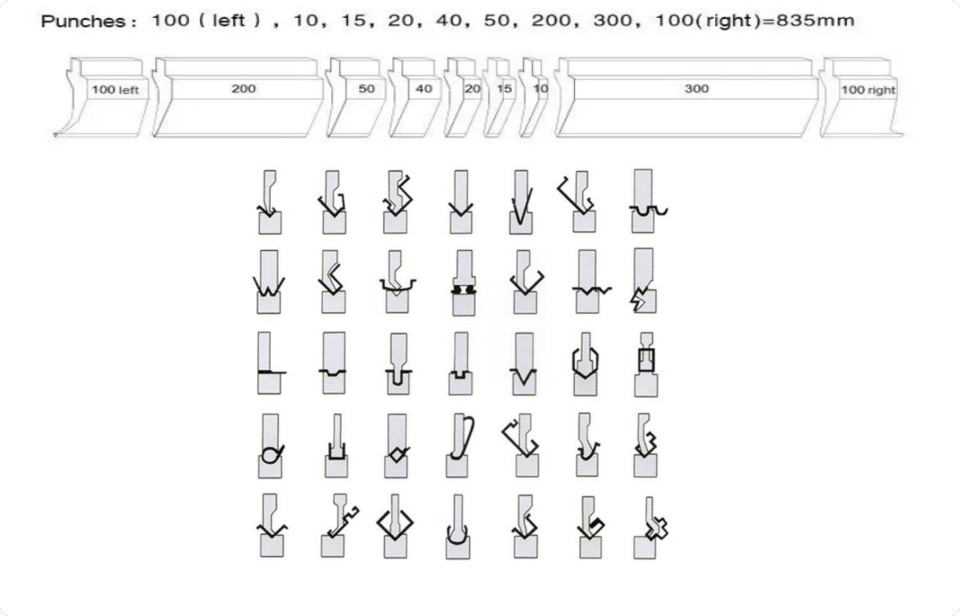

Upper die


R axis. Back stop up and down moving.
Z axis. Fingers let and right moving.

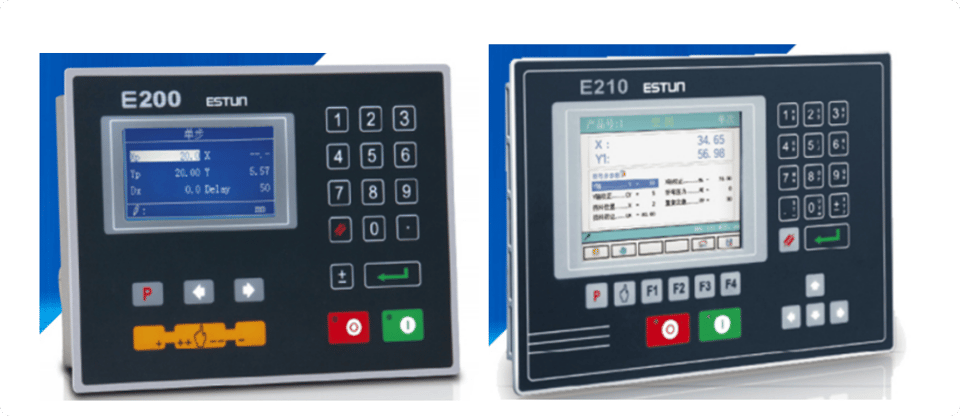

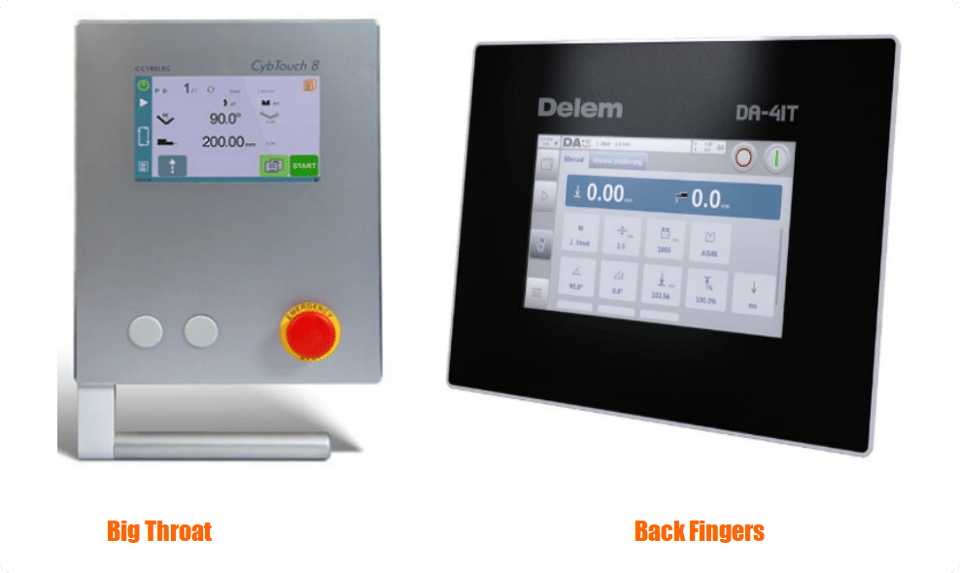

E21 Controller
