Product Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Mechanical synchronised positive stop design,and by Estun NC programmable controller assuring accurate repeatability &ease of use.

3.Integrated hydraulic system(Bosch Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

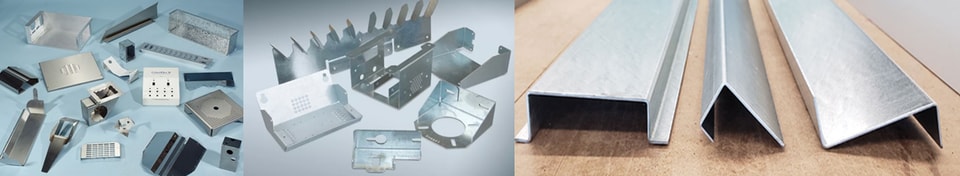

Sample show

Accessories brand list

OPITING PART

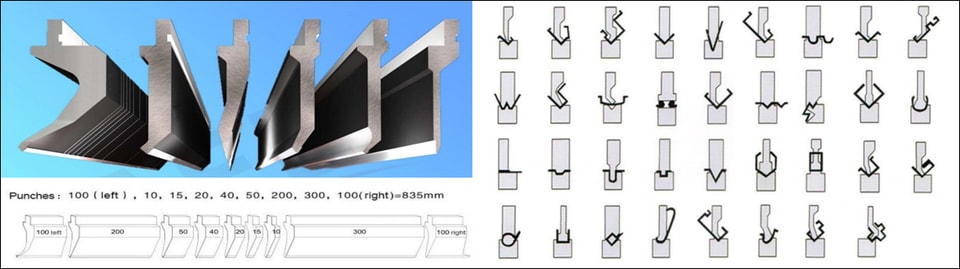

Upper die

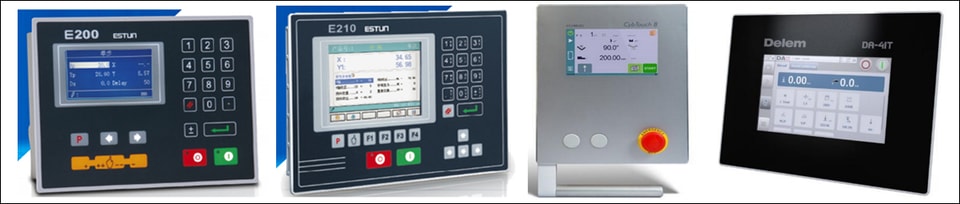

Controller

Quick Clamps

Crowing For Working Table

——Hydraulic type

——Mechanical type

Products Details

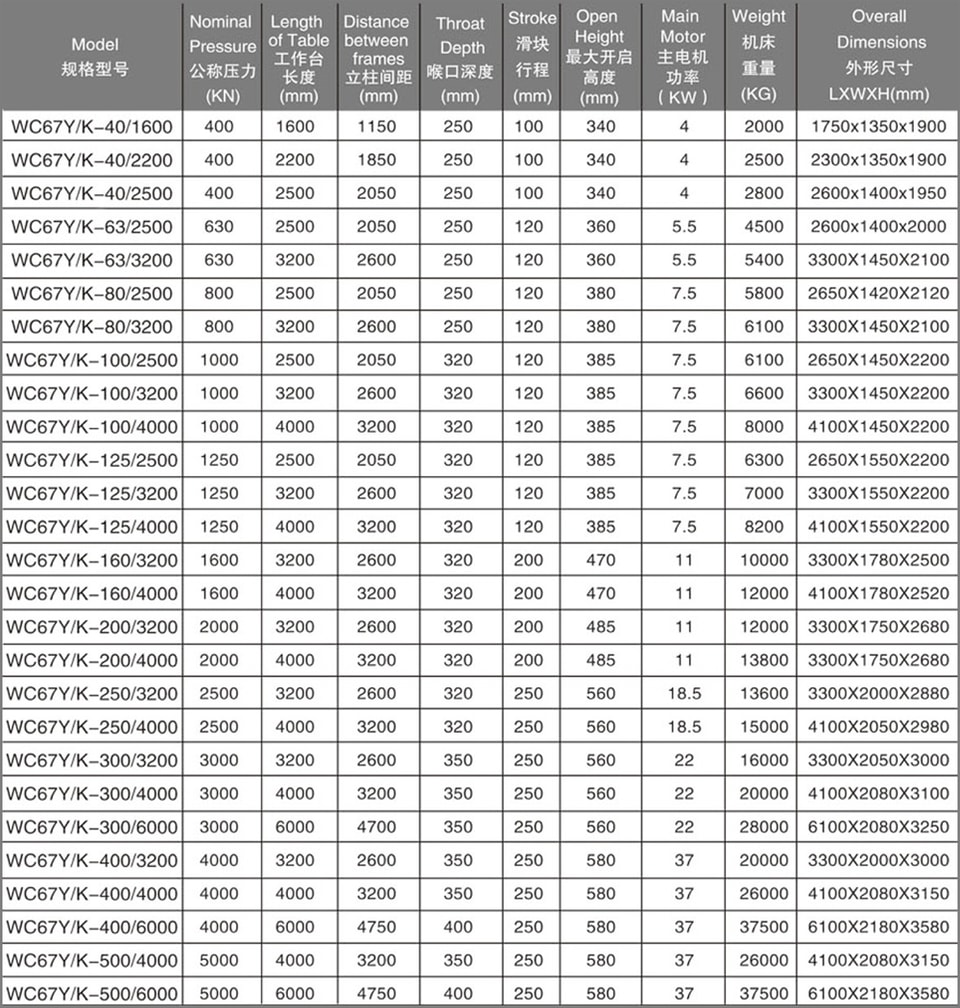

Technical parameter
