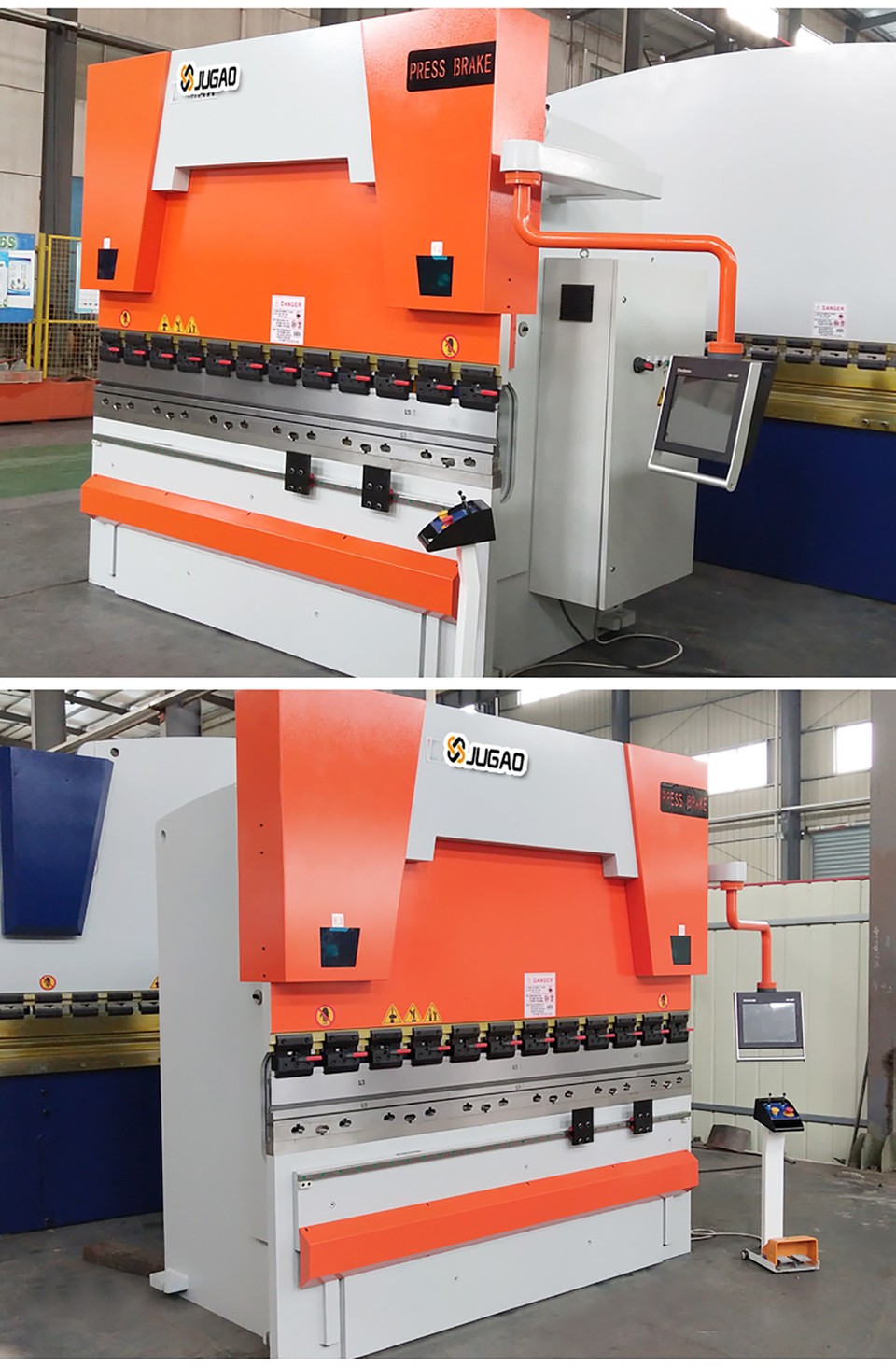

125TON-3200 CNC hydraulic press brake with Delem 53T controller

Home > Products > Bending machine > 125TON-3200 CNC hydraulic press brake with Delem 53T controller

125TON-3200 CNC hydraulic press brake with Delem 53T controller

Email:info@ntjugao.com

Tel:008613222111178

Whatsapp:+8613222111178

REQUEST A QUOTE

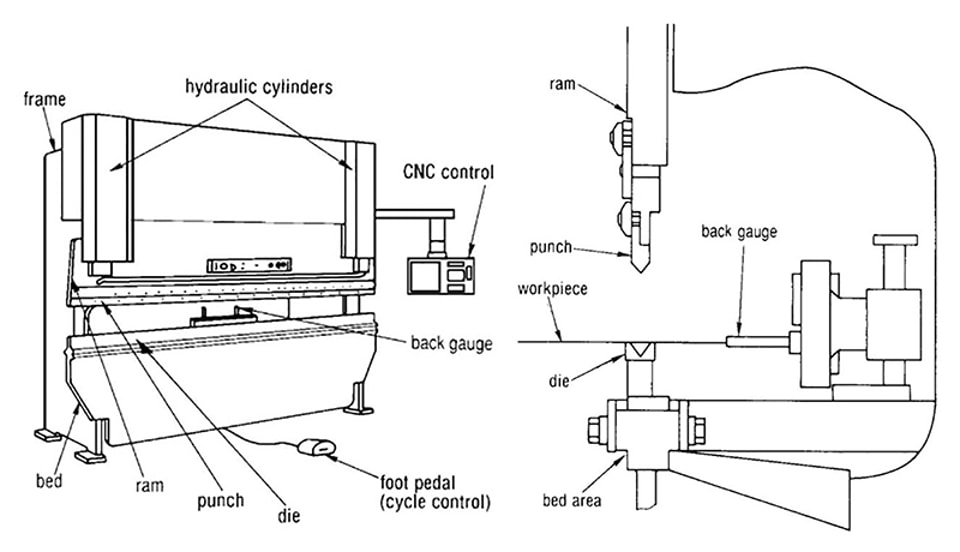

Product Description

Product Features

1.Multi-language CNC operating system

2.Silent and reliable internal gear pump

3.Hydraulic system regulated by proportional valves

4.Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.

5.High precision optical lines

6.Adjustable clampings

7.Hardened, grinded tools and clamps for quick tools adjustment

8.Complete backgauge fingers on double linear guide

9.Stainless steel front supports adjustable in height

10.Automatic mechanical crowning

11.Electrical panel with high quality components

12.European safety standards Start&Stop system

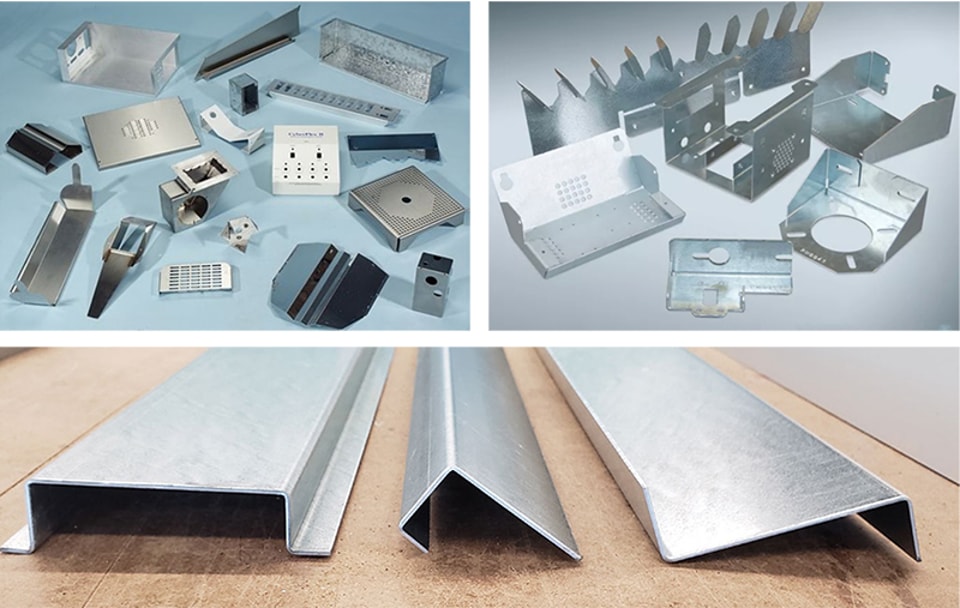

Sample show

Technical parameter

NO.	NAME		DATA	UNIT	Note
1	CNC Control Axis		Y1+ Y2+ X axis+V Crowing		3+1
2	Nominal Force		1250	kn
3	Length Of Working Table		3200	mm
4	Distance Between Columns		2600	mm
5	Throat Depth		320	mm
6	Ram Stroke		150	mm
7	Max Open Height		420	mm
8	Working Speed	Full Down Speed	220	mm/s
		Working Speed	18
		Back Speed	200
9	X Axis	Range	600	mm
		Max Run Speed	360	mm/s
		Position Precision	0.02	mm
10	Y1 Y2 Axis	Range	200	mm
		Position Precision	0.02	mm
		Repeatability	0.01	mm
11	Oil Tank Capacity	Oil Number	46	No
11	Oil Tank Capacity	Quantity	360	Lts
12	Main motor	Type	Y132M-4		B5
		Power	7.5	KW
		Speed	1400	rpm
13	Gear piston pump	Type	HG1-25-01R-VPC
		Pressure	25	L/mi n
		Flow	31.5	MPa
14	Max working pressure of hydraulic system		25	MPa
15	Formal dimension	Length	3300	Mm
		Width	1620	Mm
		Height	2480	Mm
16	Weight		8200	Kg

Accessories brand list

No.	Name	Model/Manufacturer	Configuration
1	CNC System	þDA53T Controller	Standard
2	Electrics	Schneider electric
3	Main Motor	Siemens motor
4	Servo Motor	Estun
5	Servo Drive	Estun
6	Grating ruler	FAGOR
7	Pedal Switch	South Korea KACON
8	Back Gauge	Ball screw linear guide rail-Taiwan HIWIN
9	Hydraulic System	Bosch Rexroth Germany
10	Oil pump	ECKERLE
11	Sealing ring	PARKER-America
12	Oil tube connector	EMB Germany
13	Front safety guard	Produced by ERMAK
14	Back safety guard	Produced by ERMAK
15	Die	One set of standard dies
16	Clamping	Quick Changing clamping tools
17	Crowning mode	Mechanical Compensation
18	Laser Protection	DSP Italy	Option Part
19	Crowing	Hydraulic Compensation
20	Upper Clamping	Hydraulic Clamping
21	Down Clamping	Express Clamping
22	Foot Pedal	Wireless
23	Sheet Supports Systems	Pneumatic
24	Bending Line	Laser
25	Angle Measurement System	Laser
26	Special Fingers	By Order
27	Front Support	CNC/Robot
28	Option Axis	R Z1 Z2 X1 X2
29	System options	DA58T DA66T DA69T ETC
30	Safety standard	þCE ¨CSA þNR-12 ¨OSHA

SPARE PARTS AND SPECIAL TOOLS

Accessory
1	GB801-2011	Bolt M16X500	Piece	4
2	GB7160-2016	Nuts M16	Piece	4
3	GB98-2015	Inflatable tools	Piece	1
4	GB610-2014	Electrical box key	Piece	1
5	GB766-2018	Button box power key	Piece	2
6	GB568-2018	Foot switch	Piece	1
Spare parts
7	GB689-2018	O type seal ring	Piece	17
8	GB638-2018	Combination seal ring	Piece	16

LIST OF ACCOMPANYING DOCUMENTS:

Document
1	Manual Operation Book	Copy	1
2	Certification of CE	Copy	1
3	Packing list/Commercial Invoice( Certification of Origin)	Copy	1
4	Inspection Qualified	Copy	1

OPITION PART

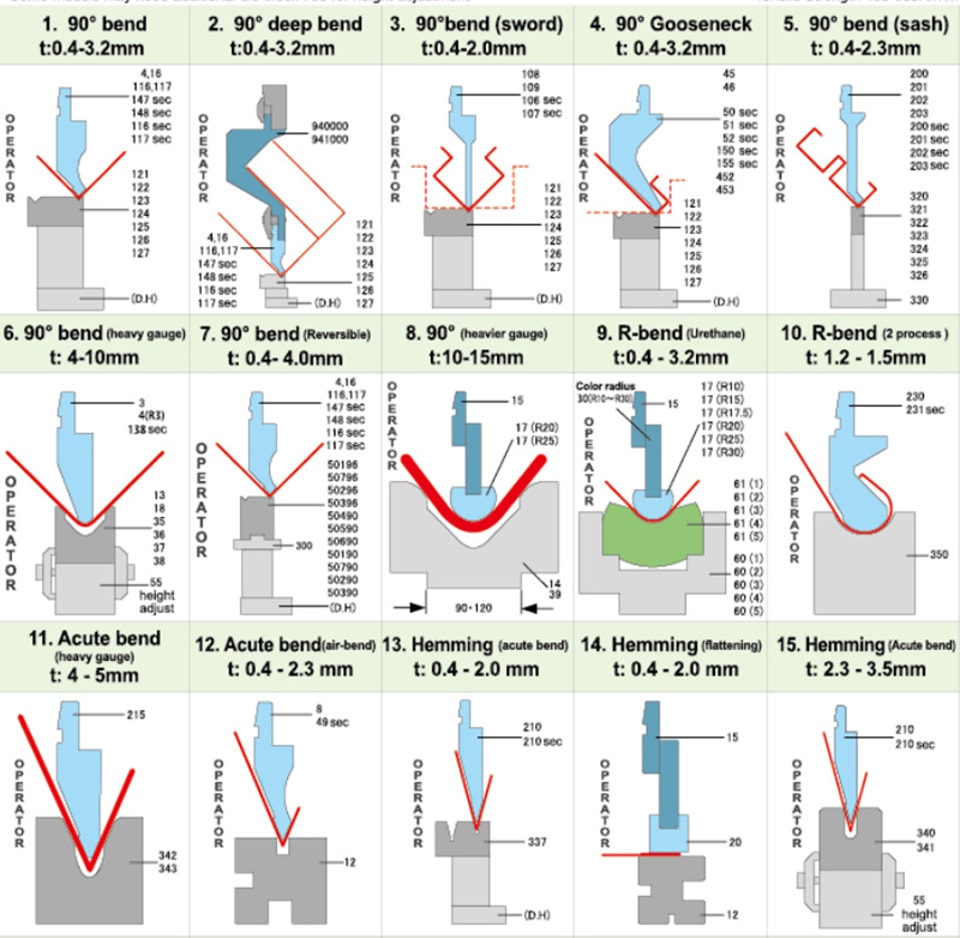

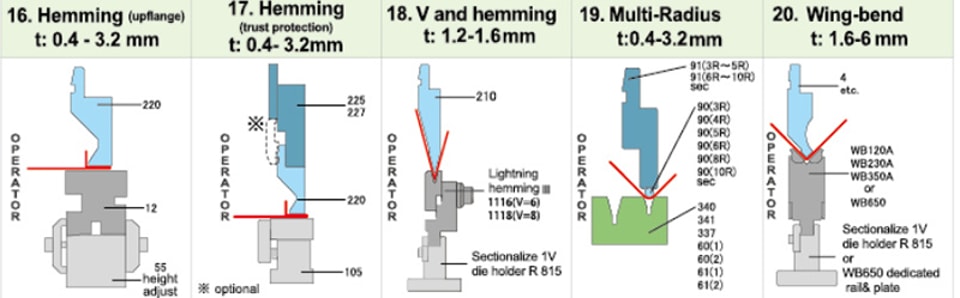

Upper Die And Down Tool

Controllers

Delem DA53T Controller: https://youtu.be/YeUWZhJbCog

Delem DA58T Controller: https://youtu.be/z4n-GXoQQ98

Delem DA66T Controller: https://youtu.be/fufuqi1UbOM

CybTouch 12 Controller: https://youtu.be/8bZ7ZwAZ0PA

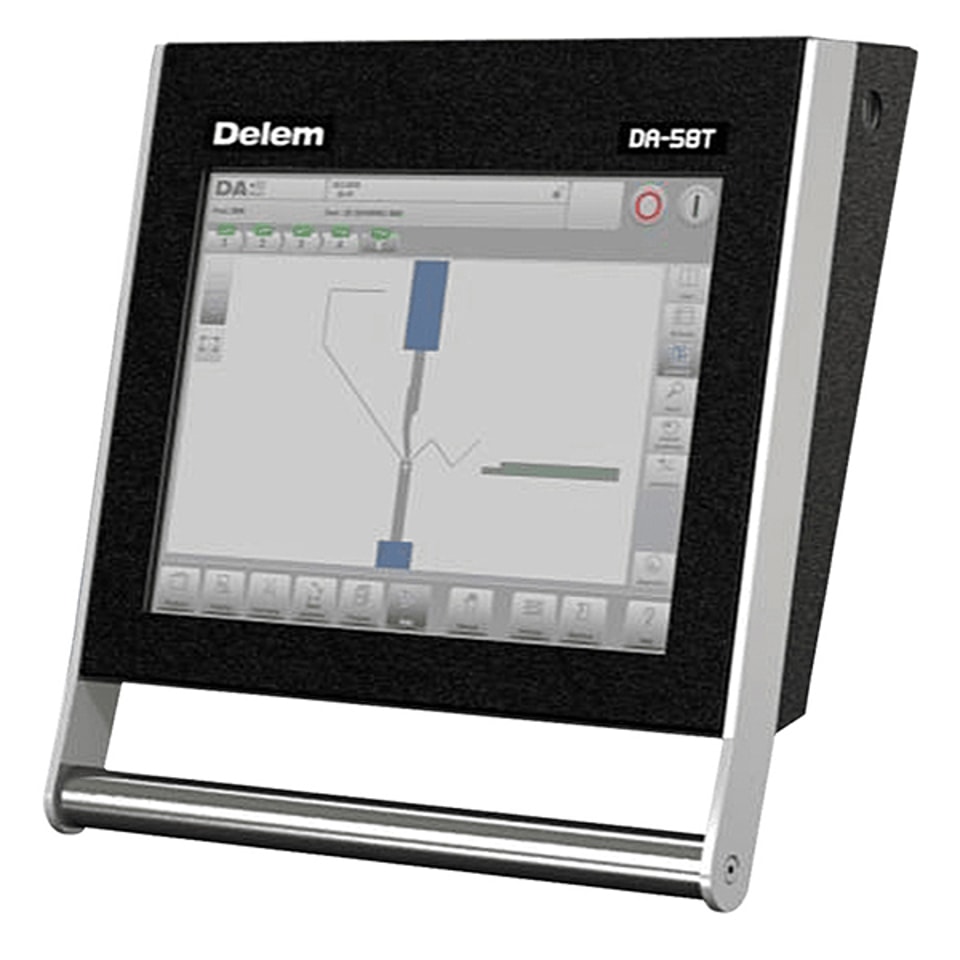

DELEM DA58T Color 2D graphical CNC System

● The DA-58T touch CNC control provides a modern compact and versatile solution for powerful economic press brake applications.

● 15" high resolution colour TFT

● 2D graphical touch screen programming

● Up to 4 axes (Y1,Y2 + 2 aux. axes)

● Bend sequence calculation

● Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

● CNC Crowning control

● USB, peripheral interfacing

● Profile-58TL offline software

DELEM DA66T Touch 2D Graphical Control

● The DA-66T Touch controls feature the embed-ded, real-time Windows operating system for maximum reliability. Smooth start-ups ensured, even after instant shut-off.

● 17" high resolution colour TFT
● 2D graphical touch screen programming mode

● 3D visualisation in simulation and production

● Full Windows application suite

● Delem Modusys compatibility (module scalability and adaptivity)

● USB, peripheral interfacing

● Profile-T2D offline software

● Sensor bending & correction interface

DELEM DA69T Touch 3D Graphical Control

● The DELEM DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

● 17" high resolution colour TFT

● 2D and 3D graphical touch screen programming mode

● 3D visualisation in simulation and production

● Full Windows application suite

● Delem Modusys compatibility (module scalability and adaptivity)

● USB, peripheral interfacing

● Profile-T2D offline software

● Sensor bending & correction interface

CYBELEC CybTouch 8 PS 2D graphic CNC System

● CybTouch 8 PS is intended specifically for synchronized press-brakes.As part of the CybTouch range, it has an intuitive and vivid color touch screen and a high integration of functions.

● 7” color graphic CRT screen

● 2D graphic profile creation with manual sequencing

● Up to 4 axes (Y1,Y2 + 2-axes)

● Bend allowance calculation.

● Pressure – crowning calculation.

● CNC Crowning control

● Angle and back gauge correction.

● Delivered with PC1200 offline software.

CYBELEC CybTouch 12 PS 2D graphic CNC System

● As the entire CybTouch numerical control range, CybTouch 12 PS features an intuitive touch screen user interface, offering a high integration of functions.

● 12” color graphic with fully touch screen

● Touch 2D graphic part creation with manual sequencing

● Up to 4 axes (Y1,Y2 , X, R-axes)

● Bend allowance calculation.

● Pressure – crowning calculation.

● Modulable tools for each part or bend.

● Angle and back gauge correction.

● Delivered with PC-ModEva offline software

CYBELEC CybTouch 15 PS 2D graphic CNC System

● The CybTouch 15 PS is a 2D numerical control specifically dedicated for entry to mid-range CNC press-brakes. It comes in a compact housing, similarly to the well-known CybTouch range in the field, but offering a bigger touchscreen and a new horizontal design.

● 15” color graphic with fully touch screen

● Touch 2D graphical profile drawing and precise 2D program creation

● Up to 6 axes (Y1,Y2 , X, R ,Z1 , Z2-axes)

● Automatic bending sequence calculation

● Tandem management.

● Modulable tools for each part or bend.

● Angle and back gauge correction.

● VisiTouch 2D or VisiTouch MX offline software.

CYBELEC VisiTouch 19 2D and 3D graphical CNC System

● The VisiTouch 19 and VisiTouch 19 MX is a 2D and 3D graphical numerical control for CNC press brakes. It aims at making the operator’s work easier, even for demanding programming and setting-up tasks.

● 19” touch screen modern streamlined glass surface

● Touch 2D graphical profile drawing and precise 2D program creation

● Easy operating thanks to the user-friendly HMI

● Automatic bending sequence calculation

● Internal backup and restore functions

● Modulable tools for each part or bend.

● Angle and back gauge correction.

● VisiTouch 2D or VisiTouch MX offline software.

ESA S630 2D Graphical CNC System
● The most powerful in its class 10’ touch screen with powerful graphic All the performances of a high-level cnc in an economical and user-friendly controller.
● 10 inch LCD touch screen (Resistive)
● Touch 2D graphic part creation with manual sequence
● Stander to 4 axis(Y1Y2,X, R)
Automatic bending force, crowning calculation.
● Modulable tools for each part or bend.
● Direct angle correction, also for the crowning.
● Proprotional and pressure valve Amplify intergrated.
● Free off-line PC simulation software.
● Tandem machine management(option)
● Modbus TCP interface for SCADA or MES(option)

ESA S640 2D Graphical CNC System

● Top-level performances for machines up to six axes with automatic bending sequence calculations and Material Data Base for predictive compensation are available (as options) to reduce the wastage of material.

● 15 inch LCD touch screen (Resistive)

● Touch 2D graphic part creation with automatic sequence

● Stander to 4 axis, can up to 6 axis max.

● Automatic bending force, crowning calculation.

● Modulable tools for each part or bend.

● Direct angle correction, also for the crowning.

● Proprotional and pressure valve Amplify intergrated.

● Free off-line PC simulation software.

● Tandem machine management(option, can up to 4 machines)

● Modbus TCP interface for SCADA or MES(option)

ESA S650W 2D Graphical CNC System

● No limit in both performances and flexibility.

The powerful built-in Pc allows having on the machine a real 3D cad cam (metallix, radan, esa)

Finger-tip work piece design.

Direct import of tools shapes (.dxf files) and management of tool library.

Tool and die holders management.

Angle measurement and correction with all existing devices is available.

● 15 inch LCD touch screen (Resistive)

● DXF tools import(options)

● Touch 2D graphic part creation with automatic sequence

● Stander to 4 axis, can up to 32 axis max.

● Automatic bending force, crowning calculation.

● Modulable tools for each part or bend.

● Free off-line PC simulation software.

● Tandem machine management(option, can up to 4 machines)

● Modbus TCP interface for SCADA or MES(option)

● DataM or Iris-Plus angle messurement management(options).

● EsaBend-3D software(options)

● Metalix, Radan, AutoPol 3d viewer(options)

ESA S660W CNC System

● A totally renewed interface, specifically designed for multi touch screen, is available as an alternative to the well-known Esa interface used on S650W.

Make the best of any 3D cad cam you would like to install in the CNC.

Finger-tip work piece design.

Direct import of tools shapes (.dxf files) and management of tool library.

Tool and die holders’ management

● 19 inch LCD touch screen (Capacitive)

● DXF tools import(options)

● Touch 2D graphic part creation with automatic sequence

● Stander to 4 axis, can up to 156 axis max.

● Automatic bending force, crowning calculation.

● Modulable tools for each part or bend.

● Direct angle correction, also for the crowning.

● Free off-line PC simulation software.

● Bend database(options)

● Modbus TCP interface for SCADA or MES(option)

● DataM or Iris-Plus angle messurement management(options).

● EsaBend-3D software(options)

● Metalix, Radan, AutoPol 3d viewer(options)

ESA S675W CNC System

● A totally renewed interface, specifically designed for multi touch screen, is available as an alternative to the well-known Esa interface used on S650W.

Make the best of any 3D cad cam you would like to install in the CNC.

Finger-tip work piece design.

Direct import of tools shapes (.dxf files) and management of tool library.

Tool and die holders’ management.

Angle measurement and correction with all existing devices is available.

● 21 inch LCD touch screen (Capacitive)

● DXF tools import(options)

● Touch 2D graphic part creation with automatic sequence

● Stander to 4 axis, can up to 156 axis max.

● Automatic bending force, crowning calculation.

● EsaBend-3D software(options)

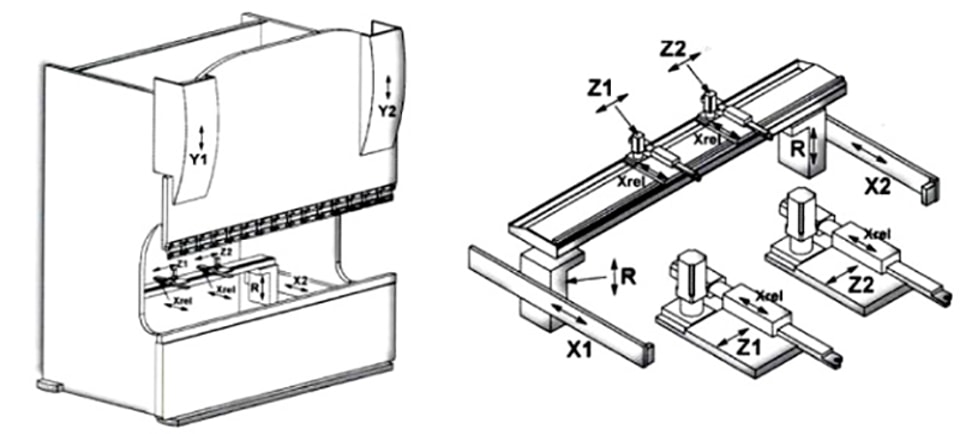

Back Gauge Of Press Brake

BGA	X	R	Z1	Z2	X2
Stroke(mm)	750	120	UNDER REQUEST	UNDER REQUEST	190
Speed(mm/s)	500	170	2000	2000	200
Precision(mm)	+0,02	+0,05	+0,05	+0,05	+0,02
Type of motor	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS
Mechanical system	SCREW	SCREW	RACR	RACR	SCREW
