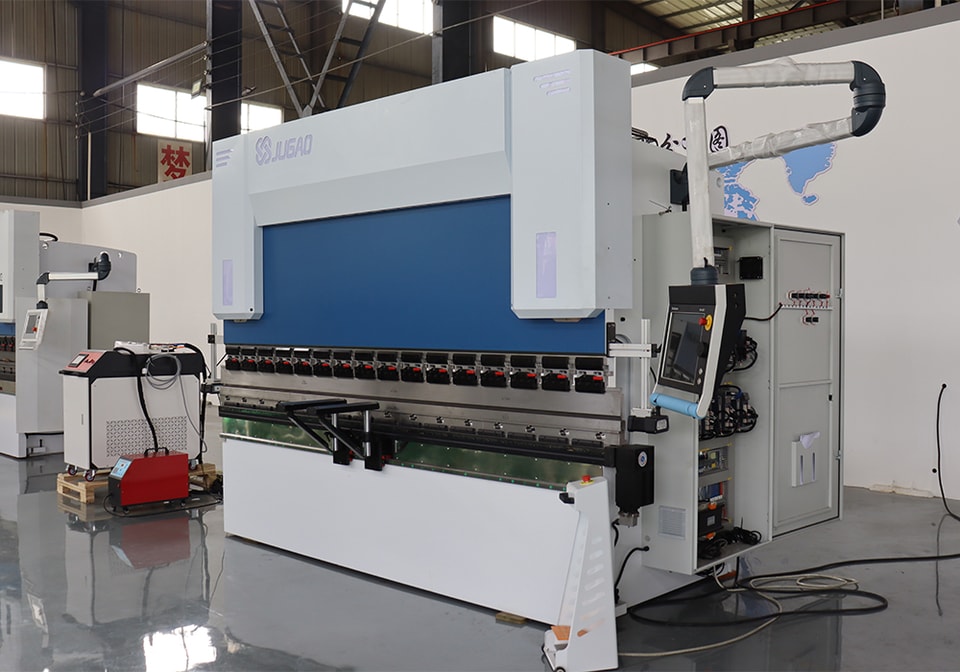

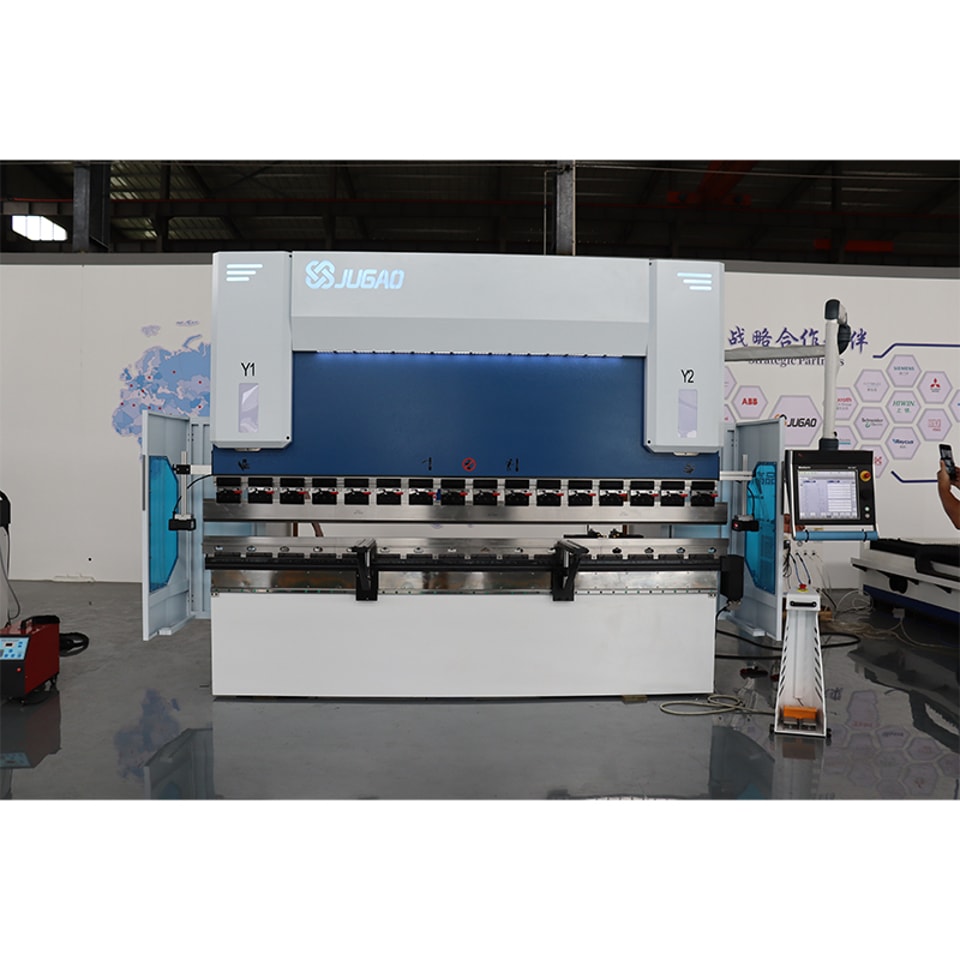

8+1 Axis CNC Hydraulic Press Brakes With DA-66T Controller
8+1 Axis CNC Hydraulic Press Brakes With DA-66T Controller
Product Features
1. Multi-language CNC operating system

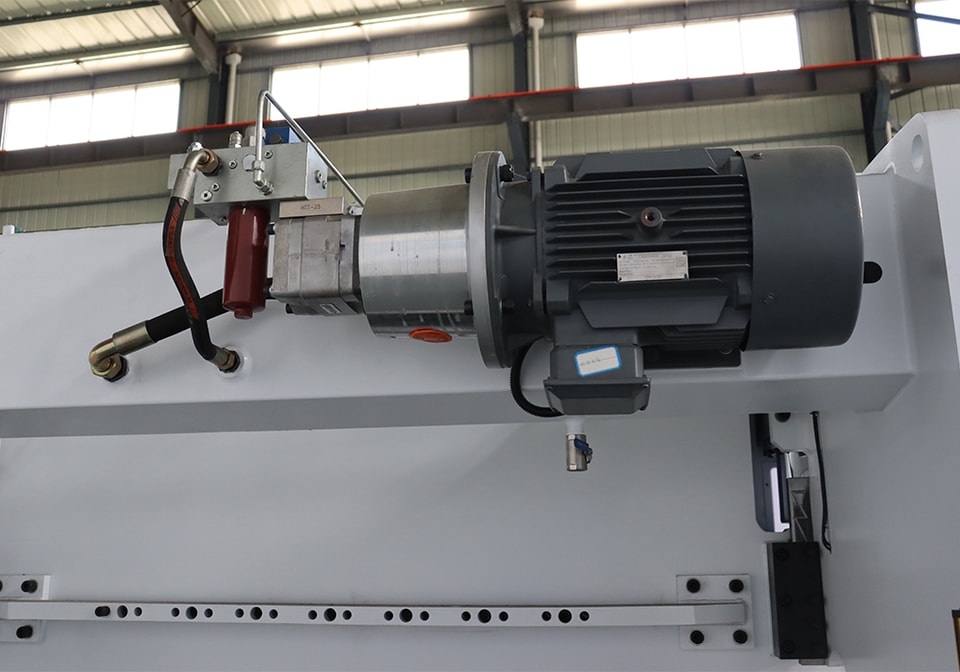

2. Silent and reliable internal gear pump
3. Hydraulic system regulated by proportional valves
4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.
5. High precision optical lines
6. Adjustable clampings
7. Hardened, grinded tools and clamps for quick tools adjustment

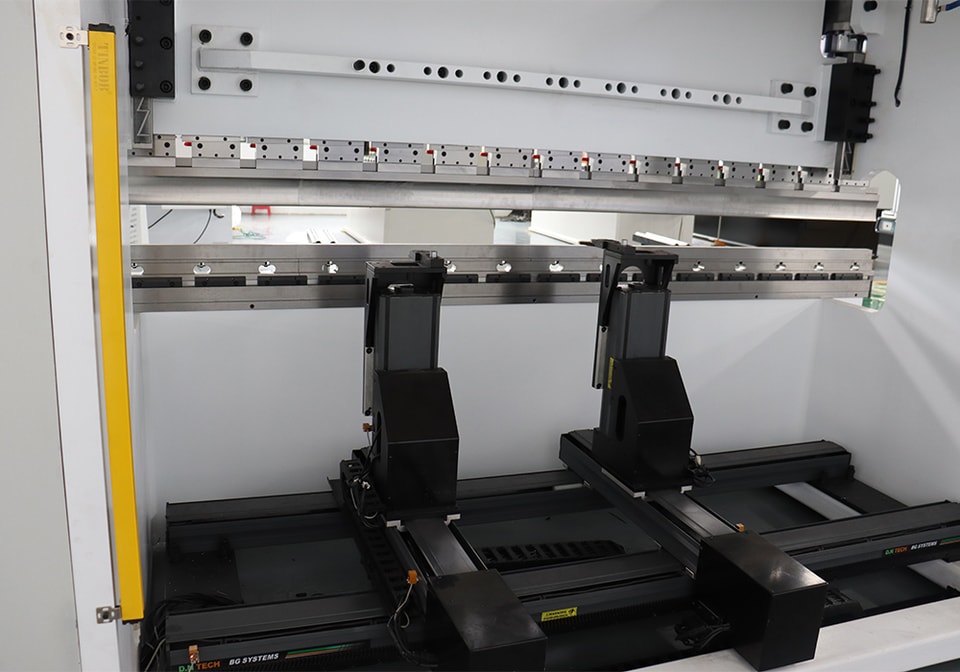

8. Complete backgauge fingers on double linear guide

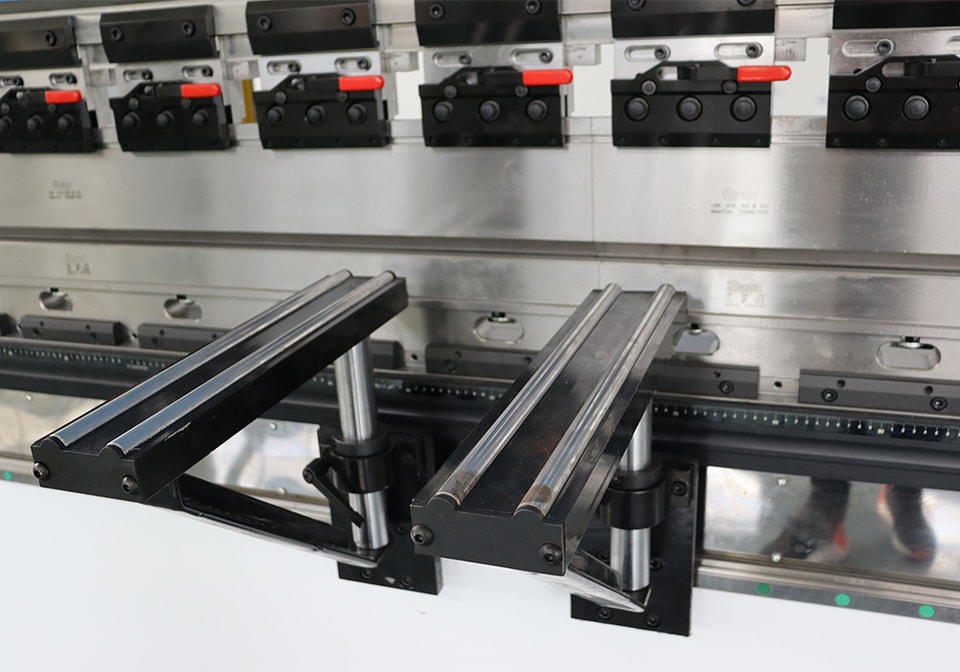

9. Stainless steel front supports adjustable in height
10. Automatic mechanical crowning
11. Electrical panel with high quality components
12. European safety standards Start&Stop system

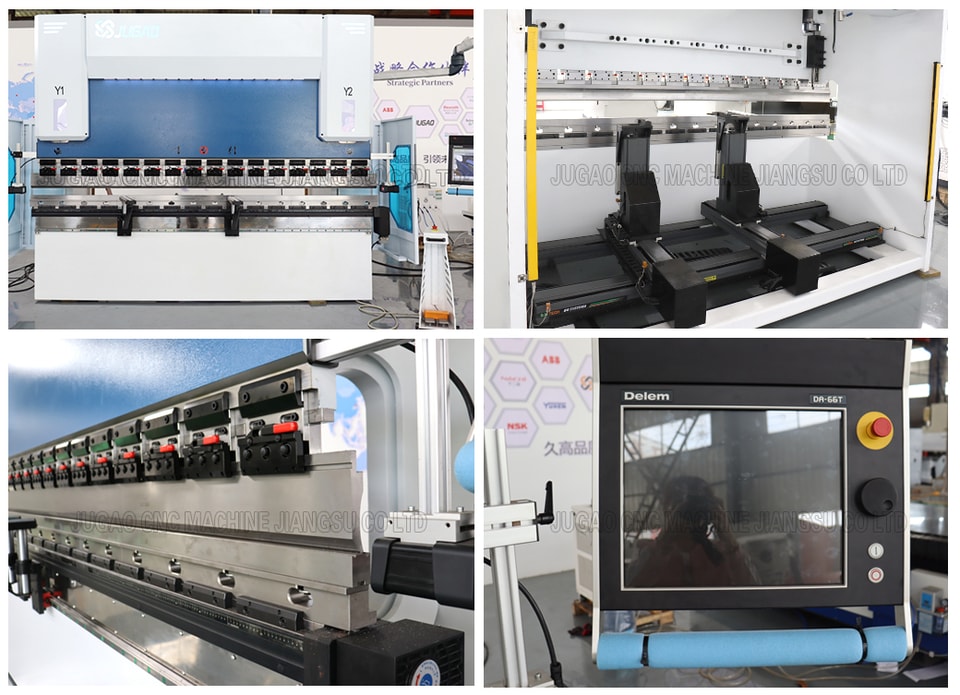

Sample show
Accessories brand list
OPITING PART

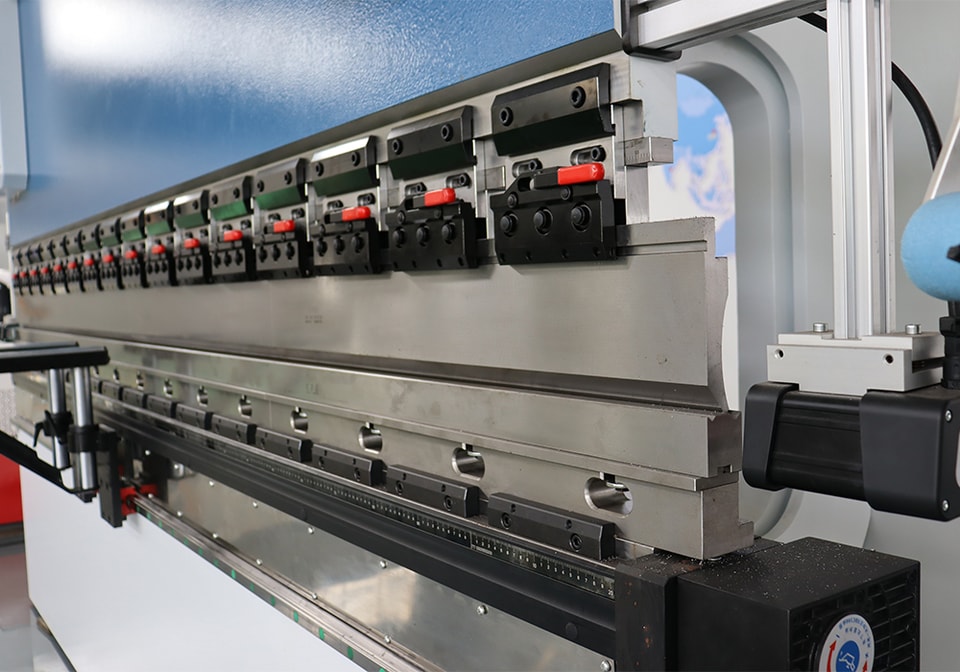

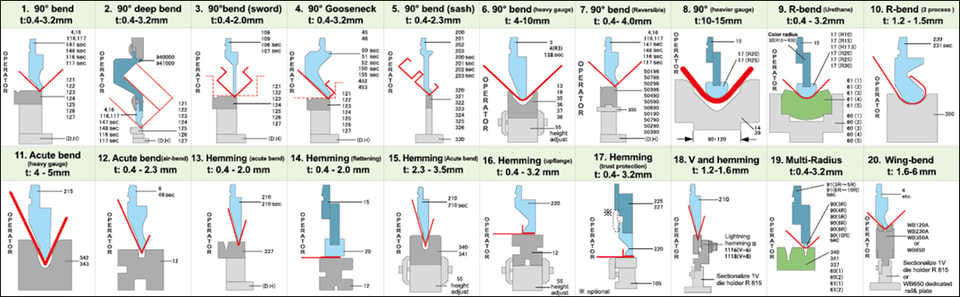

Upper Die And Down Tool

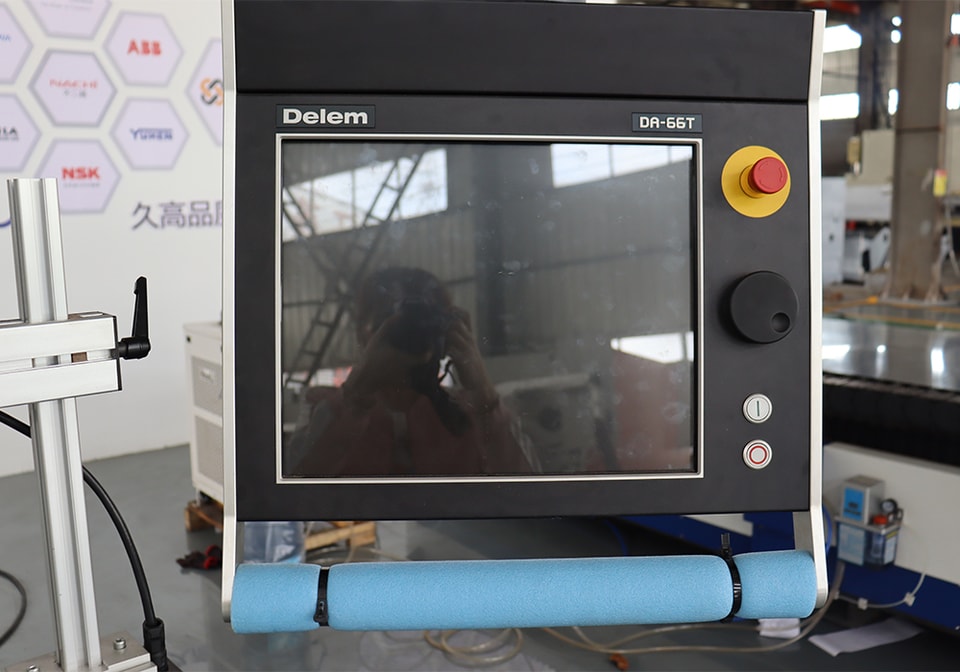

Controller
- 7 Axis CNC Back Gauge With X，Y1，Y2，R，Z1，Z2，V 6+1-Axis
- Safety Arrangements—— DSP -TX Laser safe
- ——DSP -AP-RS Laser safe
- Hydraulic Up Clamping System
- Express Down Clamping System
- Wireless Foot Pedal
- Wireless Foot Pedal
- Laser line For Bending Without Back gauge
- Laser line For Bending Without Back gauge
- Angle Measurement System
- Special Fingers
- Front Sheet lifters——CNC Front Support
- ——Lengthened Front Support
- Robot For press brake
- Cooling System
Products Details
Model | Nominal Pressure (kn) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Hight(mm) | Main Motor (kw) | Dimensions (L × W × H)(mm) |
40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545×1510×2050 |
40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950×1510×2080 |
63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555×1600×2130 |
63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960×1600×2180 |
63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740×1600×2230 |
100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980×1650×2330 |
100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740×1650×2355 |
100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550×1650×2450 |
100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100×1500×2650 |
125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980×1650×2370 |
125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750×1650×2450 |
125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550×1650×2470 |
125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100×1500×2795 |
125/6000 | 1250 | 6000 | 4500 | 350 | 150 | 410 | 7.5 | 6100×1500×2895 |
160/2500 | 1600 | 2500 | 2000 | 350 | 150 | 425 | 11 | 2980×1715×2410 |
160/3200 | 1600 | 3200 | 2550 | 350 | 150 | 425 | 11 | 3750×1715×2450 |
160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 | 4550×1715×2730 |
160/5000 | 1600 | 5000 | 4000 | 350 | 190 | 450 | 11 | 5100×1570×2900 |
160/6000 | 1600 | 6000 | 4500 | 350 | 190 | 450 | 11 | 6100×1570×3010 |
200/3200 | 2000 | 3200 | 2600 | 350 | 240 | 460 | 11 | 3750×1815×2715 |
