VMC1160 Vertical Machining Center
VMC1160 Vertical Machining Center

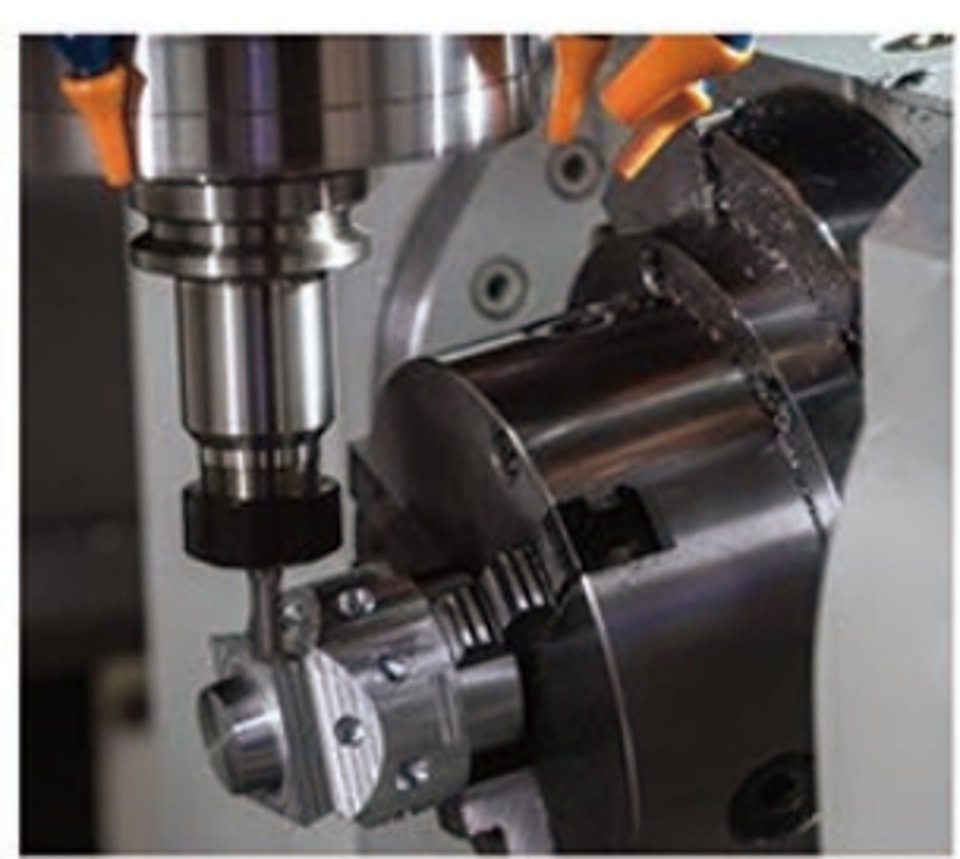

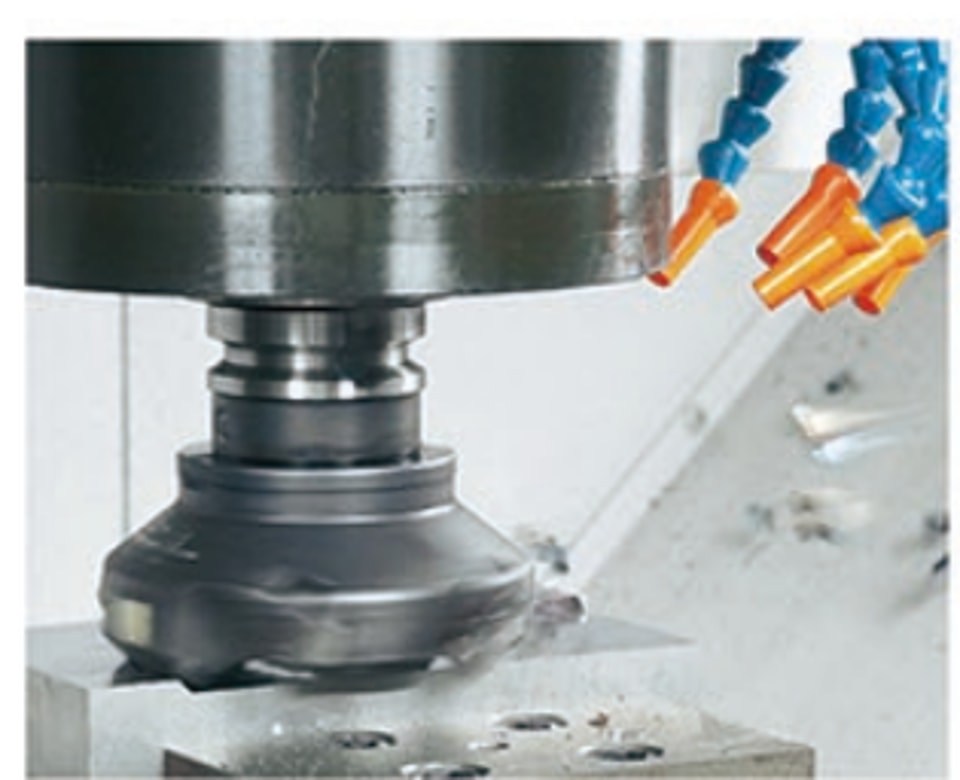

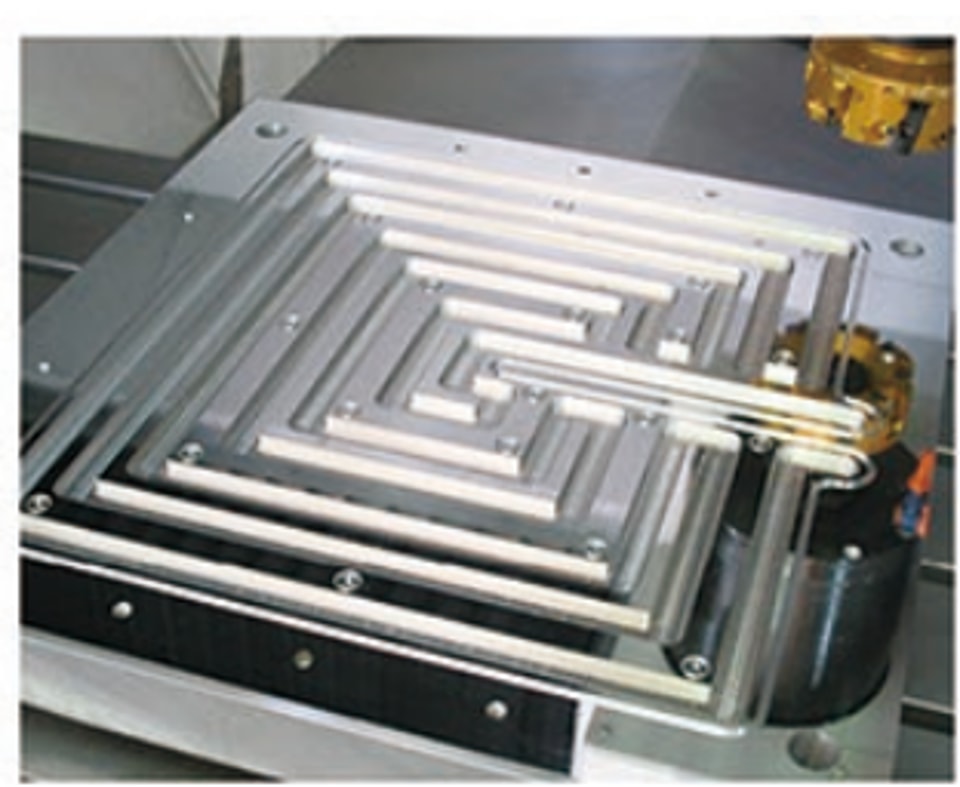

It is mainly used for machining medium-sized parts and molds. After a workpiece is clamped once, it can continuously complete multiple processes such as milling, drilling, boring, and reaming. It can be used as a single unit or in a multi-unit production line. It features powerful cutting, high-speed positioning, mechatronics integration, automatic chip removal, safety protection, and convenient operation.

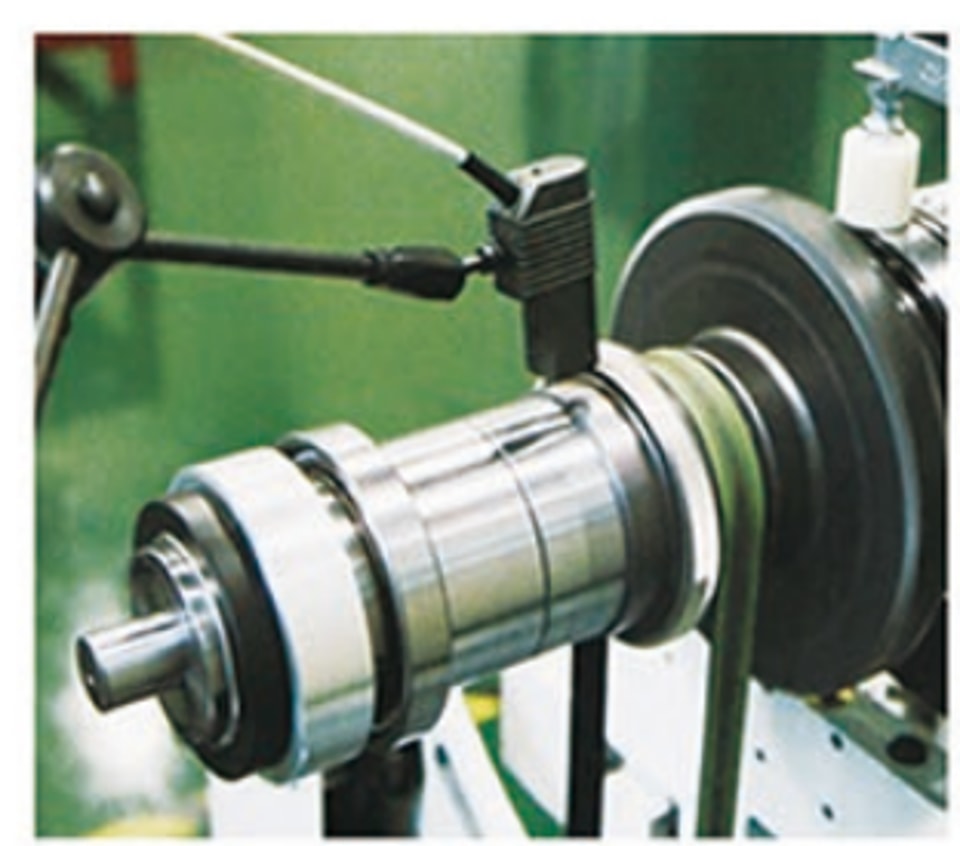

Machine Type | unit | VMC1160 | VMC1165 | VMC1270 |
Worktable | ||||
Workbench (Length × Width) Woktable(lengthxwidth) | mm | 1200*600 | 1200*600 | 1200*650 |
Workbench maximum load Maximun Losd ol tzble | kg | 800 | 800 | 1000 |
T-slot (number of slots × slot width × pitch) T-6lot [numbe of slotxslot widthxpitch] | mm | 5-18-100 | 5-18-100 | 7-18-100 |
Triaxial itinerary | ||||
X-axis / Y-axis / Z-axis travel range Travel for X/Y/Z axeS | mm | 1100*600*600 | 1100*650*600 | 1200*700*700 |
Distance from the spindle end face to the worktable surface Distance from spindle nose to tible suface | mm | 120-720 | 130-730 | 120-820 |
Distance from the spindle center to the column guide rail surface DiSlance from spndle center to colummn guide surface | mm | 600 | 710 | 785 |
Feed System | ||||
CNC system CNC System | KND2000 | KND2000 | KND2000 | |
X/Y/Z-axis rapid displacement Rapid shift of axes of x/y/2 | m/min | 36/36/24 | 24/24/24 | 24/24/24 |
Maximum cutting feed rate Maximun cutting feed speed | mm/min | 1-10000 | 1-5000 | 1-5000 |
Automatic tool changer system (not applicable to CNC milling); Automatic tool changer system (not applicable to CNC milling). | ||||
Standard tool quantity Standard tool quantity | Put | 24 | 24 | 24 |
Maximum cutting tool diameter/length The lorgss diameter catter knife/length | mm | φ78/300 | φ78/300 | φ78/300 |
Tool change method Teol exchanging mmer | pneumatic | pneumatic | pneumatic | |
Average tool change time Avarege tool axchanging tima | sec | Douli 7s / Round Disk 2.5s | Douli 7S / Disk 2.5S | Douli 7S / Disk 2.5S |
accuracy Precision | ||||
positioning accuracy Positioning accracy | mm | 0.008 | 0.008 | 0.008 |
repeatability precision AcOurecy of repeated positioning | mm | 0.005 | 0.005 | 0.005 |
Spindle System | ||||
main shaft speed Spincle speed | r.p.m | 8000 | 8000 | 8000 |
Spindle specifications (Model/Installation Diameter) Spindle specificantiors (mode/installatian diamate) | BT40/φ150 | BT40/Ø155 | BT40 | |
Spindle Drive Method Drive memer of spindle | belt drive | belt drive | belt drive | |
Spindle motor power Motor power of spindle | kW | 11 | 11 | 11 |
Air pressure | ||||
Air Demand Fequirements for air compressing | kg/cm² | ≥6 | ≥6 | |
Air supply flow rate Air pFBSSUre fiux | m³/min | ≥0.3 | ≥0.3 | ≥0.3 |
Machine Specifications | ||||
Machine Weight – Integrated Weight | kg | 7300 | 7300 | 9500 |
External dimensions (Length × Width × Height) Ovrall dimension (lengthxwidthxheight) | mm | 3400*2480*2960 | 3400*2480*2960 | 3400*2480*2960 |
