Product Description

Functions

Y41 series single calibration mounting hydraulic press is a multi-functional medium and small type of hydraulic press. It is suitable for shaft parts and other steel material or for press-assembly sleeve or bush parts. It also can be used to press powder or plastic parts with rough press requirements.

Technical Performance

1. Totally European design, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material;

2. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots;

3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise;

4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany;

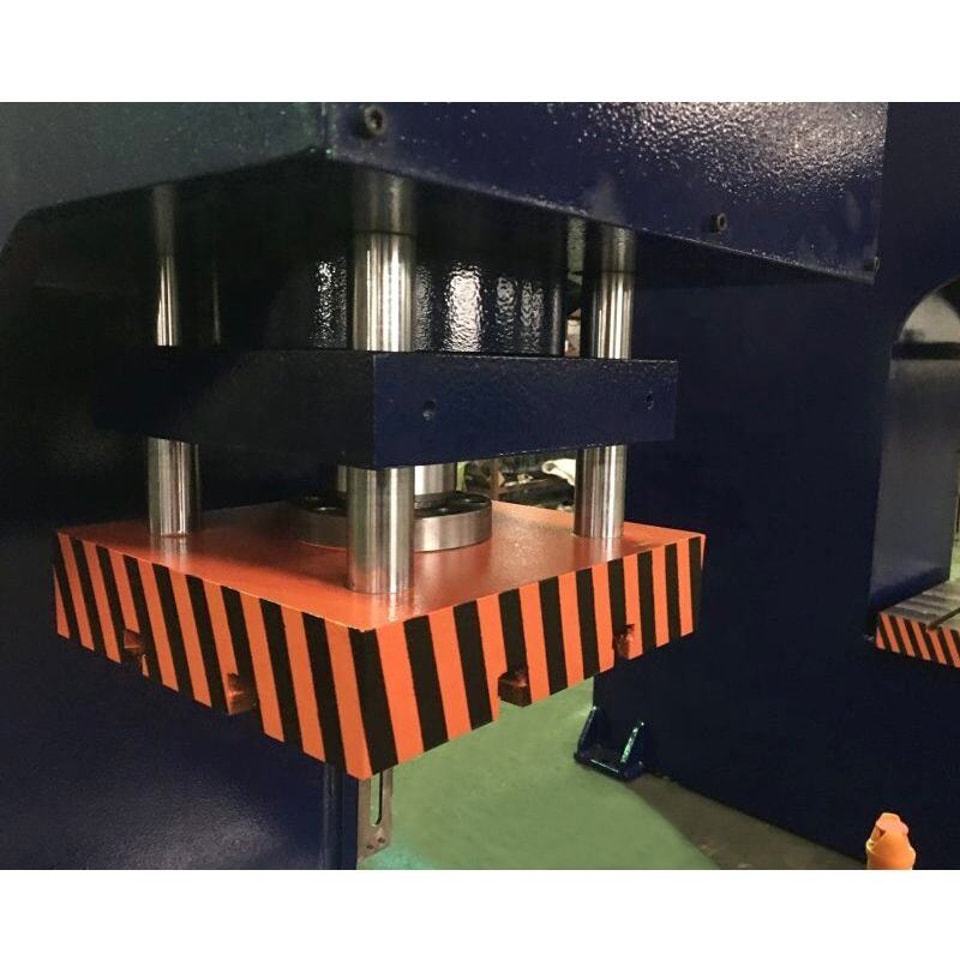

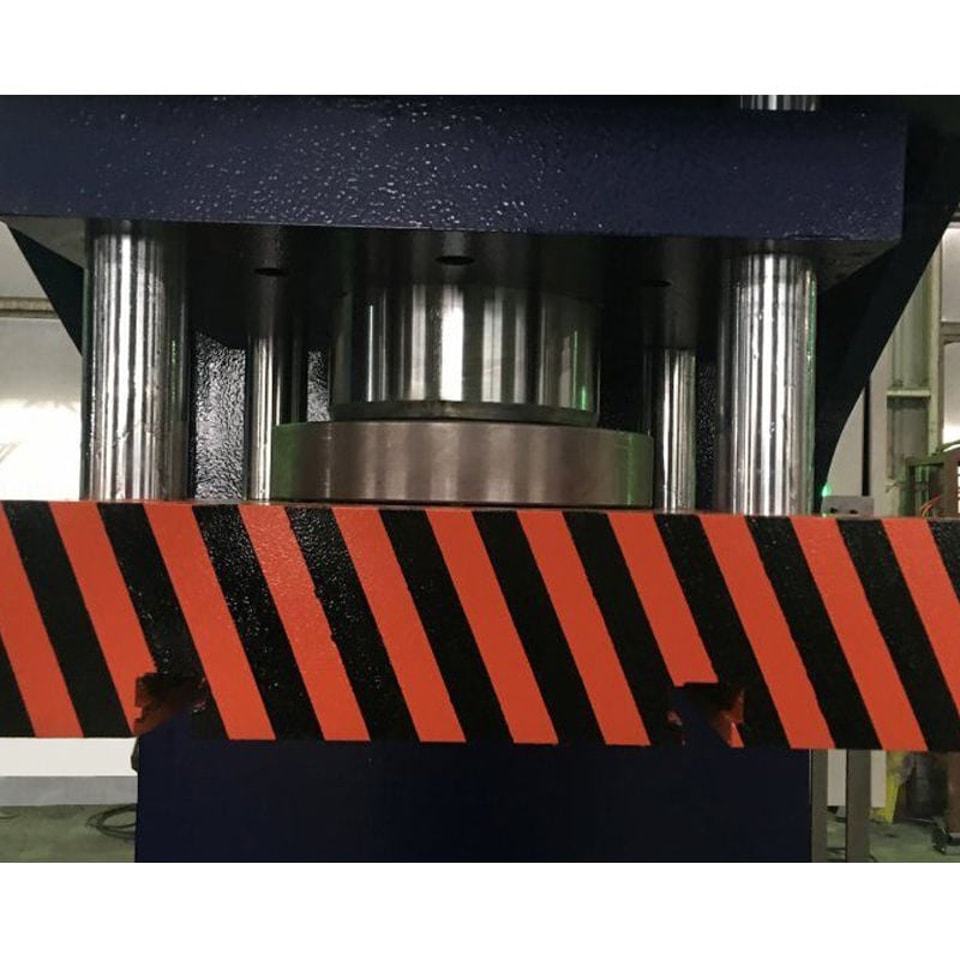

5. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain;

6. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic;

7. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds;

8. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA;

9. Dual control you can select to use:

# Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.

# Movable single-hand pedal switch

Application

Y41 series of machine is widely used in industries like machine tools, internal combustion engines, textile machinery, shafts, bearing, washing machines, vehicle motors, air-conditioning motors, electricity, army firms and assembly auto lines etc.

Parameter

Pressing force (not less)	kN	1600
Hydraulic cushion with ejector (force not less)	kN	600
Ejector stroke (not less)	mm	0-170
Approach speed down (not less)	mm/s	230
Working speed (not less)	mm/s	23
Upward retraction speed (not less)	mm/s	220

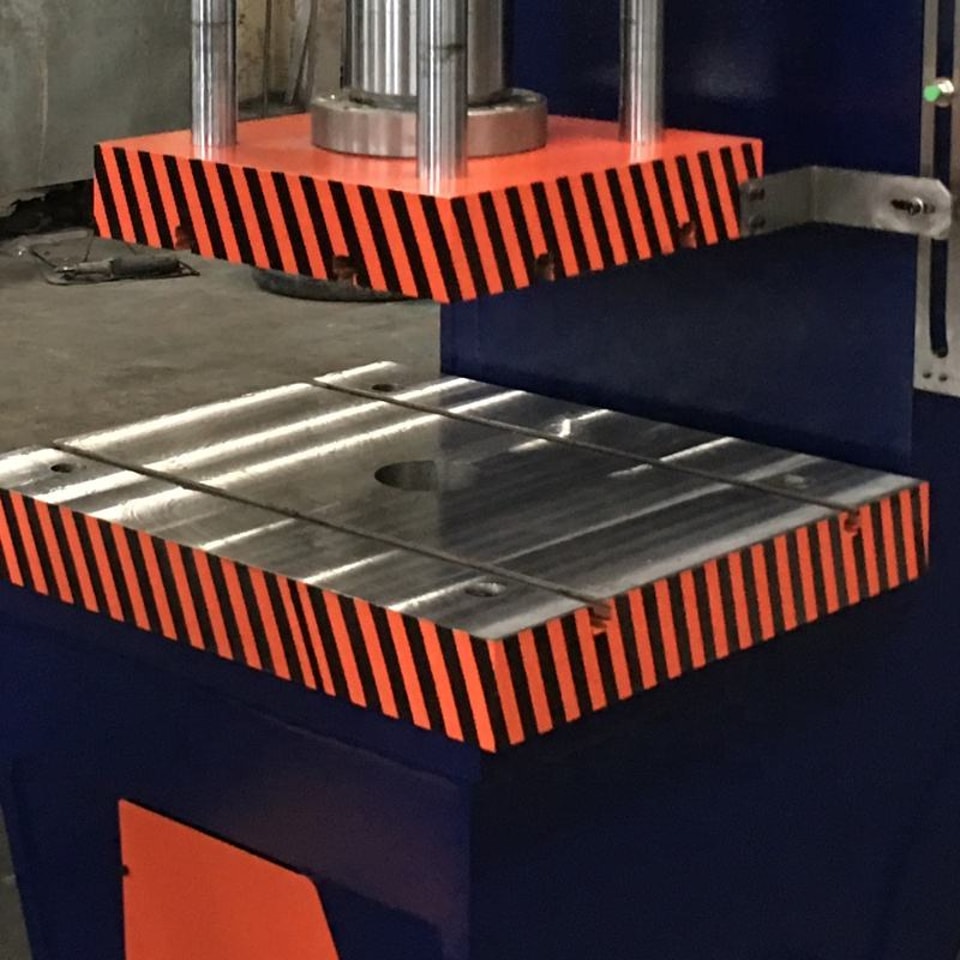

Table size (not less)	mm	1000 x 650
T-shaped slots in the table 22Н8 (not less)	pcs	4
Slider size (not less)	mm	1000 x 650
T-shaped grooves in the slider 22Н8 (not less)	pcs	4
Hole diameter in the table	mm	indicate
T-shaped slots on the table (not less)	pcs	3
Slider linear guides (not less)	pcs	8
Slider-table distance (open height) (not less)	mm	650
Working stroke (not less)	mm	0-350
Motor power	kW	indicate
Motor speed	rpm	indicate
Tank volume	L	indicate
