QC12Y/K CNC swing type shearing machine
QC12Y/K CNC swing type shearing machine
Product Features
1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.
Sample show
Accessories brand list
OPITING PART

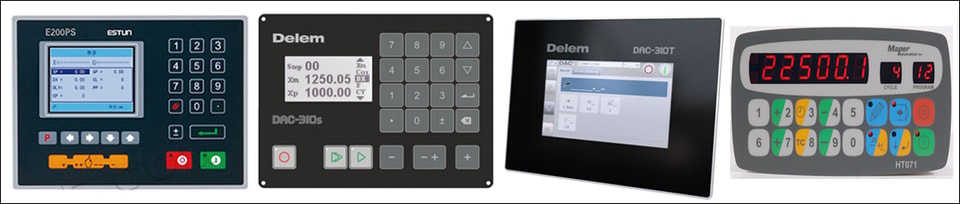

Controller
- Large Throat Gap
- Automatic Lubrication System
- Front Angle Gauge
- Laser cutting line
- Cooling System
- Automatic Feeding Table
- Automatic Feeding Table
- Back Safety System
Technical parameter
model | Shear plate thickness | Shearable plate width | Number of trips | Back gauge range | Shear angle | main motor power |
mm | mm | min -1 | mm | ° | kw | |
6×2500 | 6 | 2500 | 20-25 | 600 | 0.5-1.5 | 7.5 |
6×3200 | 6 | 3200 | 16-25 | 600 | 0.5-1.5 | 7.5 |
6×4000 | 6 | 4000 | 14-25 | 600 | 0.5-1.5 | 7.5 |
6×5000 | 6 | 5000 | 10-15 | 800 | 0.5-1.5 | 7.5 |
6×6000 | 6 | 6000 | 10-15 | 800 | 0.5-1.5 | 11 |
8×2500 | 8 | 2500 | 18-25 | 600 | 0.5-1.5 | 11 |
8×3200 | 8 | 3200 | 16-25 | 600 | 0.5-1.5 | 11 |
8×4000 | 8 | 4000 | 12-25 | 600 | 0.5-1.5 | 11 |
12×2500 | 12 | 2500 | 12-20 | 600 | 0.5-2 | 15 |
12×3200 | 12 | 3200 | 12-20 | 600 | 0.5-2 | 15 |
12×4000 | 12 | 4000 | 12-20 | 600 | 0.5-2 | 15 |
16×2500 | 16 | 2500 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×3200 | 16 | 3200 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×4000 | 16 | 4000 | 8-15 | 800 | 0.5-2.5 | 18.5 |
20×2500 | 20 | 2500 | 8-12 | 800 | 0.5-2.5 | 30 |
20×4000 | 20 | 4000 | 8-12 | 800 | 0.5-2.5 | 30 |
25×2500 | 25 | 2500 | 6-10 | 800 | 0.5-3.5 | 37 |
25×3200 | 25 | 3200 | 6-10 | 800 | 0.5-3.5 | 37 |
25×4000 | 25 | 4000 | 6-10 | 1000 | 0.5-3.5 | 37 |
32×2500 | 32 | 2500 | 6-8 | 1000 | 0.5-3.5 | 45 |
32×3200 | 32 | 3200 | 6-8 | 1000 | 0.5-3.5 | 45 |
