6-3200 QC12K swing type shearing machine with E21 controller
6-3200 QC12K swing type shearing machine with E21 controller
Product Features
1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.

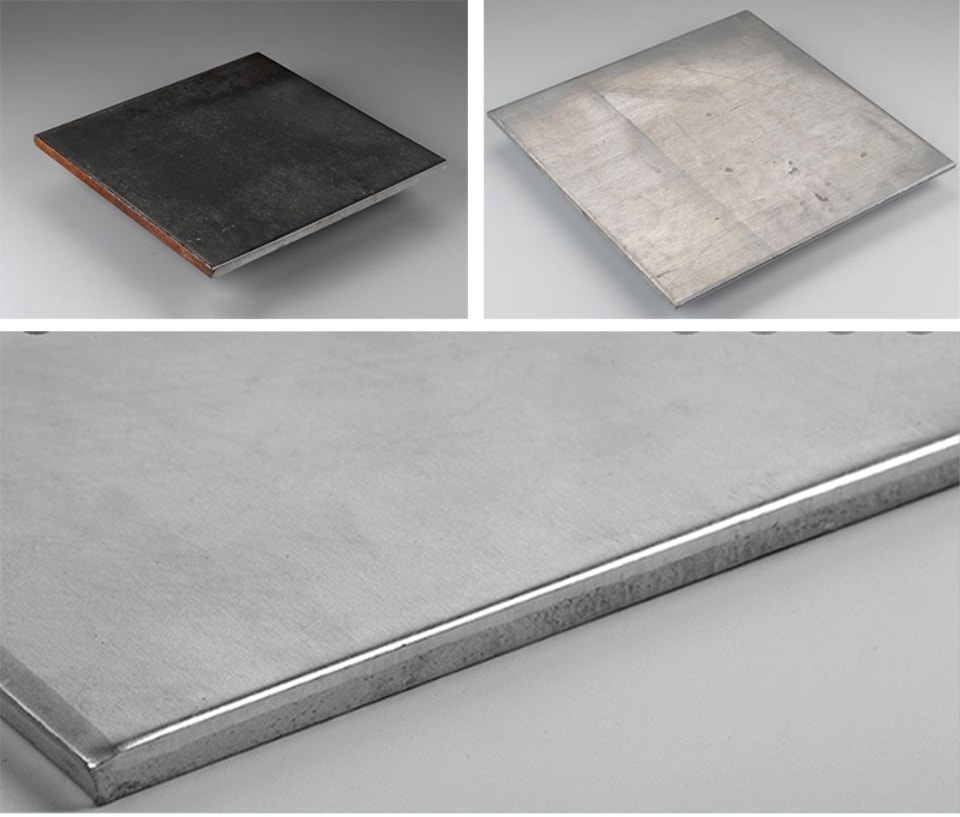

Sample show
Technical parameter
Name | Data | Unit | Remarks | |
Max cutting thickness | 6 | mm |
| |
Max cutting width | 3200 | mm |
| |
Intensity of the sheared material | 500 | N/mm2 |
| |
Shearing angle | 1°30′ |
| ||
Max stroke of back gauge | 20-600 |
| ||
Times of stroke | 14 | Per/min |
| |
Distance between vertical columns | 3400 | mm |
| |
The length of blade | 3300 | mm |
| |
Height of the work bench | 800 | mm |
| |
Main motor | Model | Y132M-4 |
| |
Power | 7.5 | KW |
| |
Speed | 1450 | rpm |
| |
Back gauge motor | Model | Y802-6 | B5 | |
Power | 0.55 | KW |
| |
Speed | 900 | rpm |
| |
Gear Pump | Model | 25MCY14-1B |
| |
Power | 25 | L/min |
| |
Pressure | 31.5 | MPa |
| |
Dimensions | Length | 3820 | mm |
|
Width | 1660 |
| ||
Height | 1620 |
| ||
Weight | 6100 | Kg | ||
Accessories brand list
PRODUCTS DETAILS
No | Acessory Name | Model/Manufacturer | Other | Configuration |
1 | CNC System | þE21 NC system Estun | Standard | |
2 | Electrics | Germany Schneider electric | Travel switch & Limit switch | |
3 | Main motor | Siemens motor | ||
4 | Frequency Converter | JRACDRIVE | Positioning control | |
Guaranteed precision | ||||
5 | Pedal Switch | South Korea KACON | ||
6 | Back gauge | Ball screw linear guide rail-Taiwan HIWIN | ||
7 | Hydraulic system | Bosch Rexroth Germany | ||
8 | Oil pump | SUNNY USA | ||
9 | Sealing ring | PARKER-America | ||
10 | Oil tube connector | Casing connector | ||
11 | Front safety guard | Produced by ERMAK | ||
12 | Back safety guard | Produced by ERMAK | ||
13 | Blade | One set of upper and down blade | ||
14 | Pressing device | Produced by ERMAK | ||
15 | Automatic Feeding Table | Produced by ERMAK | Optional | |
16 | Large Throat Gap | Produced by ERMAK | ||
17 | Automatic Lubrication System | Produced by ERMAK | ||
18 | Front Angle Gauge | Produced by ERMAK | ||
19 | Laser cutting line | Produced by ERMAK | ||
20 | Cooling System | Produced by ERMAK | ||
21 | Back Safety System | Produced by ERMAK | ||
22 | Pneumatic support | Produced by ERMAK | ||
23 | Light curtain protection | Kele | ||
24 | System options | E200P DA310 DA360 | ||
25 | Safety standard | þCE ¨CSA þNR-12 ¨OSHA | ||
SPARE PARTS AND SPECIAL TOOLS
Accessory | ||||
1 | GB801-2011 | Bolt M16X500 | Piece | 4 |
2 | GB7160-2016 | Nuts M16 | Piece | 4 |
3 | GB98-2015 | Inflatable tools | Piece | 1 |
4 | GB610-2014 | Electrical box key | Piece | 1 |
5 | GB766-2018 | Button box power key | Piece | 2 |
6 | GB568-2018 | Foot switch | Piece | 1 |
Spare parts | ||||
7 | GB689-2018 | O type seal ring | Piece | 17 |
8 | GB638-2018 | Combination seal ring | Piece | 16 |
LIST OF ACCOMPANYING DOCUMENTS:
Document | |||
1 | Manual Operation Book | Copy | 1 |
2 | Certification of CE | Copy | 1 |
3 | Packing list/Commercial Invoice ( Certification of Origin) | Copy | 1 |
4 | Inspection Qualified | Copy | 1 |
OPITION PART
Controller
- Cooling System
- Automatic Feeding Table
- Pneumatic Back Support
- Back Safety System

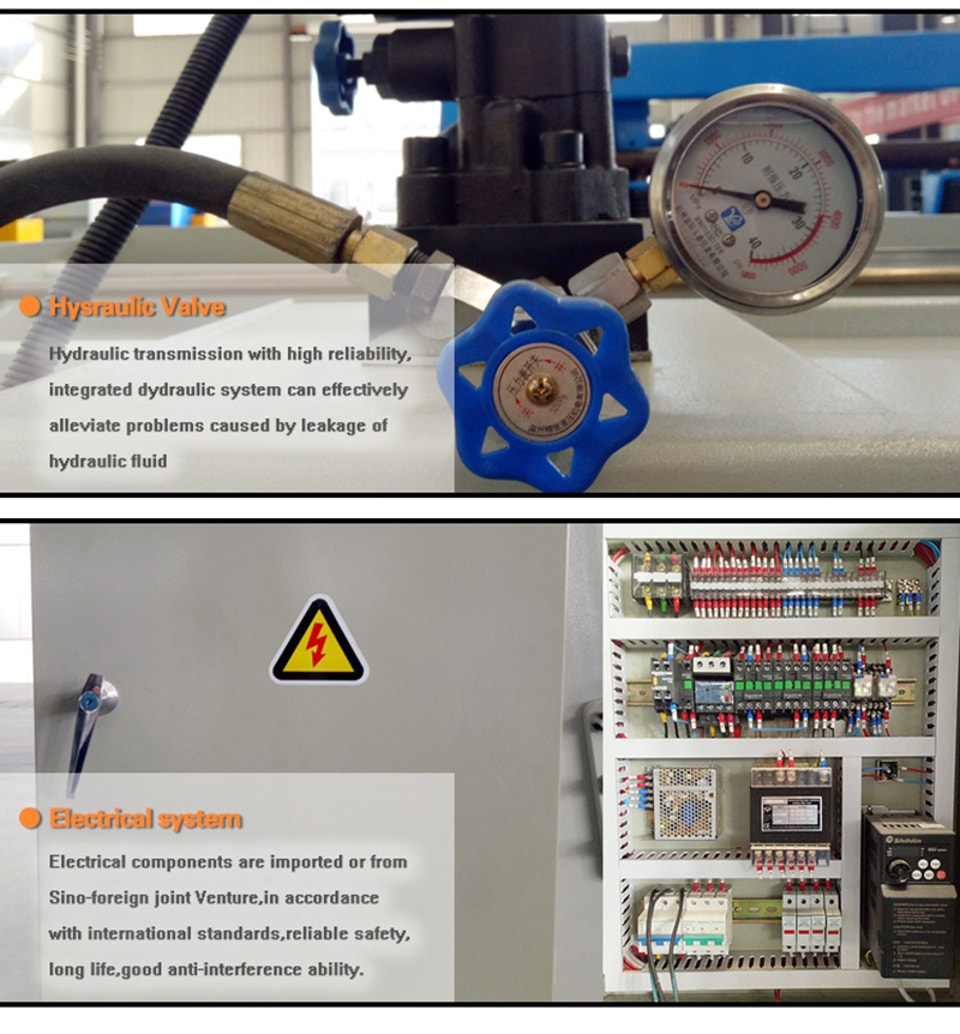

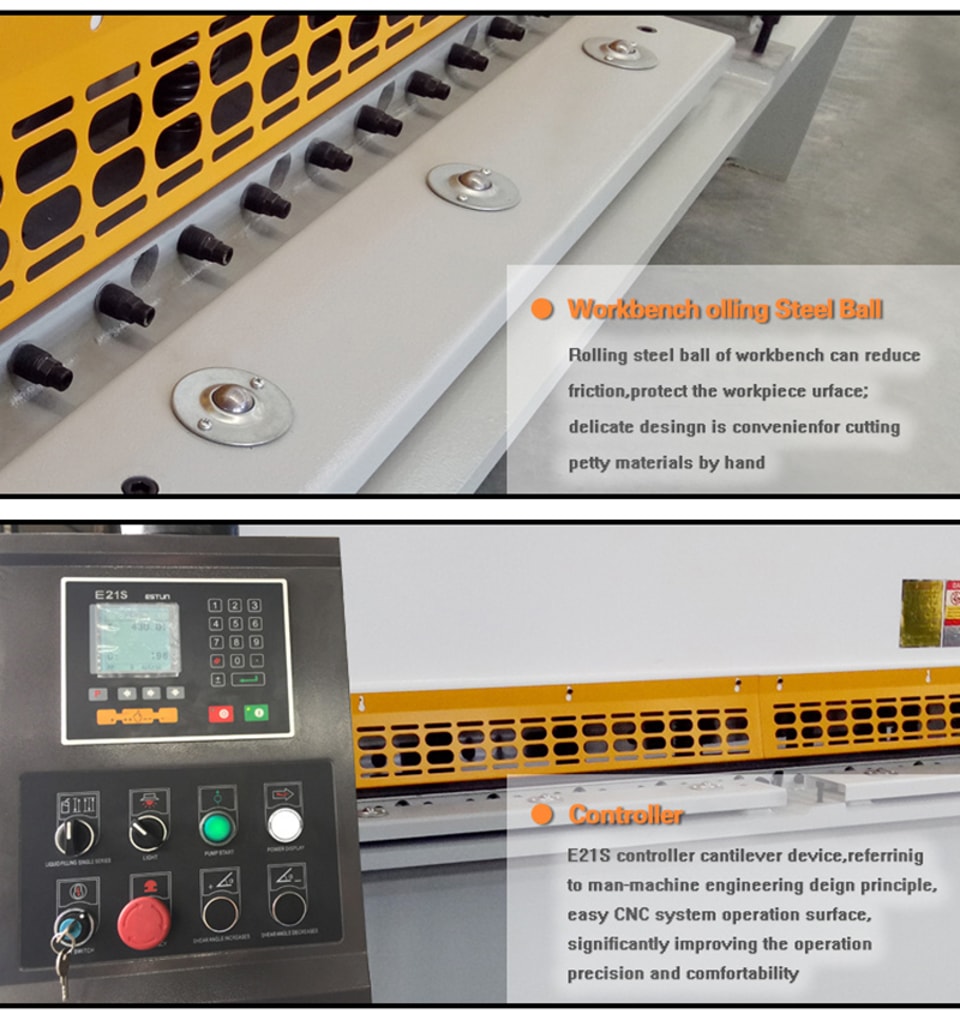

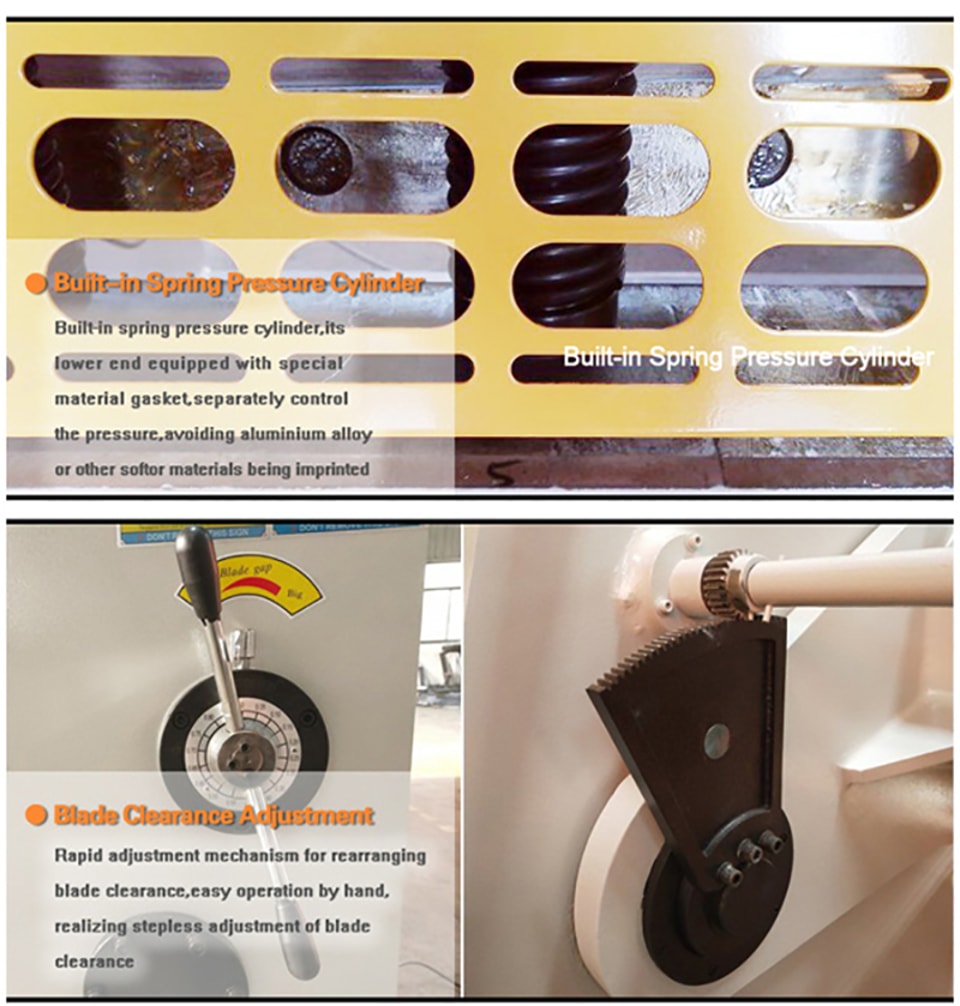

Products Details
PRODUCTS DISPLAY

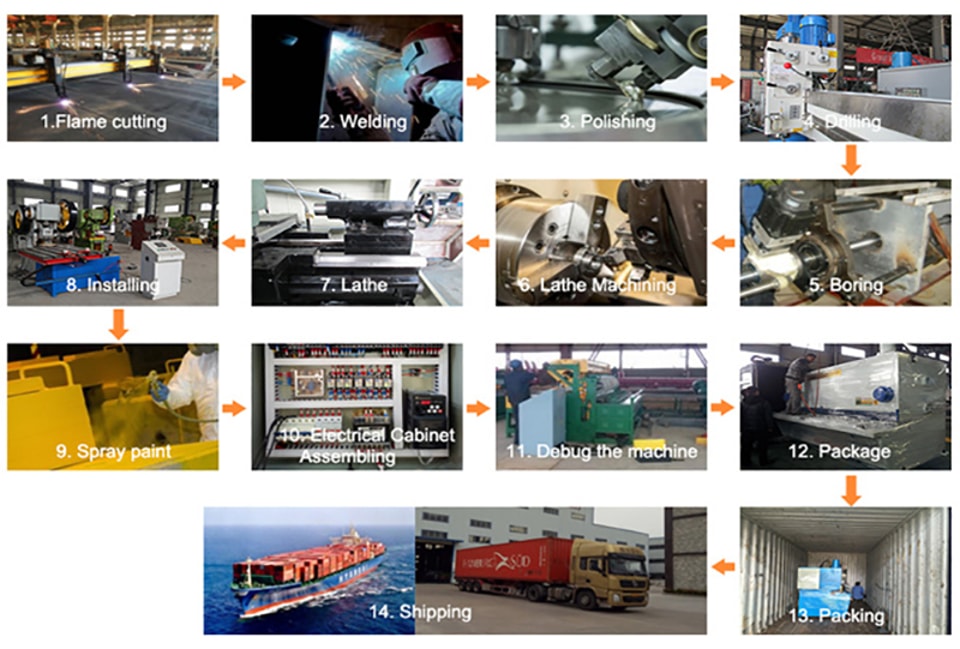

PRODUCTION FLOW
