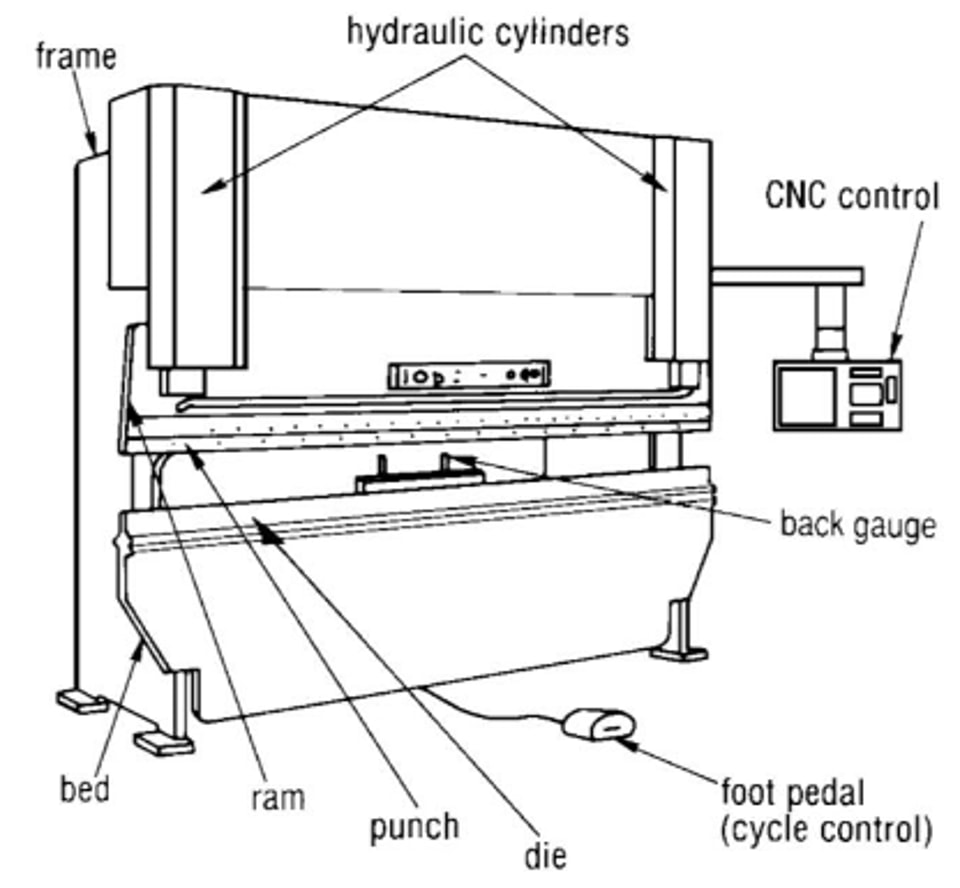

Product Features

1.Multi-language CNC operating system

2.Silent and reliable internal gear pump

3.Hydraulic system regulated by proportional valves

4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.

5.High precision optical lines

6.Adjustable clampings

7.Hardened, grinded tools and clamps for quick tools adjustment

8.Complete backgauge fingers on double linear guide

9. Stainless steel front supports adjustable in height

10.Automatic mechanical crowning

11.Electrical panel with high quality components

12.European safety standards Start&Stop system

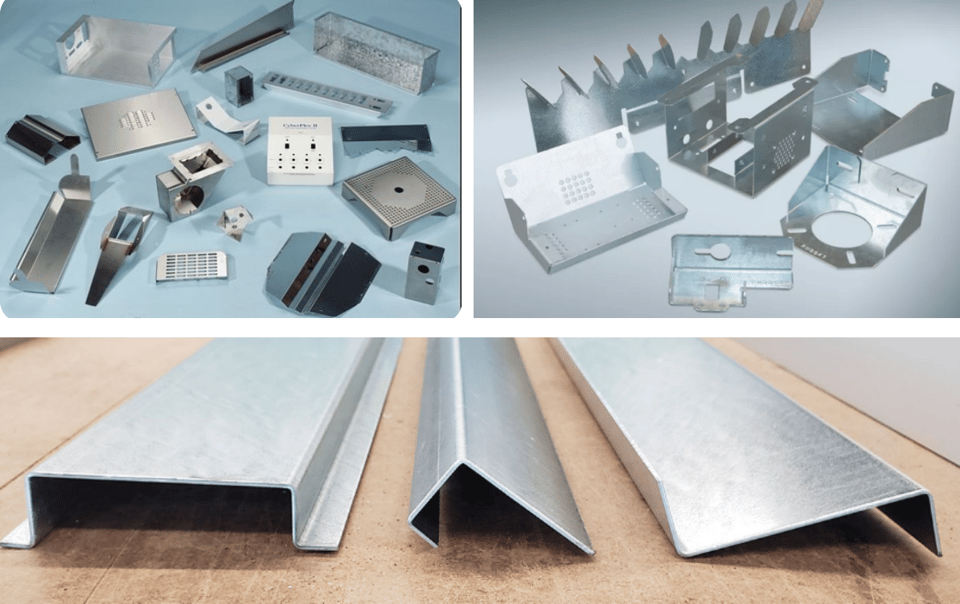

Sample show

Technical parameter

NO.	NAME		DATA	UNIT	Note
1	CNC Control Axis		Y1+ Y2+ X +R+V Crowing		4+1
2	Nominal Force		630	kn
3	Length Of Working Table		2500	mm
4	Distance Between Columns		2100	mm
5	Throat Depth		350	mm
6	Ram Stroke		200	mm
7	Max Open Height		550	mm
8	Working Speed	Full Down Speed	190	mm/s
		Working Speed	12
		Back Speed	180
9	X Axis	Range	600	mm
		Max Run Speed	250	mm/s
		Position Precision	0.02	mm
10	Y1 Y2 Axis	Range	200	mm
		Position Precision	0.02	mm
		Repeatability	0.01	mm
11	Oil Tank Capacity	Oil Number	46	No
		Quantity	300	Lts
12	Main motor	Type	Y132M-4		B5
		Power	5.5	KW
		Speed	1400	rpm
13	Gear piston pump	Type	HG1-16-01R-VPC
		Pressure	16	L/mi n
		Flow	31.5	MPa
14	Max working pressure of hydraulic system		25	MPa
15	Formal dimension	Length	2800	Mm
		Width	1450	Mm
		Height	2150	Mm
16	Weight		4800	Kg

Accessories brand list

No.	Name	Model/Manufacturer	Configuration
1	CNC System	þDELEM DA53T Controller	Standard
2	Electrics	Schneider electric
3	Main Motor	Siemens motor
4	Servo Motor	Estun/Inovance
5	Servo Drive	Estun/Inovance
6	Grating ruler	GIVI
7	Pedal Switch	South Korea KACON
8	Back Gauge	Ball screw linear guide rail-Taiwan HIWIN
9	Hydraulic System	Bosch Rexroth Germany
10	Oil pump	Rexroth
11	Sealing ring	PARKER-America
12	Oil tube connector	EMB Germany
13	Front safety guard	Produced by ERMAK
14	Back safety guard	Produced by ERMAK
15	Die	One set of standard dies
16	Clamping	Quick Changing clamping tools
17	Crowning mode	Mechanical Compensation
18	Laser Protection	DSP Italy	Option Part
19	Crowing	Hydraulic Compensation
20	Upper Clamping	Hydraulic Clamping
21	Down Clamping	Express Clamping
22	Foot Pedal	Wireless
23	Sheet Supports Systems	Pneumatic
24	Bending Line	Laser
25	Angle Measurement System	Laser
26	Special Fingers	By Order
27	Front Support	CNC/Robot
28	Option Axis	R1 R2 X1 X2
29	System options	DA58T DA66T DA69T ETC
30	Safety standard	þCE ¨CSA þNR-12 ¨OSHA

SPARE PARTS AND SPECIAL TOOLS

Accessory
1	GB801-2011	Bolt M16X500	Piece	4
2	GB7160-2016	Nuts M16	Piece	4
3	GB98-2015	Inflatable tools	Piece	1
4	GB610-2014	Electrical box key	Piece	1
5	GB766-2018	Button box power key	Piece	2
6	GB568-2018	Foot switch	Piece	1
Spare parts
7	GB689-2018	O type seal ring	Piece	17
8	GB638-2018	Combination seal ring	Piece	16
