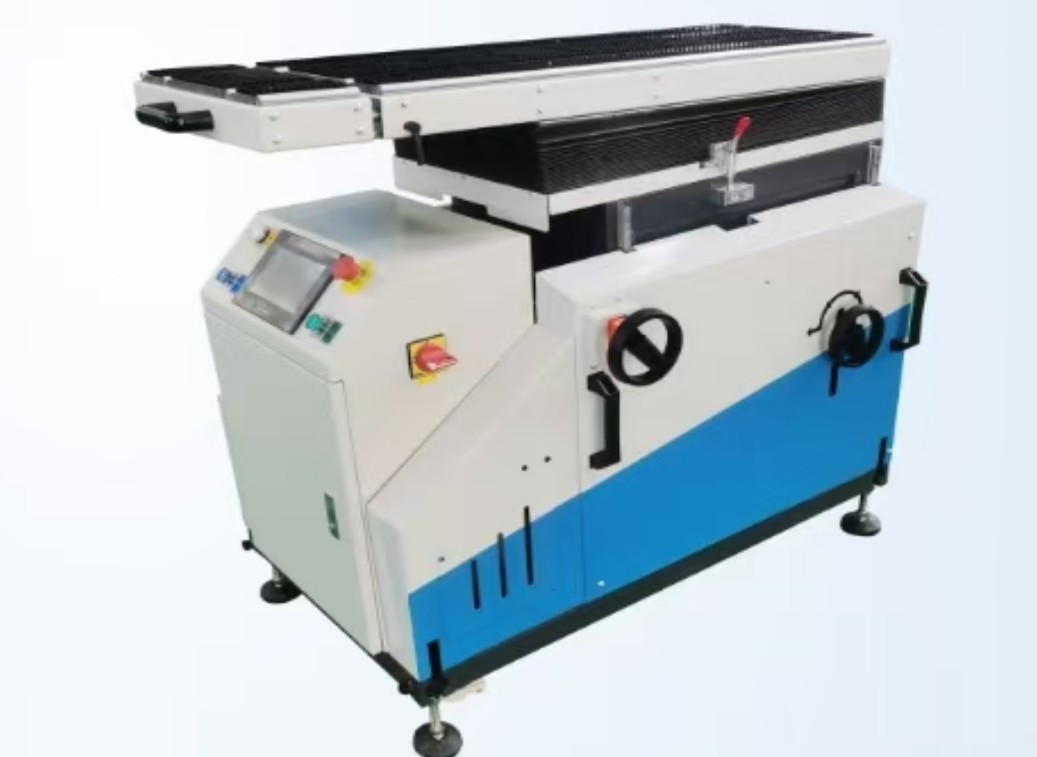

Bending follower BF-01

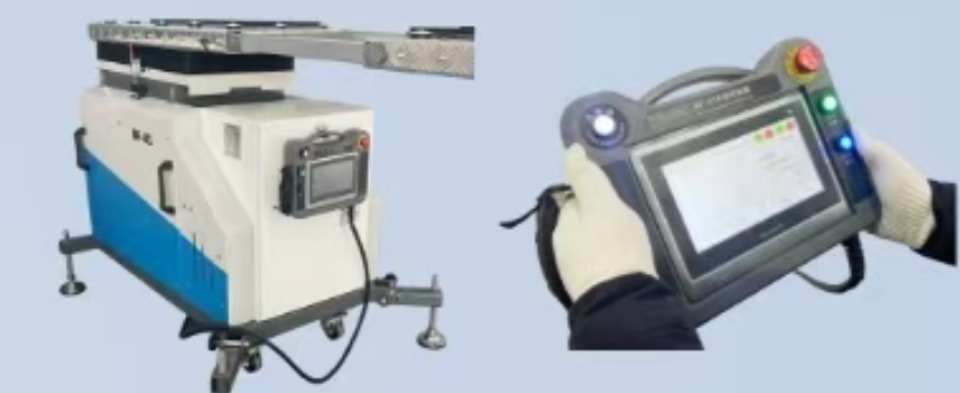

Human Machine Interface-----------Handheld Controller

*Connectable to WIFI

*Use Modbus protocol to achieve automatic and efficient PLC communication

*Provide offline simulation and online simulation to facilitate human-machine interface program debugging and system debugging

*No need to add: grating ruler, encoder

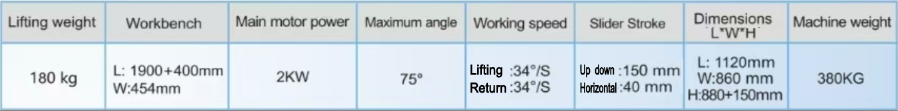

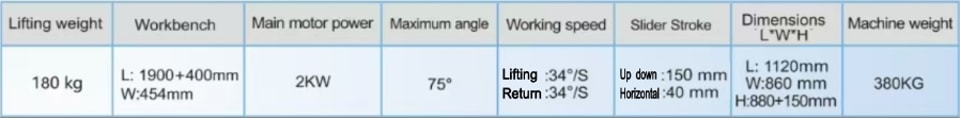

BF-01 Main Technical Parameters

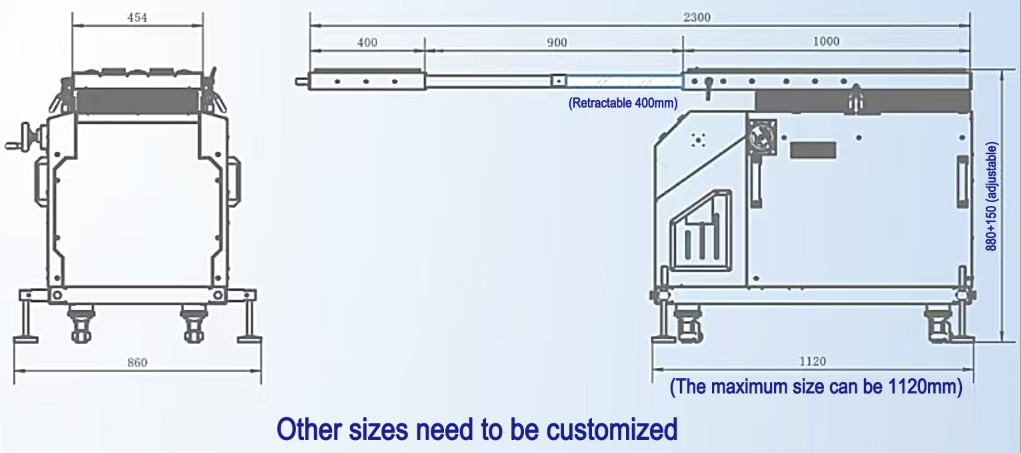

BF-01 folding check follower vehicle dimensions

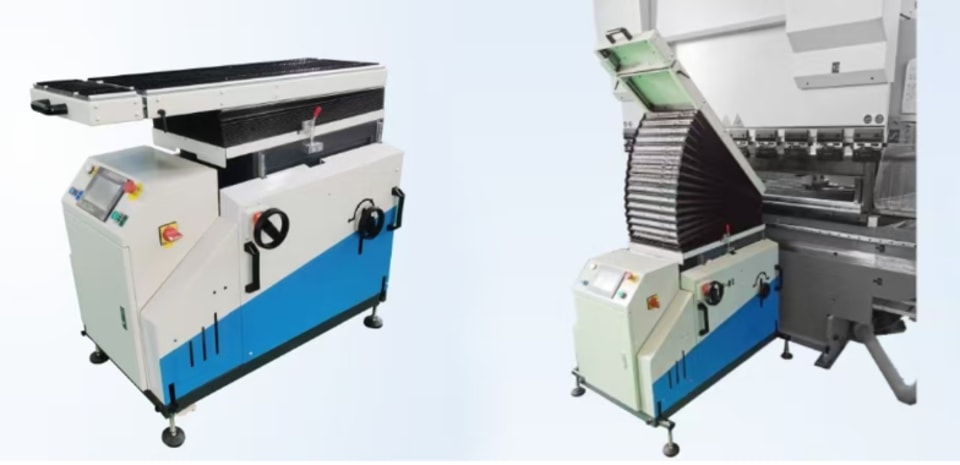

BF-01 Advantages

*Suitable for bending oflarger sheet metal, reducing labor costs.

*lmprove processing eficiency and ensure the accuracy of the bending angle

*Accurately read Y-axis moving displacement data, Optical scale data, and keep 100% synchronization with Y-axis.

*Independent control system, it is convenient to write, store and record

*Suitable for matching with lt can be matched with different brands of press brakes

*According to the size of the die and the V port, it can be adjusted to move up, down, forward and backward.

*Equipped with a brush worktable to prevent the sheet metal frombeing scratched, slipped or dropped,Equipped with ball bearings suitable for free rotation of heavier plates

*Flexible and easy to use, easy to install and unload, realize one followerfor sharing mode to multiple press brakes
