W24Y-6 Hydraulic profile bending machine
W24Y-6 Hydraulic profile bending machine

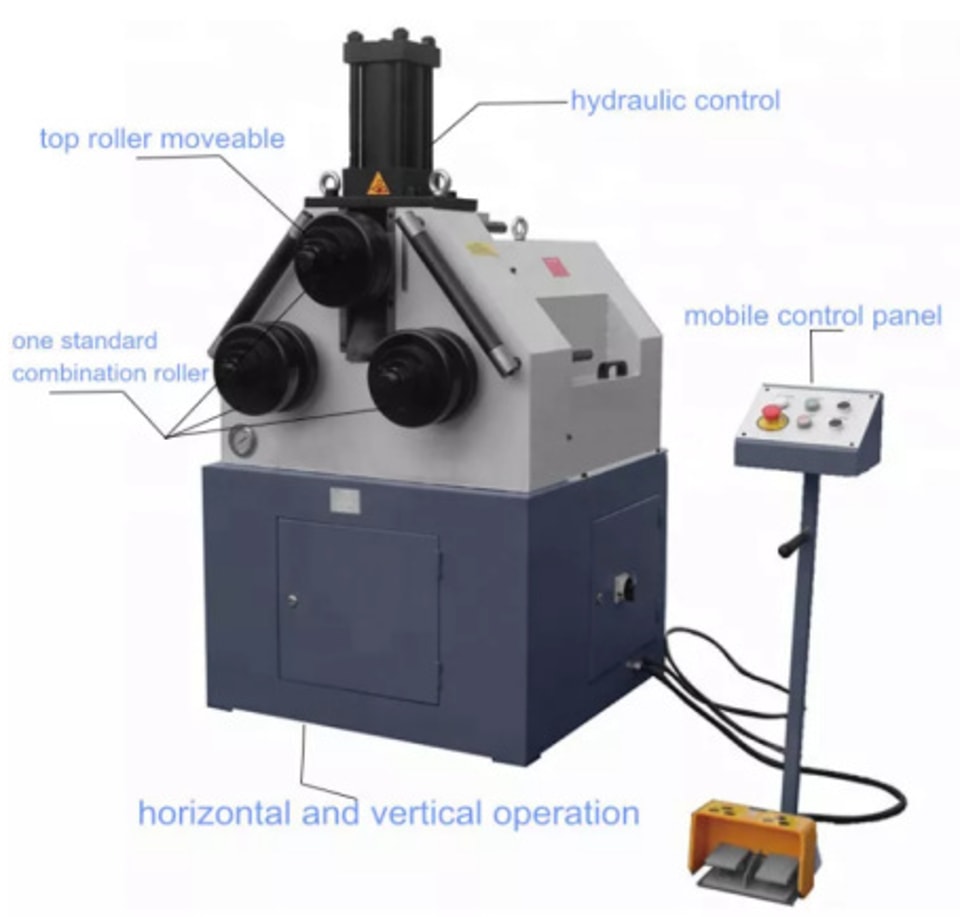

Main structural features
1.Lower rollers can be moved by motor and top rollers moved by hydraulic system.
2. Machine can make better-quality profile by changing distance among rollers.
3. Machine has high quality steel structure, hardened shaft, hardened standard rollers.
4. Machine can be made to horizontal and vertical type.
5. The foot switch is on and off, easy to operate.
6. The machine adapts to medium, mass production, the speed is fast, the efficiency is high.
Application

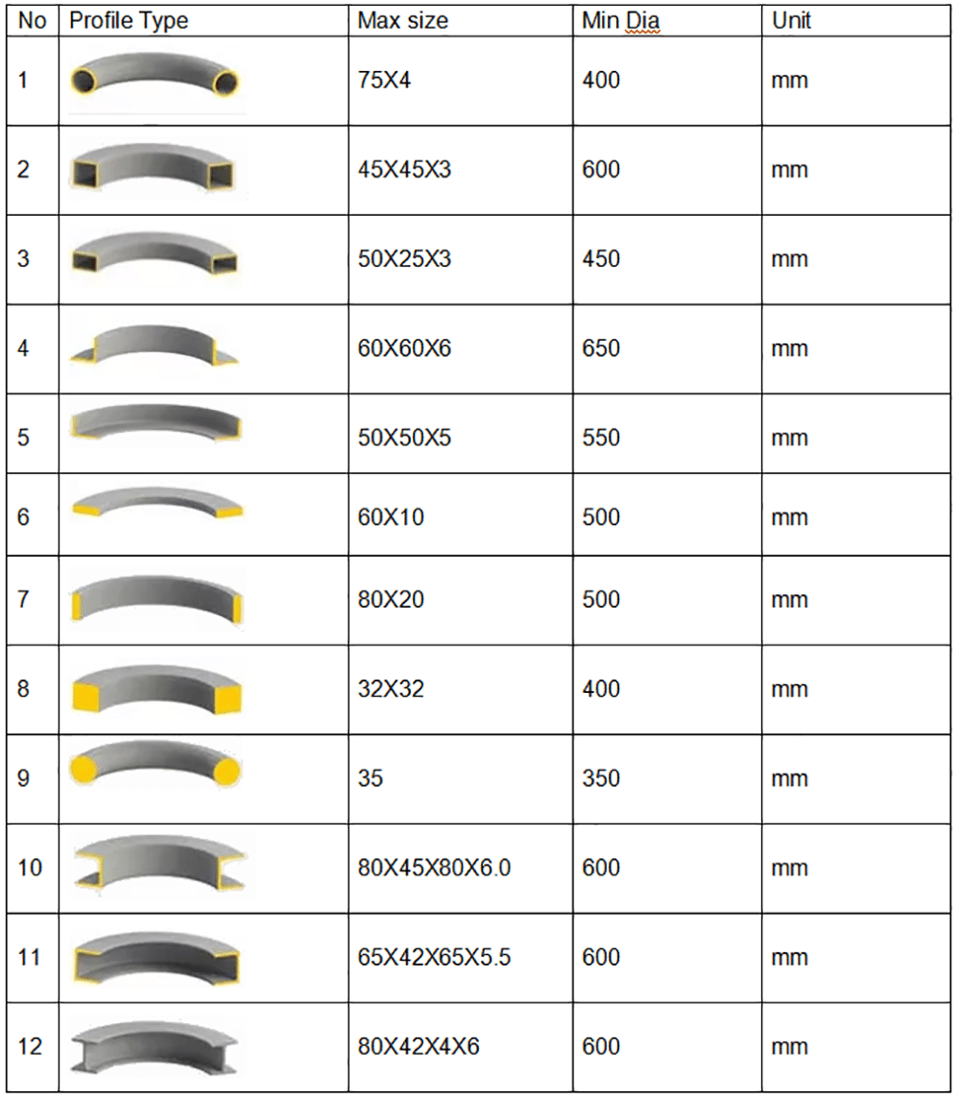

It can process various metal profiles, such as Angle steel, flat steel, round steel and other cross section profiles.
Sample show
Technical parameter
NO. | Name | DATA | UNIT | REMARKS | |
1 | Diameter of roller | 65 | mm |
| |
2 | Rolling Speed | 9 | m/min |
| |
3 | Main Motor | 2.2 | KW |
| |
4 | Max working pressure of hydraulic system | 25 | MPa |
| |
5 | Formal dimension | Length | 1300 | Mm |
|
Width | 1200 | Mm |
| ||
Height | 1800 | Mm |
| ||
6 | Weight | 1000 | Kg | ||
Capacity
Accessories brand list
No. | Name | Model/Manufacturer | Other | Configuration |
1 | Controller | þ Button | Standard | |
2 | Electrics | Germany Schneider electric | Travel switch & Limit switch | |
3 | Main motor | Siemens motor | ||
4 | Pedal Switch | South Korea KACON | ||
5 | Hydraulic system | Bosch Rexroth Germany | ||
6 | Oil pump | SUNNY USA | ||
7 | Sealing ring | PARKER-America | ||
8 | Oil tube connector | Casing connector | ||
9 | Work Roller | 42CrMo Alloy steel | ||
10 | Transducer | OMRON Japan | ||
11 | Molds of Round pipe | Produced by JUGAO | Optional | |
12 | Safety standard | √ CE CSA √ NR-12 OSHA | ||
SPARE PARTS AND SPECIAL TOOLS
Accessory | ||||
1 | GB801-2011 | Bolt M16X500 | Piece | 4 |
2 | GB7160-2016 | Nuts M16 | Piece | 4 |
3 | GB610-2014 | Electrical box key | Piece | 1 |
4 | GB568-2018 | Foot switch | Piece | 1 |
Spare parts | ||||
5 | GB689-2018 | O type seal ring | Piece | 17 |
6 | GB638-2018 | Combination seal ring | Piece | 16 |
LIST OF ACCOMPANYING DOCUMENTS:
Document | |||
1 | Manual Operation Book | Copy | 1 |
2 | Certification of CE | Copy | 1 |
3 | Packing list/Commercial Invoice( Certification of Origin) | Copy | 1 |
4 | Inspection Qualified | Copy | 1 |
OPITION PART
- Molds of round pipe

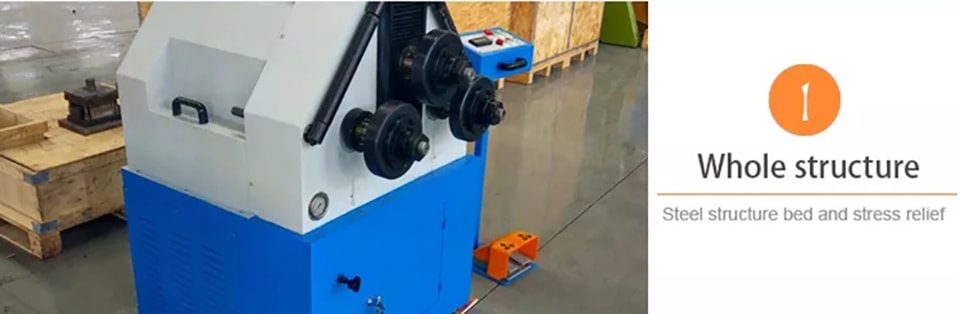

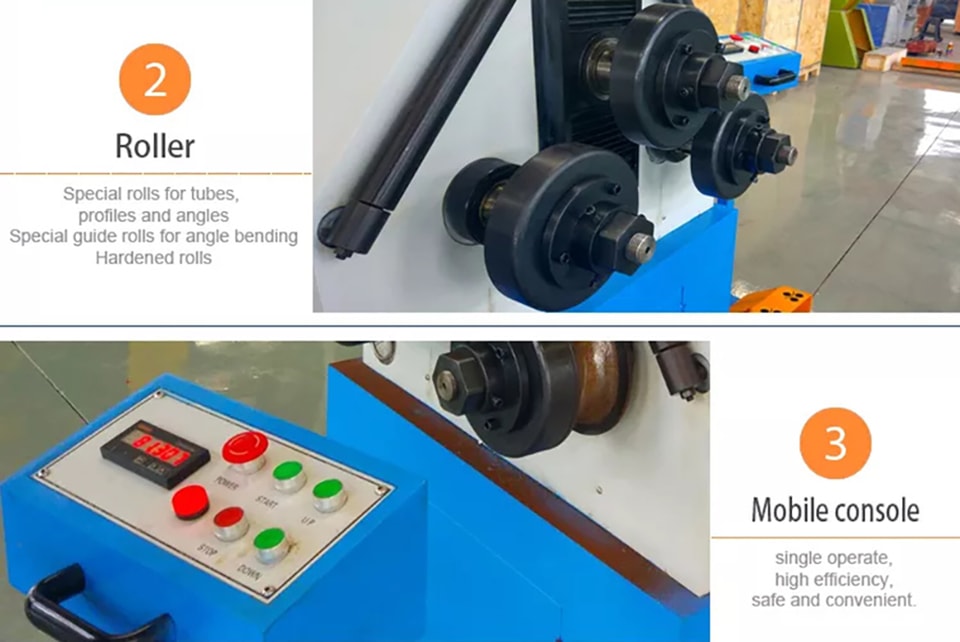

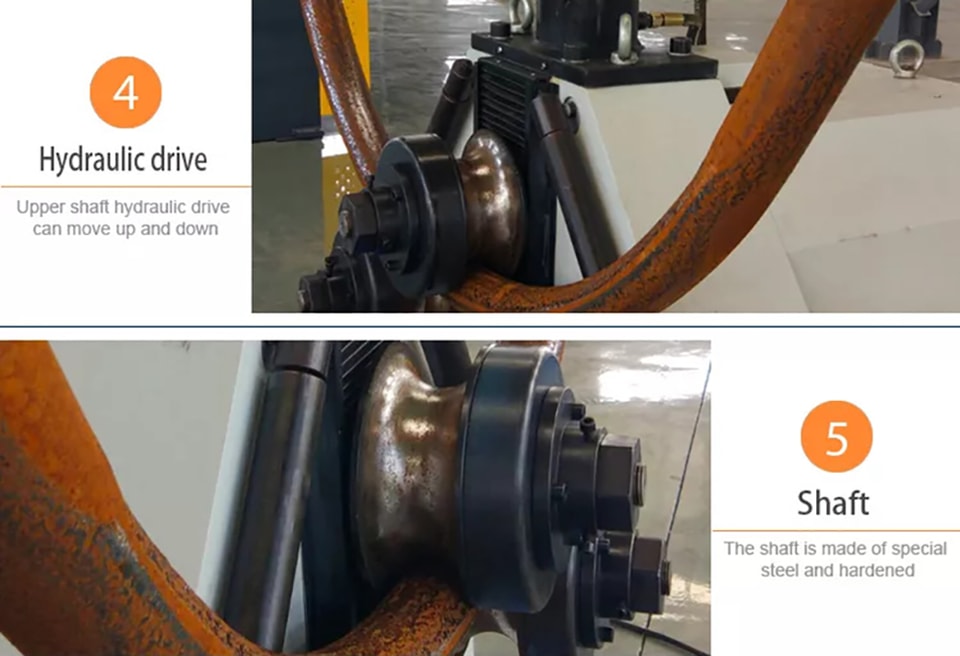

PRODUCTS DETAILS
PRODUCTS DISPLAY
PRODUCTION FLOW
SHIPPING
GLOBAL COOPERATION
WARRANTY:
3 YEARS
